Description
About this Product

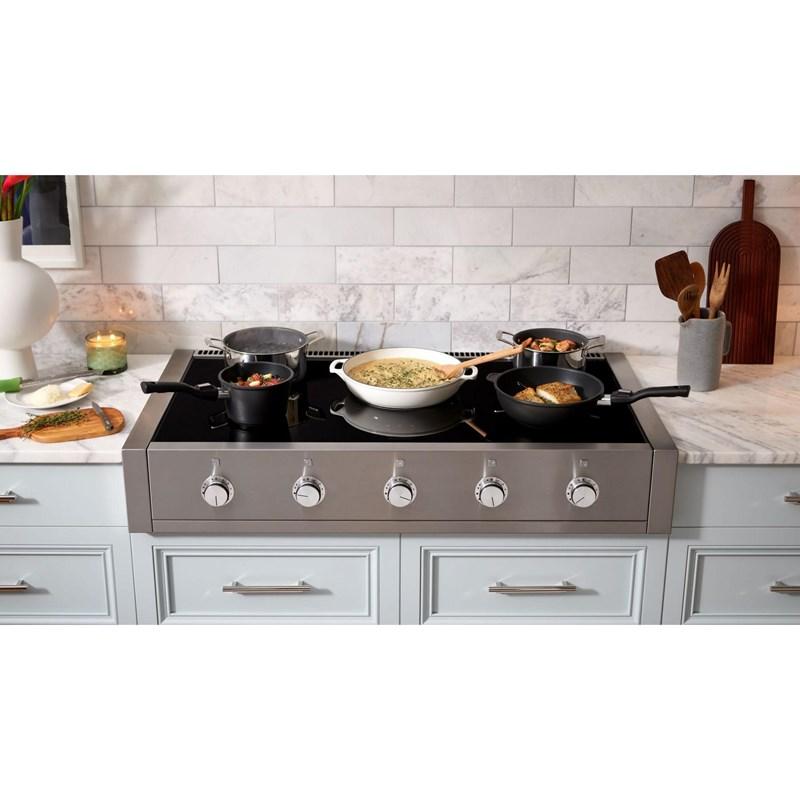

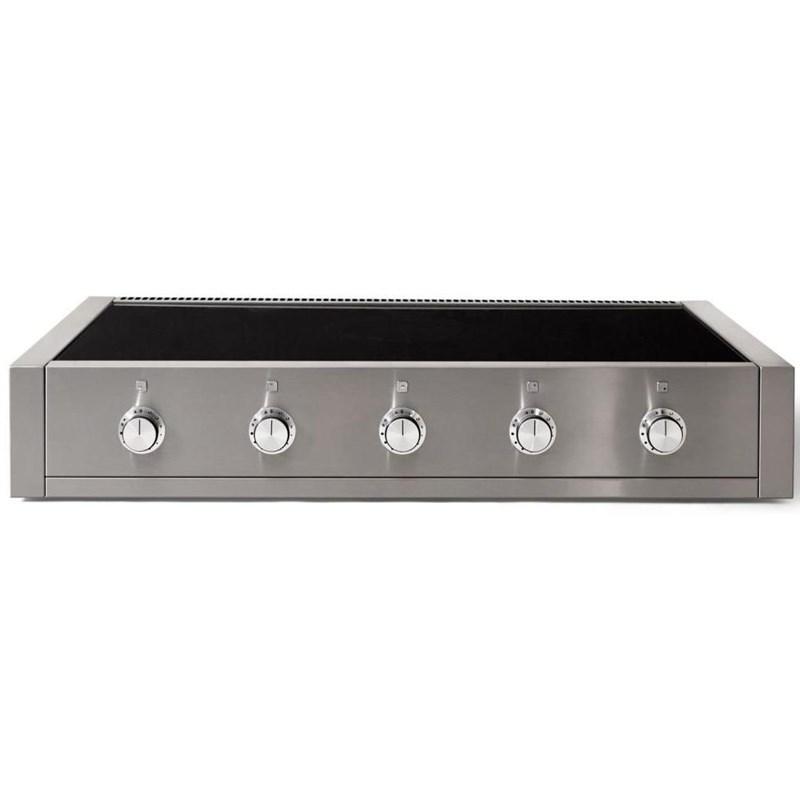

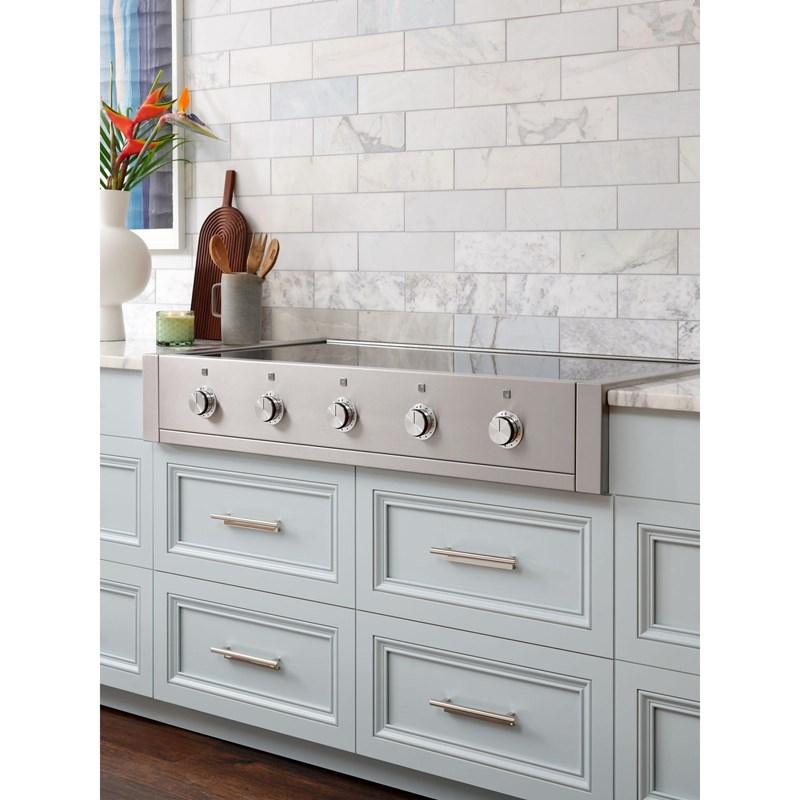

AGA 36-inch induction rangetop. Designed and built in the UK, the AGA Mercury 5-zone Induction Rangetop is a technical masterpiece, the embodiment of exquisite quality and stylish, thoughtful design.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights

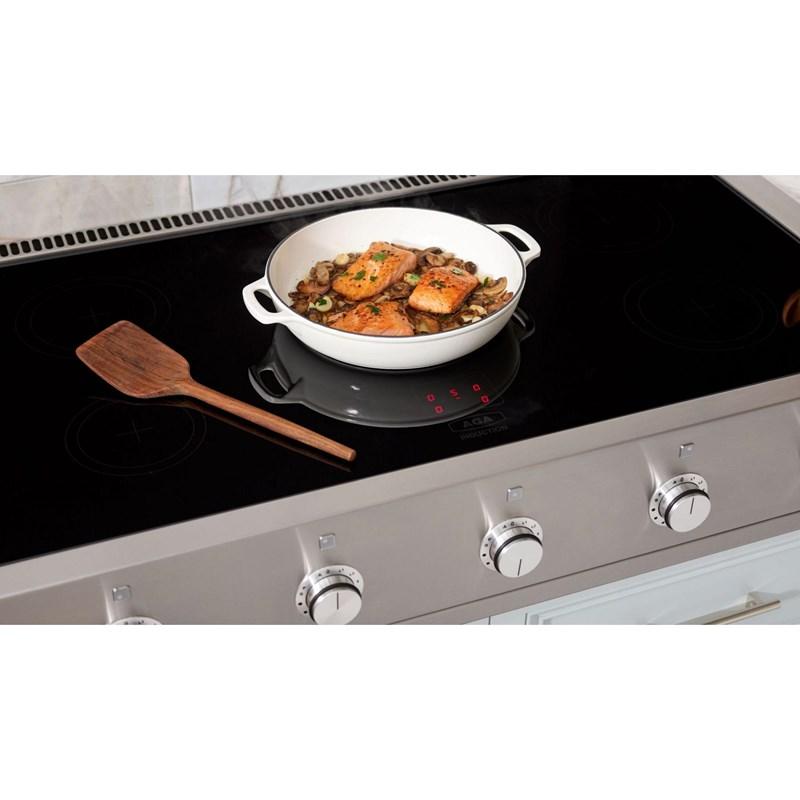

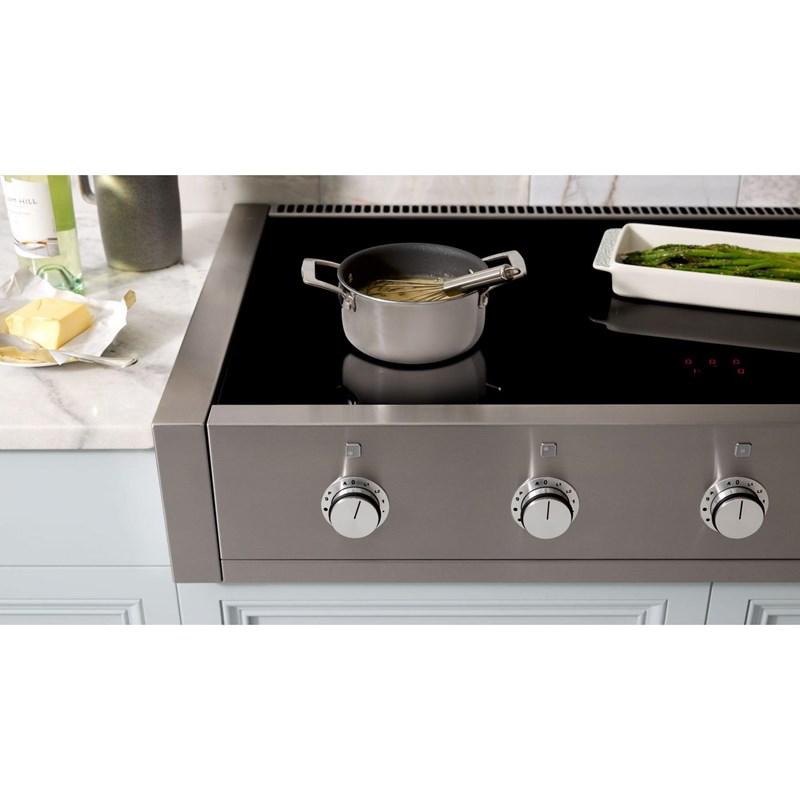

Extra-large 35 1/2" W x 21 1/2" D ceramic glass surface with 5 induction burners and facia touch controls efficiently utilizes / transfers / captures 90% of energy generated compared to only 55% with that of a traditional gas burner | Hob display features: 3700w boost, residual heat indicator, 9 power settings, overheat detection and child safety lock. | 5 Hi-Fi Style Infinite Controls turn with stereo-like grace
Specifications
| Height | 20.7 cm | Width | 90.0 cm | Class Width | 36" |
| Weight | 40 kg | Depth | 67.8 cm | Type | Rangetop |
| Series Name | Mercury | Fuel Type | Electric Induction | Color | Stainless Steel |
| Manufacturer Color | Stainless Steel | Warranty | 2 Year Warranty on parts and labor with the exception of cosmetic damage | Control Lock | Y |
| Elements | Smoothtop | Burners/Elements | 5 | ||
| Information Electric Supply: 240 V 60 Hz | Electric Rating: 240V (2 Wire + Grd), 60Hz, 11.4 kW | Branch Circuit Protection: 50 A | Connection Type: NEMA 14-50 P | |||||
| Power Output Front Left Element: 1.4 kW (Max) 2.2 kW (Boost) | Rear Left Element: 1.85 kW (Max) 3.0 kW (Boost) | Center Element: 2.3 kW (Max) 3.7 kW (Boost) | Front Right Element: 1.85 kW (Max) 3.0 kW (Boost) | Rear Right Element: 1.85 kW (Max) 3.0 kW (Boost) | |||||
