Description
About this Product
36-inch wall mount hood features an 860 CFM, LED lights and Baffle Filter.
Documents
Product Sheet (en)

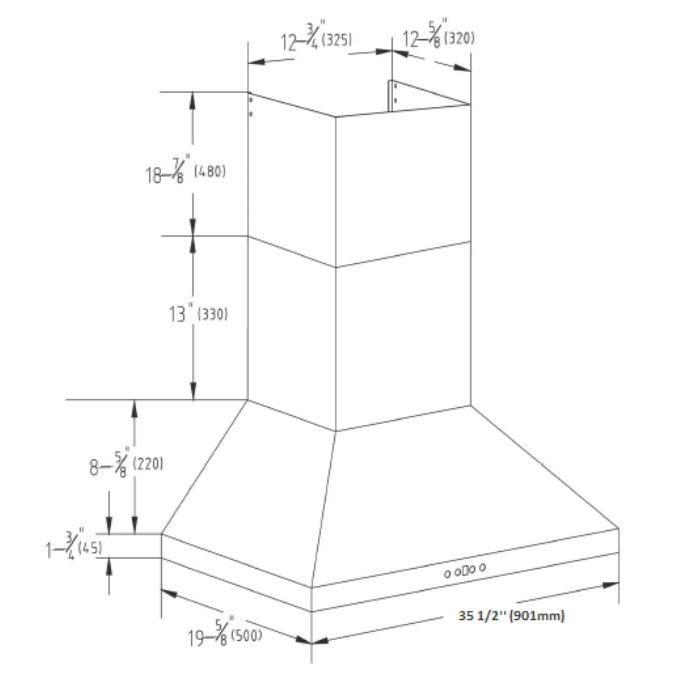

Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights

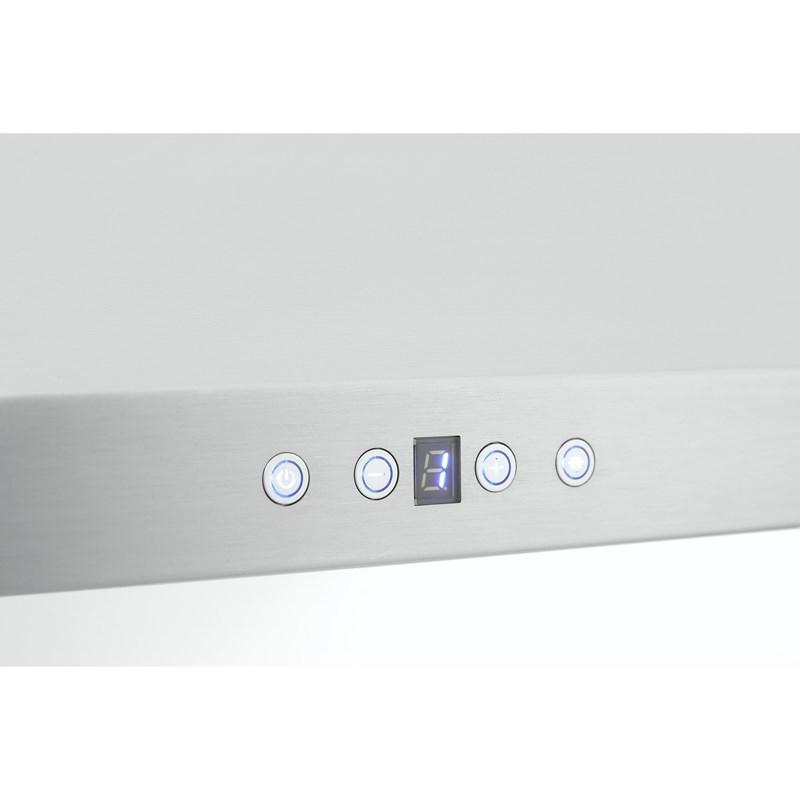

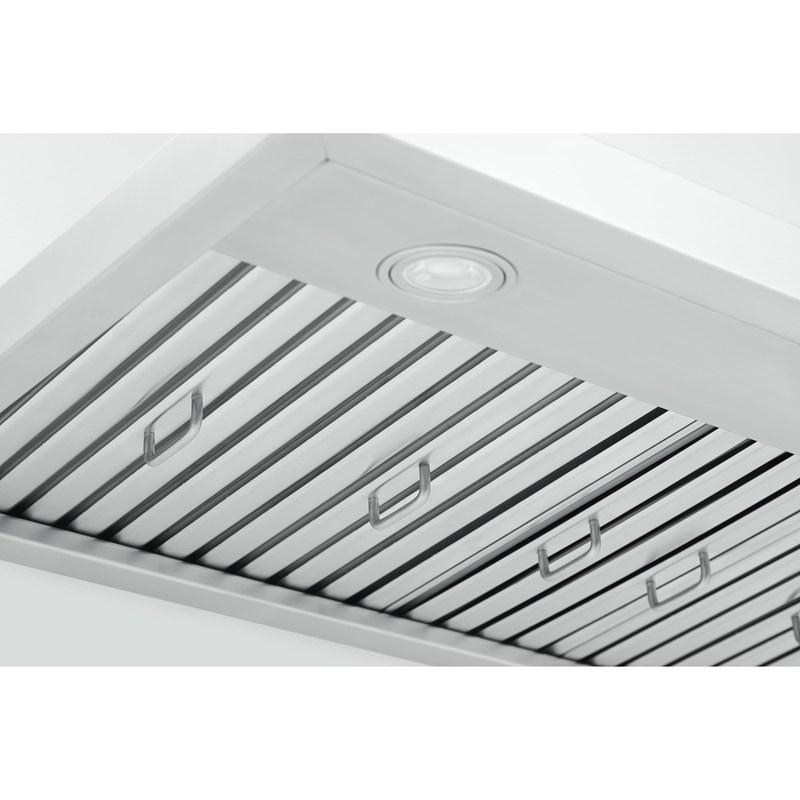

0.7 sones (min.) to 6.5 sones (max.) | For ceiling heights up to 90" | 2 baffle filters (stainless steel) | Control: Soft touch with LED display | Lighting: 2 bulbs, 3W LED (bulbs included) | LED lighting (3W)
Specifications
| UPC# | 628173080287 | Weight | 31.71 kg | Depth | 50.17 cm |
| Height | 26.35 cm | Width | 90.17 cm | Class Width | 36" |
| Warranty | 1 Year Parts and Labor | Series Name | Oregon | Style | Chimney |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Airflow | 860 CFM | Speeds | 6 Speeds |
| Optional Optional duct covers: AD-884S (884mm, AVN-AVH compatible) | |||||
| Ducting Information Ducting: 3 1/4" x 10" (Rear) | 6" round duct transition included | |||||
| Information 120V / 60Hz / 2.7 Amps | |||||
Accessories
Optional duct covers: AD-884S (884mm, AVN-AVH compatible)
