Description
About this Product

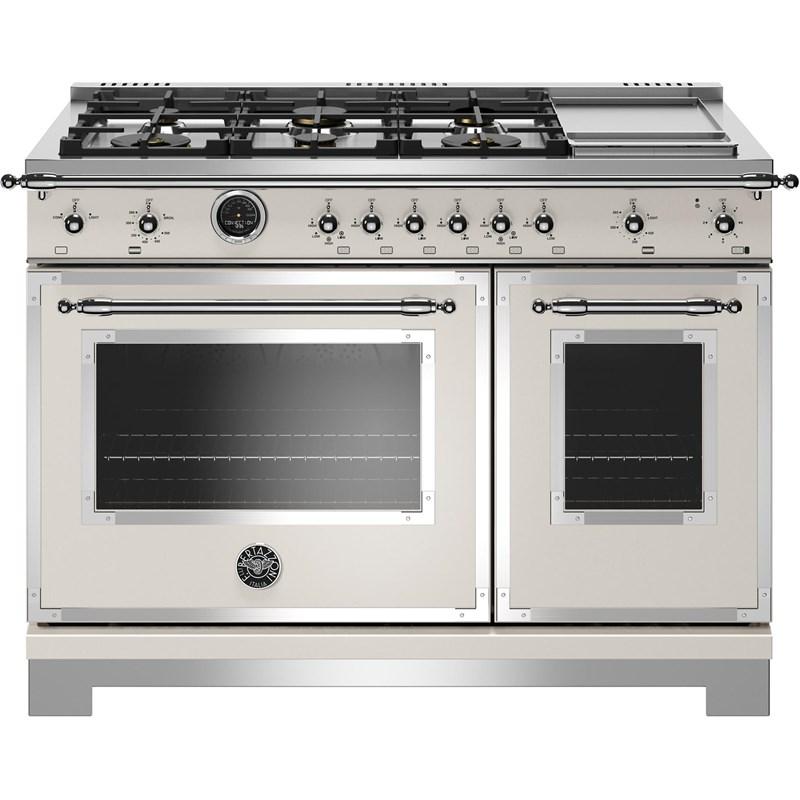

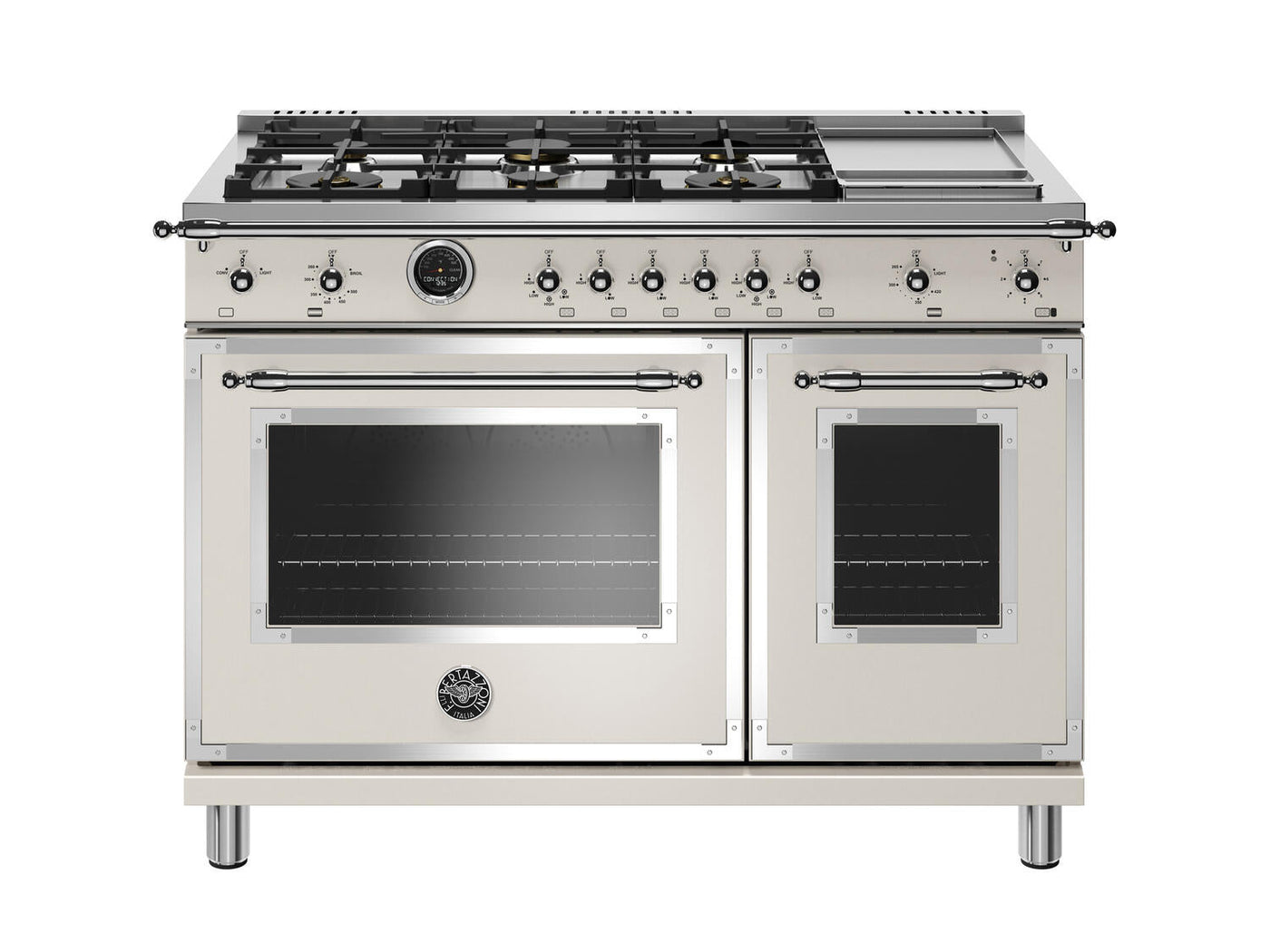

Bertazzoni Heritage Series 48" dual-fuel range with 6 brass burners and electric griddle. It features 2 dual ring 19,000 BTU power-burners that boil water in under 6 minutes, and 4 additional MonoBloc burners of variable size and power to suit every style of cooking, with delicate simmer at 750 BTU. The stainless steel griddle with integrated cover provides additional cooking options.
Features

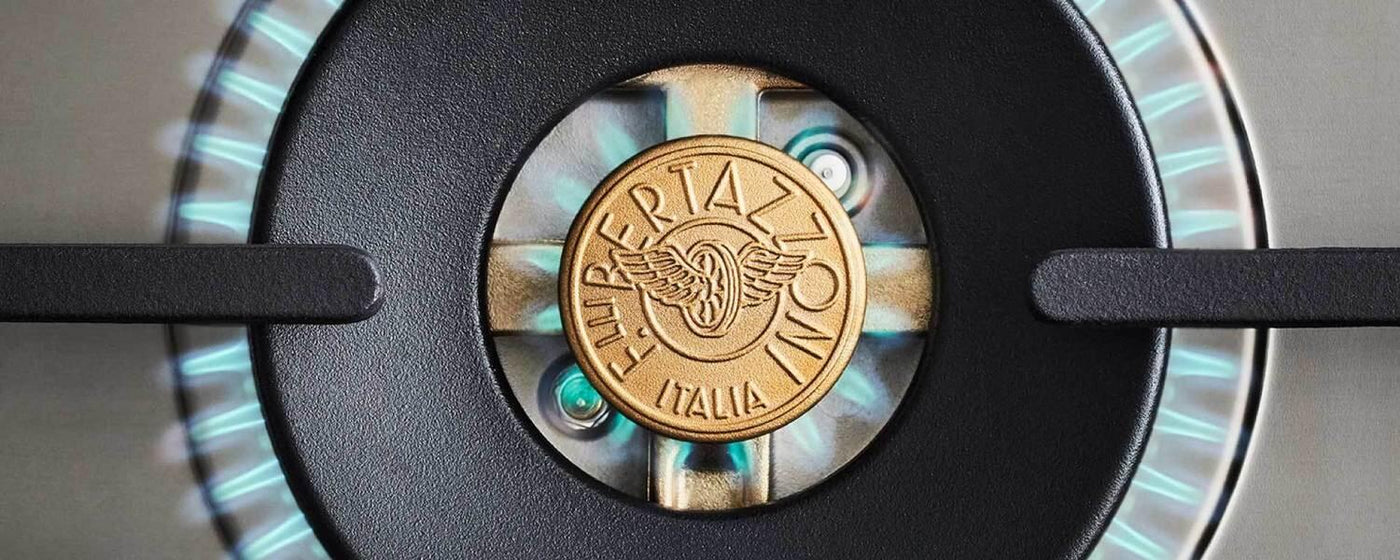

- BRASS BURNER — Bertazzoni’s exclusive power burners in brass have independently operated flame rings giving maximum flexibility of operation from delicate low simmer to full power.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Videos
Heritage Series | Free standing range
Highlights
6 Monobloc brass burners + stainless steel griddle with cover | Solid metal knobs | Ignition system: Electric with thermocouple safety device | Cast iron grates | Dual diagonal fans convection | Food temperature probe | Soft-close oven door | Power connection: NEMA 14-50P plug with 59" cord
Specifications
| Number of Ovens | Double | Burners | Sealed | Other | Griddle |
| Self-Cleaning | Y | Convection | Y | Height | 90.81 cm |
| Width | 121.92 cm | Depth (Without Handles) | 63.98 cm | Class Width | 48" |
| Depth (Including Handles) | 69.53 cm | Fuel Type | Dual Fuel - Natural Gas | Installation Type | Freestanding |
| Manufacturer Color | Ivory | Series Name | Heritage Series | Color | Beige |
| Appliance Care | Pyrolytic Self-Clean (main oven) | Warranty | 2-year warranty on parts and labor | ||
| Capacity (cu. ft.) Main oven: 4.6 cu. ft. | Aux oven: 2.4 cu. ft. | |||||
| Programs Main oven: Warming/Proofing/Dehydrate, Bake, Convection, Convection Bake, Broil, Convection Broil, Pizza, Clean | Aux oven: Bake, Grill, Upper Bake, Traditional Bake | |||||
| Burners/Elements Output 2 power burners: 1300 - 19000 BTU | 1 large burner: 2500 - 10400 BTU | 2 medium burners: 1500 – 5900 BTU | 1 simmer burner: 750 – 3500 BTU | Griddle power: 1100 W | |||||
| Information 120/240V 60 Hz – 8500W | 120/208V 60 Hz - 6800W | 40 Amp dedicated circuit | |||||
| Optional | |||||
| Included Main oven: 2 shelves; 2 set of telescopic glides | Aux oven: 2 shelves; 2 set of telescopic glides | Baking tray with grill trivet | 1" stainless steel island trim | Wok ring | Simmer ring | |||||
Accessories
• TKHERX: Square legs covers - set of 2
• CIG36: Cast iron griddle
• 901471: Set of telescopic glides for oven rack
• 901272: Bertazzoni white porcelain baking dish
• BGH48: 4" backguard
• Aux oven: 2 shelves; 2 set of telescopic glides
• Baking tray with grill trivet
• 1" stainless steel island trim
• Wok ring
• Simmer ring
