Description
About this Product

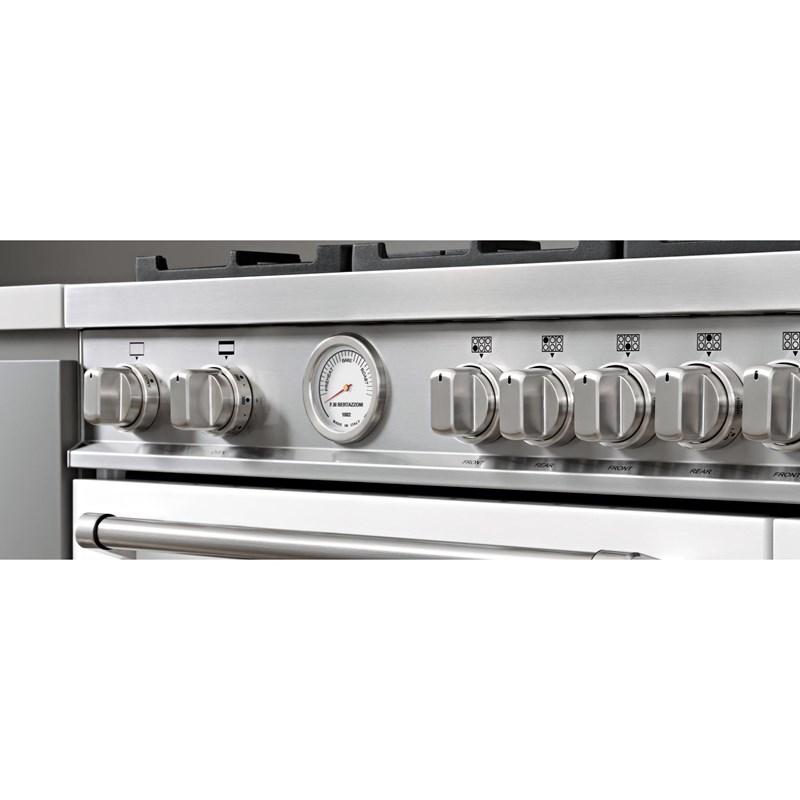

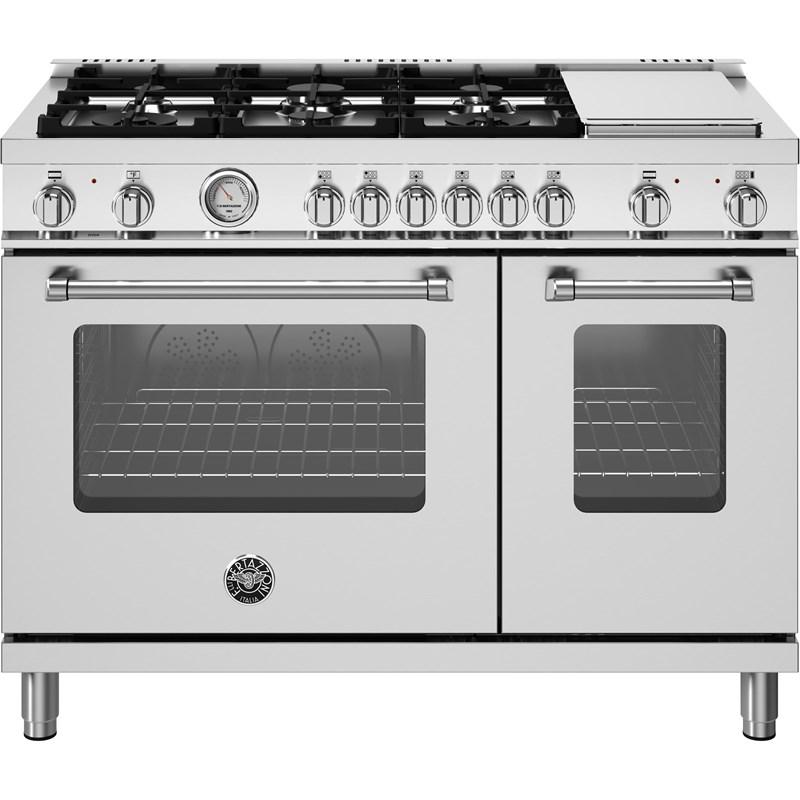

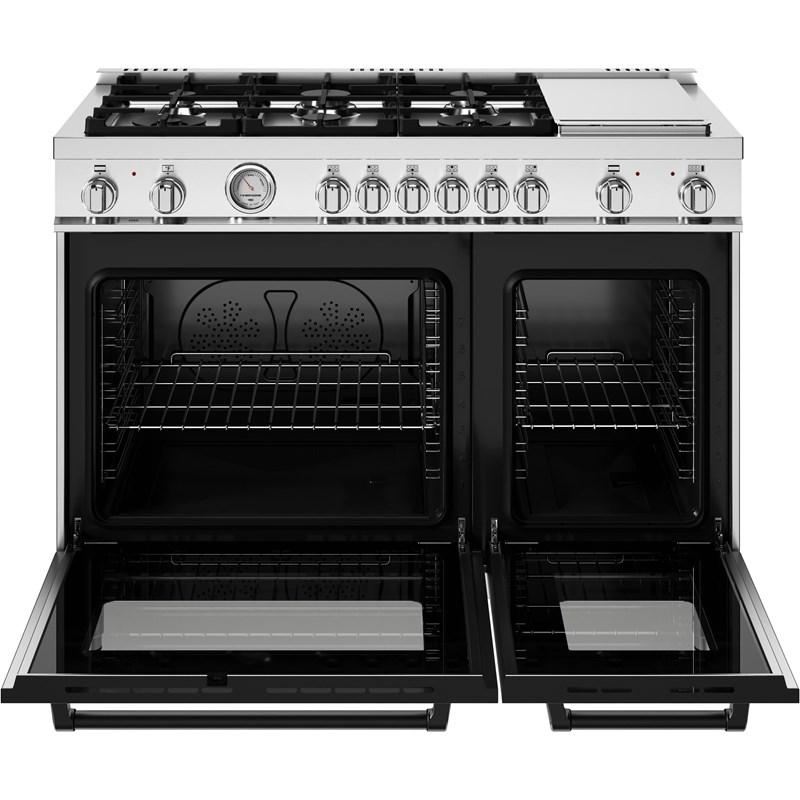

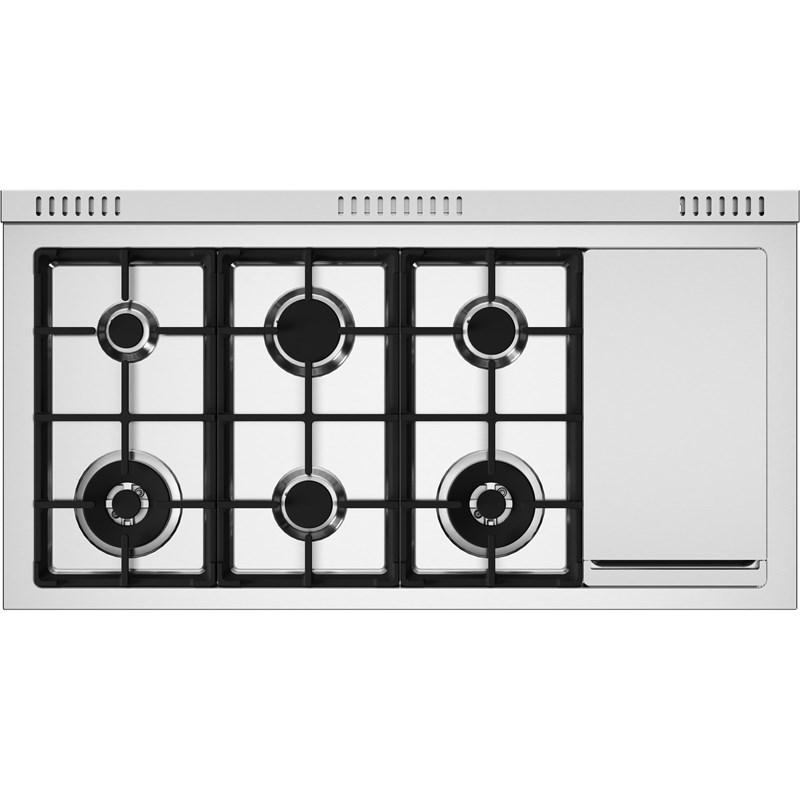

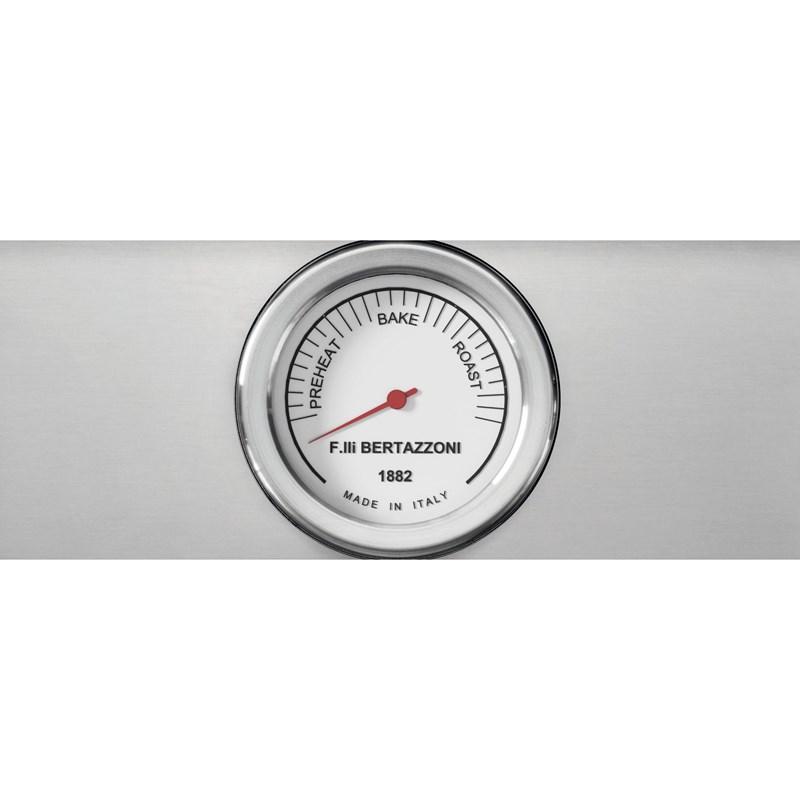

The high-efficiency maintop with 6 burners and an electric griddle features 2 dual ring 19,000 BTU power burners that boil water in under 6 minutes (best in class), and 4 additional MonoBloc burners of variable size and power to suit every style of cooking, with delicate simmer at 750 BTUs. The stainless steel griddle with an integrated cover provides additional cooking options.The 4.7 cubic feet oven is the largest in its class, with a dual convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The elegant large temperature gauge monitors the actual temperature in the oven. The extra wide electric broiler with optional convection is ideal for grilling and searing at high heat. The 2.4 cubic feet auxiliary oven is perfect for smaller dishes and for warming. Both ovens include convenient soft-motion doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.
Features
- HIGH POWER ELECTRIC GRIDDLE — The stainless-steel griddle is designed to heat up super-fast to cook a wide variety of food to perfection. This makes it easy to prepare and serve the perfect pancakes, grilled cheese, hamburgers, or bacon.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
Cooking zones: 7 | Griddle zones: Electric | Knobs: Solid metal | Burner type: Aluminum | Grates: Cast iron | Continuous grating | Thermocouple safety device | One-hand ignition | Backguard | Wok ring | Simmer ring | Griddle power: 1100 W | Griddle dual control | Griddle drip tray | Inner oven door: Triple | Removable inner glass | Cooling fan | Oven levels: 7 | Door hinges: Soft-motion | Wire-shelves: 2 standard with handle | Tray: 1 baking tray with grill trivet | Grill trivet for tray | Oven lights: Double lateral | Legs: Stainless steel
Specifications
| Width | 131.92 cm | Height | 107 cm | Depth | 76.04 cm |
| Class Width | 48" | Depth (Including Handles) | 69.85 cm | Depth (Without Handles) | 64.14 cm |
| Burners | Sealed | Other | Griddle | Burners/Elements | 6 |
| Oven Light | Y | Convection | Y | Warranty | 2 years parts & labor |
| UPC# | 8057971104390 | Number of Ovens | Double | Fuel Type | Dual Fuel - Natural Gas |
| Series Name | Master | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation Type | Freestanding | ||||
| Burners/Elements Output Power burners: 1300 BTU/h - 19 000 BTU/h (2) | Rapid burner: 2500 BTU/h - 10 400 BTU/h (1) | Medium burner: 1500 BTU/h - 5900 BTU/h (2) | Simmer burner: 750 BTU/h - 3500 BTU/h (1) | Griddle: 1100 W | |||||
| Technologies Convection Technology | |||||
| Information 120/208 V 60HZ - 5400W | 120/240 V 60HZ - 6700W | Absorbed current: 40 A with a dedicated circuit | |||||
| Programs Main oven functions: | Bake | Broiler | Convection | Convection bake | Convection broiler | Dehydrate | Pizza | Proofing | Warming | Auxiliary oven functions: | Bake | Bottom bake | Broiler | Upper bake | |||||
| Capacity (cu. ft.) Large Oven: 4.7 cu. ft. | Small Oven: 2.4 cu. ft. | |||||
| Optional DSMASGKSG: Master Series Gas Knob Décor Set - 10 Knobs Gold | DSMASGKSB: Master Series Gas Knob Décor Set - 10 Knobs Black Nickel | |||||
Accessories
• DSMASGKSB: Master Series Gas Knob Décor Set - 10 Knobs Black Nickel
