Description
About this Product

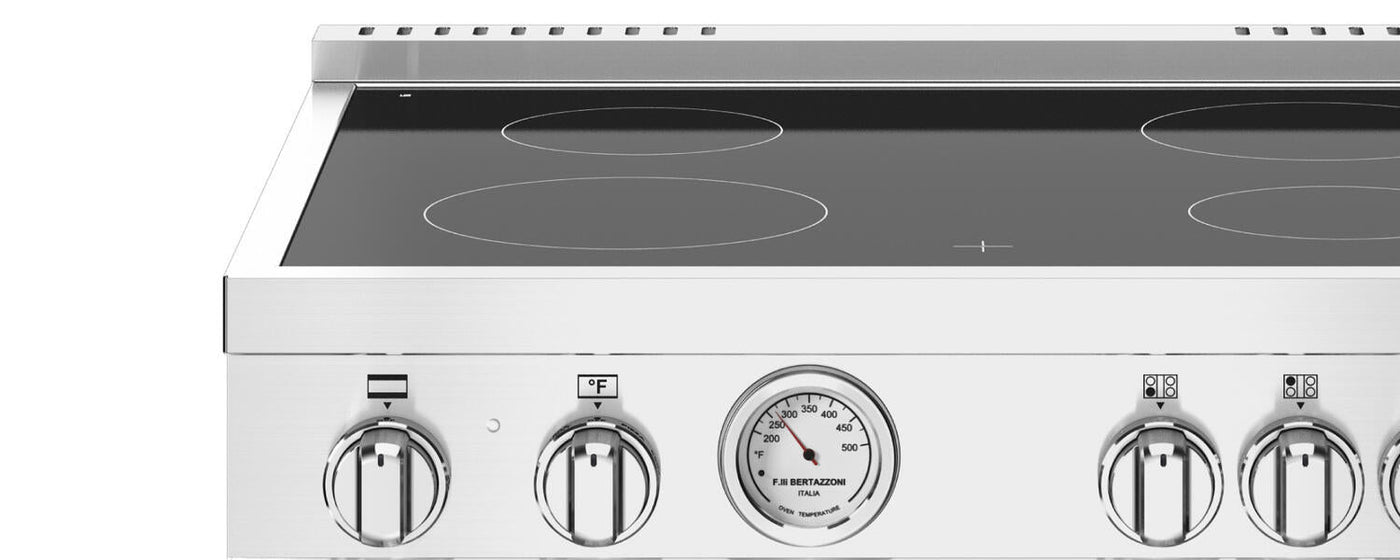

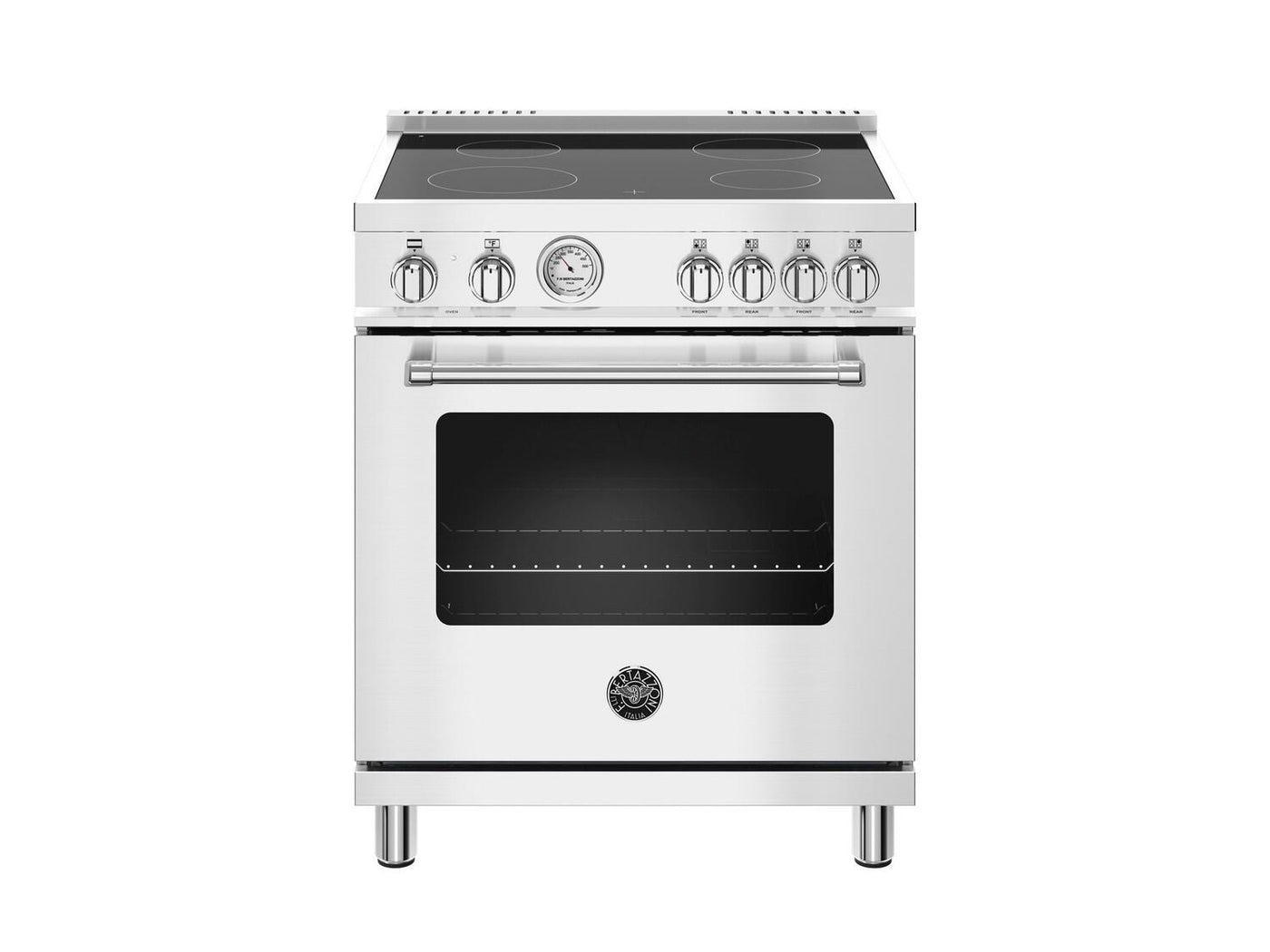

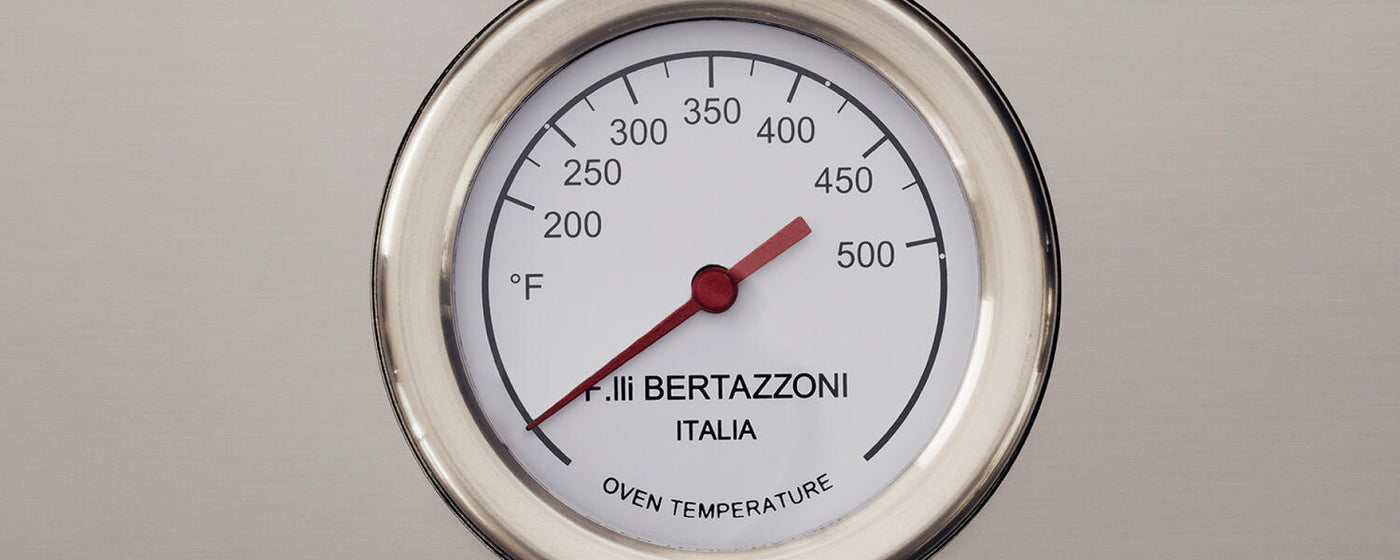

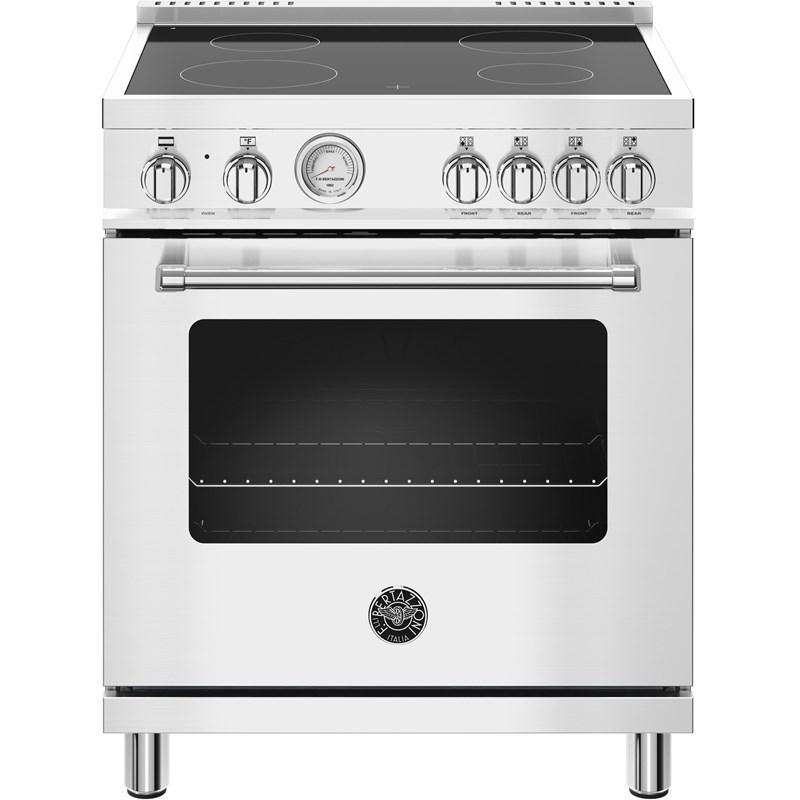

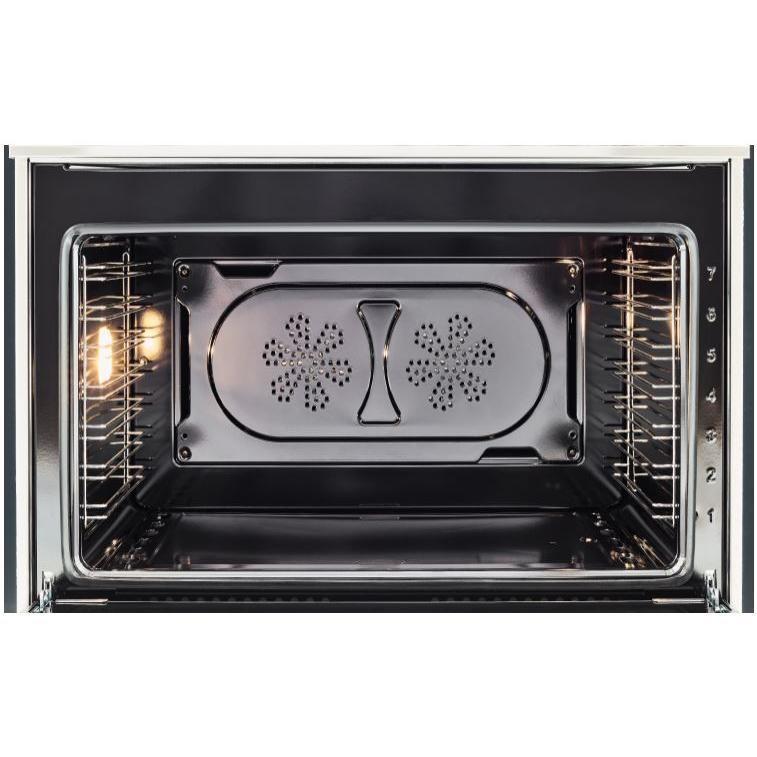

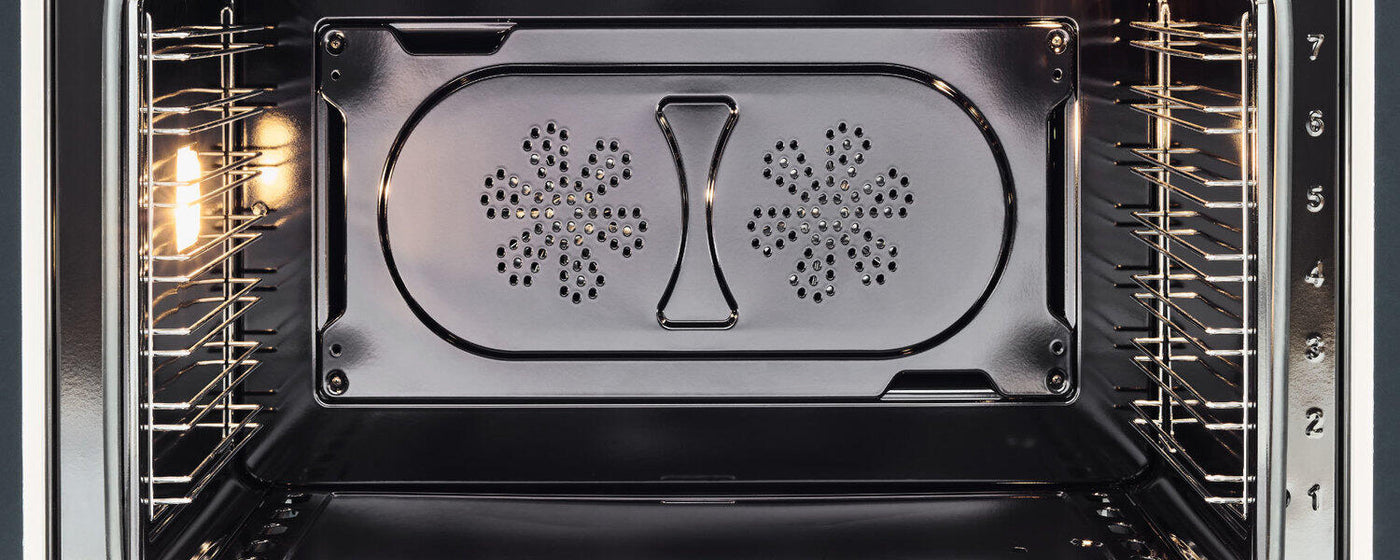

Bertazzoni 30-inch wide electric range. This range has 4 electric heating zones with a maximum power output of 2100W. Each heating zone is controlled with metal finished knobs with an ergonomic shape and has a convenient read-out interface on the glass worktop. The 4.7 cubic feet oven cavity is the largest in its class, with dual horizontal convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The elegant large temperature gauge monitors the actual temperature in the oven during pre-heating and baking.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
Counter-deep maintop for flush installation with kitchen countertops and cabinets | Dual horizontal convection fans for even baking and roasting | 7 shelf levels | 6-pass electric broiler for broiling and grilling | Elegant temperature gauge for control of oven temperature during pre-heating and baking | Oven door with edge-to-edge tempered glass | Soft-motion hinges | Residual heat indicator light | Designed and made in Italy | Power connection: NEMA 14-50P plug with 59" cord | Certification: CSA
Specifications
| Class Width | 30" | Depth (Including Handles) | 69.53 cm | Width | 76.2 cm |
| Depth (Without Handles) | 63.98 cm | Height | 90.81 cm | Elements | Smoothtop |
| Burners/Elements | 4 | Warranty | 2-Year parts and labor warranty | Number of Ovens | Single |
| Capacity (cu. ft.) | 4.7 | Fuel Type | Electric | Series Name | Master Series |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation Type | Freestanding |
| Convection | Y | ||||
| Burner/Element Size Front left: 9" | Back left: 6.5" | Front right: 6.5" | Back right: 7.75" | |||||
| Burners/Elements Output Front left: 2100W | Back left: 1200W | Front right: 1200W | Back right: 1800W | |||||
| Included 1" Stainless steel island trim | 2 Wire shelves | Baking tray with grill trivet | |||||
| Optional | |||||
| Information 120/240V 60 Hz – 10000W | 120/208V 60Hz – 7500W | 40 Amp dedicated circuit | |||||
| Programs Bake: Bottom 1600W | Bake: Top 1200W | Broiler: 2700W | Convection: 2 x 1200W | Fast preheat | Pizza | |||||
Accessories
• 2 Wire shelves
• Baking tray with grill trivet
