Description
About this Product
Offering near-silent performance, the HBN5 series introduces two innovative technologies: the True iQ Blower System and SmartSense Pro, along with selectable color temperature lighting (CCT technology). In addition to its cutting-edge technology, it is equipped with Wi-Fi, Bluetooth, and voice activation capabilities, providing a smarter and more enjoyable cooking experience. From performance and design to installation and safety, this series offers an all-in-one ventilation solution.
Features
- FEATURES - HBN5 — • The Quietest Blower System: Experience near-silent operation with the True iQ Blower System, powered by TrueCFM technology, which ensures performance with automatic real-time calibration. It delivers 1240 TrueCFM and operates at less than 0.3 sones on low speed.
• Built-In Versatility: Offered in a 20-1/4” depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert complements any kitchen design.
• A Perfectly Ventilated Experience: SmartSense Pro delivers an automated ventilation solution, using smart algorithms to detect heat from the cooktop and automatically adjust fan speed based on heat, humidity, and VOC pollutants.
• Our TrueCFM Promise: The range hood always performs at the correct CFM, regardless of unexpected blockages or restrictions.
• CCT Lighting Technology: The Correlated Color Temperature (CCT) technology allows users to match the range hood lighting with kitchen lighting, offering eight color temperature options from 2700K to 5000K via the control panel, and virtually limitless adjustability through the BEST Kitchen app.
• Smart Connectivity: Wi-Fi, Bluetooth, and voice activation capabilities enable hands-free operation.

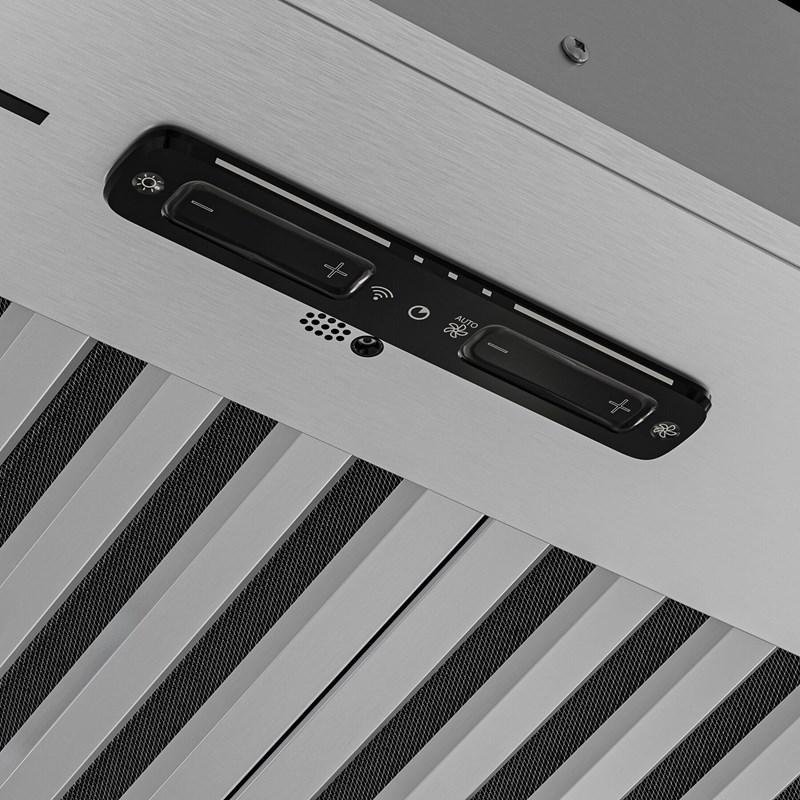

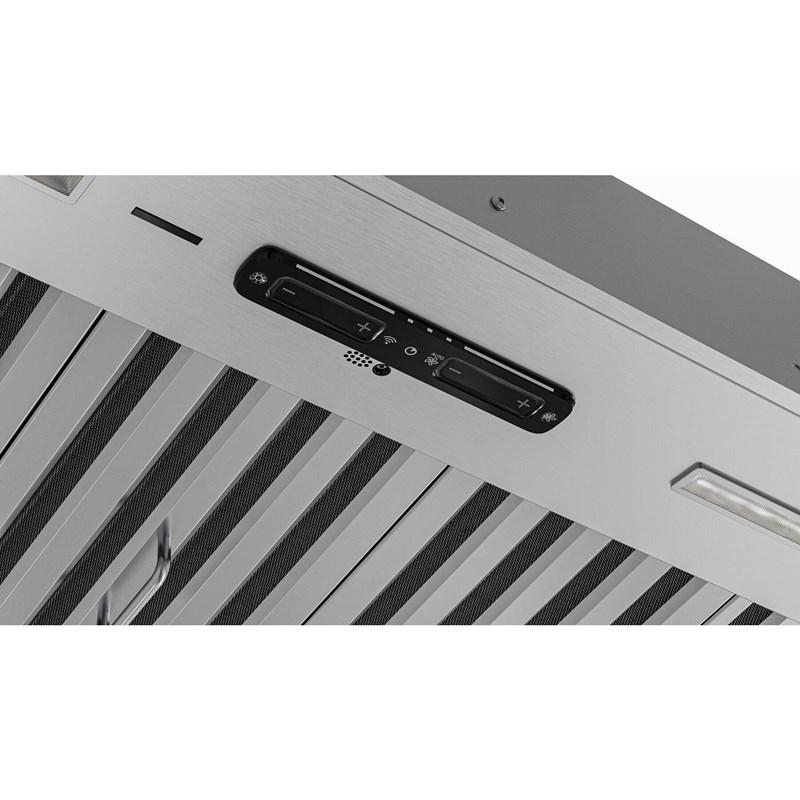

• Intuitive Controls: Capacitive touch slider control provides eight fan speeds and eight LED lighting levels.
• Hybrid Baffle™ Filters: These filters offer full coverage to remove smoke, odors, and pollutants.
• Easy Installation: Single-person installation is made possible with the EZ Install bracket system.
• Code Ready Technology® (CRT): This feature allows airflow limitation to 300, 400, or 600 CFM to meet local make-up air code requirements.
• Heat Sentry® Safety: The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, protecting you and your home.
• ENERGY STAR® Certified: This product is ENERGY STAR® certified for energy efficiency.
• Ducting Compatibility: Capable of installation with 10” vertical ducting.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights
Finish: Brushed Stainless Steel (Grade 430) | Lighting Type: LED Modules (6W per module) | Number of Modules: 2 (36" to 48" hoods), 4 (54" to 66" hoods) | Light Modules Included | Correlated Color: 8 color temperature options | Temperature (CCT): from 2700K to 5000K (more options in the BEST Kitchen app) | Control: Touch Slide | Filter Type: Hybrid Baffle
Specifications
| Style | Custom Insert | Airflow | 1240 CFM | Series Name | HBN5 |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Built-In |
| Blower Included | Y | Speeds | 8 Speeds | Wi-Fi | Y |
| Bluetooth | Y | Width | 164.78 cm | Height | 35.56 cm |
| Depth | 59.69 cm | Additional Dimensions | Cutout: 64 1/2" W x 22 7/8" D | Class Width | 66" |
| Energy Star Certified | Y | UPC# | 772371160835 | Warranty | 5 Years Parts / 2 Years Labor |
| Included | Backdraft Damper | ||||
| Ducting Information Duct Size: 8" or 3 1/4" x 10" (HBN53696SS), 10" (other models) | Duct Direction: Vertical (round) or Horizontal (rectangular only) | |||||
| Technologies Heat Sentry™ | Wi-Fi / Bluetooth Connectivity | Voice Control | SmartSense Pro | |||||
| Information Amps @ 120V 5 (HBN53696SS), 7.5 (other models) | Electrical Connection: Direct Wire | |||||
| Optional | |||||
