Description
About this Product

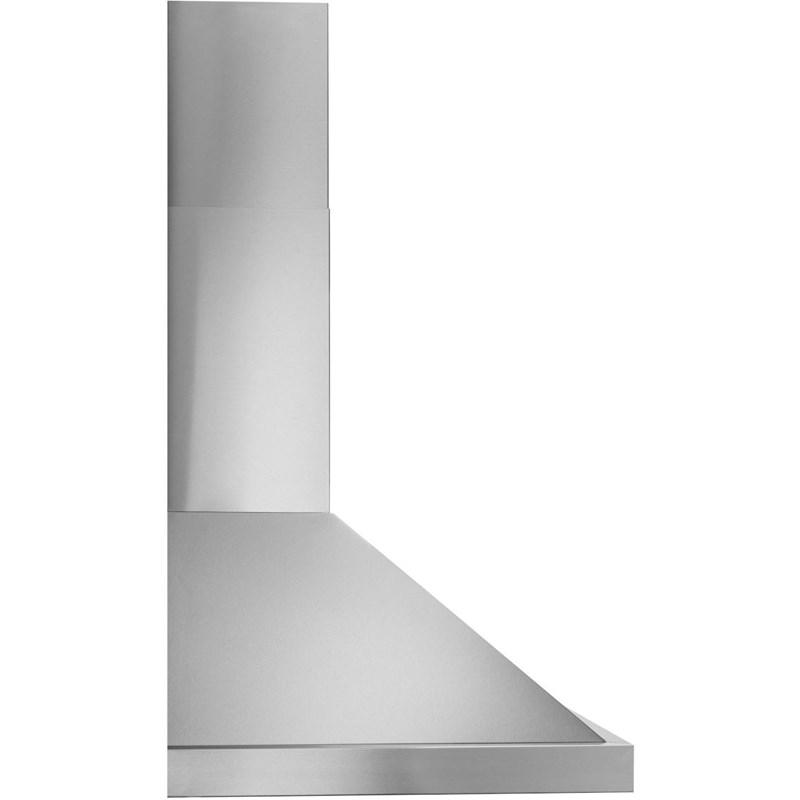

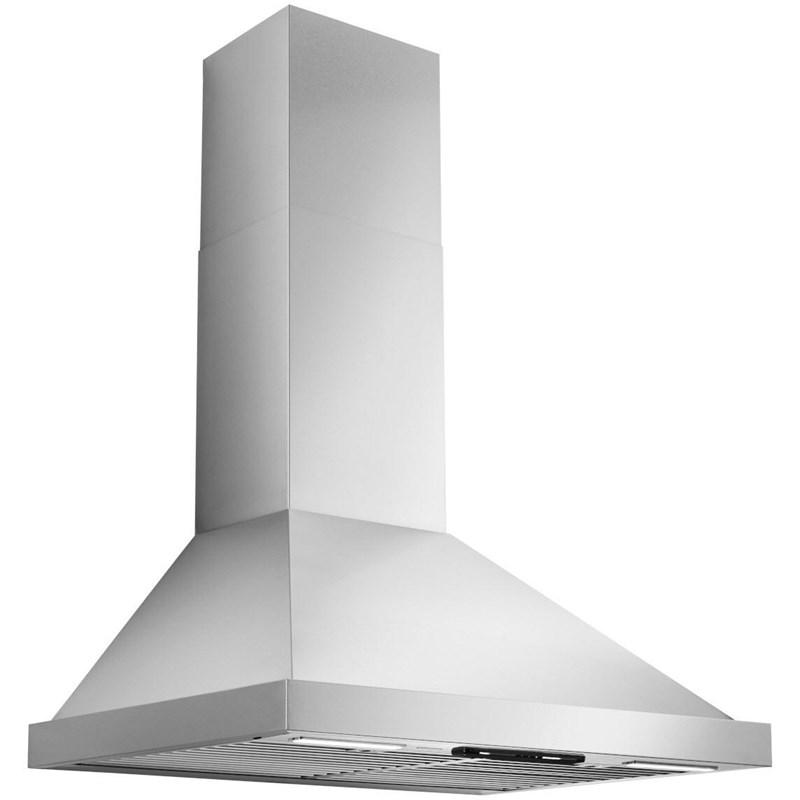

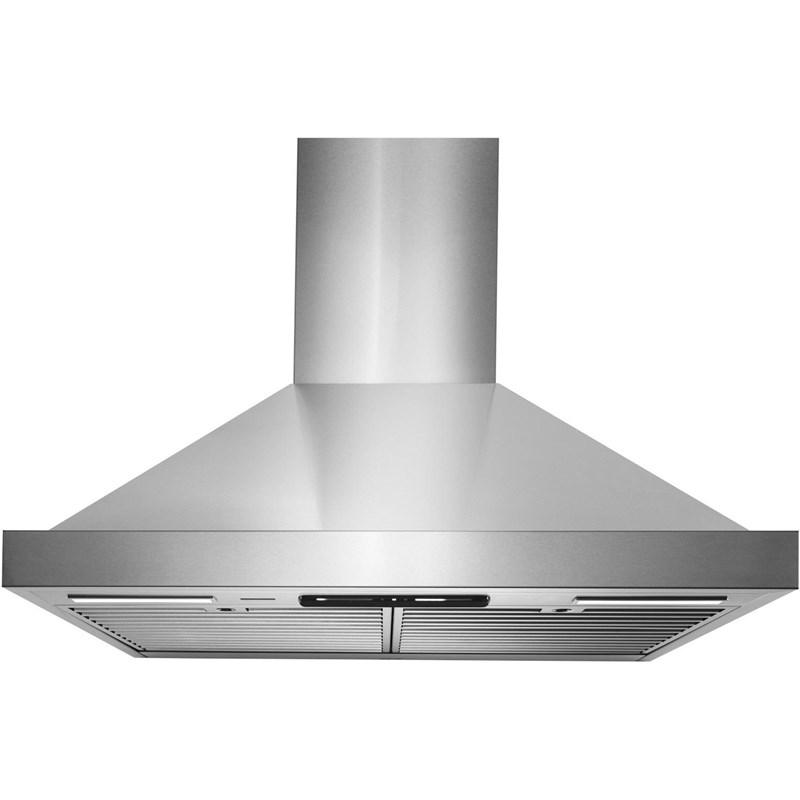

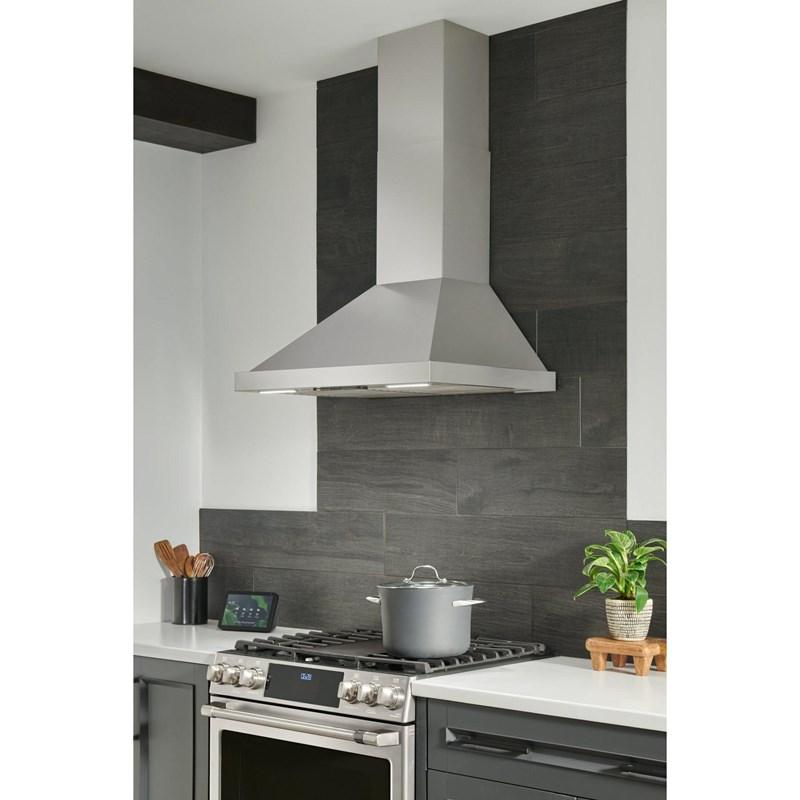

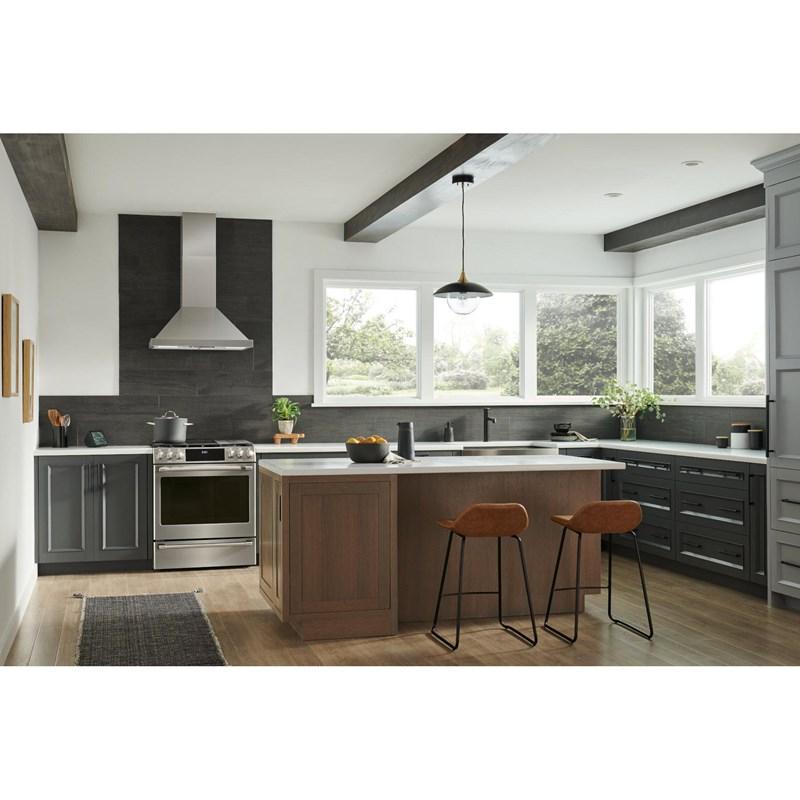

This elegant high-profile pyramidal hood with powerful ventilation can meet the challenges of any home chef while featuring a traditional appearance that fits into practically any kitchen.
Documents
Product Sheet (en)

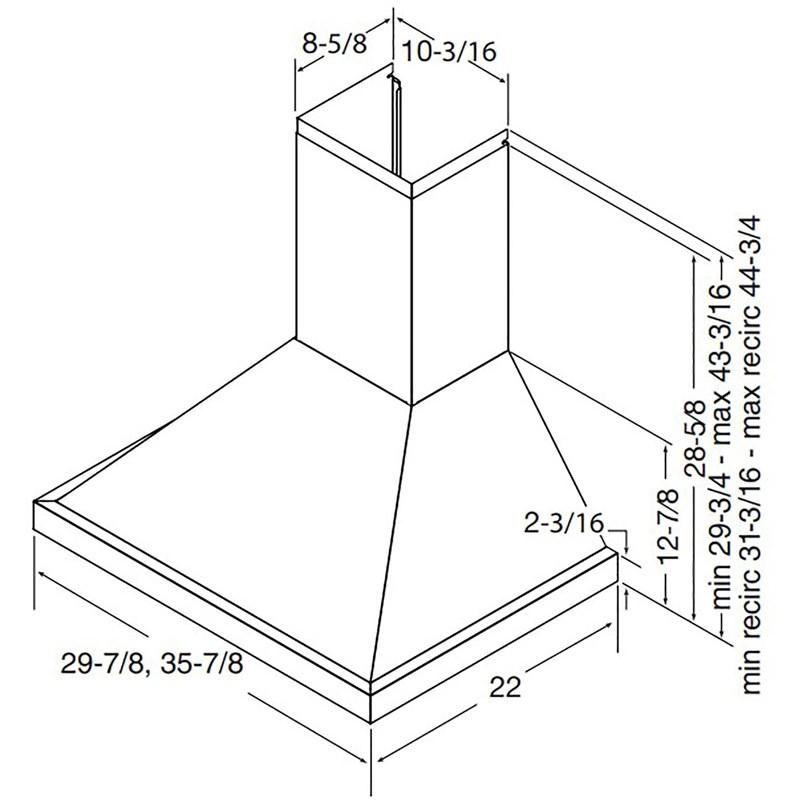

Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Highlights

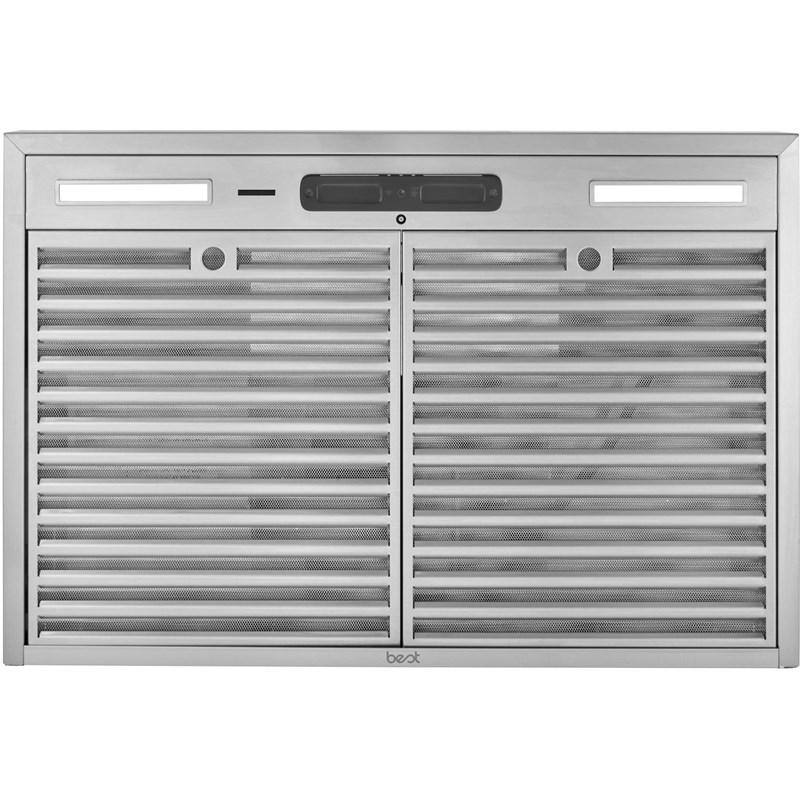

Lighting Type LED Modules (6W per module, color temp 3000K) | 4 Lighting Levels | Delay Off | Filter Clean Reminder | Hybrid Baffle Filters | Non-ducted Capability
Specifications
| Warranty | 5 Year Parts/2 Year Labor | Included | Backdraft Damper | Depth | 55.88 cm |
| Height | 32.7 cm | Width | 75.88 cm | Class Width | 30" |
| Series Name | WCP1 | Style | Chimney | Manufacturer Color | Brushed Stainless Steel (Grade 430) |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Airflow | 650 CFM | Energy Star Certified | N | Wi-Fi | Y |

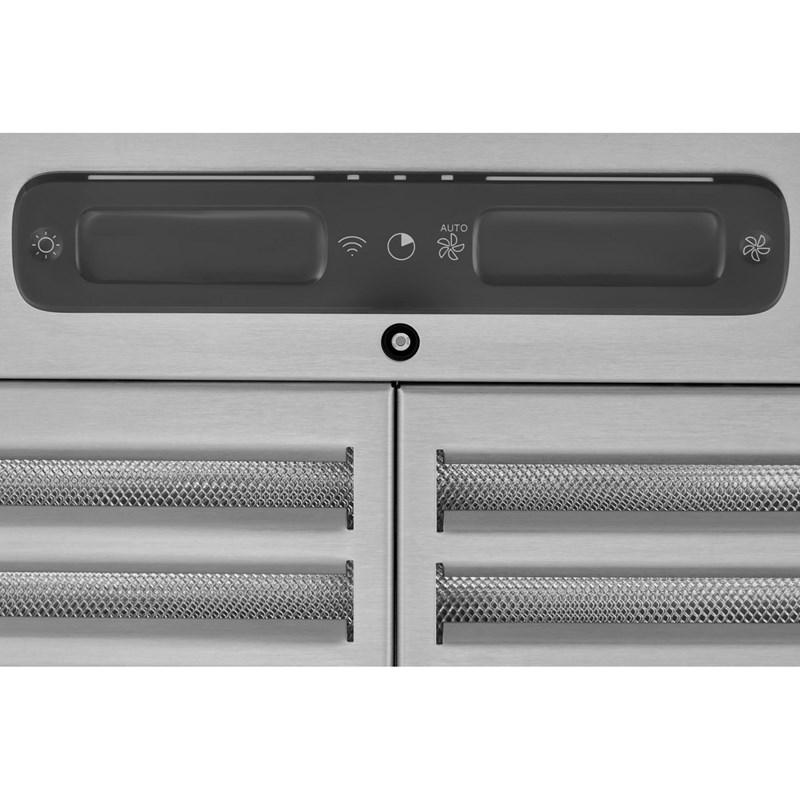

| Speeds | 4-speed Capacitive Touch Slider | ||||
| Optional | |||||
| Ducting Information Duct Size: 3-1/4" x 10" - rectangular (horizontal only) | 6" - round | 8" - round | Duct Direction Vertical or horizontal | |||||
| Technologies Code Ready Technology (CRT) | SmartSense® | Voice activation | Heat Sentry™ | |||||
Accessories
• ADA Kit HAWRK5
• Flue extension AEWCP1SS (ceiling greater than 9') (ducted—non-ducted)
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA
• Flue extension AEWCP1SS (ceiling greater than 9') (ducted—non-ducted)
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA
Backdraft Damper
