Description
About this Product

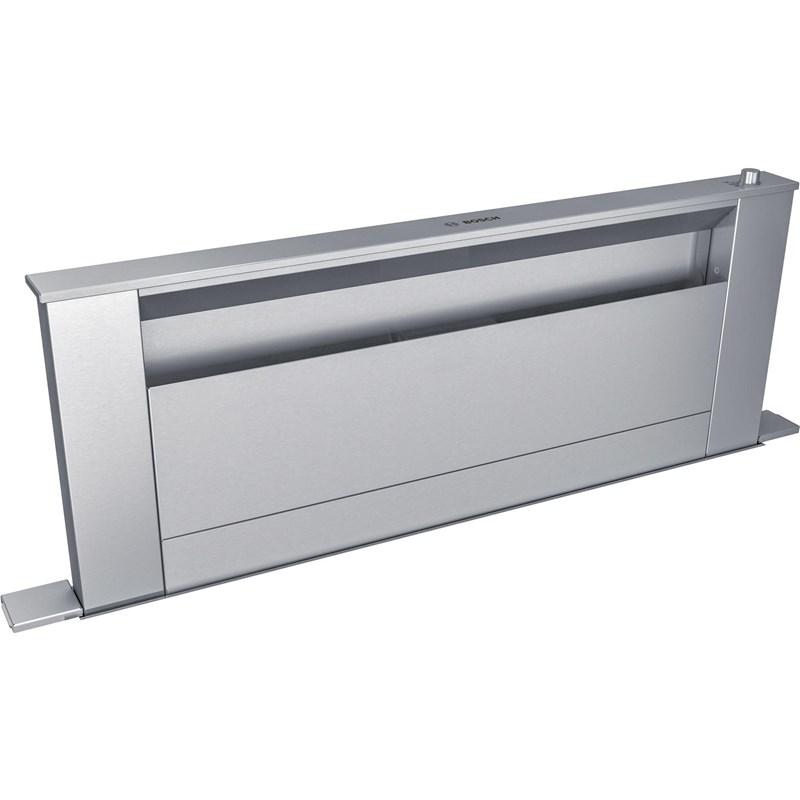

This Bosch 800 Series 36-inch downdraft ventilation hood features 3-stage speed settings, an aluminum filter and a quiet operation at 1.4 sones on low speed.
Features
- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Warranty Details (en)
Highlights
5 exhaust connections possible (transition sold separately) | Quiet at 1.4 sones on low speed (Sones 1.4 WS / 10.3 HS) | External Motor | Sleek front panel filter design acts as a guard against splatters | Aluminum grease filter | Grease filter type: multilayer cassette
Specifications
| Style | Downdraft | Series Name | 800 | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Built-In | Blower Included | N |
| Speeds | 3-Stage | Width | 93.98 cm | Height | 74.61 cm |
| Depth | 6.99 cm | Weight | 19.05 kg | Class Width | 36" |
| UPC# | 8.25E+11 | ||||
| Ducting Information Diameter of air duct internal: 8" | Diameter of air duct external: 6" or 8" | Convertible: ducted /recirculating | Duct direction Front, Left, Right, Rear | |||||
| Information 120 V | 60 Hz | |||||
| Optional 6" side/rear transition HDDSTRAN6 | 8" side/rear transition HDDSTRAN8 | 6" round front plate HDDFTRAN6 | 8" round front plate HDDFTRAN8 | Transition for rectangular duct HDDSTRAN2 | 2' rectangular duct HDD2RECTD | 600 CFM flexible blower DHG602DUC | 600 CFM inline blower DHG6105NUC | 600 CFM remote blower DHG6023RUC | Recirculation kit HDDREC5UC | Charcoal filter replacement for recirculation kit HDDFILTUC | 36" gas cooktop seal kit for downdraft (required for installation with gas cooktops) HDD6RSP | |||||
Accessories
• 6" side/rear transition HDDSTRAN6
• 8" side/rear transition HDDSTRAN8
• 6" round front plate HDDFTRAN6
• 8" round front plate HDDFTRAN8
• Transition for rectangular duct HDDSTRAN2
• 2' rectangular duct HDD2RECTD
• 600 CFM flexible blower DHG602DUC
• 600 CFM inline blower DHG6105NUC
• 600 CFM remote blower DHG6023RUC
• Recirculation kit HDDREC5UC
• Charcoal filter replacement for recirculation kit HDDFILTUC
• 36" gas cooktop seal kit for downdraft (required for installation with gas cooktops) HDD6RSP
• 8" side/rear transition HDDSTRAN8
• 6" round front plate HDDFTRAN6
• 8" round front plate HDDFTRAN8
• Transition for rectangular duct HDDSTRAN2
• 2' rectangular duct HDD2RECTD
• 600 CFM flexible blower DHG602DUC
• 600 CFM inline blower DHG6105NUC
• 600 CFM remote blower DHG6023RUC
• Recirculation kit HDDREC5UC
• Charcoal filter replacement for recirculation kit HDDFILTUC
• 36" gas cooktop seal kit for downdraft (required for installation with gas cooktops) HDD6RSP
