Description
About this Product

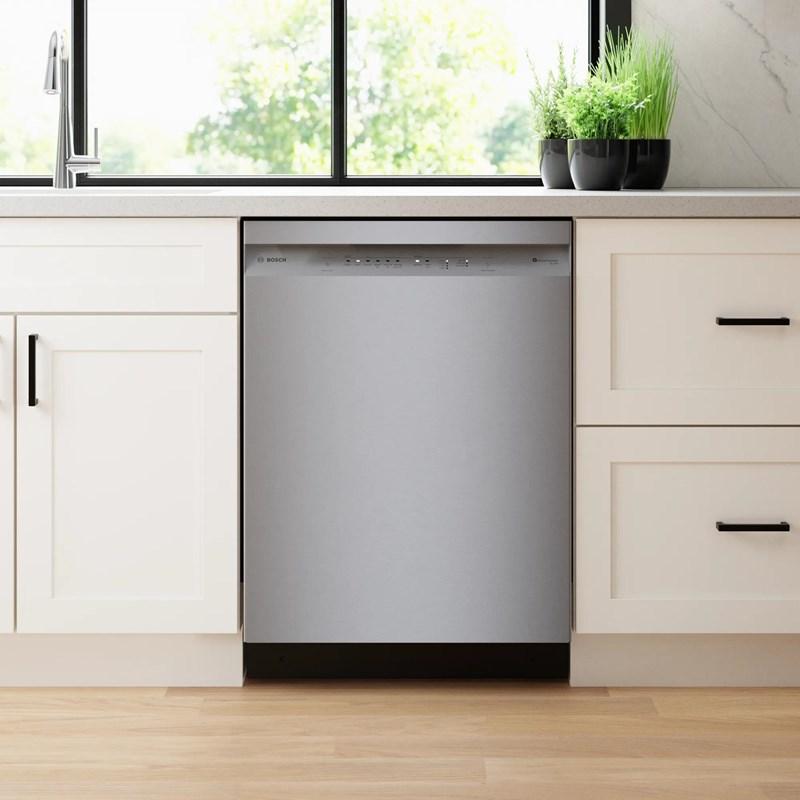

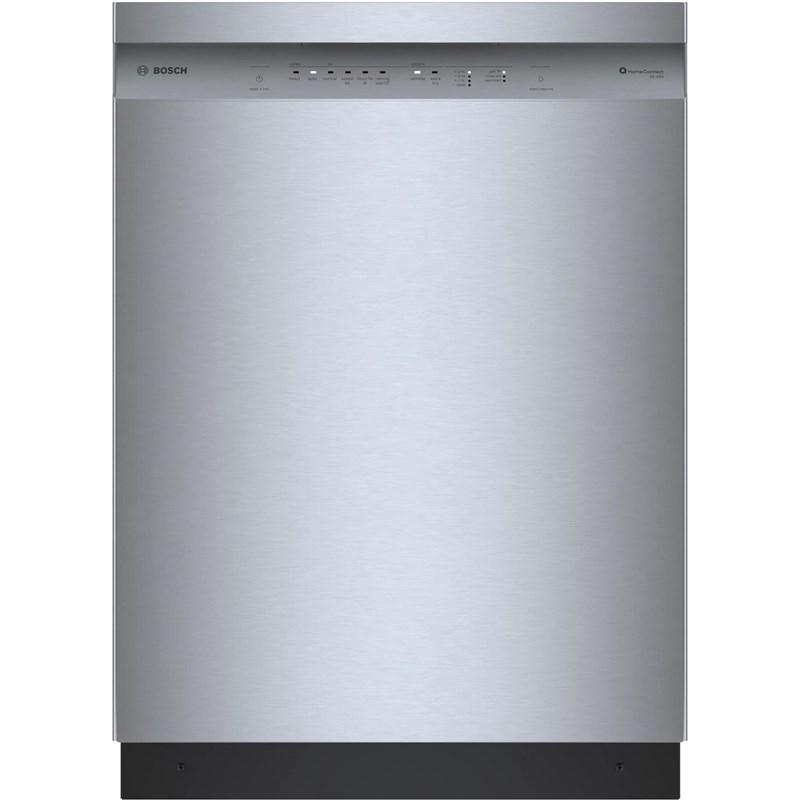

The 100 Series 24'' Dishwasher in brushed steel with anti-fingerprint finish combines convenience and smart technology. With remote control and monitoring via the Home Connect app, you can manage your dishwasher anytime, anywhere. Features include a Tab Counter to track and notify you when dishwasher tablets run low, a Favorite Program function for one-touch customization, and smart recommendations for optimal cleaning performance. Stylish and efficient, it’s designed to simplify your routine.
Features
- EXTRA DRY — Activating the Extra Dry option dries your dishes extra-thoroughly by higher temperatures during the rinse cycle and a longer drying phase - with just one push of a button.

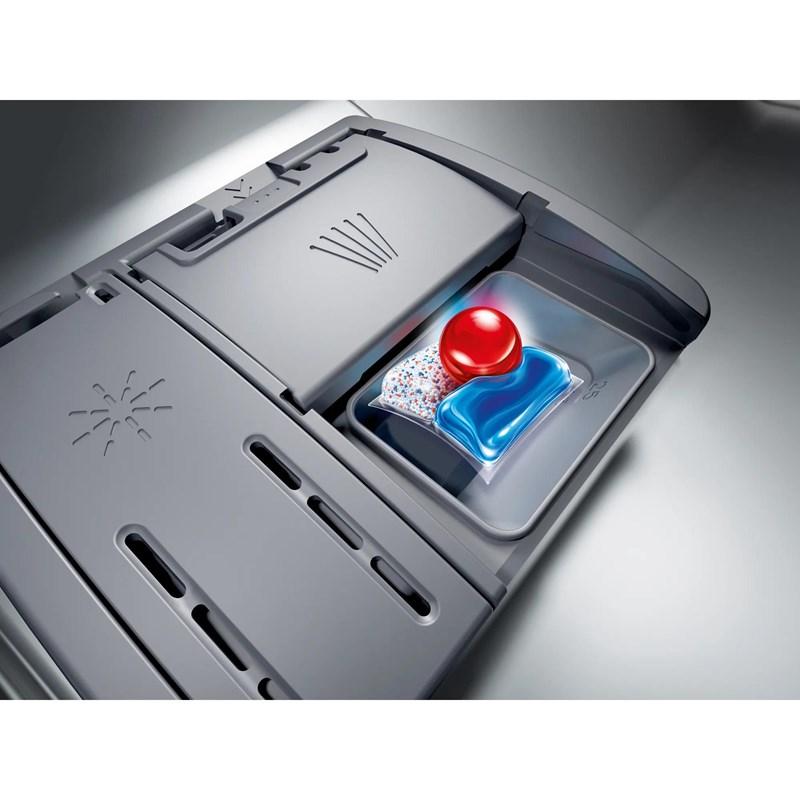

- HOME CONNECT™ — With Home Connect™, you can receive notifications once your dishwasher's cycle is complete, when it begins to run low on detergent tabs, or if there's ever a leak that occurs.
- YOUR FAVOURITE — Make the most out of your connected dishwasher by simplifying your daily life. With the Favourite programme you can simply set up your most used programs and options as your favourite combination. The programmed setting can be started via the Home Connect app or directly on the display with one step. Combine for example the Extra Dry option to the Eco 50° Program and start the dishwasher with only one touch. Personalized settings that get your dishes done by just one touch.
- EASY START GUIDE — Selecting the right wash programme for your dishwasher can not only be confusing, but can often result in less than perfect cleaning results. Home Connect with Easy Start Guide function takes the guesswork out of this job and always recommends the right program to you -directly from your mobile device. Every time. And with every wash. The only thing you need to do is enter the degree of soiling and the type and quantity of the dishes or cutlery being washed in your Home Connect app. So you can easily choose the right program and get perfect results, cycle after cycle.

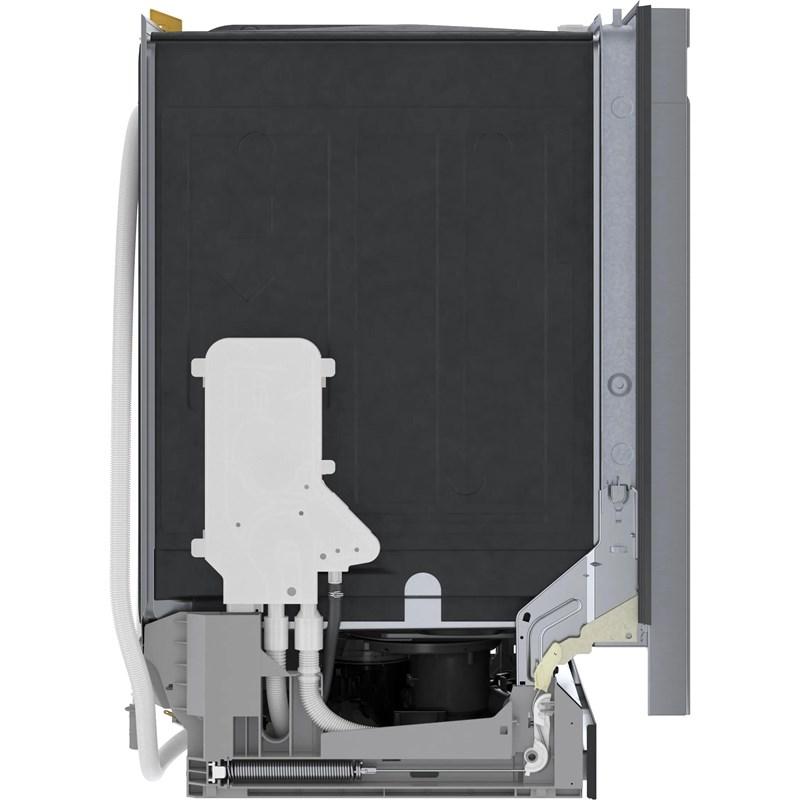

- AQUASTOP® — 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Additional documents(en)
Highlights

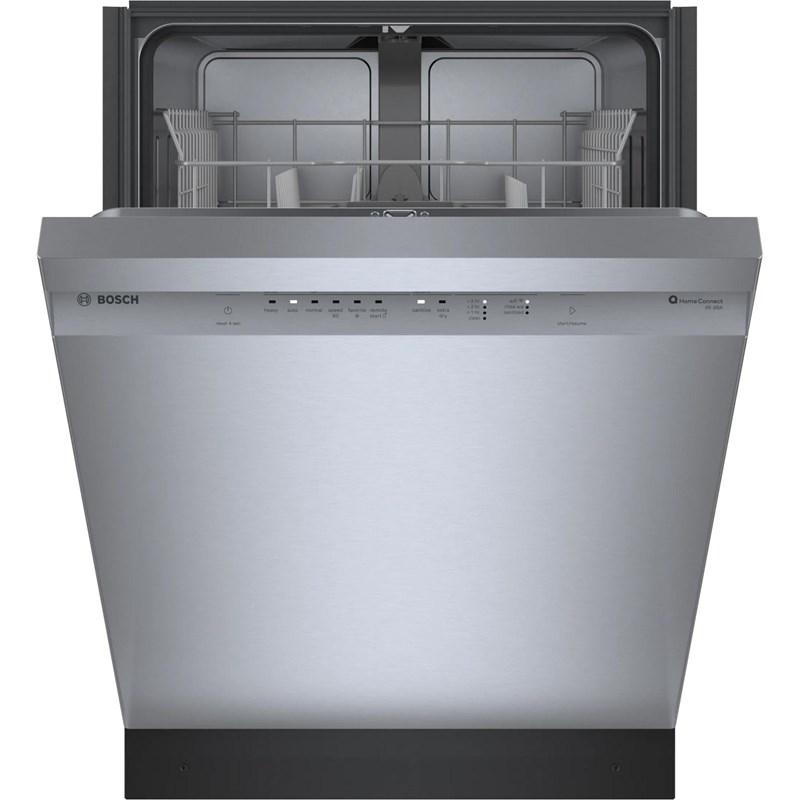

Control type Touch: Controls | Concealed water heating element | Five-level wash | Child Lock button suspension | Anti-Fingerprint Finish | Water usage per cycle: 3.5 gal | Adjustable feet | Minimum water pressure: 14 lb/sin
Specifications
| NSF® Certified | Y | Place Settings | 12 | Color | Stainless Steel |
| Tub Material | Stainless Steel | Manufacturer Color | Stainless Steel | Series Name | 100 Series |
| Type | Built-In | Silence Rating | 48 dB | Warranty | 1-Year parts and labor |
| Control Lock | Y | Silverware Basket | Y | Wi-Fi | Y |
| Height (Min.) | 86.04 cm | Width | 59.85 cm | Weight | 38.56 kg |
| Class Width | 24" | Depth (Including Handle) | 60.33 cm | Depth (Without Handle) | 60.33 cm |
| Wash Cycles | Number of wash cycles 5 + 3 additional in Home Connect® | Number of Cycles | 5 | ||
| Technologies Home Connect® (Wi-Fi enabled) | Wash system PrecisionWash® | Drying system PureDry® | 24/7 AquaStop® Leak protection system | NSF®-certified* sanitize option | |||||
| Optional Junction Box: SMZPCJB1UC | Junction Box + Supply Hose Kit: SMZ3IN1UC | Bosch Dishwasher Water Supply Hose: SMZSH1ABUC | Drain Hose Extension Kit: SGZ1010UC | Flexible Silverware Basket: SMZ4000UC | Dishwasher Accessory Kit: SMZ5000 | Anti-Tarnish Silverware Cassette: SMZ5002UC | Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC | |||||
| Additional Dimensions Required cutout size (HxWxD): 33 7/8" x 24" x 24" | Length outlet hose: 78 3/4" | Power cord full length: 67" | Power cord install length from edge of unit when facing the door: Left – 45", Right – 56" | |||||
| Options Number of options 3 + 2 additional in Home Connect® | Extra Dry Option | |||||
| Information Watts: 1440 W | Current: 12 Amps | Volts: 120 V | Frequency: 60 Hz | Total annual energy consumption: 269 kWh | |||||
Accessories
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC

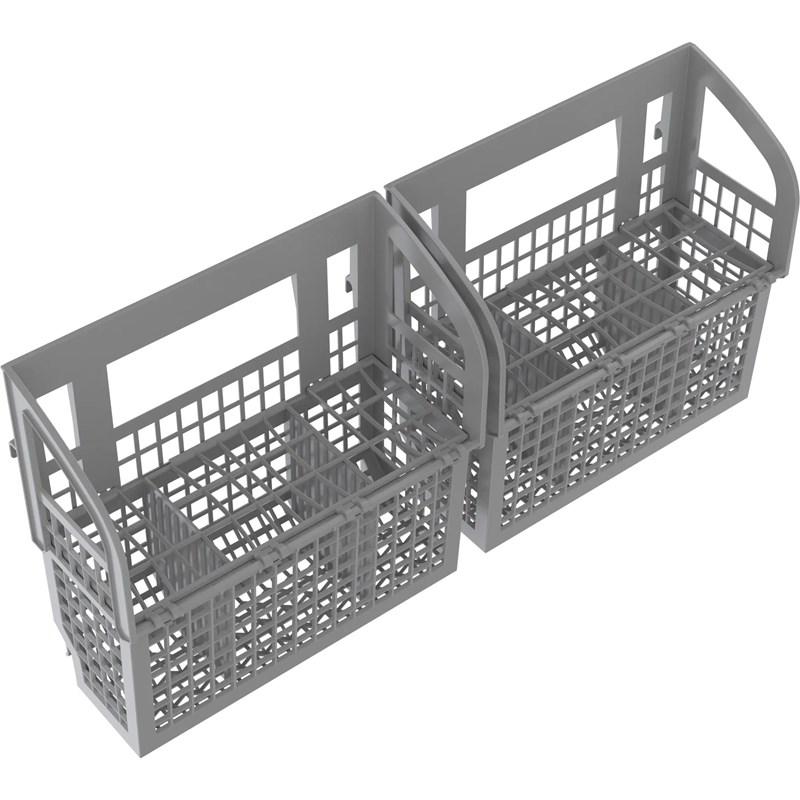

• Flexible Silverware Basket: SMZ4000UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
