Description
About this Product

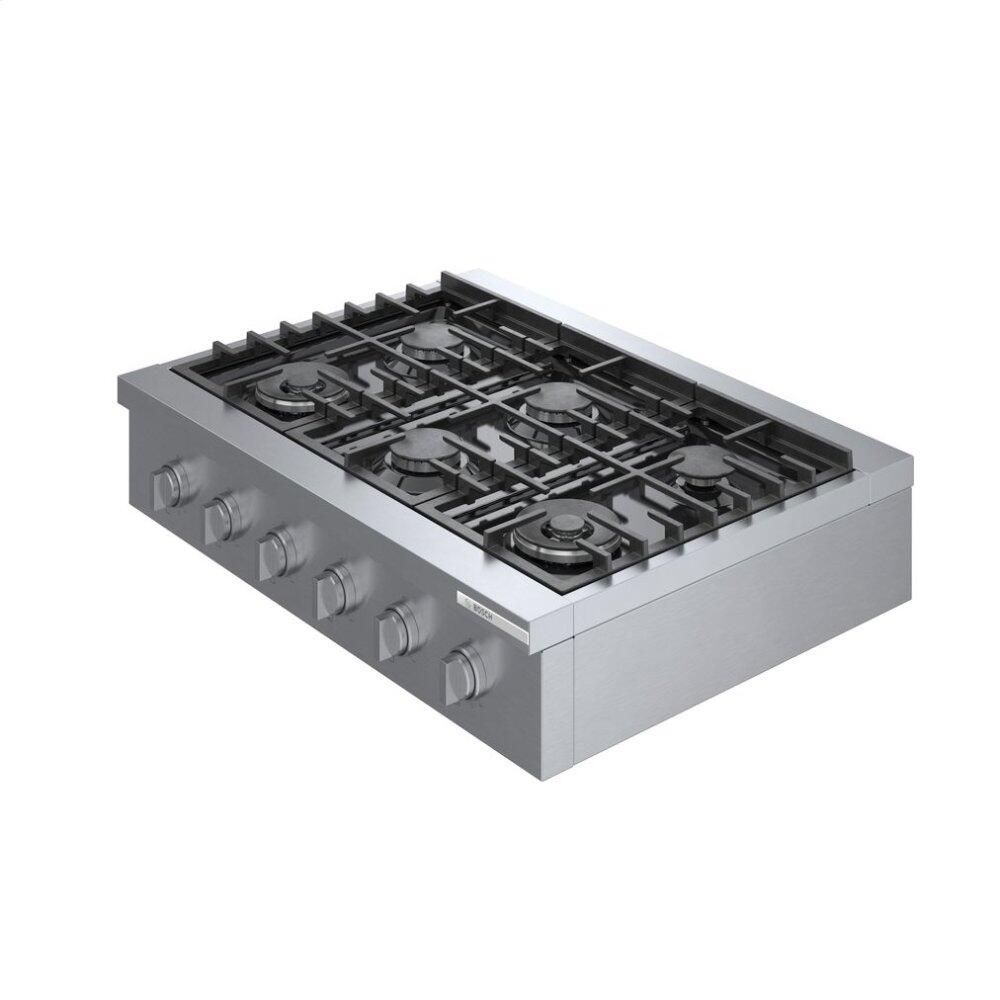

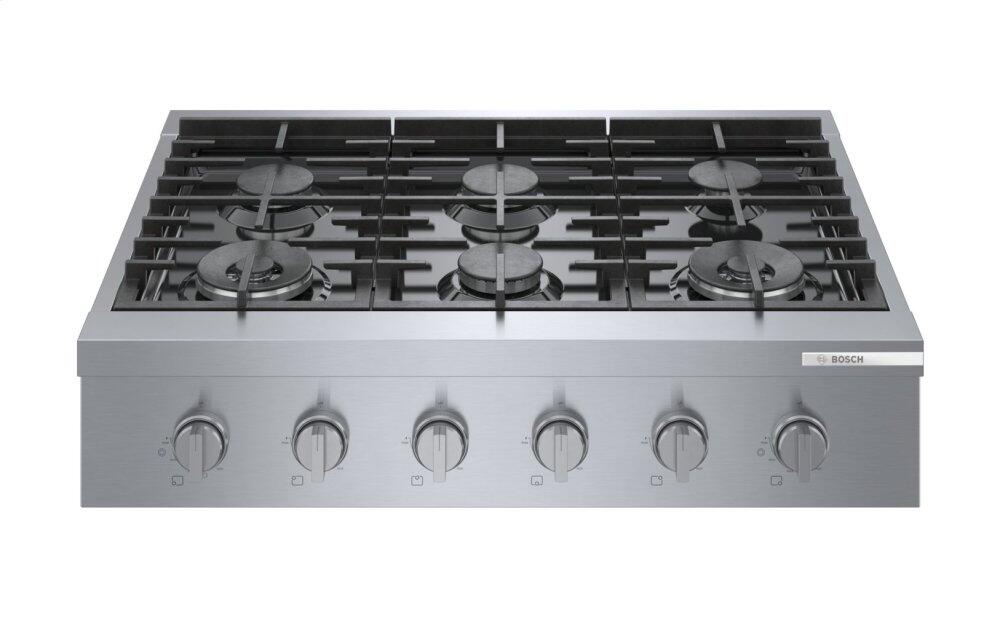

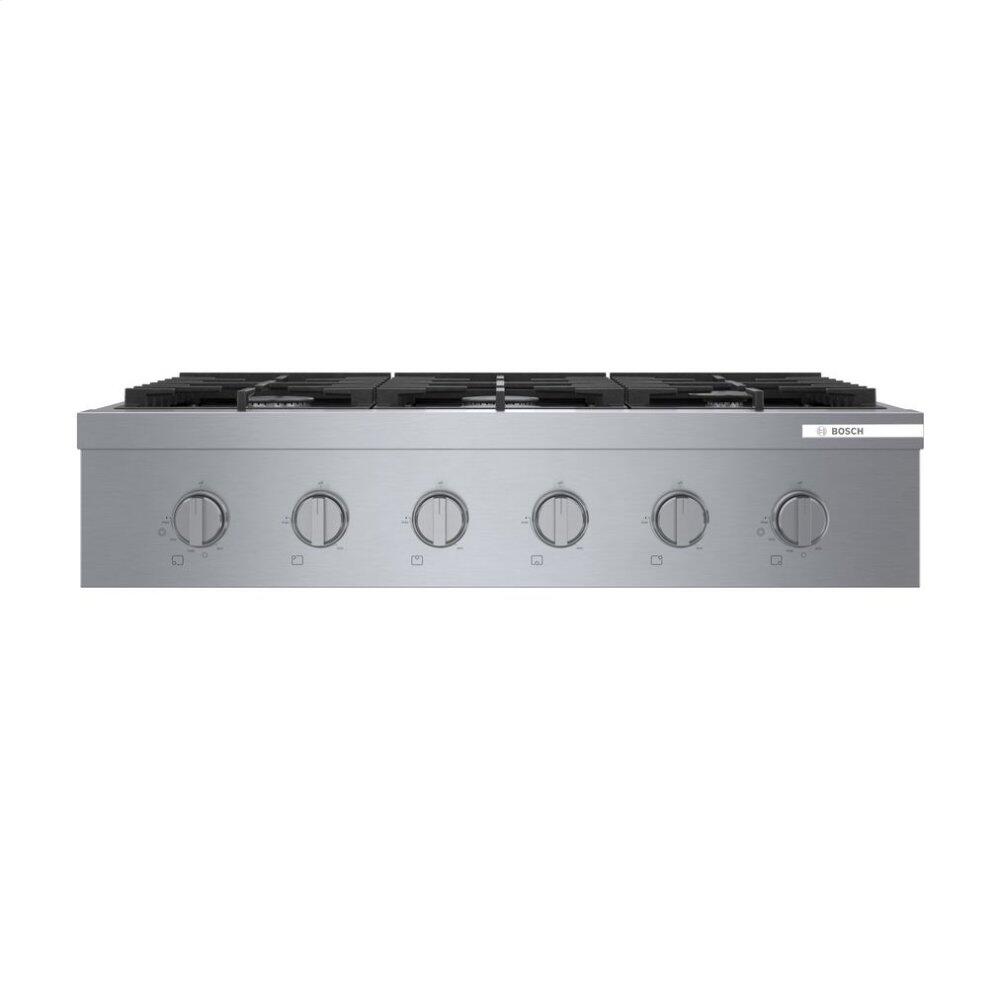

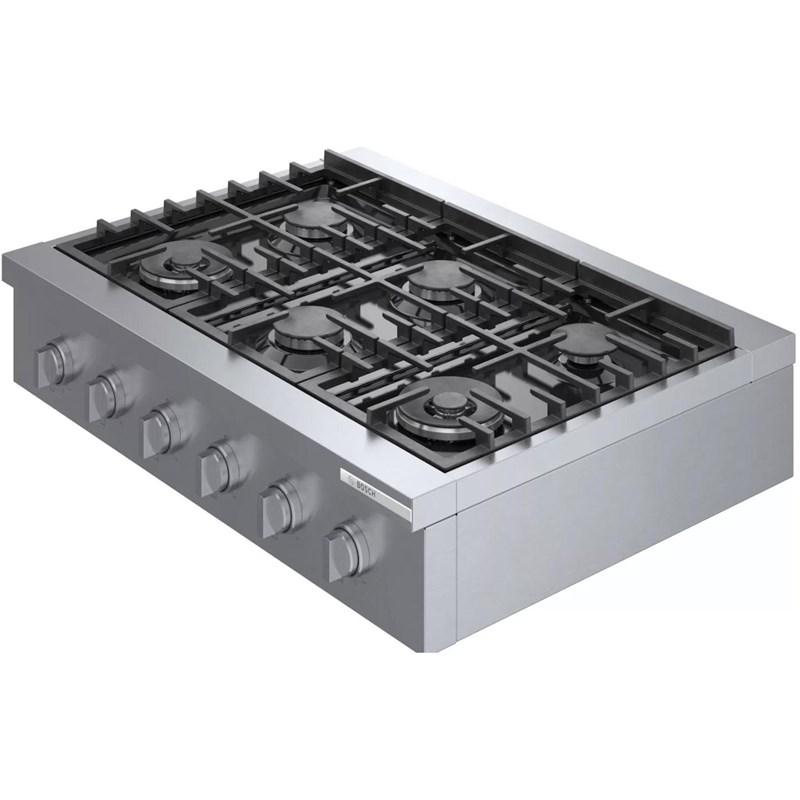

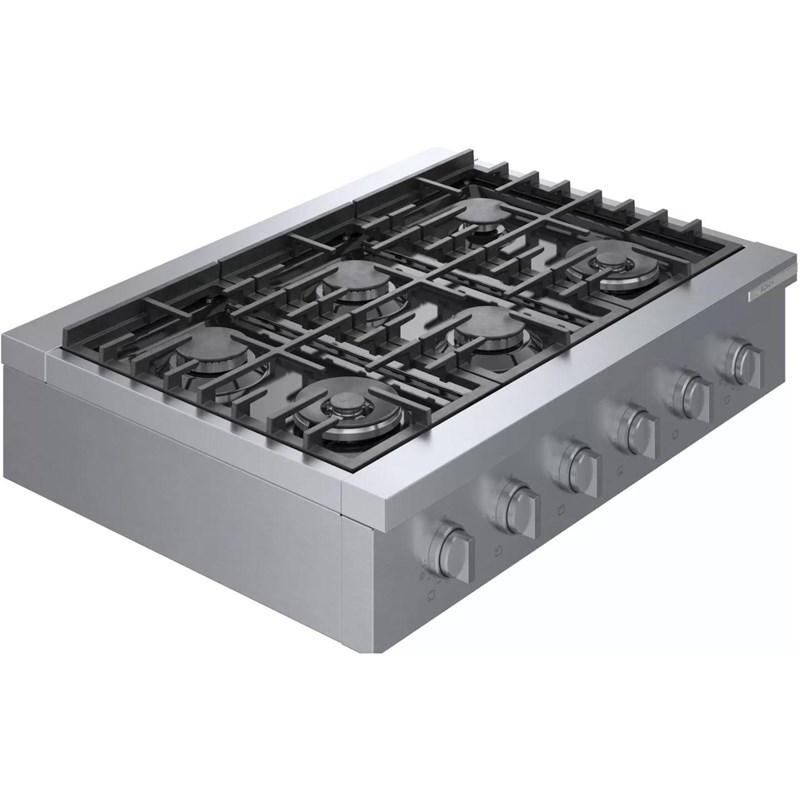

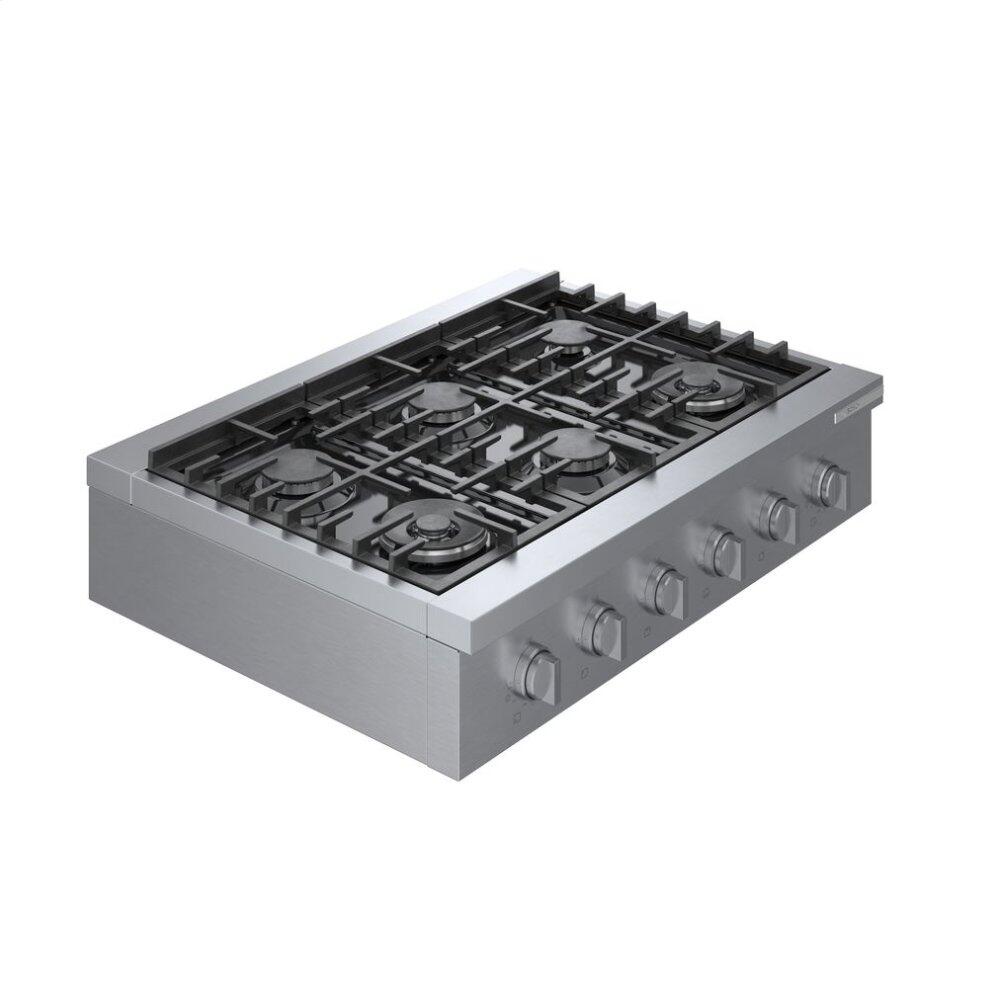

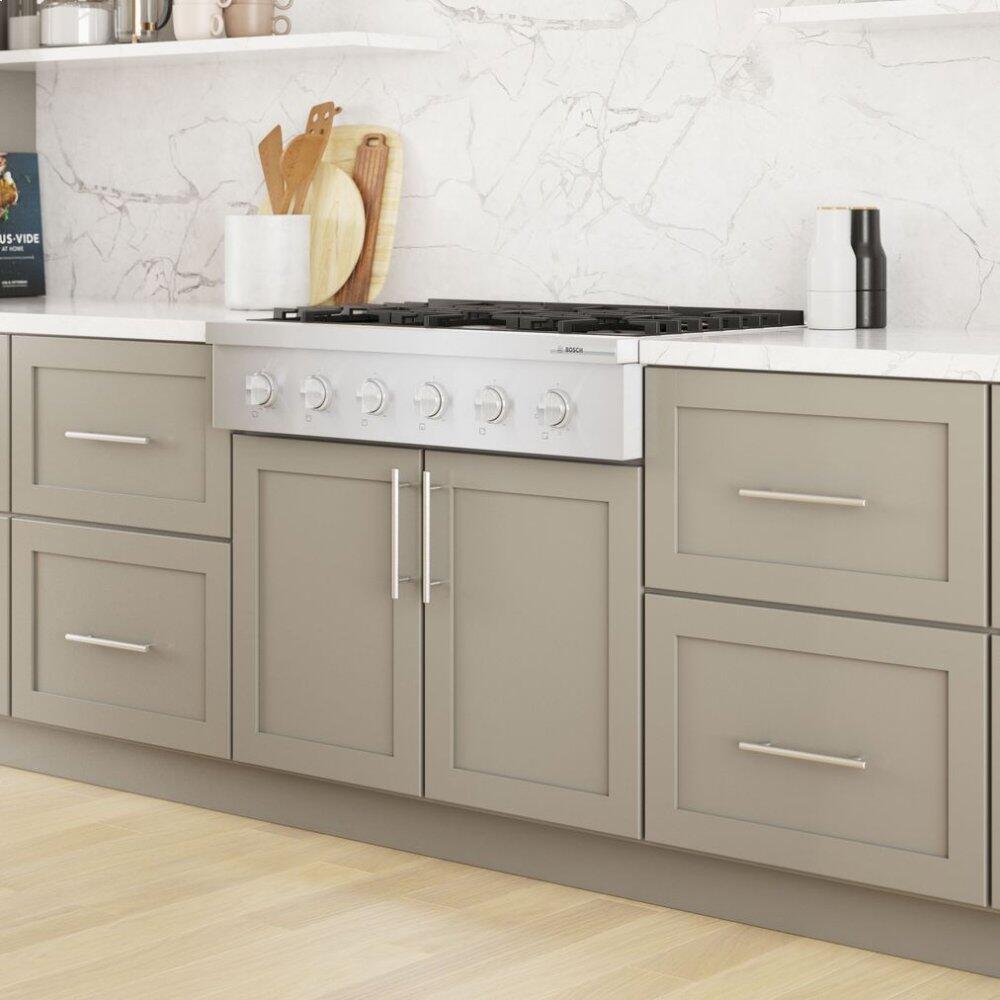

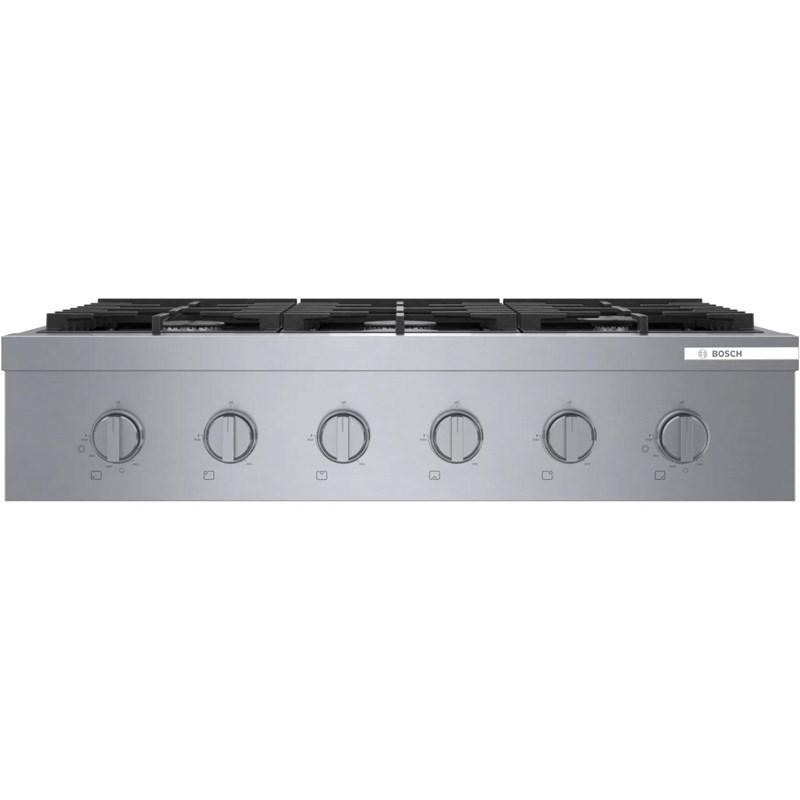

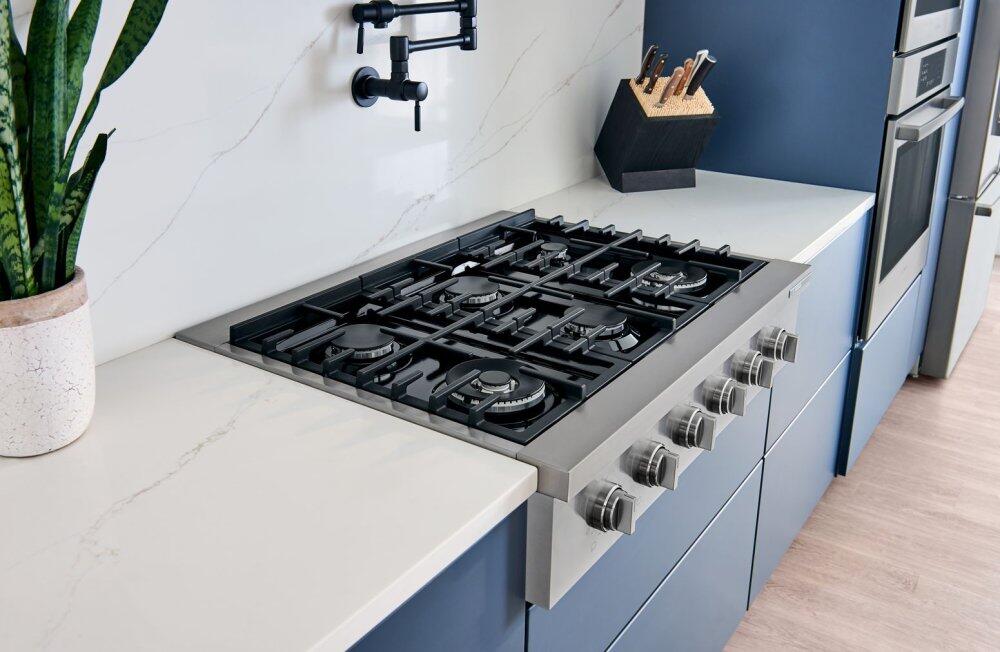

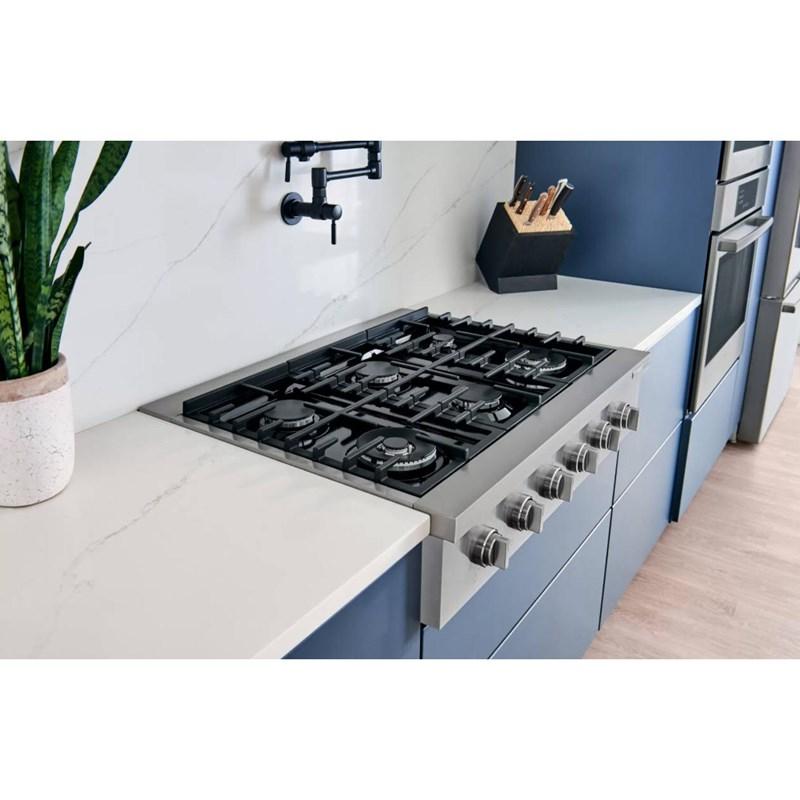

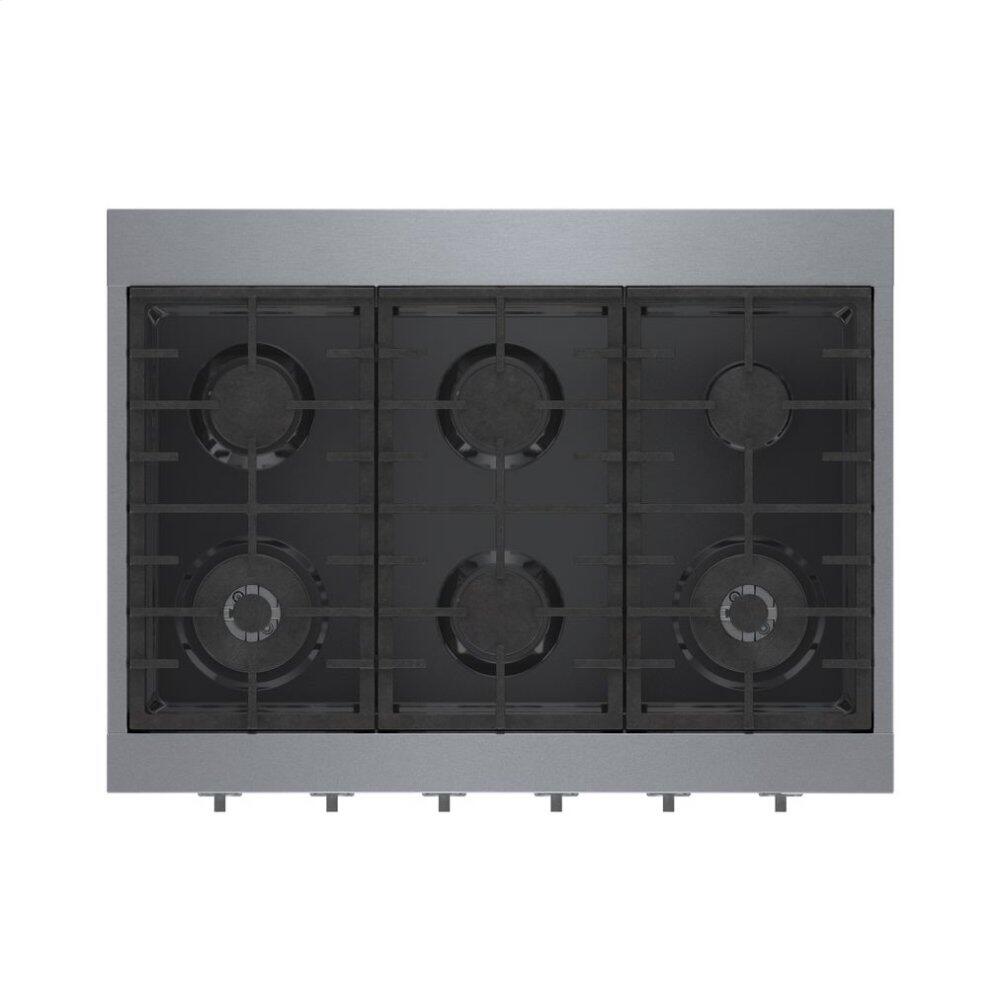

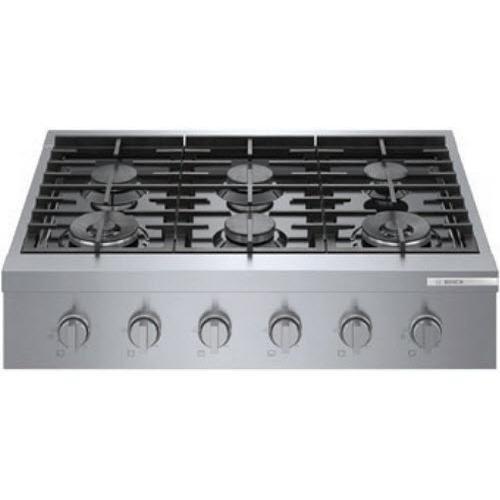

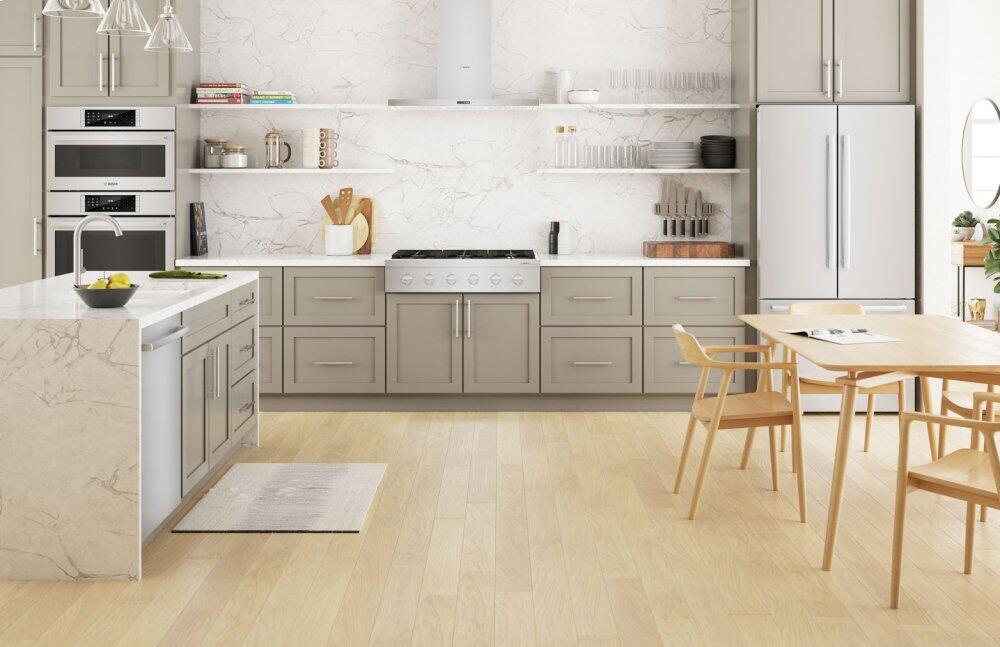

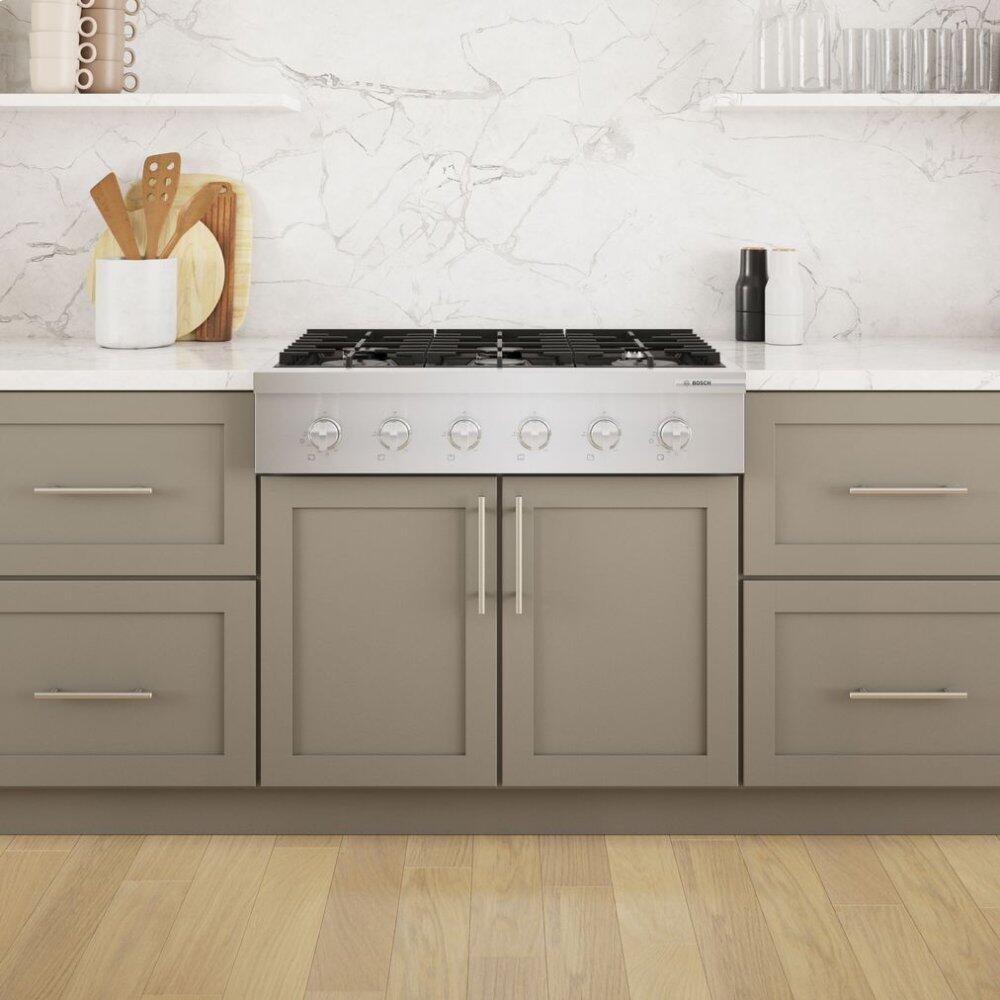

This 36-inch wide Bosch slide-in gas rangetop features OptiSim® burner, cast-iron grates, electric ignition system and 6 sealed burners.
Features

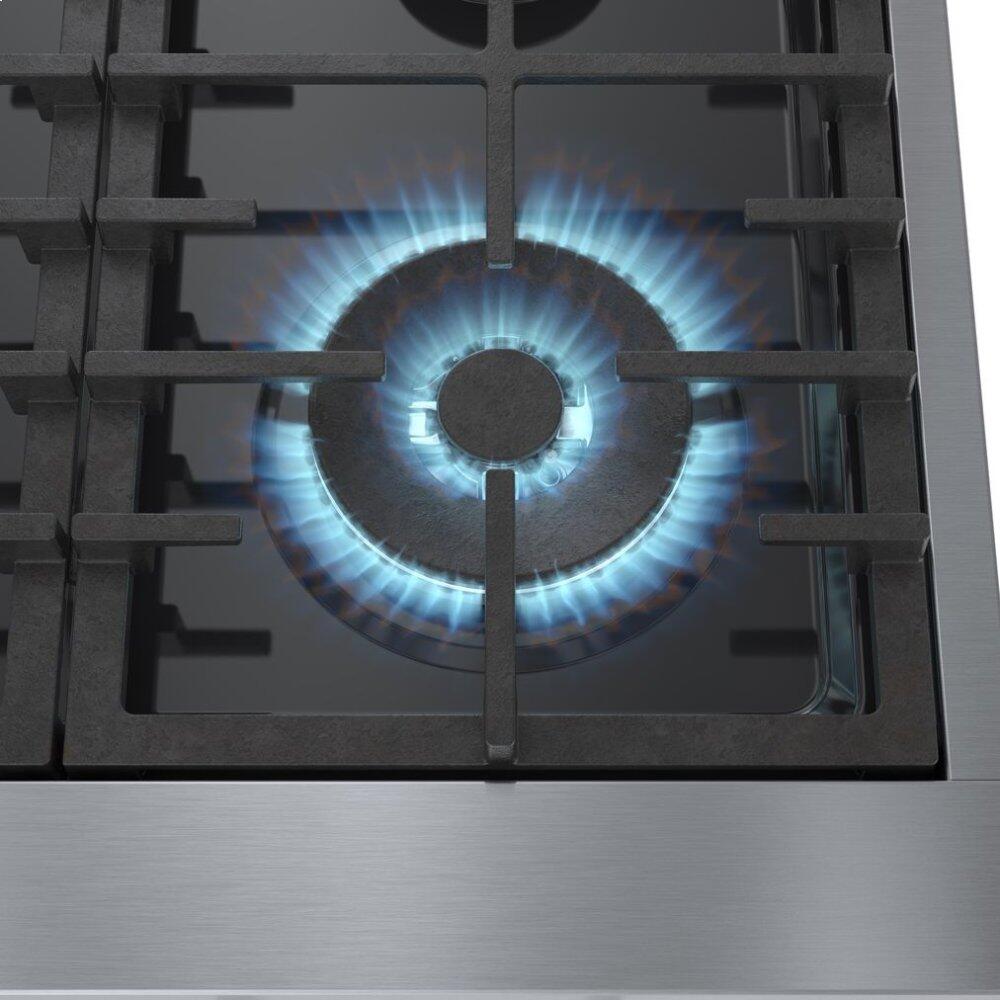

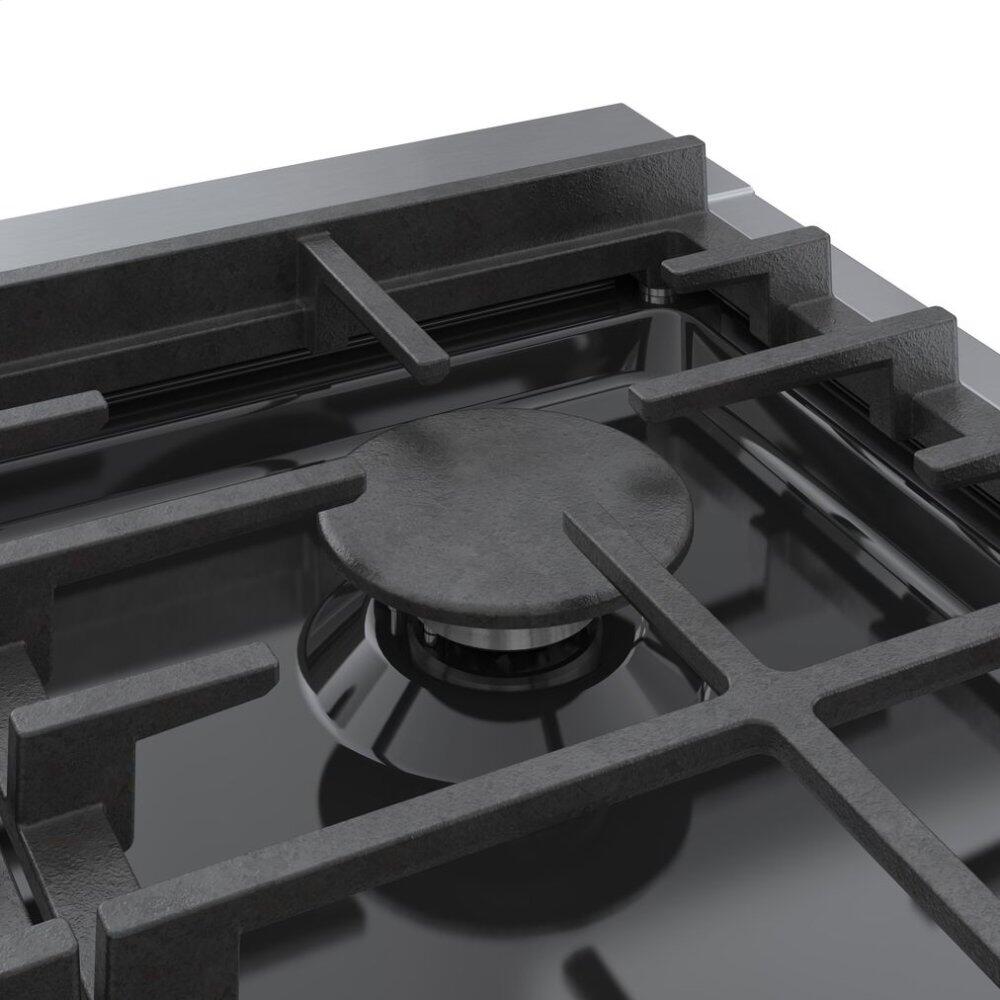

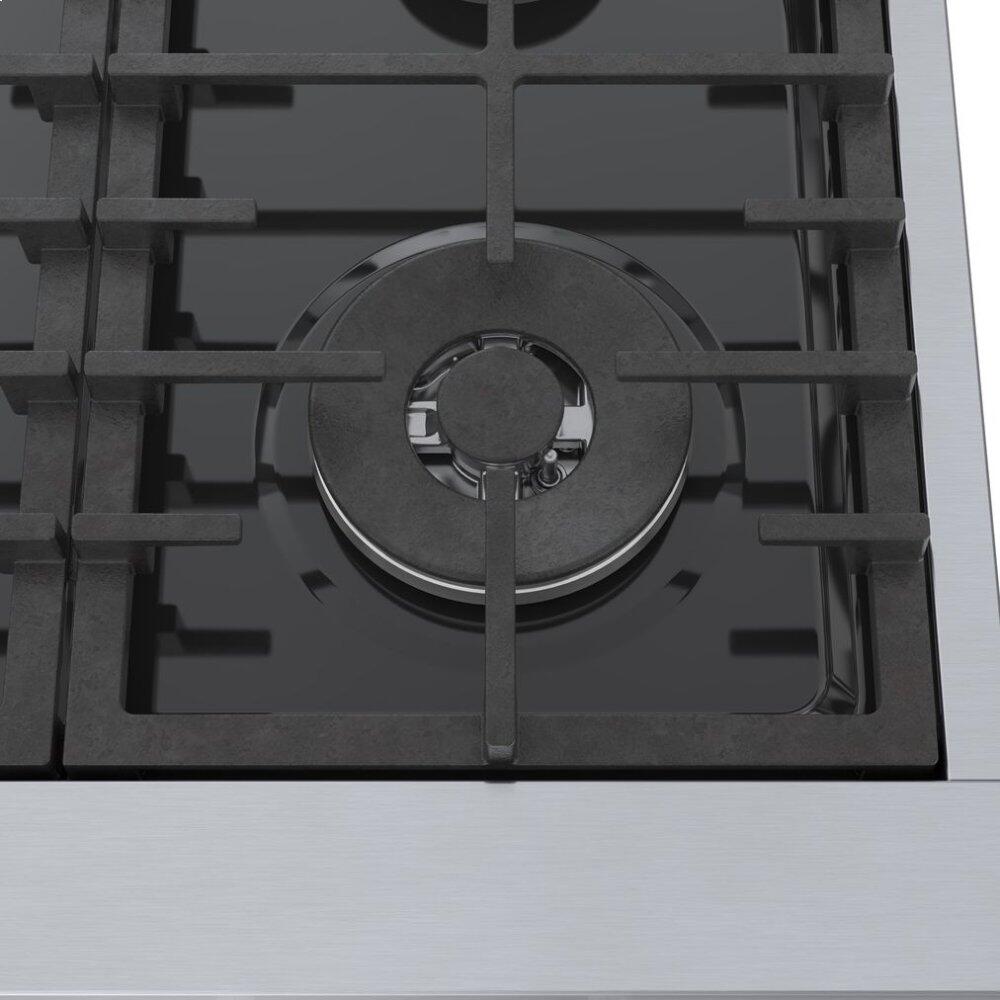

- OPTISIM® BURNER — OptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights

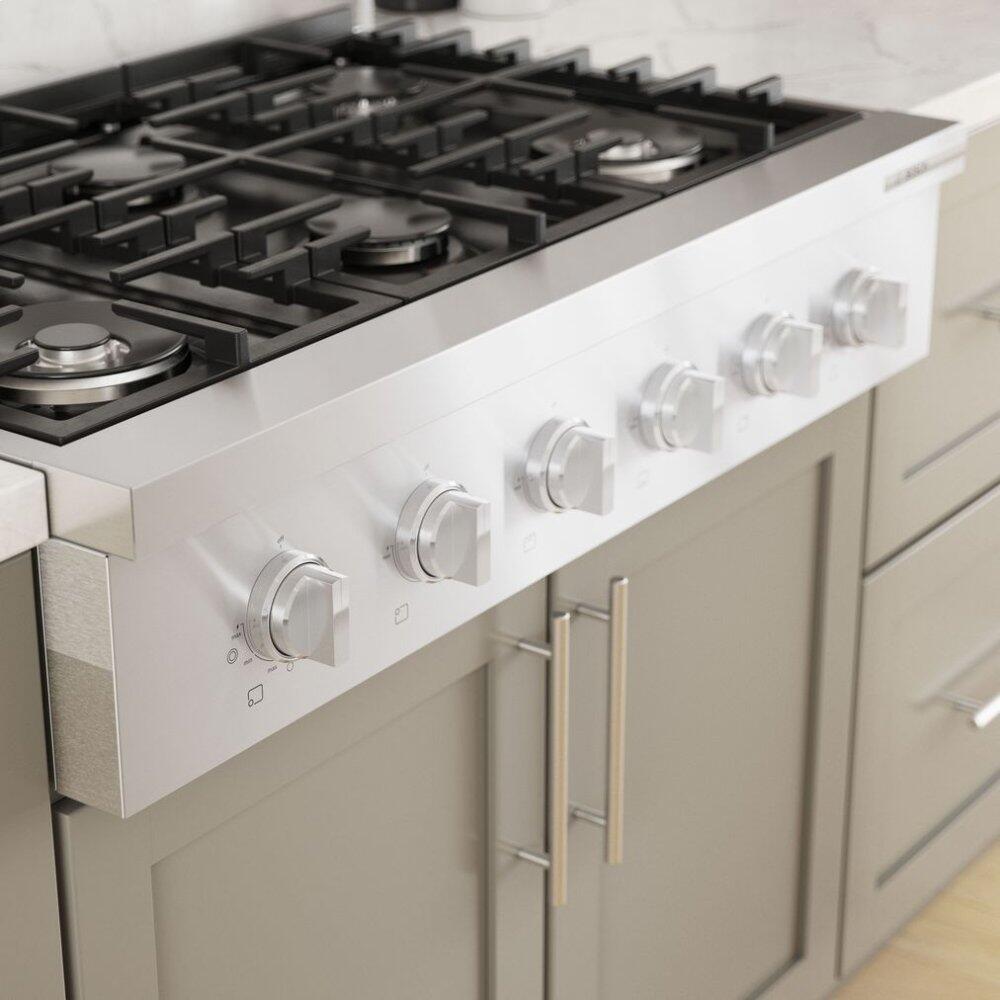

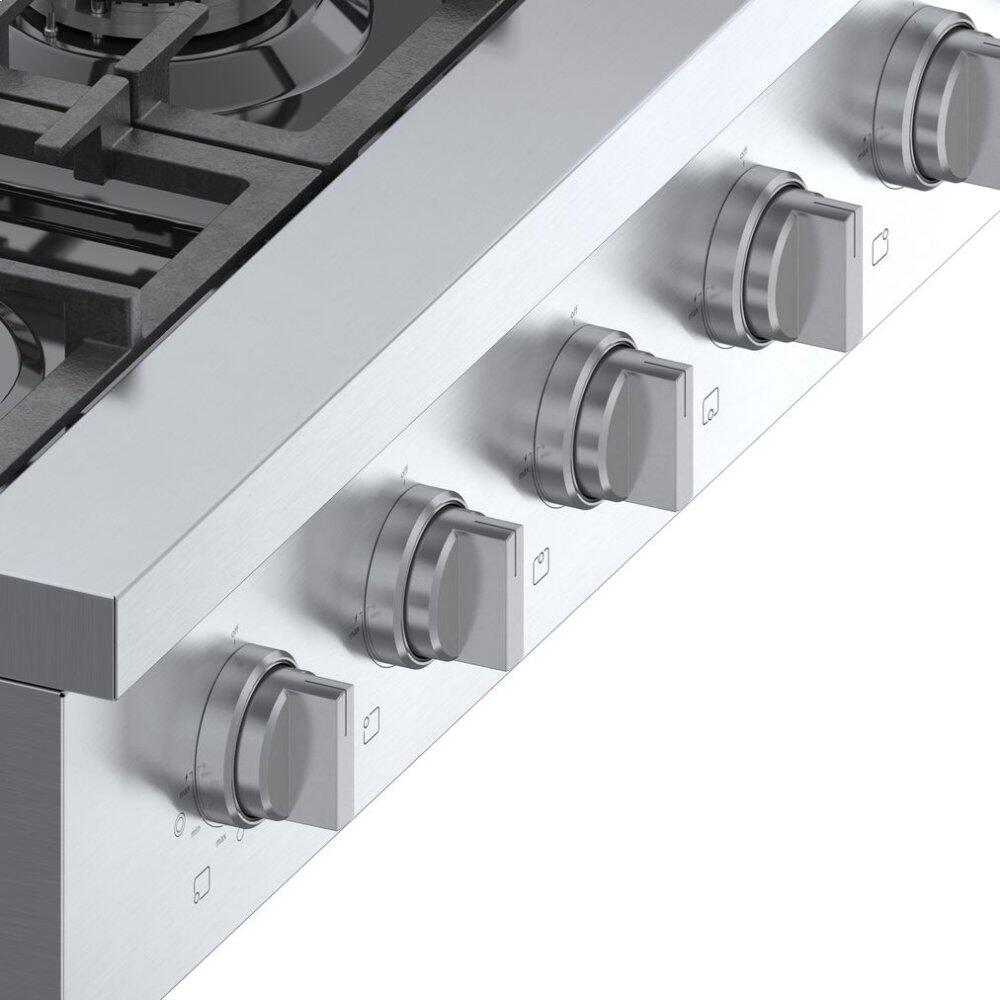

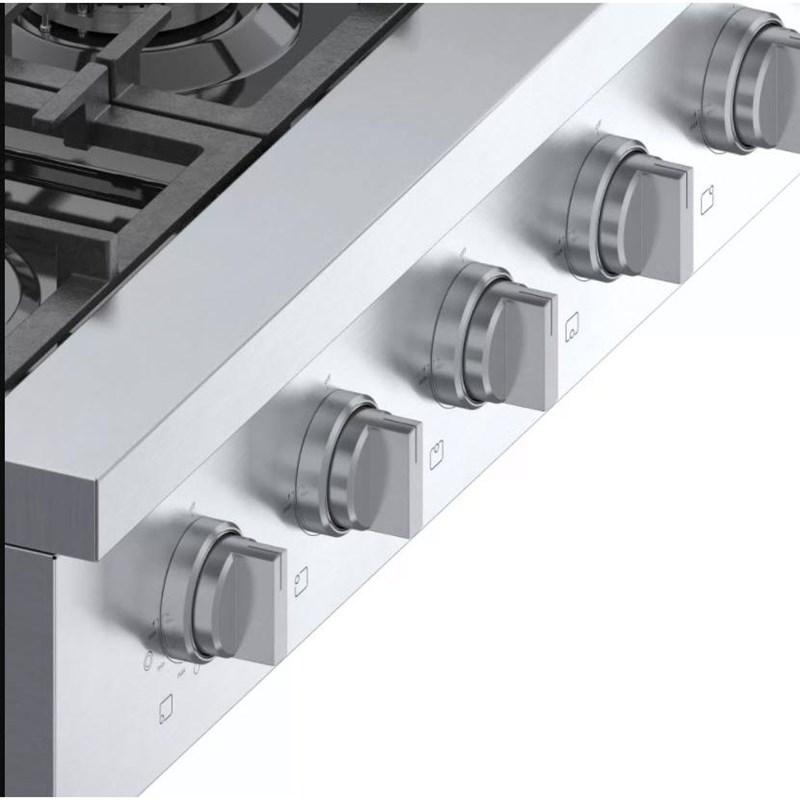

Dual Flame Power Burner | Metal Knobs | Electric Ignition System | Flame Failure Device | Continuous Grates | Dishwasher Safe
Specifications
| Burners/Elements | 6 | Burners | Sealed | Height | 19.05 cm |
| Width | 91.28 cm | Depth | 67.62 cm | Weight | 15.65 kg |
| Additional Dimensions | Required Cutout Size (HxWxD): 7 3/8" x 36" x 24" | Class Width | 36" | Fuel Type | Natural Gas |
| Type | Rangetop | Series Name | 800 Series | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | UPC# | 825225960843 | ADA Compliant | Y |

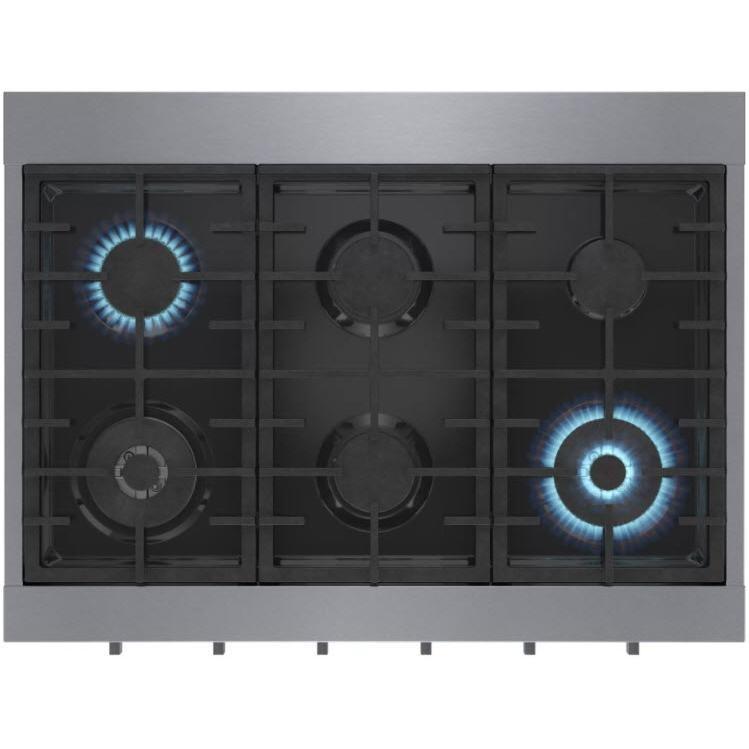

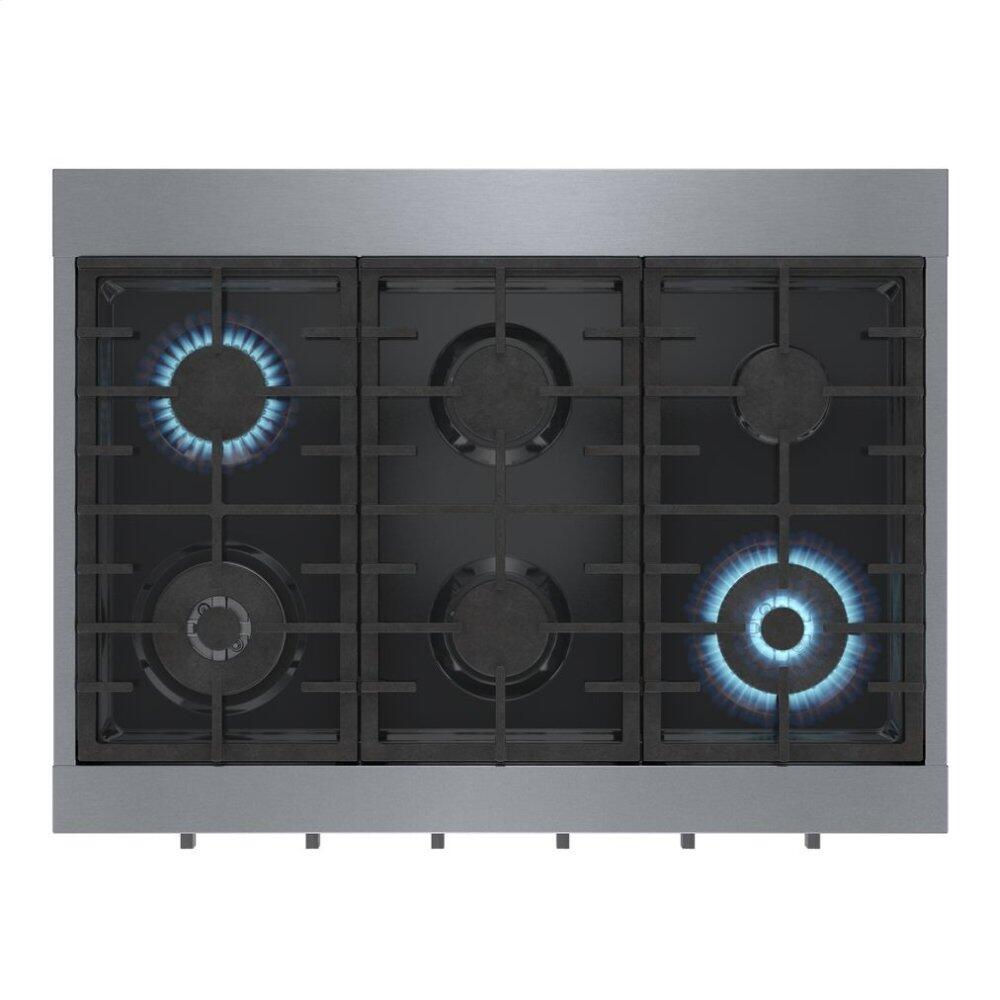

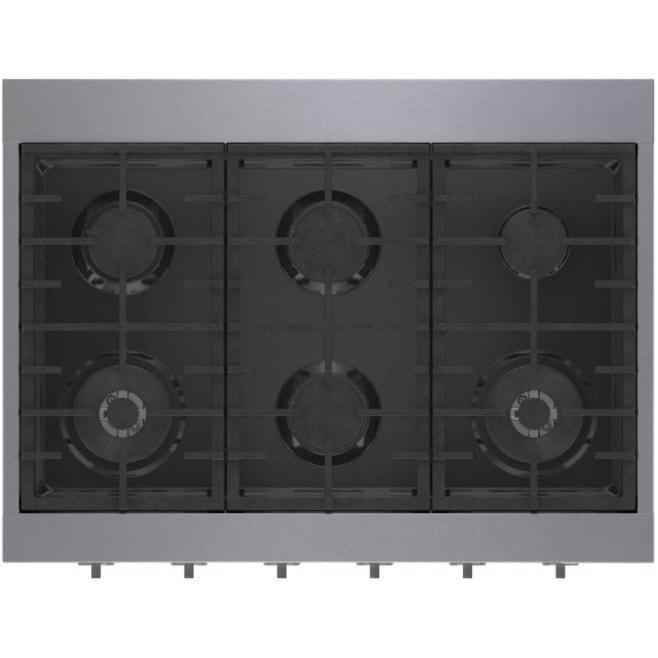

| Power Output Total BTU Load (NG / LP): 77,000 / 77,000 BTU | Power of Front Left Burner (NG / LP): 18,000 / 18,000 BTU | Power of Back Left Burner (NG / LP): 12,000 / 12,000 BTU | Power of Front Center Burner (NG / LP): 12,000 / 12,000 BTU | Power of Back Center Burner (NG / LP): 12,000 / 12,000 BTU | Power of Back Right Burner (NG / LP) Opti-Sim®: 5,000 / 5,000 BTU | Power of Front Right Burner (NG / LP) Dual-Flame: 18,000 / 18,000 BTU | |||||

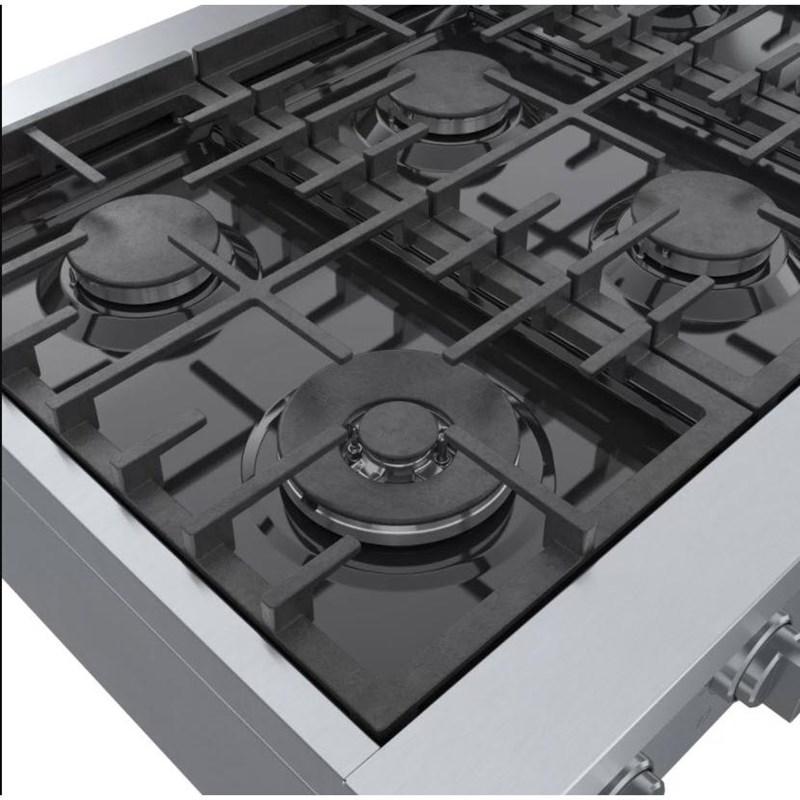

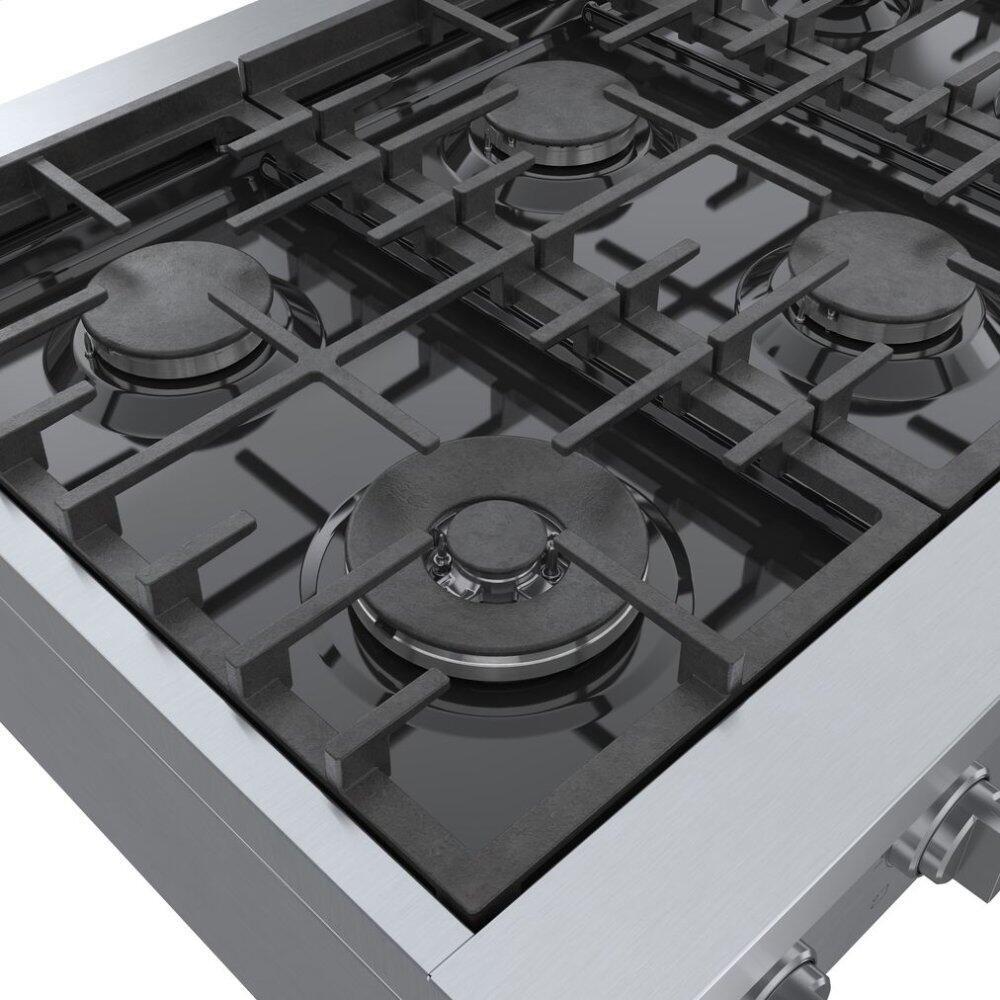

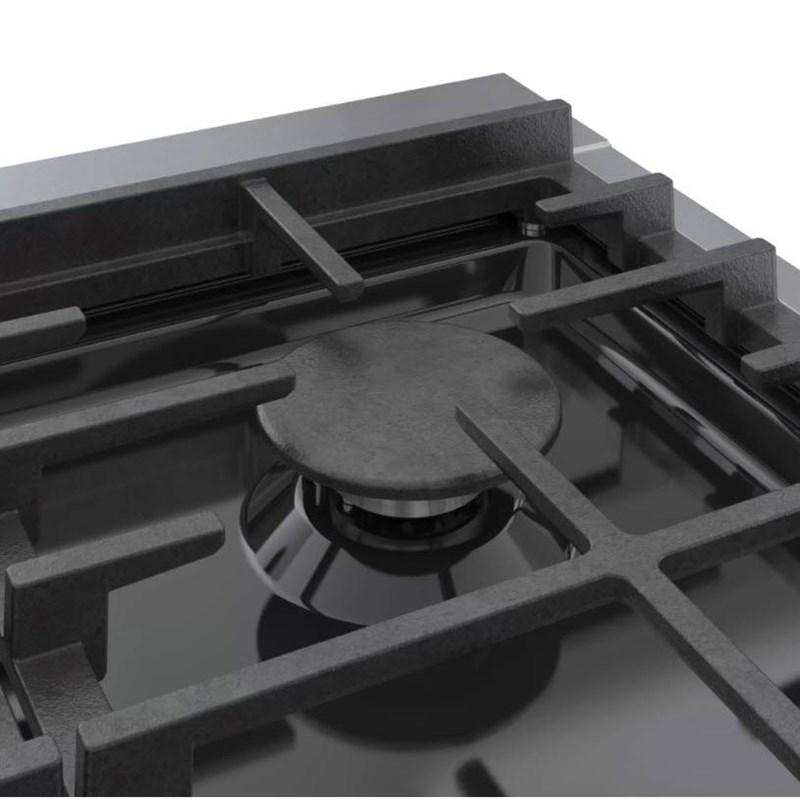

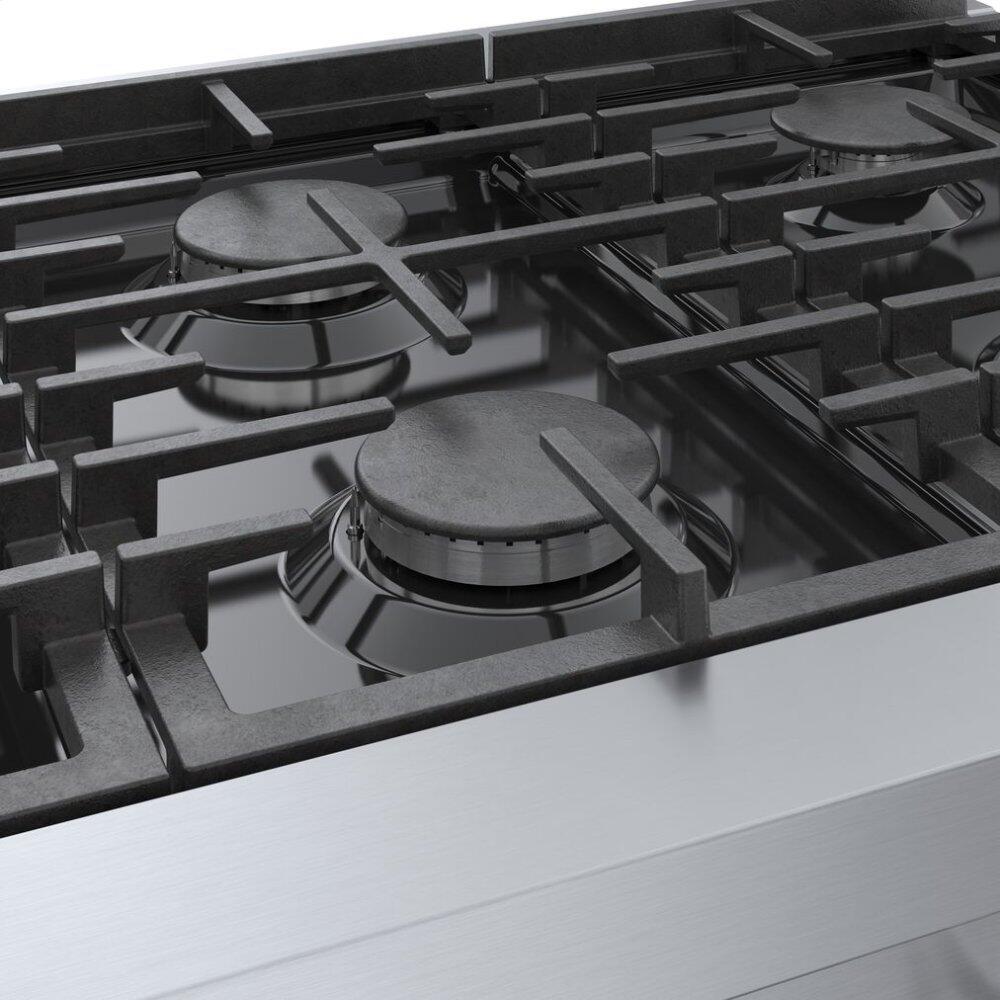

| Surface Features Heavy-Duty Continuous Surface Grates | Porcelain Coated Steel | |||||

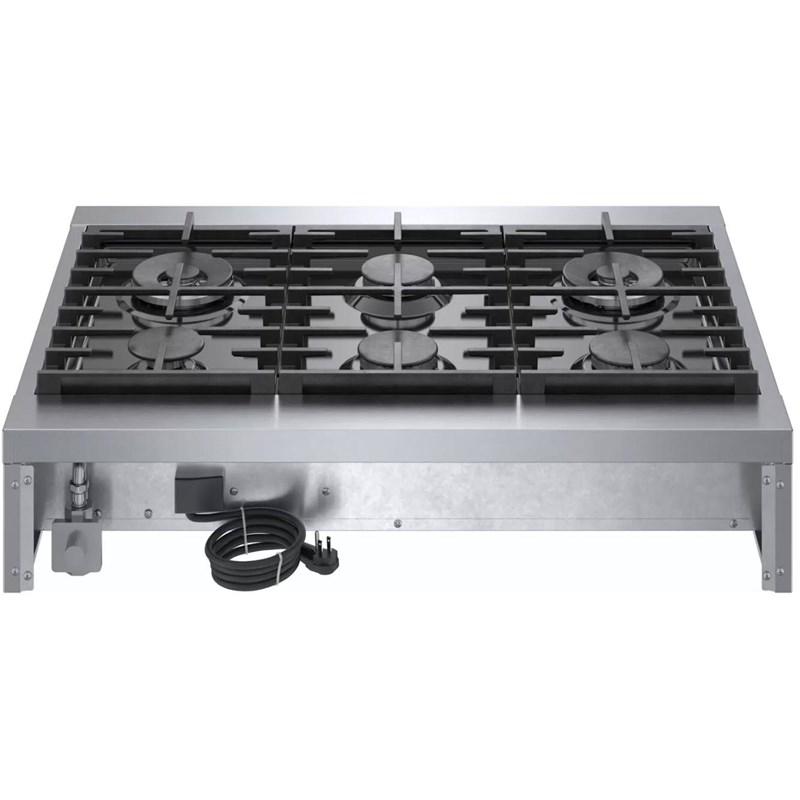

| Information 120 V | 60 Hz | 15 A | |||||
| Technologies OptiSim® Burner | |||||
| Included LP Conversion Kit | OptiSim® Cap | |||||
| Optional Griddle HEZ9GR41UC | Wok Ring HEZ9GW23UC | 9" Backguard (Stainless Steel) HEZ7YZ36UC | |||||
Accessories
• LP Conversion Kit
• OptiSim® Cap
• OptiSim® Cap
