Description
About this Product

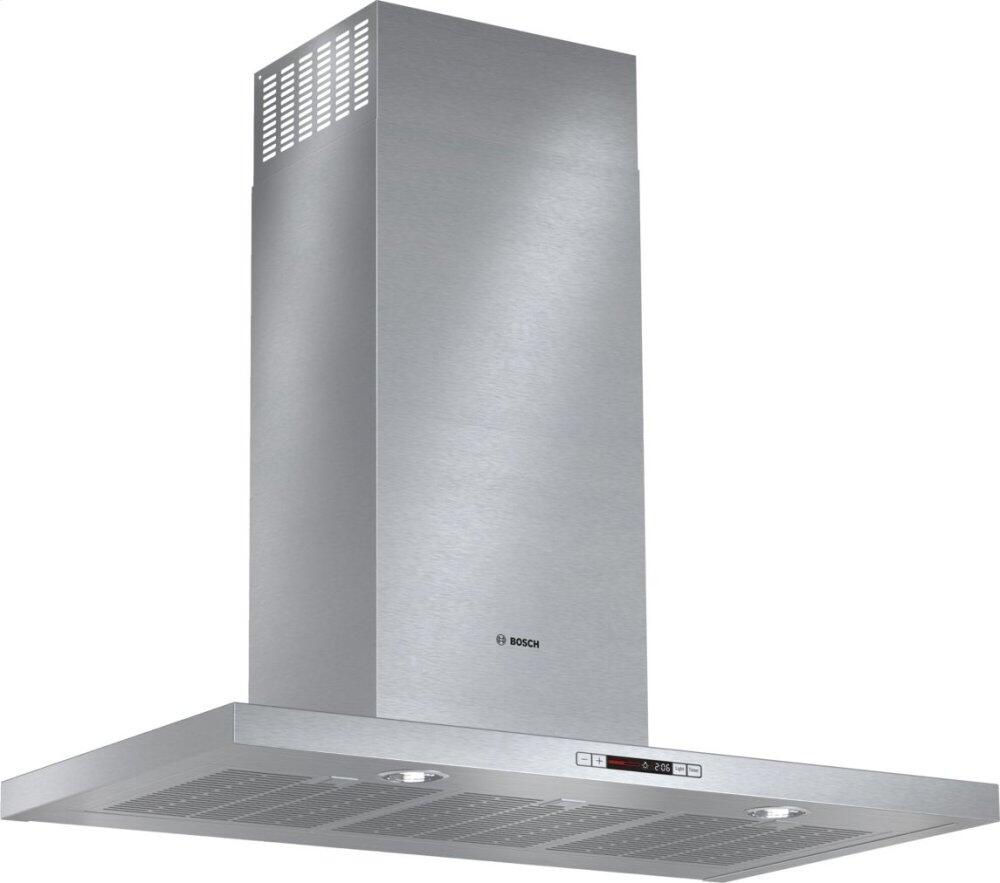

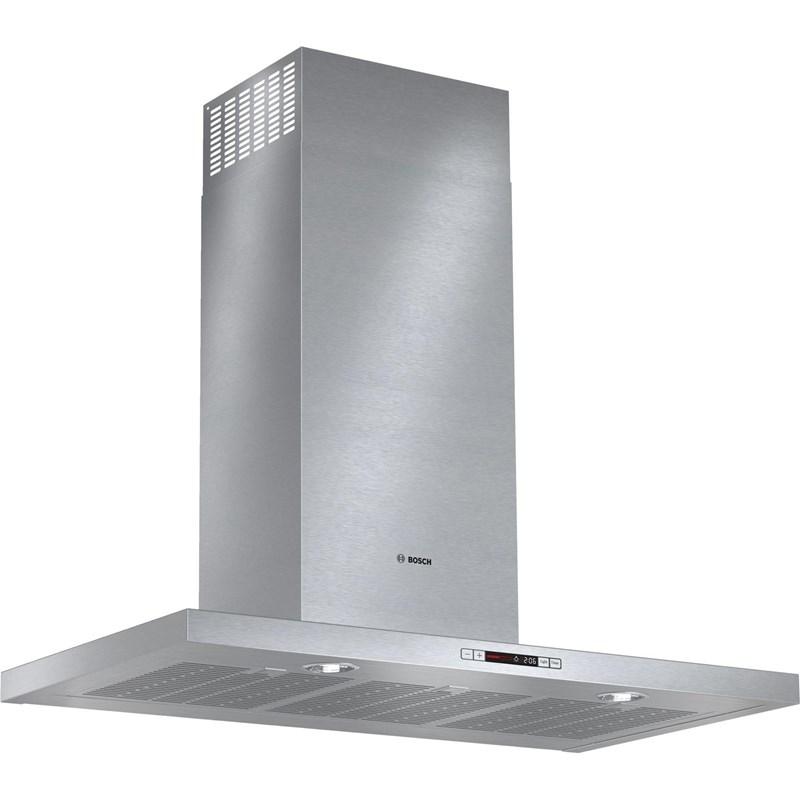

Bosch 36" 500 Series box canopy chimney hood. This hood features a 600 CFM blower, touch controls with LCD display and four speeds.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights

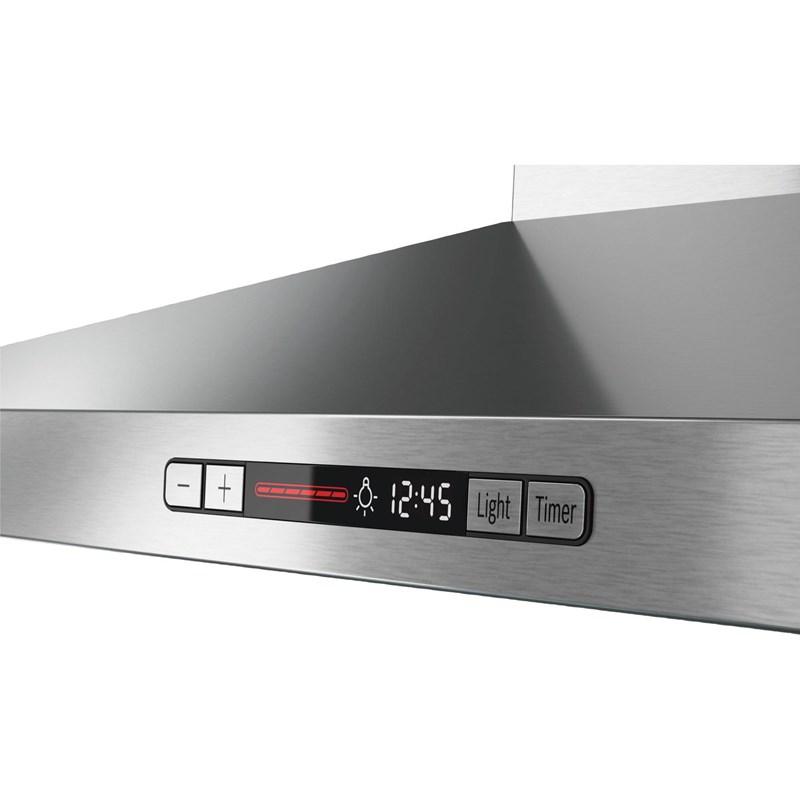

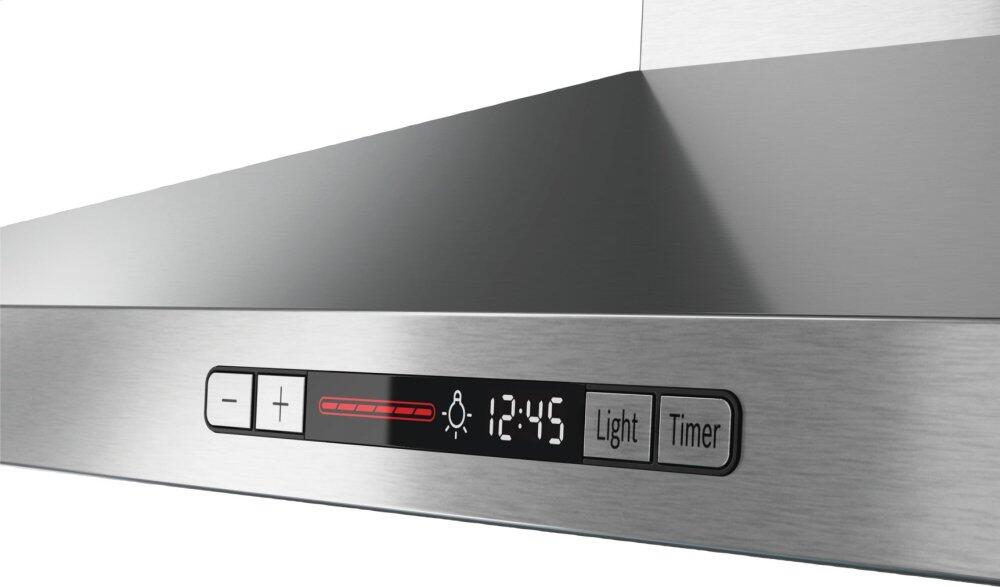

2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base | Blower will automatically turn on at high speed if excessive heat is sensed in the control area | Absorb odors with charcoal replacement filters | Convenient timer built into control from 1-60 minutes | Signal on LCD display will illuminate as a reminder to check filters for cleaning | Audible tone when select controls are pressed | Approval certificates: CUL, UL
Specifications
| Style | Chimney | Airflow | 600 CFM | Series Name | 500 |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4 Speeds | Dishwasher-Proof Filters | Y |
| Width | 91.44 cm | Height | 68.74 cm | Depth | 50.01 cm |
| Weight | 24.95 kg | Class Width | 36" | UPC# | 825225909057 |
| Warranty | Limited 1 year parts and labor | ||||
| Ducting Information 8" round duct at discharge | Convertable: Ducted / Recirculating | Duct Extension Accessory Kit Available for 9' to 12' Ceilings | |||||
| Information 530 W | 110 V | 60 Hz | |||||

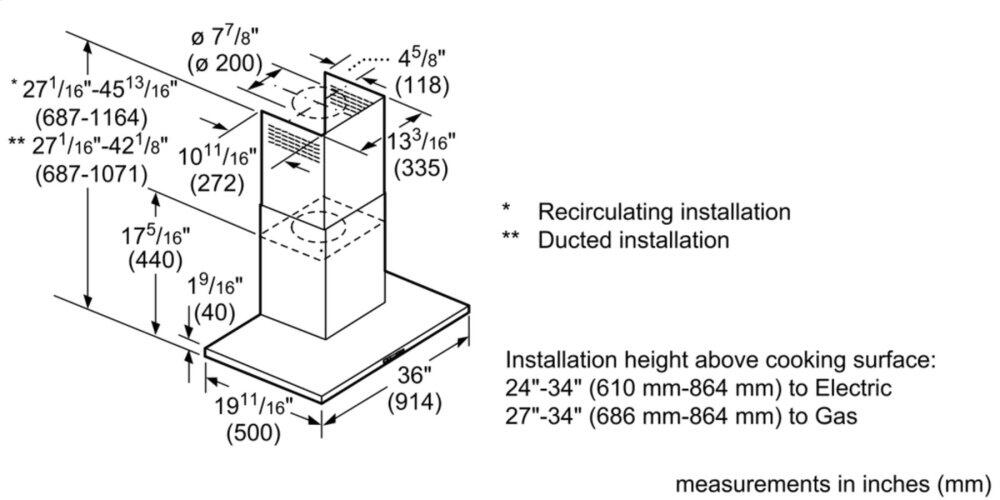

| Additional Dimensions Height of the chimney: 25 1/2" - 40 9/16"/25 3/8" - 44 1/4" | Required distance above cooktop/ranges: 24"/27" | |||||
| Optional | |||||
