Description
About this Product

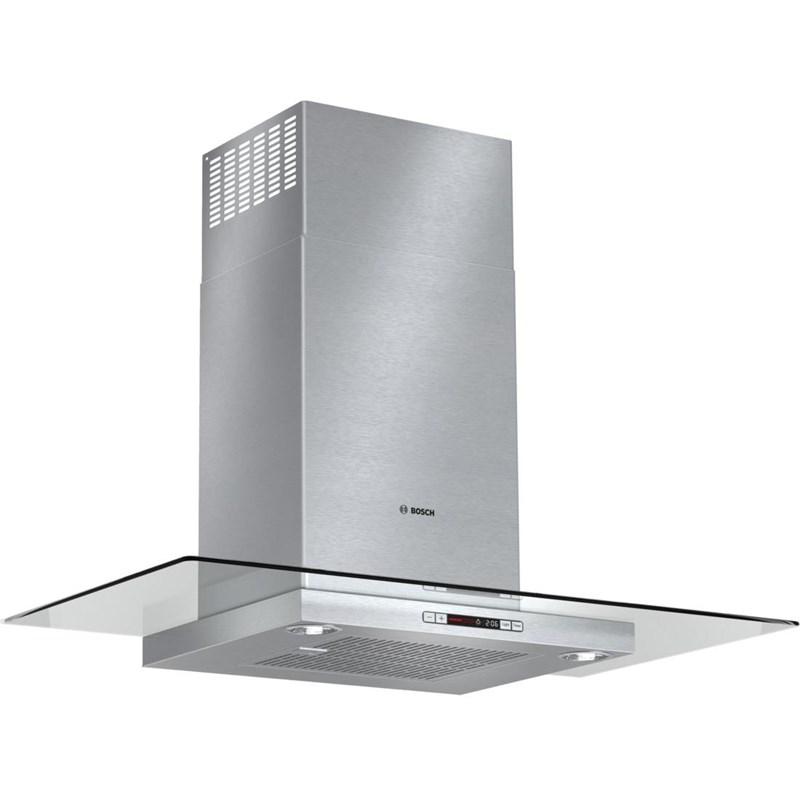

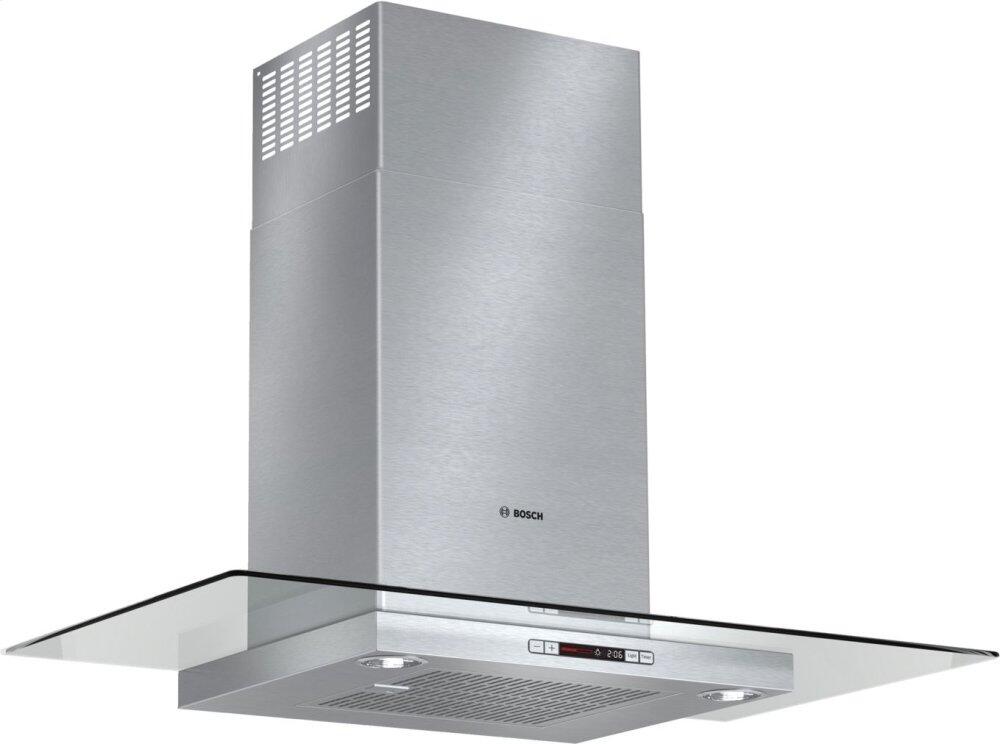

Bosch 36" glass canopy chimney hood Benchmark™ Series. This hood features 2 halogen lights, LCD display and washable filters.
Features
- INTEGRATED BLOWER 600 CFM — 600 cfm centrifugal integrated blower included
- TOUCH CONTROLS WITH LCD DISPLAY — Four speed touch controls with lcd display
- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
Touch Controls with LCD Display | Dishwasher Safe Aluminum Mesh Filters | 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base | Blower will automatically turn on at high speed if excessive heat is sensed in the control area | Absorb odors with charcoal replacement filters | Convenient timer built into control from 1-60 minutes | Signal on LCD display will illuminate as a reminder to check filters for cleaning | Audible tone when select controls are pressed | 4-stage speed settings | Approval certificates: CSA, UL
Specifications
| Style | Chimney | Airflow | 600 CFM | Series Name | Benchmark® |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4 | Dishwasher-Proof Filters | Y |
| Width | 91.44 cm | Height | 69.69 cm | Depth | 50.0 cm |
| Weight | 25.40 kg | Class Width | 36" | UPC# | 825225909064 |
| Warranty | Limited 1 Year Parts and Labor | ||||
| Ducting Information Convertable: Ducted / Recirculating | Diameter of air duct (in) top: 8 | |||||
| Information 530 W | 110 V | 60 Hz | Plug type: 120V-3 prong | |||||

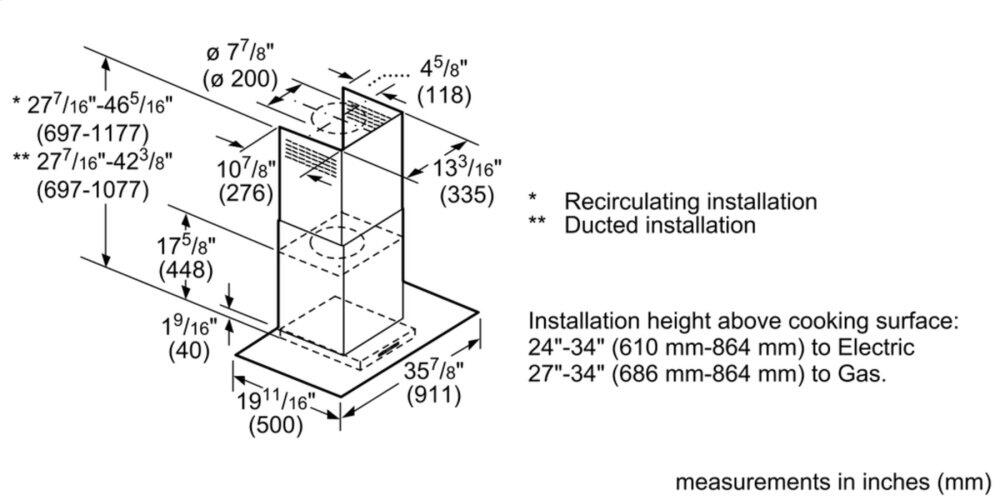

| Additional Dimensions Height of the chimney (in): 25 7/8" - 40 13/16"/25 7/8" - 44 3/4" | Required distance above cooktops/ranges: 24"/27" | |||||
| Optional Converts to Recirculation Mode with Accessory Kit (Sold separately) | Duct Extension Accessory Kit Available for 9' to 12' Ceilings | |||||
Accessories
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
