Description
About this Product

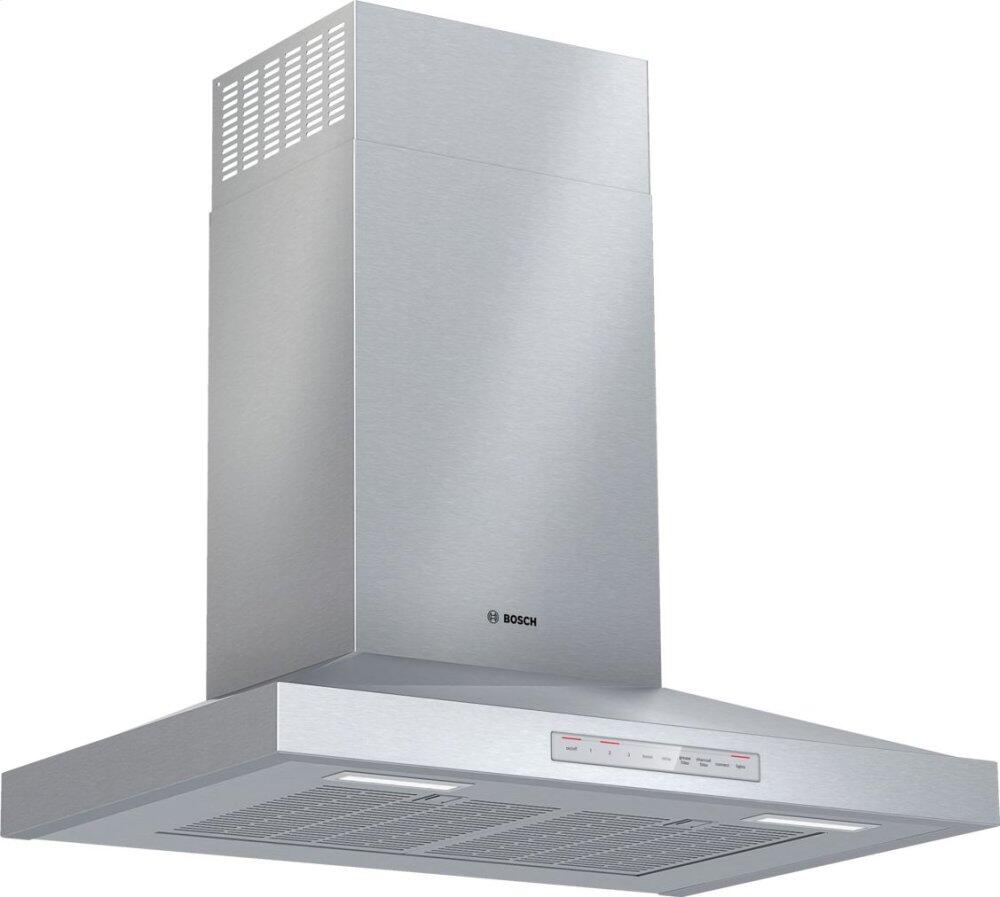

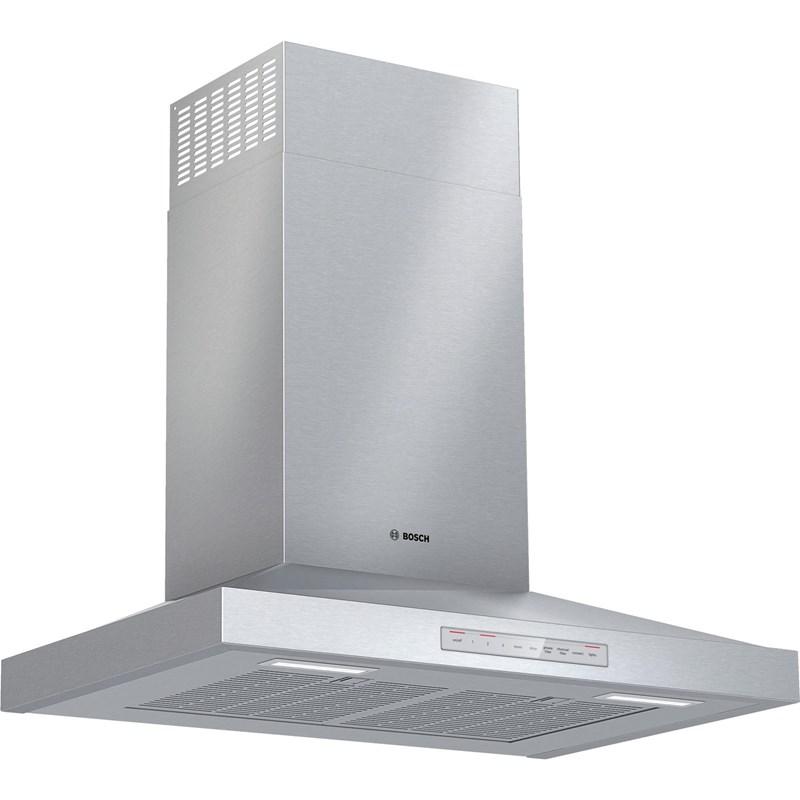

This Bosch 500 Series 30" pyramid canopy chimney hood features Home Connect, 4-speed power level options, LCD touch display controls and dishwasher safe aluminum mesh filters.
Features

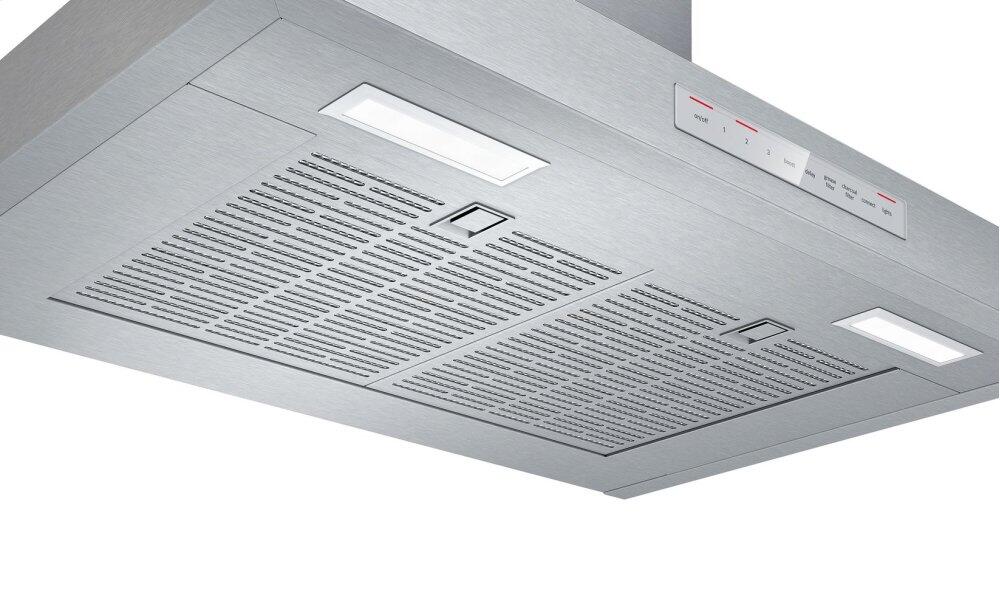

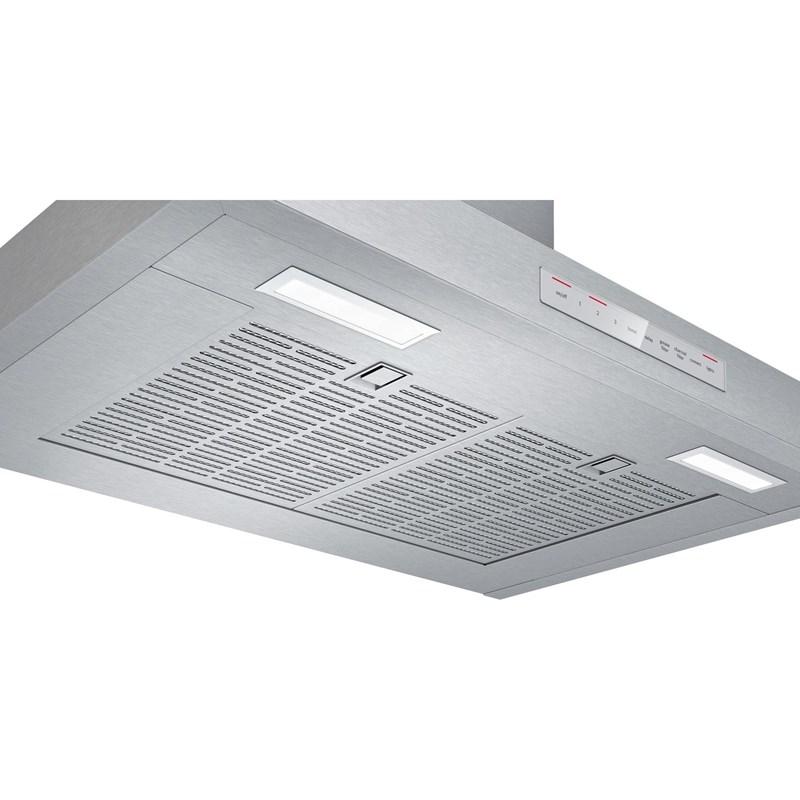

- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers

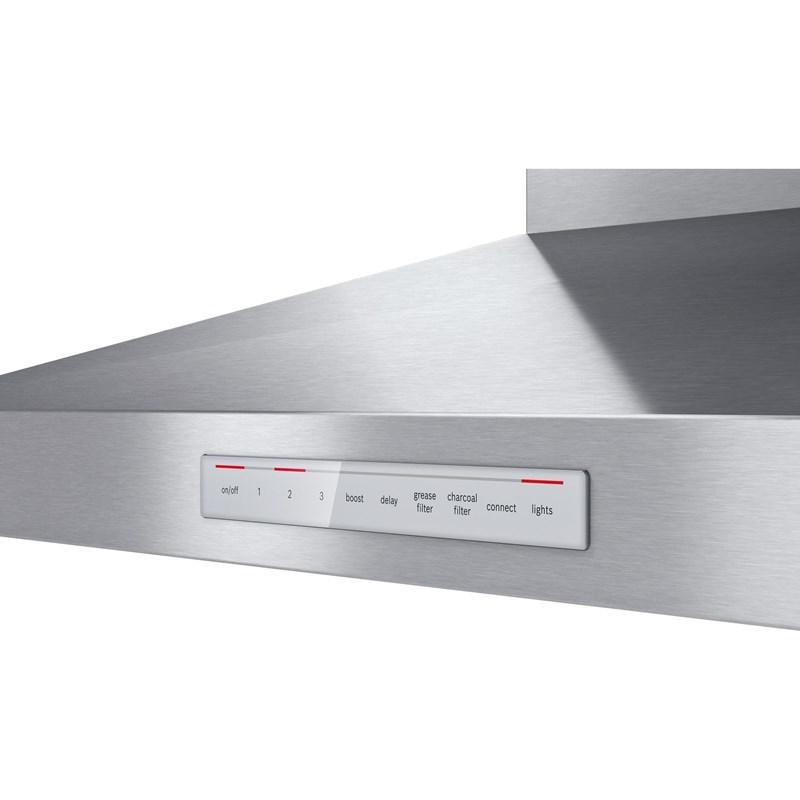

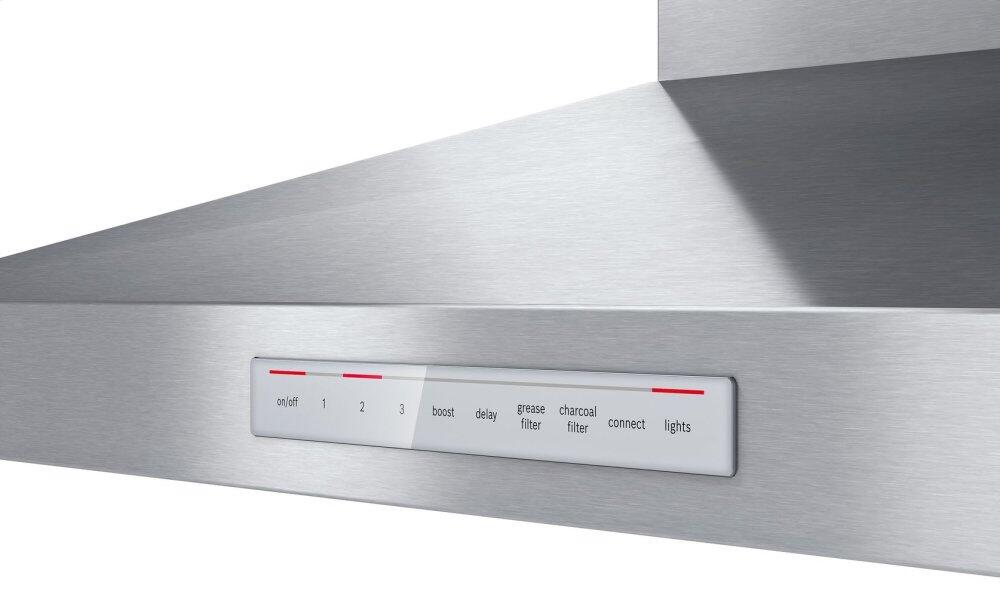

- TOUCH CONTROLS WITH LCD DISPLAY — Four speed touch controls with lcd display
- INTEGRATED BLOWER 600 CFM — 600 cfm centrifugal integrated blower included
Documents
Product Sheet (en)
Dimensions Guide (en)
Installation guide (en)
Highlights
Touch Controls With LCD Display | Aluminum Mesh Filters | Multilayer Cassette Grease Filters | Sones: 9.9 HS / 4.56 WS | 2x 80 W Halogen Lights
Specifications
| UPC# | 825225959458 | Weight | 22.23 kg | Depth | 49.99 cm |
| Height | 63.5 cm | Width | 76.2 cm | Class Width | 30" |
| Warranty | Limited 1 Year Parts and Labor | Included | Damper | Series Name | 500 Series |
| Style | Chimney | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Wall Mount | Blower Included | Y | Airflow | 600 CFM |
| Ducting Information | 8" Diameter of Air Duct | Dishwasher-Proof Filters | Y | Speeds | 4-Speeds |
| Wi-Fi | Y | ||||

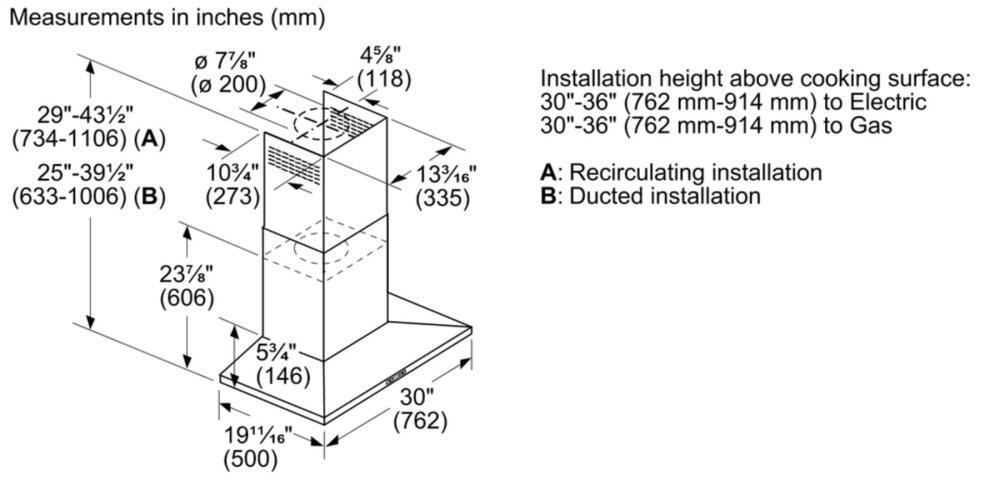

| Additional Dimensions Height of the Chimney: 19 9/16"–33 7/8" /23 1/4"–42 9/16" | Required Distance Above Cooktop / Range Cooking Surface: 30" Electric / 30" Gas | |||||
| Optional | |||||
| Technologies Home Connect™ | |||||
| Information 120 V | 60 Hz | |||||
Accessories
• Chimney Extension For 9-11.5 ft. Ceilings: HCPEXT5UC
• Recirculation Kit: HCREC5UC
• Filter Kit: HCIFILTUC
• Recirculation Kit: HCREC5UC
• Filter Kit: HCIFILTUC
Damper
