Description
About this Product

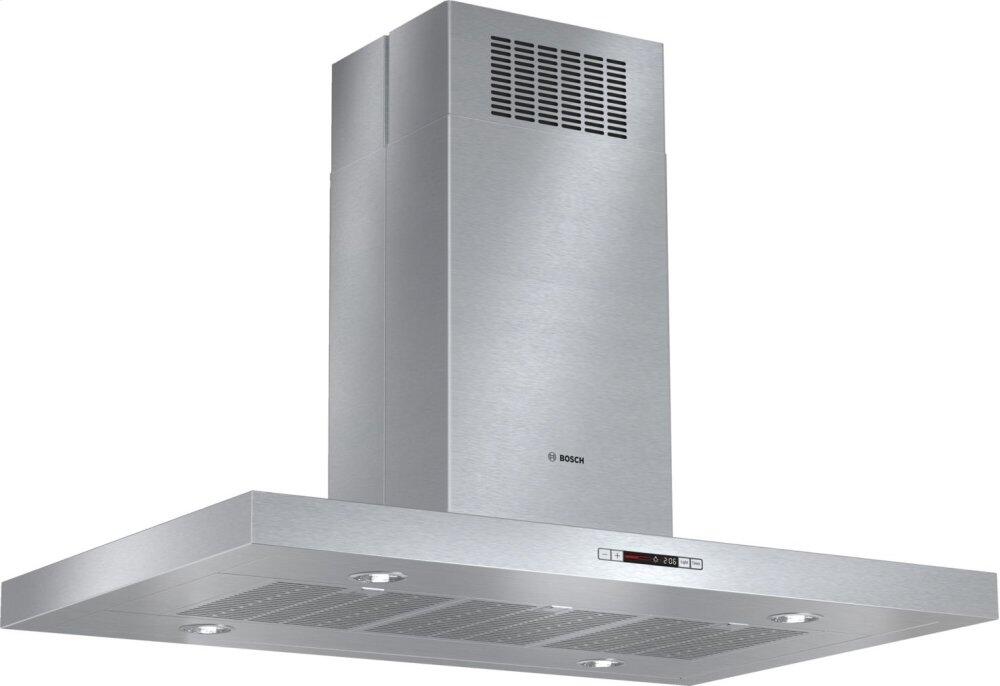

Bosch 800 Series 42" Stainless Steel box canopy island hood, features 4-speed touch controls with LCD display, audible tone when select controls are pressed, dishwasher safe filters with stainless steel covers and 600 CFM centrifugal integrated blower. Stylish island hoods perfectly complement island cooking installations.
Features

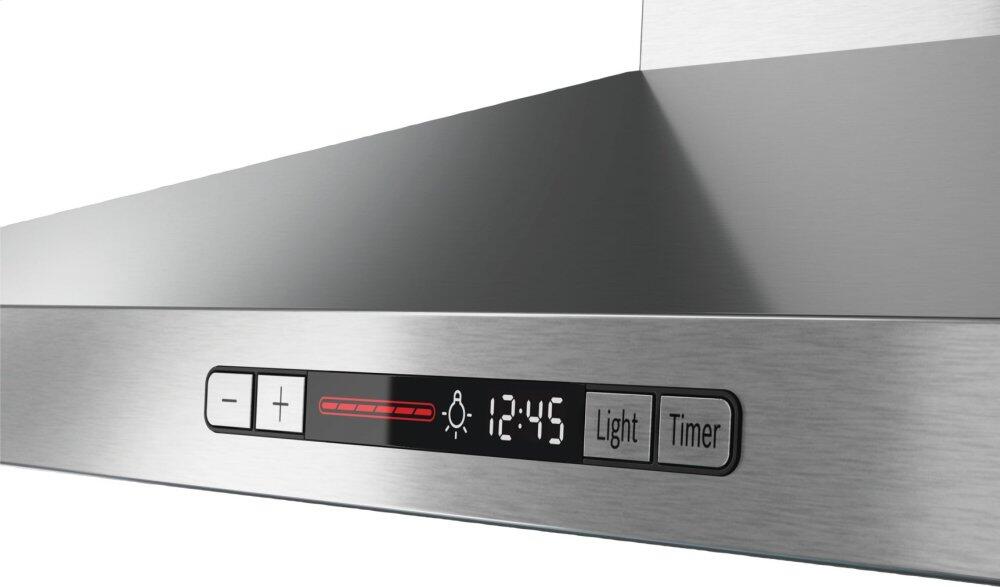

- TOUCH CONTROLS WITH LCD DISPLAY — Four speed touch controls with lcd display
- DISHWASHER SAFE — Dishwasher safe filters with stainless steel covers
- INTEGRATED BLOWER 600 CFM — 600 cfm centrifugal integrated blower included
Documents
Owner's manual (en)
Installation guide (en)
Highlights
Blower will automatically turn on at high speed if excessive heat is sensed in the control area;Absorb odors with charcoal replacement filters;Convenient timer built into control from 1-60 minutes;Signal on LCD display will illuminate as a reminder to check filters for cleaning;Audible tone when select controls are pressed;4 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base;Approval certificates: CUL, UL;Integrated motor in hood chimney;Grease filter material: washable stainless steel.
Specifications
| Style | Island | Airflow | 600 CFM | Series Name | 800 |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Island |
| Blower Included | Y | Speeds | 4 | Dishwasher-Proof Filters | Y |
| Ducting Information | Round | Width | 106.9 cm | Class Width | 42" |
| Height | 75.7 cm | Depth | 68.5 cm | Weight | 45.81 kg |
| Warranty | Limited 1 year parts and labor. | UPC# | 825225909071 | ||
| Information 120 V | |||||

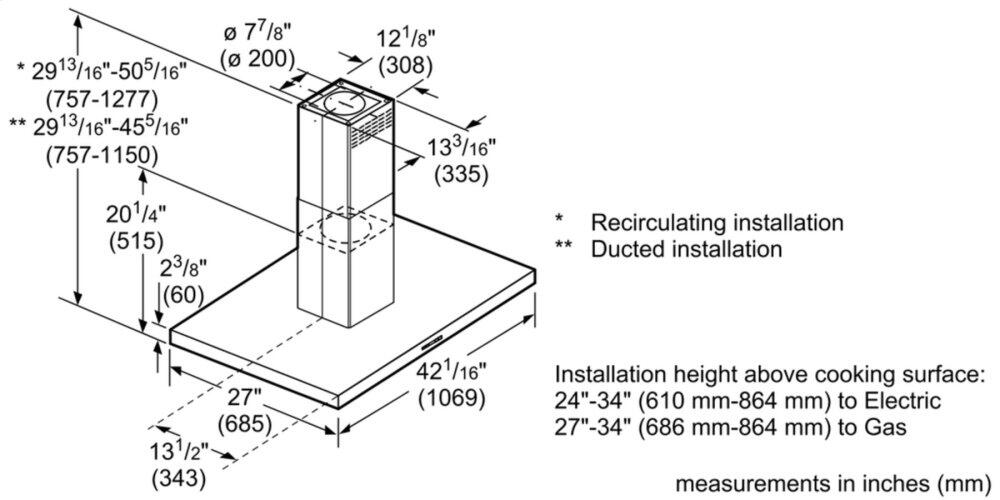

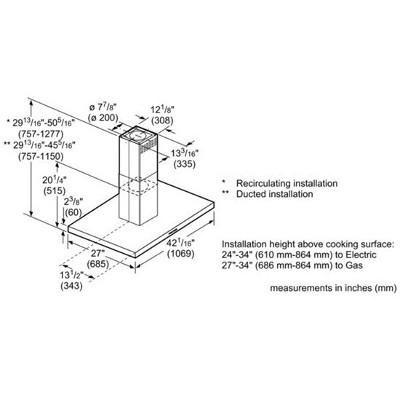

| Additional Dimensions Product packaging dimensions (HxWxD) (in): 23.25 x 46.99 x 33.49 | Required distance above cooktop/ranges: 24"/27 | Height of the chimney (in): 27 7/16" - 42 7/8"/27 7/16" - 47 7/8" | Overall appliance dimensions (HxWxD) (in): 29 13/16" - 45 5/16" / 29 13/16" - 50 5/16 " x 42 1/16" x 27" | |||||
