Description
About this Product

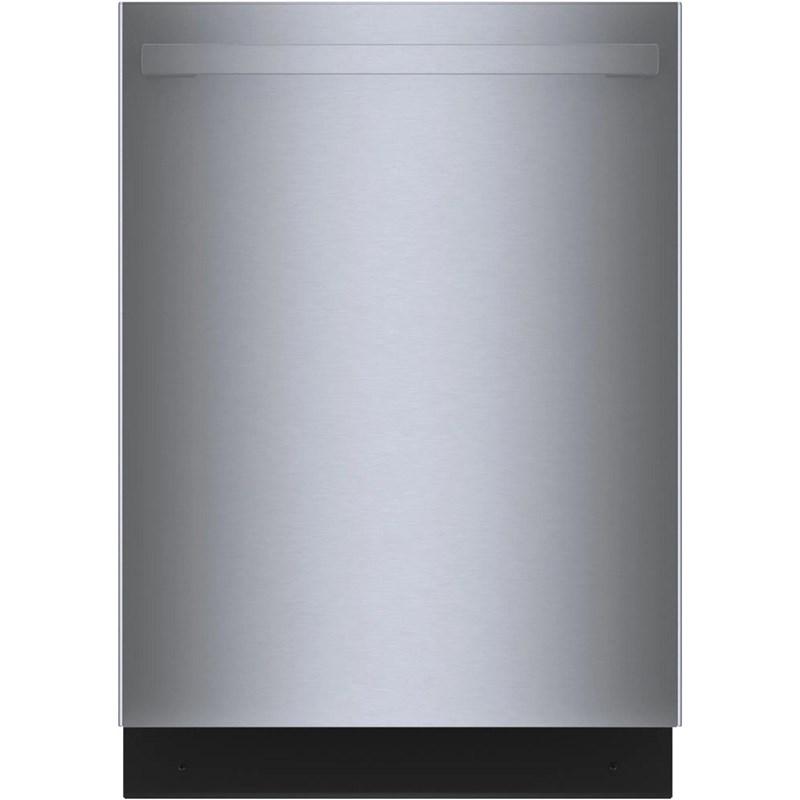

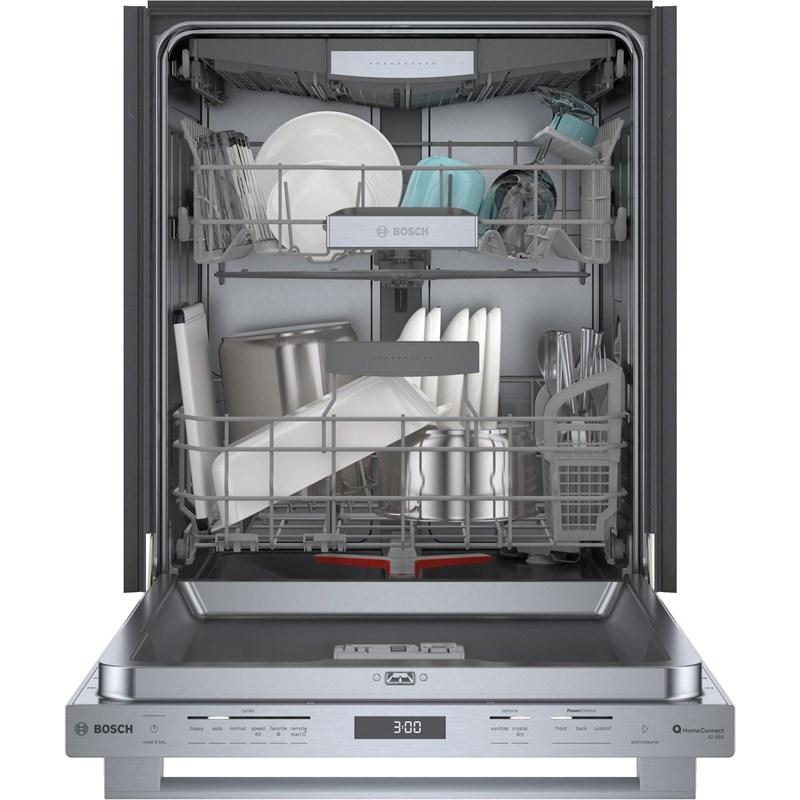

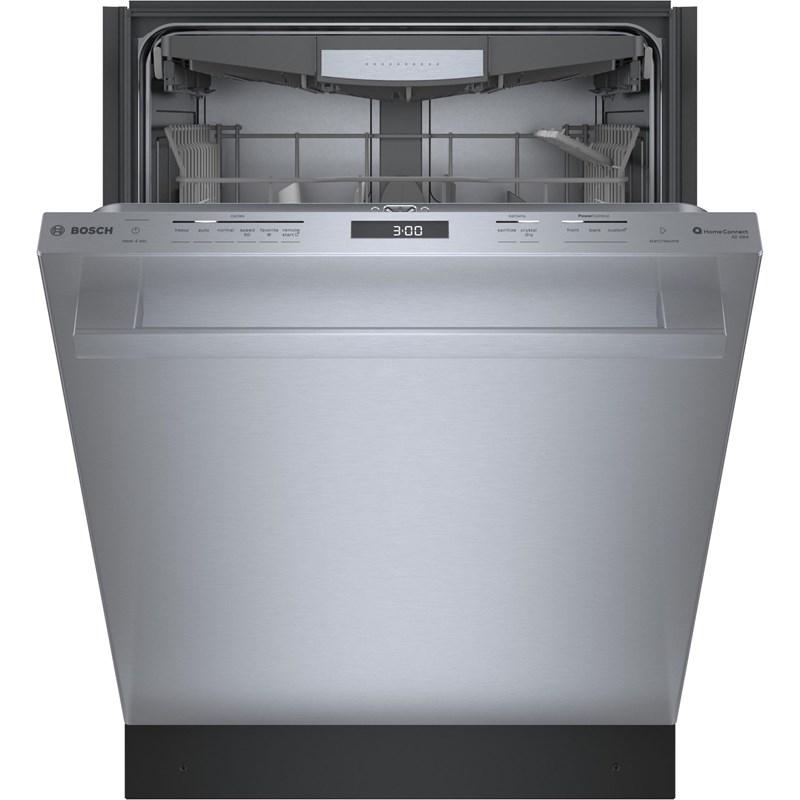

Bosch 800 Series 24" Bar Handle Dishwasher. The PowerControl™ spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack. Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.
Features
- HOME CONNECT™. — Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
- CRYSTALDRY™ — Patented CrystalDry™ technology transforms moisture into heat up to 176°F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished.
*Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type. - 24/7 AQUASTOP® — The 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.

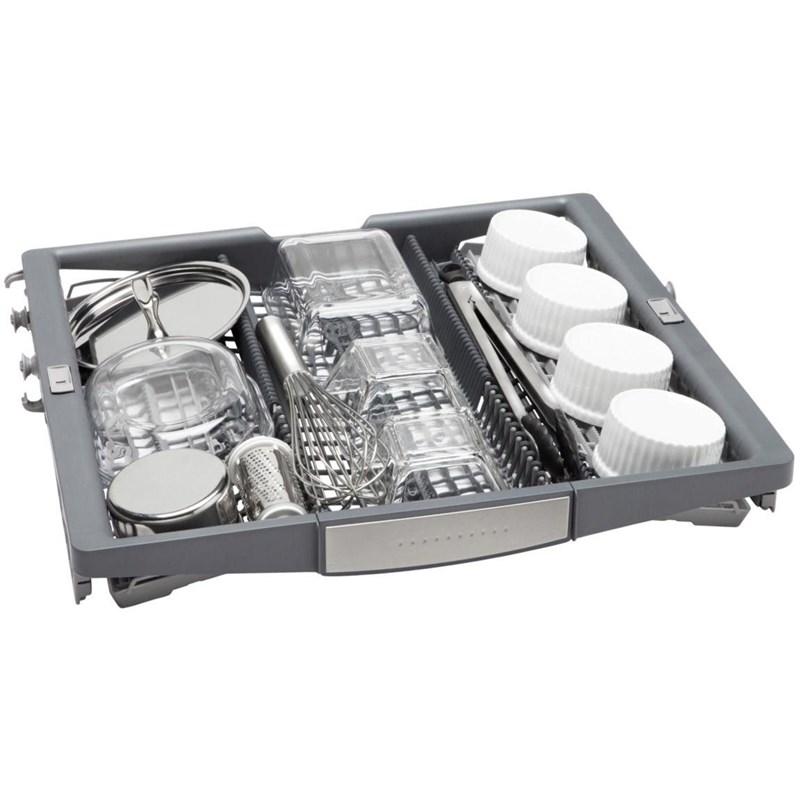

- FLEXIBLE 3RD RACK — The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile, adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.

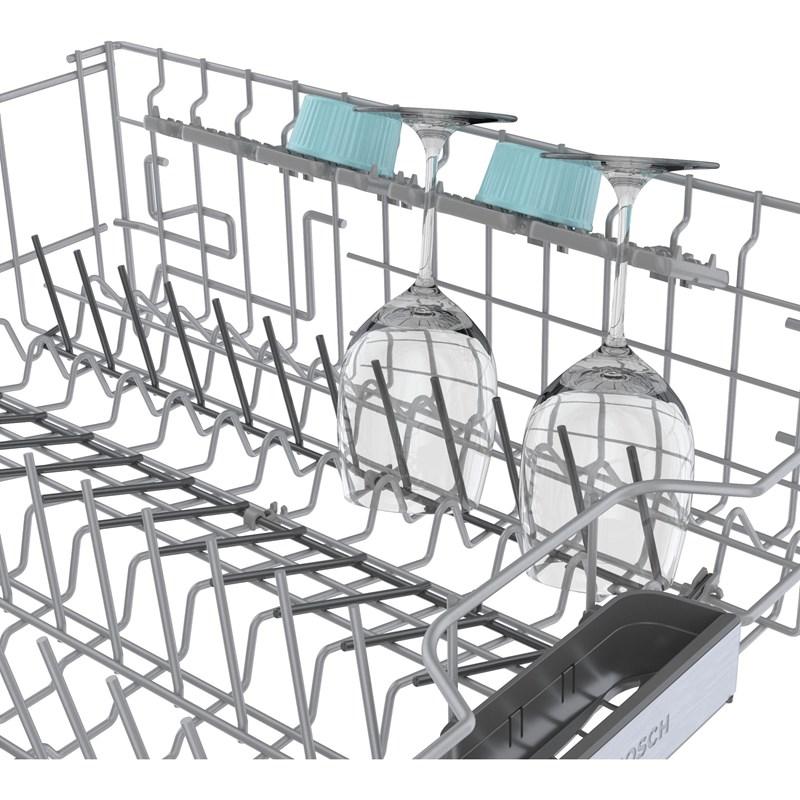

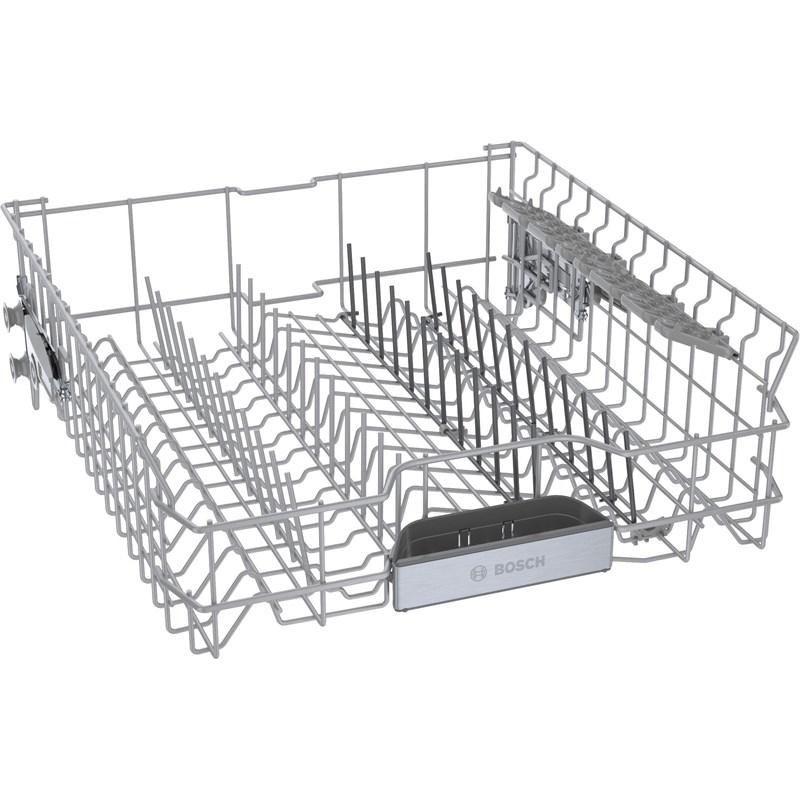

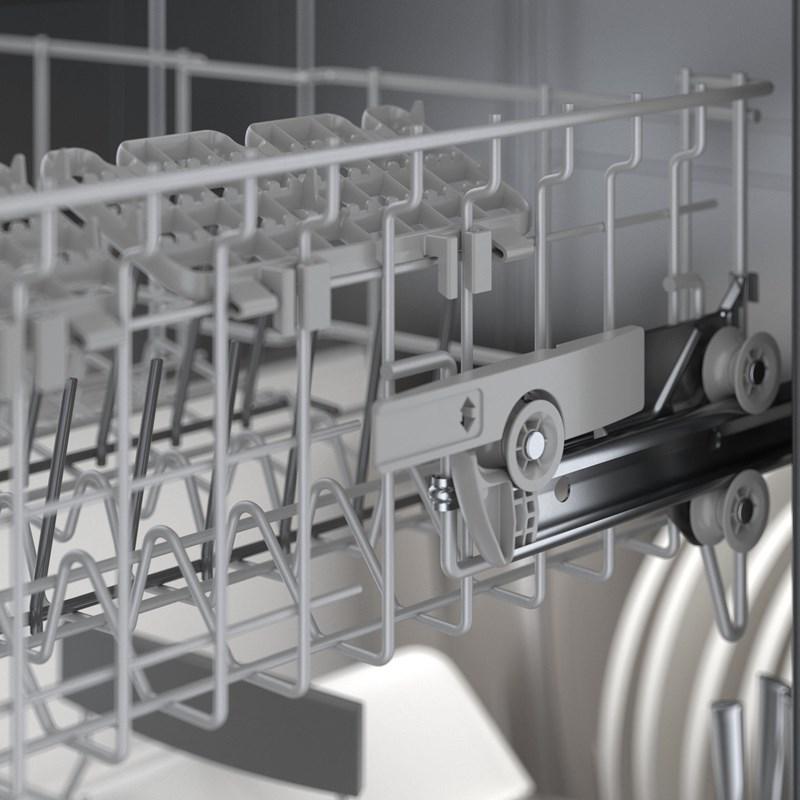

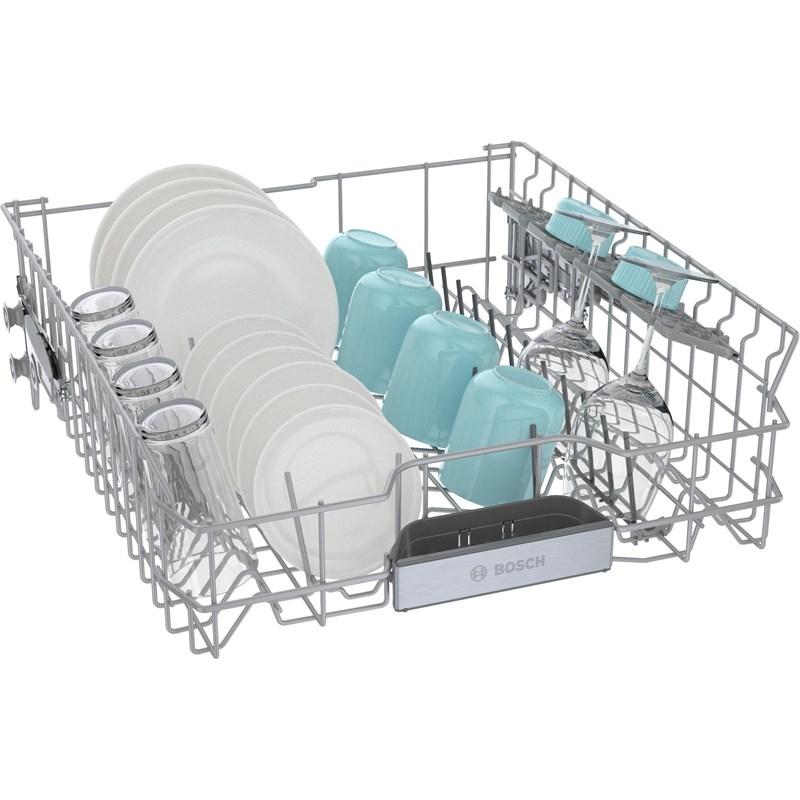

- RACKMATIC® — The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
- INFOLIGHT® — Bosch dishwashers are so quiet, you may forget they’re on. InfoLight® projects a red light onto the floor during the wash cycle that turns off when dishes are ready.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights

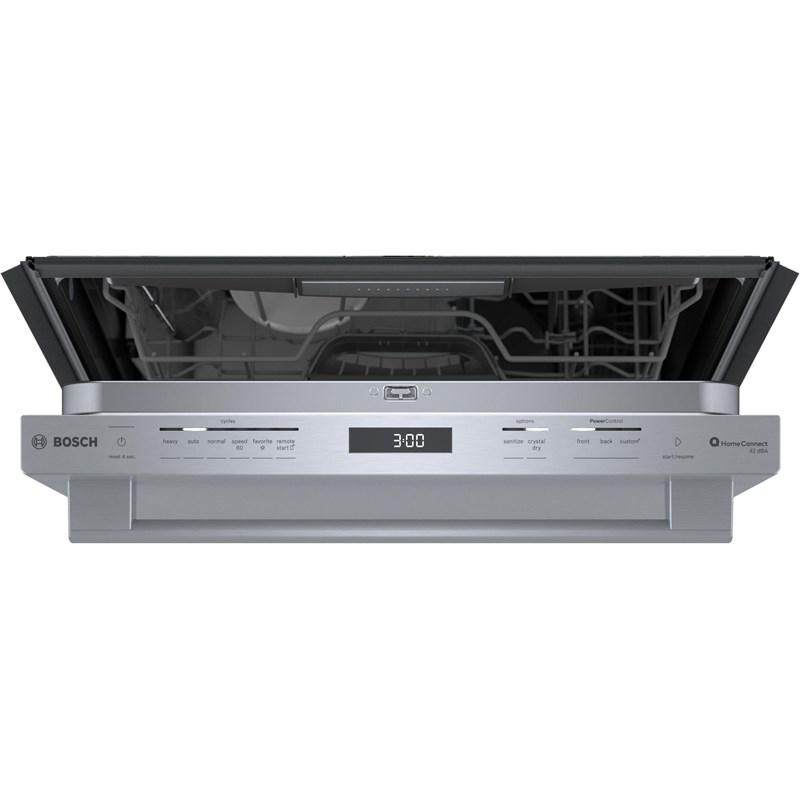

Control type: Touch Controls | Concealed water heating element | Five-level wash | Anti-Fingerprint Finish | Adjustable feet | Water usage per cycle 3.2 | Total annual energy consumption: 239 kWh
Specifications
| Energy Star Certified | Y | NSF® Certified | Y | Type | Built-In |
| Silence Rating | 42 dB | Tub Material | Stainless Steel | Place Settings | 16 |
| Series Name | 800 Series | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Wash Cycles | 5 + 3 additional in Home Connect® | Number of Cycles | 8 | Options | 4 + 2 additional in Home Connect® |
| Width | 59.85 cm | Height (Min.) | 86.04 cm | Depth (Without Handle) | 60.33 cm |
| Weight | 43.54 kg | Class Width | 24" | 3rd Rack System | Y |
| Wi-Fi | Y | UPC# | 825225965985 | Warranty | 1-Year Parts and Labor |
| Information Watts: 1440 W | Current: 12 Amps | Volts: 120 V | Frequency: 60 Hz | |||||
| Additional Dimensions Required cutout size (HxWxD): 33 7/8" x 24" x 24" | Power cord full length: 67" | Power cord install length from edge of unit when facing the door: Left – 45", Right – 56" | Length outlet hose 79" | |||||
| Technologies Wash system PowerControl™ with PrecisionWash® | Rack adjustability: Rackmatic® | Drying system: CrystalDry™ | InfoLight® | Leak protection system: 24/7 AquaStop® | |||||
| Optional Junction Box: SMZPCJB1UC | Junction Box + Supply Hose Kit: SMZ3IN1UC | Bosch Dishwasher Water Supply Hose: SMZSH002UC | Drain Hose Extension Kit: SGZ1010UC | Dishwasher Accessory Kit: SMZ5000 | Anti-Tarnish Silverware Cassette: SMZ5002UC | Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC | |||||
Accessories
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH002UC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH002UC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
