Description
About this Product

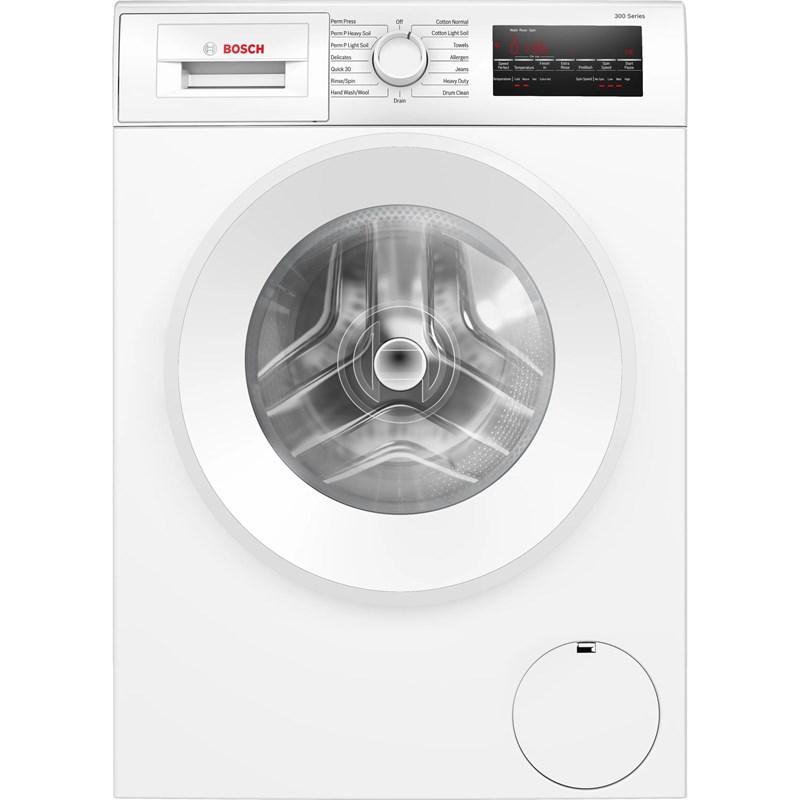

This 24-inch compact washer features the SpeedPerfect® function and EcoSilence™ motor, delivering quiet, efficient, and long-lasting performance.
Features
- SPEEDPERFECT® — Provides up to 40% faster washing time. (*As compared to Perm Press Heavy Soil cycle without SpeedPerfect™).
- ECOSILENCE™ — Delivers quiet, efficient and long lasting performance.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Leak protection systems: Reinforced Hose | Internal water heater | Silence level – washing: 52 dBA | Silence level – spinning: 72 dBA | Water consumption: 2,288 gal/yr | Door hinge: Left Side
Specifications
| Total Capacity IEC | 2.2 cu. ft. | IEC (By Class) | 3 cu.ft. and below | Wash Cycles | Special Cycles: Allergen, Jeans, Heavy Duty |
| Number of Cycles | 15 | Tub Material | Stainless Steel | Manufacturer Color | White |
| Series | 300 Series | Color | White | Maximum Speed | 1400 rpm |
| Reversible Door | N | Stackable | Y | Weight | 73.94 kg |
| Class Width | 25" And Under | Depth | 61.6 cm | Height | 84.46 cm |
| Width | 59.69 cm | Energy Star Certified | Y | ||
| Options Number of options: 6 | Special Cycles: SpeedPerfect®, PreWash | |||||
| Information Energy consumption: 84 kWh/yr | Watts: 2,520 W | Circuit breaker: 15 A** | Volts 208/220-240 V | Current 10.5 A | Frequency 60 Hz | Power Cord (included): 240V; NEMA 6-15, 3-prong | **Stated circuit breaker size is if the appliance is plugged into an individual 240/208V, 15A minimum branch circuit | |||||
| Optional Power Adapters: | WTZPA20UC: 4-Prong | WTZPA30US: 3-Prong | Matching Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers. | 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer) | Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer | Dryer Stacking Kits: | WTZ11400UC: Kit w/Shelf | WTZ20410UC: Kit w/out Shelf | WTZSB30UC: Kit w/Brackets | Necessary only when stacking a matching Bosch dryer on top of the washer. | WMZPW20W: Washer Pedestal | |||||
| Additional Dimensions Power cord length 63" (Full Length) | Drain hose length 57" (Full Length) | Inlet hose length 48" (Full Length) | |||||
| Information UL listed | ADA compliant: | Meets ADA height and access requirements when installed on a pedestal | Meets ADA operable parts requirements for controls and detergent dispenser | |||||
Accessories
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Matching Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer)
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Necessary only when stacking a matching Bosch dryer on top of the washer.
• WMZPW20W: Washer Pedestal
