About this Product

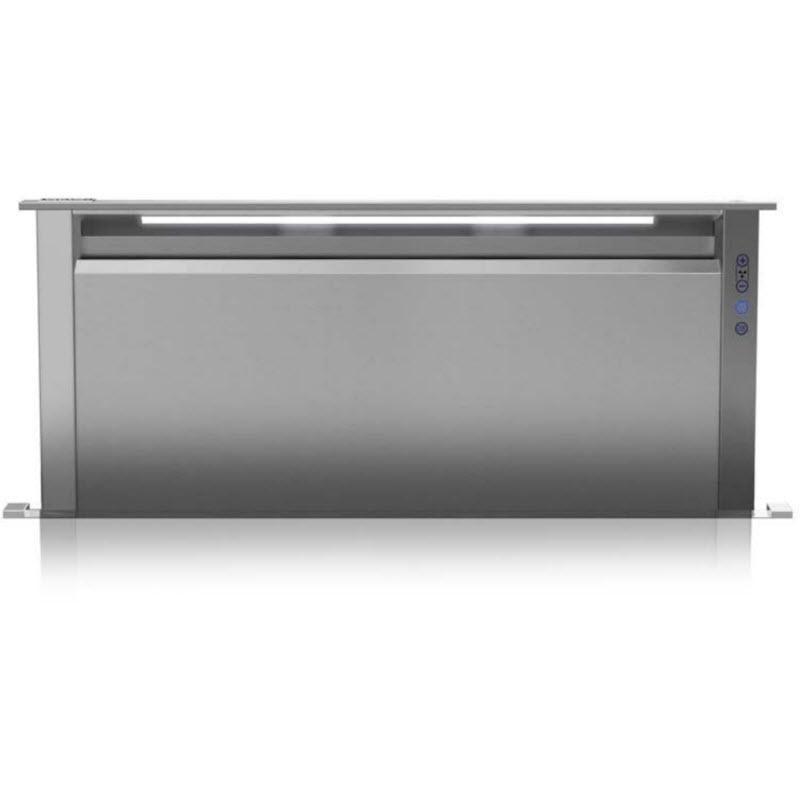

This 36" Brigade Professional downdraft features 4-speed fan control with 2-level task light and a 30-hour filter clean reminder. It also offers the heat sentry allowing the fan speed increase to its highest setting to protect sensitive components.

Features

• UP / DOWN BUTTON — To raise / lower chimney, touch up / down button. Any feature that is active will shut off when chimney is retracting. All functions will return to their previous settings when chimney is raised.
• 4-SPEED FAN SPEED CONTROL — Press + button to increase fan speed. Press - button to decrease fan speed. After maximum speed is reached, press + button once more to turn off fan.
• 2-LEVEL TASK LIGHT — Press once for LOW setting. Press 2x for HIGH setting. Icon will illuminate. Press 3x to turn task light OFF.
• 30-HOUR FILTER CLEAN REMINDER — After 30 hours of blower "ON" time, filter clean icon will blink continuously. To reset, touch and hold icon for 2 or more seconds. Indicator will turn off.
• HEAT SENTRY — When the operating temperature is too high, the fan speed will increase to its highest setting to protect sensitive components. The fan icon will blink and cannot be overridden until the temperature reaches an acceptable level. The fan speed will return to the previous setting and the icon will stop blinking.
