Description
About this Product

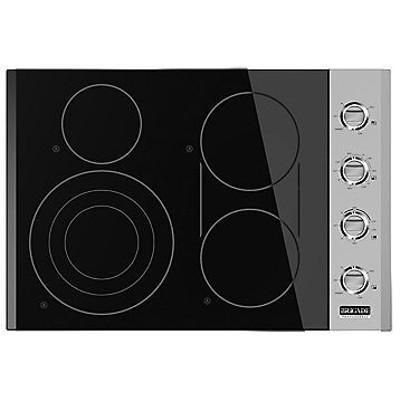

Brigade Professional Electric Cooktops provide commercial power and professional performance exactly where you need it. With surface elements that reach full power in three seconds, a triple element to accommodate a variety of cookware sizes, and a bridge element to create one continuous cooking surface – this electric cooktop delivers the ultimate in performance.
Documents
Owner's manual (en)
Installation guide (en)
Highlights
Versatile Cooking Space: Multiple cooking zones including a 12" 3,200 watt triple element provide space and power options for most cookware; Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory; Glass Ceramic Surface: Durable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning; QuickCook™ Surface Elements: Fast high heat makes cooking a flash in the pan with our QuickCook(TM) surface elements. Surface elements utilize new ribbon technology elements - elements reaching full power in about three seconds; Updated beveled edge design provides sleek styling and easy cleaning.
Specifications
| Surface Features | Durable, wear-resistant glass ceramic surface | Elements | Smoothtop | Burners/Elements | 4 |
| Power Output | Left front - 12" triple element – 3,200 W (1,100 W/ 1,000 W/ 1,100 W); Left rear – 6 ½ " element - 1,200 W; Right front - 8 1/2" element - 1,800 W; Right rear - 8 1/2" element - 1,800 W; Bridge element – 800W. | Burner/Element Size | 1 - 12"; 1 - 6 ½ "; 2 - 8 1/2" | Type | Built-In |
| Fuel Type | Electric | Color | Stainless Steel | Manufacturer Color | Stainless Steel |
| Clock | N | Control Lock | N | Digital Display | N |
| Downdraft Ventilation | N | Sabbath Mode | N | Height | 12.1 cm |
| Width | 78.1 cm | Class Width | 30" | Depth | 53.3 cm |
| Additional Dimensions | Cutout width 28-7/8" (73.3 cm) minimum to 29-1/8" (74.0 cm) maximum; Cutout depth 19-1/4" (48.9 cm) minimum to 19-3/4" (50.2 cm) maximum; Overall height from bottom: To top of cooking surface 3-1/2" (8.9 cm) To bottom edge of frame 2-5/8" (6.7 cm) | Weight | 20.0 kg | Warranty | Three-year full - complete unit; Ninety-day full - cosmetic parts such as glass, painted items and decorative items; Five-year limited - surface burner. |
| Information 240/208 | |||||
