Description
About this Product

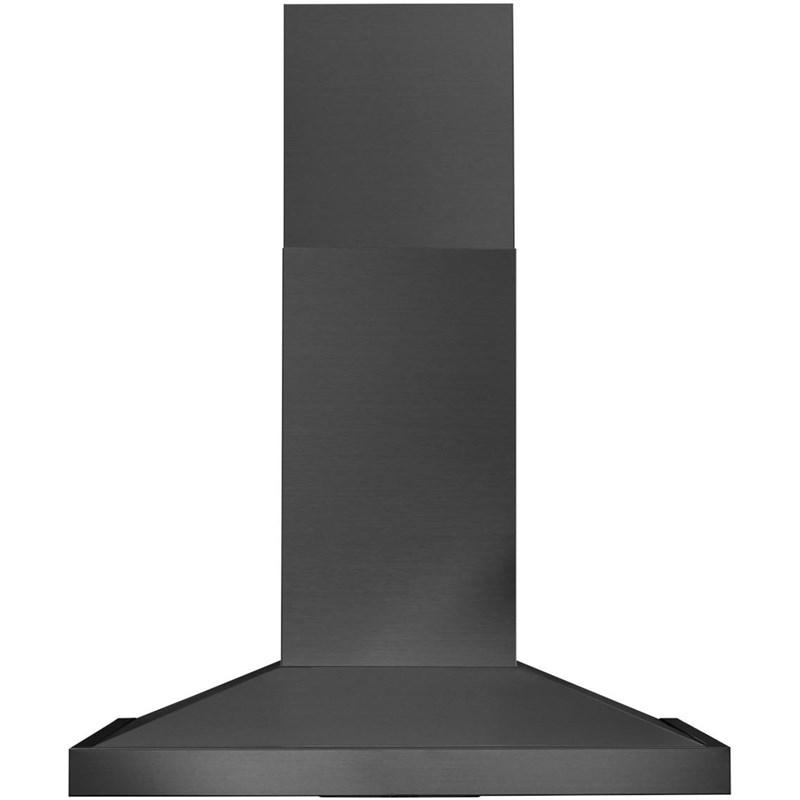

From the leader in residential indoor air quality, this Broan® wall mount chimney range hood is the perfect solution for superior kitchen ventilation with 650 Max Blower CFM and Code Ready™ Technology (CRT) to meet local Make Up Air code installation requirements. Proudly manufactured in Canada, the sleek low-profile design creates a signature look and focal point in the kitchen while ventilating the most polluted room in the home. The quiet operation at working speed is 1.4 sones, equivalent to a refrigerator running, and wont impact daily activities. At Broan-NuTone we believe that better quality of air means better quality of life.
Features

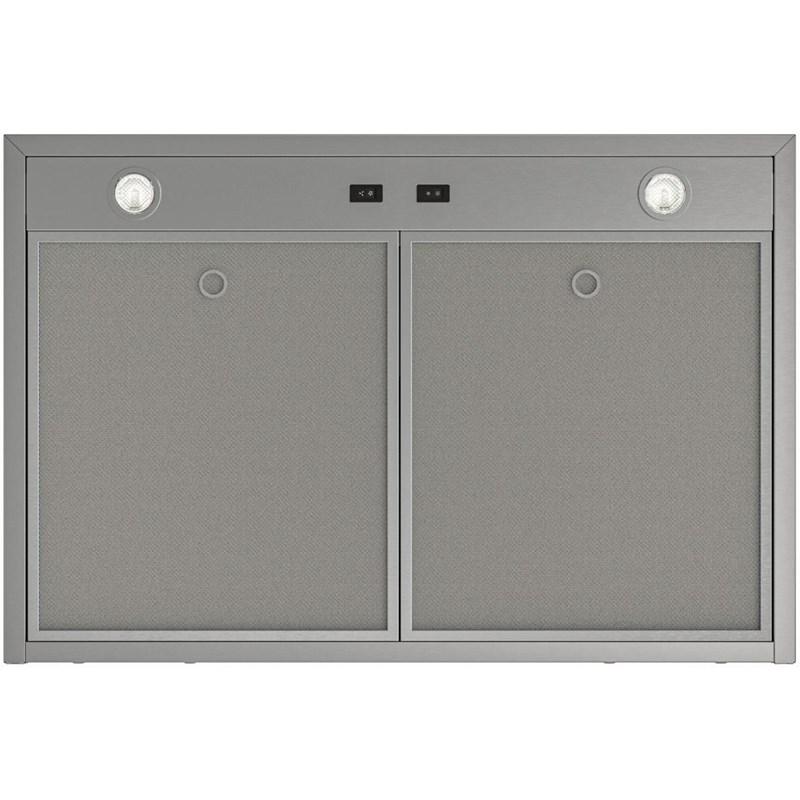

- MICRO-MESH FILTERS — Dishwasher-safe, micro-mesh filters provide efficient grease removal and install without tools. Upgrade with optional filter designs best suited to your cooking and style preferences.
- CODE READY™ TECHNOLOGY — Code Ready™ Technology (CRT) to meet local Make Up Air code installation requirements. Set the maximum blower speed relative to any required Make-Up Air regulations based on local codes.
Documents
Product Sheet (en)

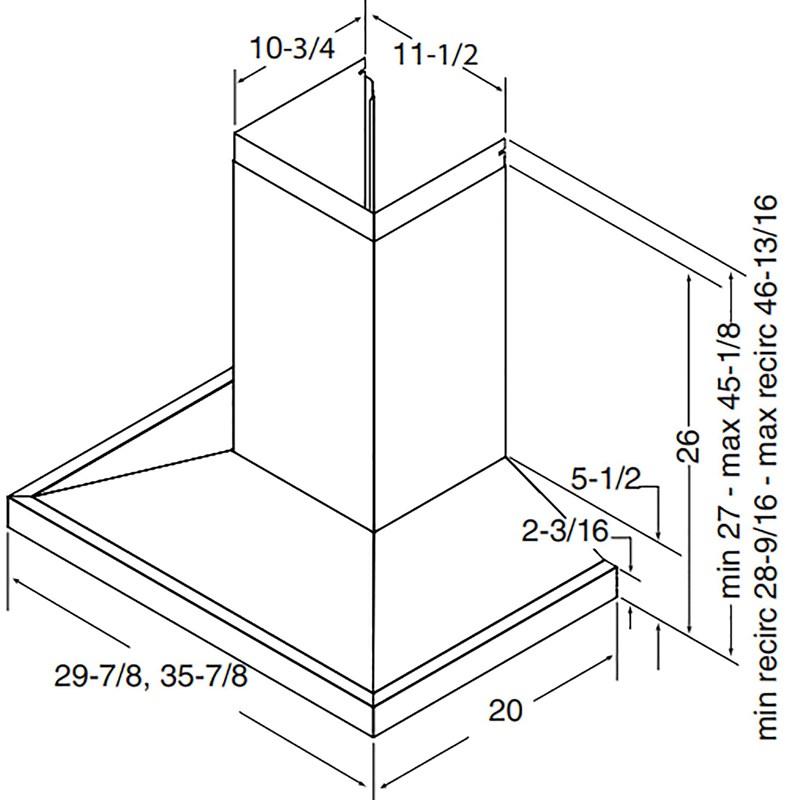

Dimensions Guide (en)
Installation guide (en)
Highlights
Seamless low-profile design | Hidden controls offers a sleek appearance that is easy to clean | Lighting Type: LED | Light Levels: 2 | Accommodates Ceiling Height: 9 | Minimum Height Above Cooktop: 24 | Convertible with Kit | 2 High efficiency micro filters to trap grease and cooking pollutants, easy to clean and dishwasher safe | Low volume of 1.4 Sones
Specifications
| Hvi Certified | Y | Energy Star Certified | N | Warranty | 1 Year limited warranty |
| Depth | 50.8 cm | Height | 68.58 cm | Width | 76.2 cm |
| Class Width | 30" | Series Name | EWS | Style | Chimney |
| Manufacturer Color | Black Stainless Steel | Color | Black Stainless | Installation | Wall Mount |
| Blower Included | Y | Airflow | 650 CFM | Dishwasher-Proof Filters | Y |
| Speeds | Speed Levels: 3 | ||||
| Information cULus | ADA Capable (kit sold separately) | |||||
| Optional | |||||
| Ducting Information Duct Direction: Horizontal/Vertical | 3.25 x 10-inch or 6-inch round | Ductless Recirculation Capable | |||||
| Technologies Code Ready™ Technology (CRT) | |||||
| Information Rated Voltage: 120 | 60 Hz | 3.4 AMPS | |||||
