About this Product

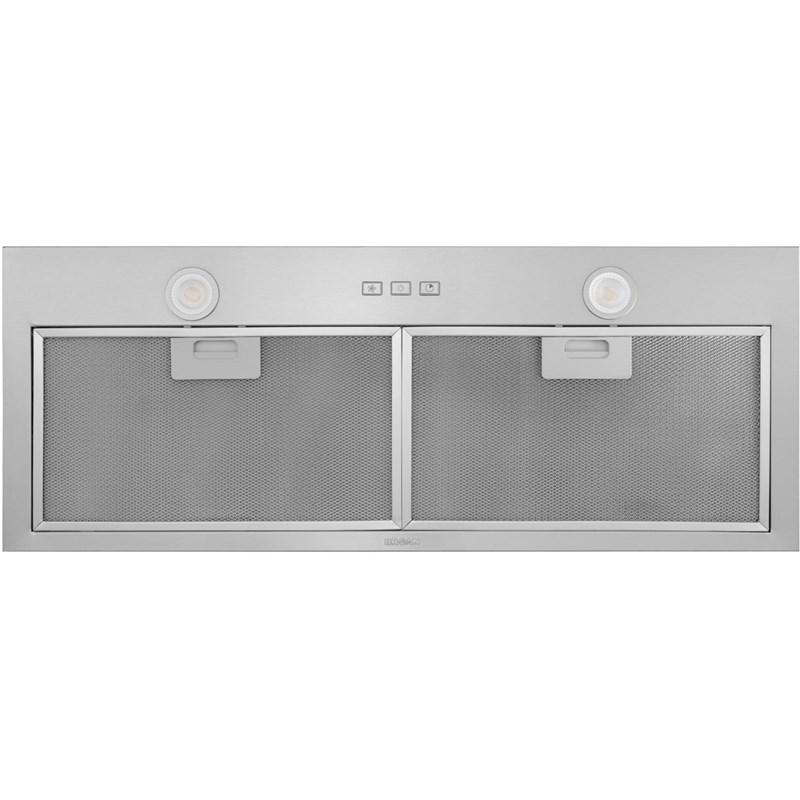

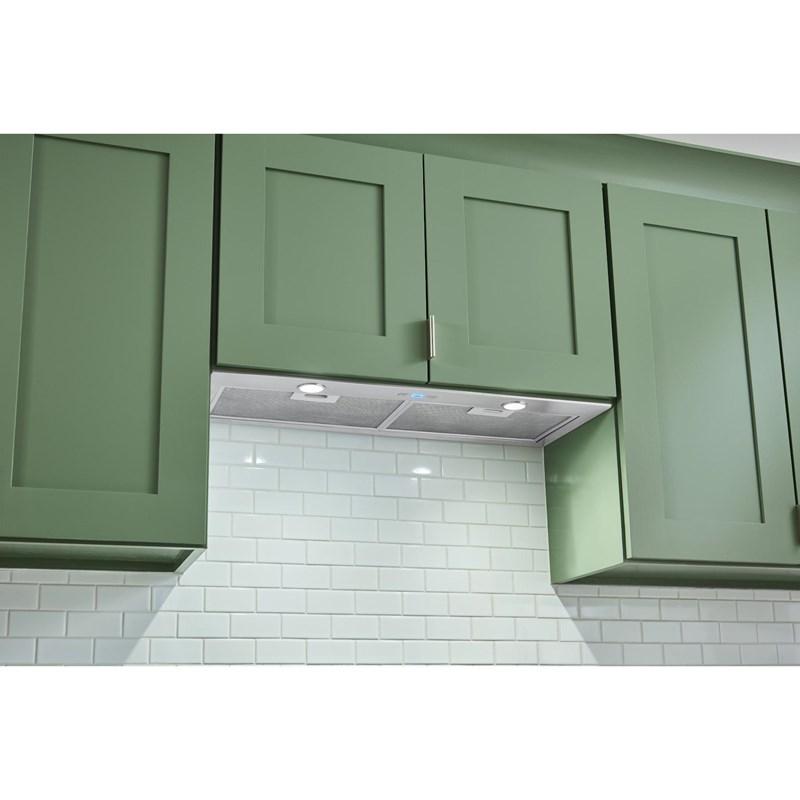

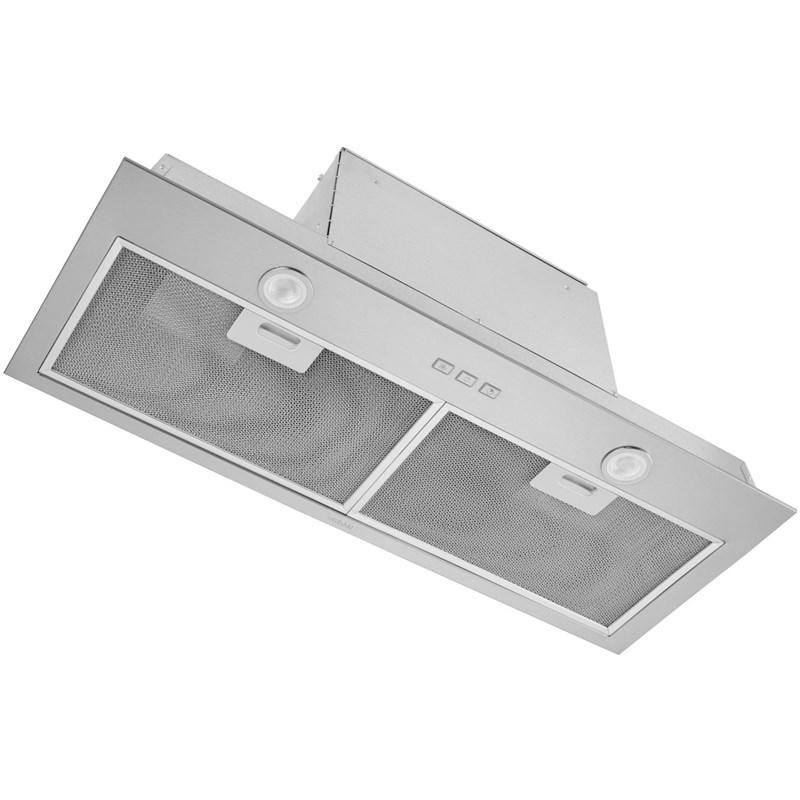

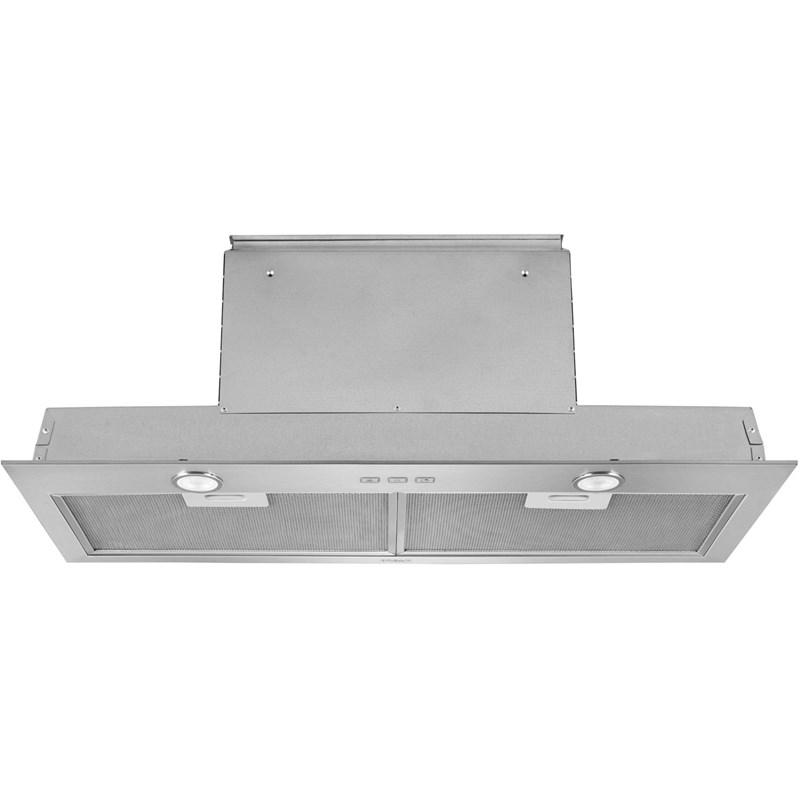

The Broan® BBN3 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Bright LED lighting enhances your cooking experience, while the 4-speed back-lit soft touch control makes operation easy.
Features
- BRIGHT 2-LEVEL LED MODULES — Supported by a 3-year warranty — illuminate evenly and are tested in cooking environments to ensure long life without dimming.
- HIGH-EFFICIENCY MICRO FILTERS — High-efficiency micro filters, easy to clean featuring a quick-release latch for easy removal.
- EZ1 INSTALLATION SYSTEM — Two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Videos
BBN3 powerpack insert range hood - Features and Benefits Broan BBN2 and BBN3 Series Installation
Highlights
Back-lit soft touch control for easy operation | Switch Control Type: Tap-Touch Control | Filter Type: Micro Mesh with quick-release latch for easy removal | Ductless Recirculation Capable | Bright 2-level LED modules enhance your cooking experience | EZ1 clips make it easy for single-person installation | 10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment | Stainless liner extension included to accommodates up to 13" deep cabinets with optional extensions available to accommodate cabinets up to 15" deep | Works with optional universal make-up air dampers
Specifications
| Style | Custom Insert | Airflow | 650 CFM | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Dishwasher-Proof Filters | Y | Width | 75.87 cm | Height | 26.82 cm |
| Depth | 29.03 cm | Additional Dimensions | Mounting Height: 24 in. to 30 in. from cooktop to bottom of hood | Class Width | 30" |
| Energy Star Certified | N | Hvi Certified | Y | Warranty | 1-Year parts and labor |
| Included | Light Bulbs | ||||
| Series Name BBN3 | Powerpack insert series | |||||
| Speeds 4-speed | Sound Level (Sones): 0.5 | |||||
| Ducting Information Horizontal or Vertical: 3 1/4 in x 10 in rectangle | Vertical: 7 in round | |||||
| Technologies Code Ready Technology adjusts CFM down to 300 or 400 to meet make-up air codes | |||||
| Information 120 V, 60 Hz - 4.0 AMPS | |||||
| Information UL Listed | |||||
| Optional HPFBN30: Hybrid Baffle Filter 30" | S99010400-130: Replacement Aluminum Filter, 30" | HARKBN30: Non-duct Kit, 30" | S99010464-130: Non-duct Charcoal Filter, 30" | HADTBN30: Liner Extensions (4), 30" | HAWRK5: ADA Adapter Kit | MD6TU: 6" Make-up Air Damper | |||||
Accessories
• S99010400-130: Replacement Aluminum Filter, 30"
• HARKBN30: Non-duct Kit, 30"
• S99010464-130: Non-duct Charcoal Filter, 30"
• HADTBN30: Liner Extensions (4), 30"
• HAWRK5: ADA Adapter Kit
• MD6TU: 6" Make-up Air Damper
