Description
About this Product
From the leader in residential indoor air quality, this under-cabinet range hood by Broan-NuTone is built to surpass industry standards with over 50 points of inspection, engineered as a reliable ventilation solution. The durable hood vent is equipped with SmartSense Auto Operation that automatically monitors and adjusts the ventilation power needed based on heat coming off the cooktop to maintain the integrity of the IAQ in your space. This is the most powerful under-cabinet in our assortment at 640 Max Blower CFM, and the EZ1 Install System allows for a quick and easy 1-person installation. This ENERGY STAR Certified unit is code compliant and provides cost savings, and the 2-Level LED lighting modules and a 3-Speed whisper touch infrared control make cooking a breeze.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights

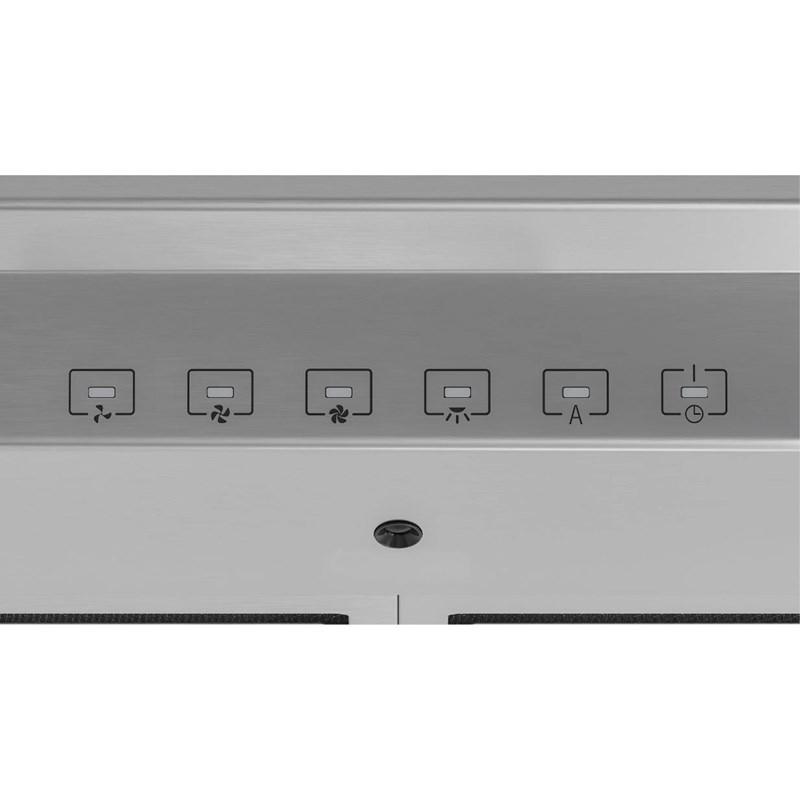

50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality | Most Powerful Under-Cabinet: At 640 Max Blower CFM, this is the strongest vent hood in our under-cabinet line up, providing the power needed to handle heavy cooking and clear pollutants from the home. | One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers | Both ENERGY STAR certified and Title 24 compliant (with electric ranges only), this kitchen hood is energy efficient and code compliant | Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience | Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters | The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting | Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30) | Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately) | Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption | Can be installed for ADA Compliance with the purchase of model HAWSK3 low voltage wiring and wall switch kit | Filter Type: Hybrid Baffle | Lighting Type: LED | Sound Level (Sones): 0.8 | Light Bulb Wattage: 5 | Light Levels: 2 | Material: Stainless Steel | Ductless Recirculation Capable | Ductless Filter Or Kit Included | Switch Control Type: Infrared | Country of Origin: China
Specifications
| Hvi Certified | Y | Energy Star Certified | Y | Warranty | 1 Year, 3 Year LED module |
| Depth | 50.95 cm | Height | 13 cm | Width | 76.2 cm |
| Class Width | 30" | Additional Dimensions | Minimum Height Above Cooktop: 18" | Style | Standard |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Under-Cabinet |
| Blower Included | Y | Airflow | 570 CFM | Dishwasher-Proof Filters | Y |
| Speeds | 3 Speeds | Included | Damper Included | ||
| Series Name Alta | ALT4 Series | |||||
| Ducting Information 3.25 x 10-inch rectangular | 7-inch round | |||||
| Technologies SmartSense™ Automated Ventilation: Expel pollutants from your home without thought or action; An infrared sensor monitors for heat coming off the range and will automatically adjust the hood's fan speed as needed to eliminate smoke and odors while cooking | Code Ready Technology (CRT): Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements | |||||
| Information Rated Voltage: 120 | Rated Amps: 2 | Capture Efficiency: 98.5% | Wattage: 228 | |||||
