Description
About this Product

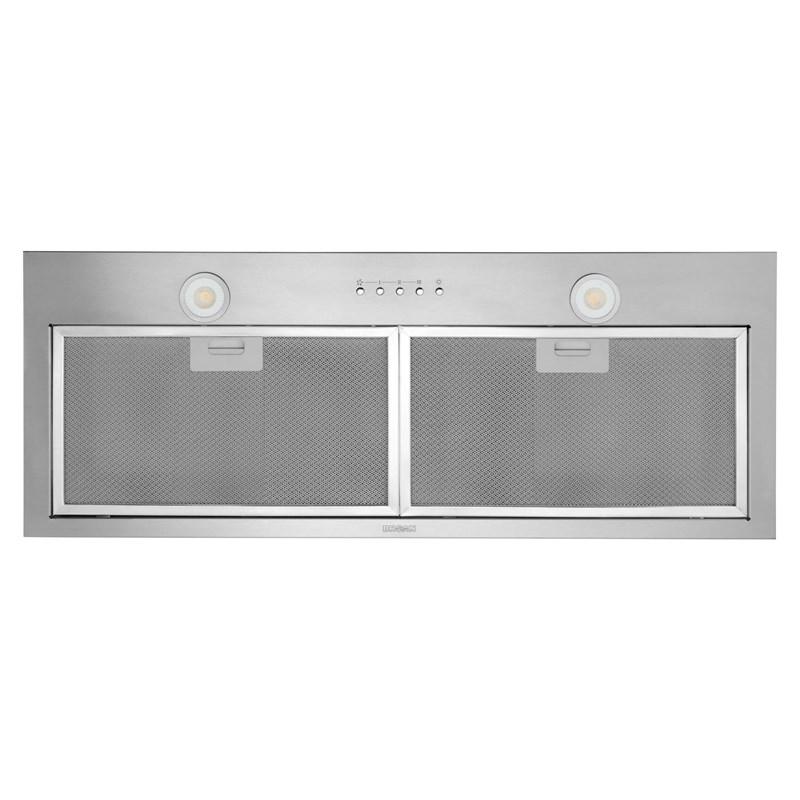

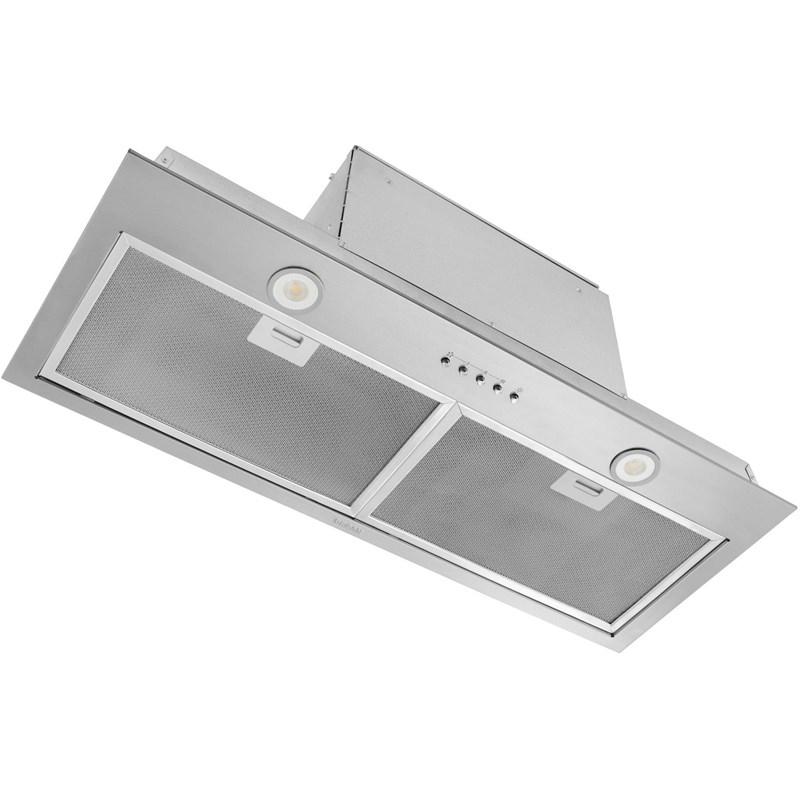

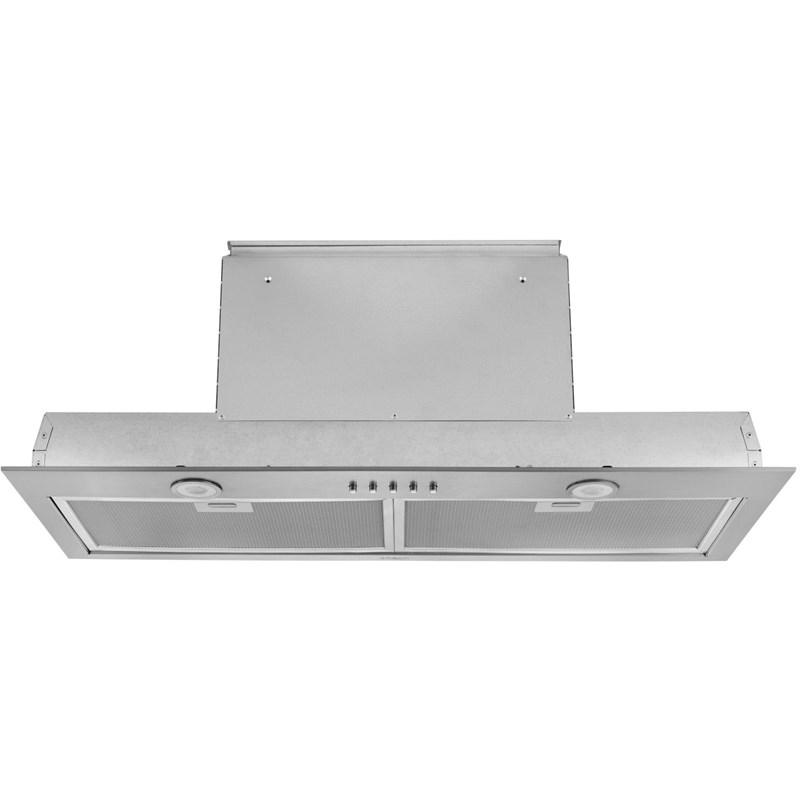

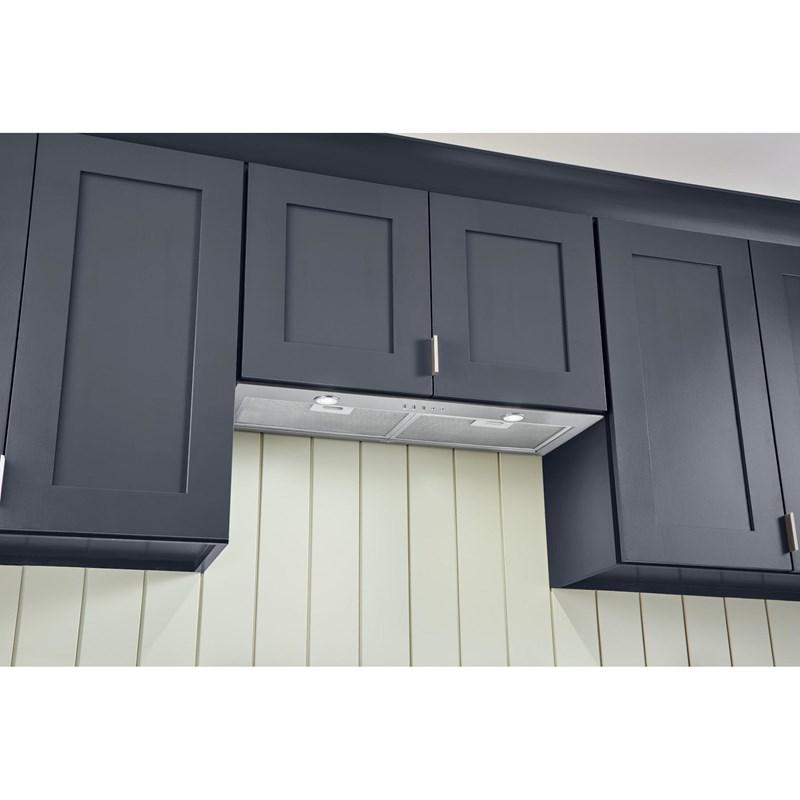

The Broan® BBN2 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Bright LED lighting enhances your cooking experience, while the 3-speed push button control makes operation easy.
Features
- BRIGHT 1-LEVEL LED — Bright 1-level LED modules (included) enhance your cooking experience.
- DISHWASHER-SAFE ALUMINUM MESH FILTER — Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (not included).
- BUILT-IN POWER PACK INSERT — Clean Style. Fresh Kitchen. The easy-install Built-In Power Pack Insert is perfect for cabinet installations. The integrated, one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability.
- HEAT SENTRY™ — Exclusive, Heat Sentry™ turns blower ON to HIGH speed when excess heat is detected.
Documents
Product Sheet (en)
Dimensions Guide (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Powerful 350 Max Blower CFM operates at 1 sone at normal speed | Bright 1-level, heat resistant LED modules enhance your cooking experience | EZ1 clips make it easy for single-person installation | Dishwasher-safe aluminum mesh filters feature quick-release latch for easy removal
Specifications
| Hvi Certified | Y | Energy Star Certified | Y | Warranty | 1-Year parts and labor |
| Depth | 29.05 cm | Height | 26.83 cm | Width | 60.64 cm |
| Class Width | 24" | Series Name | BBN2 | Style | Custom Insert |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Built-In |
| Blower Included | Y | Airflow | 350 CFM | Dishwasher-Proof Filters | Y |
| Speeds | 3-Speed push button control for easy operation | ||||
| Information UL listed | |||||
| Optional Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs | Stainless liner extension accommodates up to 13" deep cabinets. Extensions available to accommodate cabinets up to 15" deep | Works with optional universal make-up air dampers | |||||
| Ducting Information 3 1/4" x 10" Rectangular - Horizontal or Vertical | 7" Round - Vertical | |||||
| Technologies Heat Sentry™ | |||||
| Information 120V, 60 Hz - 2.3 AMPS | |||||
Accessories
• Stainless liner extension accommodates up to 13" deep cabinets. Extensions available to accommodate cabinets up to 15" deep
• Works with optional universal make-up air dampers
