Description
About this Product

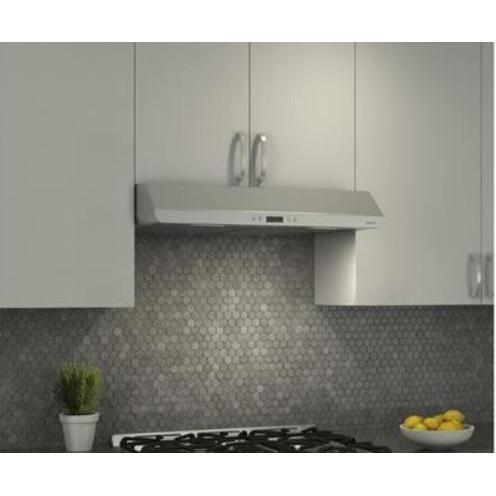

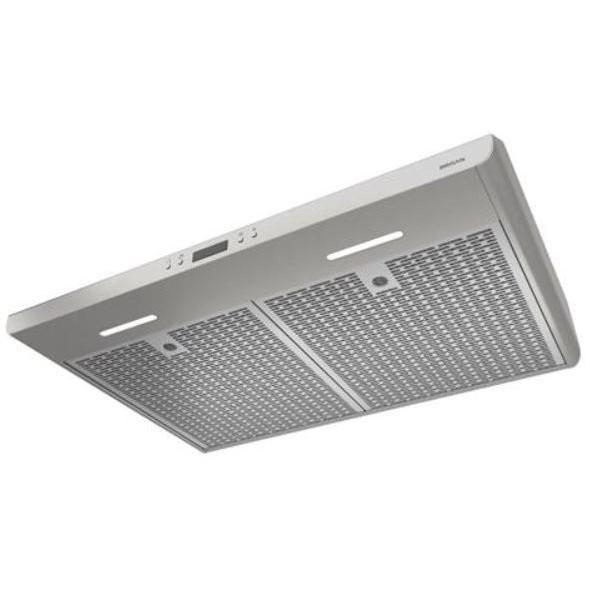

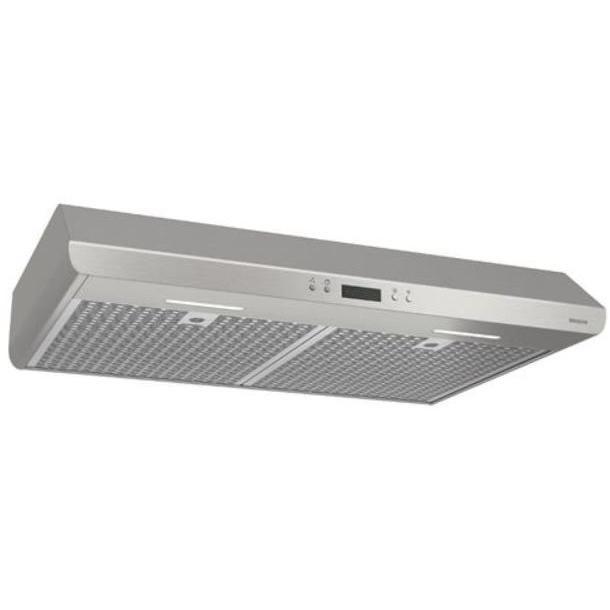

This Broan 30" undercabinet range hood boasts the exclusive Captur™ system that provides faster smoke & odor removal. Its also offers a filter clean reminder, a 10 minute delay off setting and an automatic heat sensor function.
Features
- CAPTUR™ SYSTEM — The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.
- LIGHTING BUILT-IN LED MODULES — Lighting built-in LED modules that provide an even lighting over the cooktop.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Videos
Broan Sahale Series Installation Video 400 and 600 CFM - EN Broan BKDB, BKDD, BKDJ, BKDN, BKSA, BKSF, BKSH and BKSM - Sahale Series range hood EN
Highlights
3-level lighting built-in LED modules (2) that provide an even lighting over the cooktop | Two deluxe high efficiency micro filters, easy to clean | Filter clean reminder | 10 minute delay off setting | Automatic heat sensor function | Performant dual blower | Quietest range hood offering a sound level of 0.3 sone at low speed | Use charcoal filter HPF30 for a non-ducted installation | EZ 1 brackets make it easy for single-person installation in less than half the time of traditional methods | ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Requires ADA Wiring Kit
Specifications
| Height | 12.7 cm | Width | 75.9 cm | Depth | 50.5 cm |
| Series Name | Sahale Series | Blower Included | Y | Style | Standard |
| Color | Stainless Steel | Installation | Under-Cabinet | Airflow | 400 CFM |
| Manufacturer Color | Stainless Steel | Energy Star Certified | N | Hvi Certified | Y |
| Speeds | 3 | UPC# | 26715244027 | Class Width | 30" |
| Warranty | 1 Year. 3 Years on LED modules | ||||
| Optional | |||||
| Technologies CapturTM | |||||
| Ducting Information Ducting Size 3-1/4 in X 10 in (H-V) or 7 in Round | Non-Ducted Re-circulation Capable | |||||
| Information 120 Volts | 1.4 Amps | |||||
