Description
About this Product

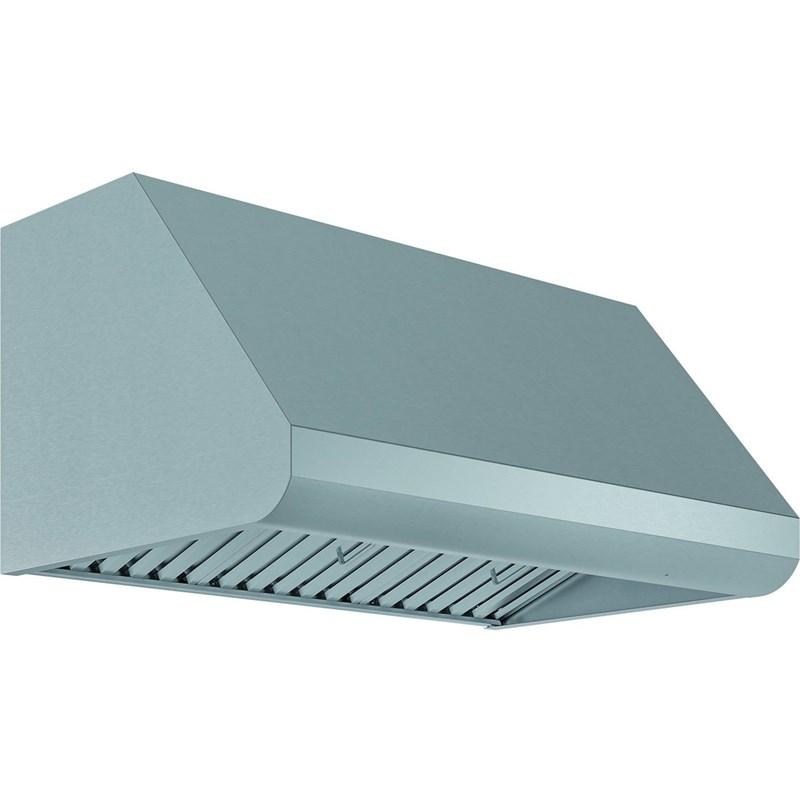

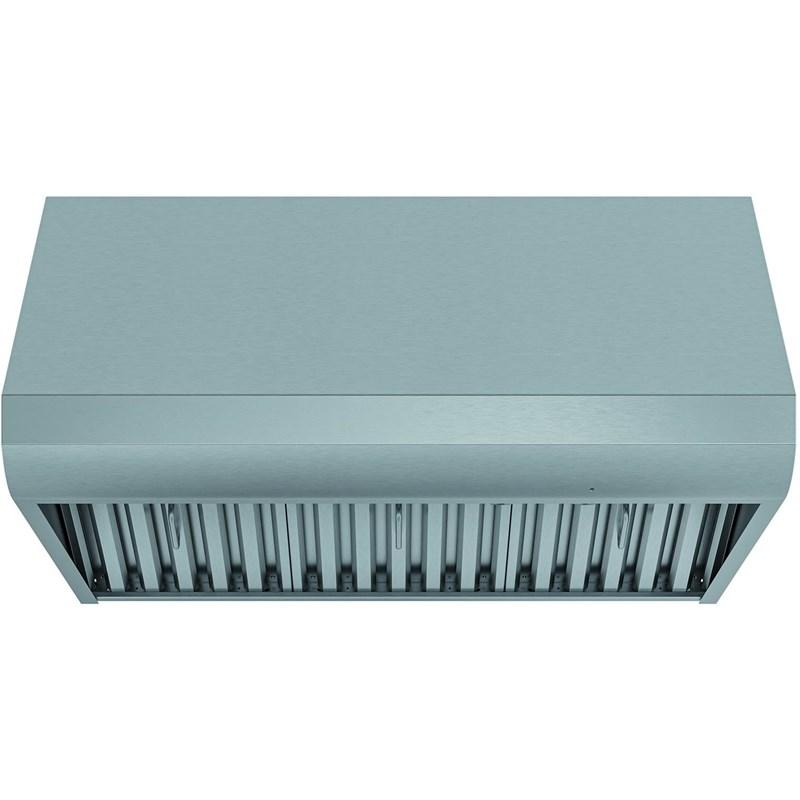

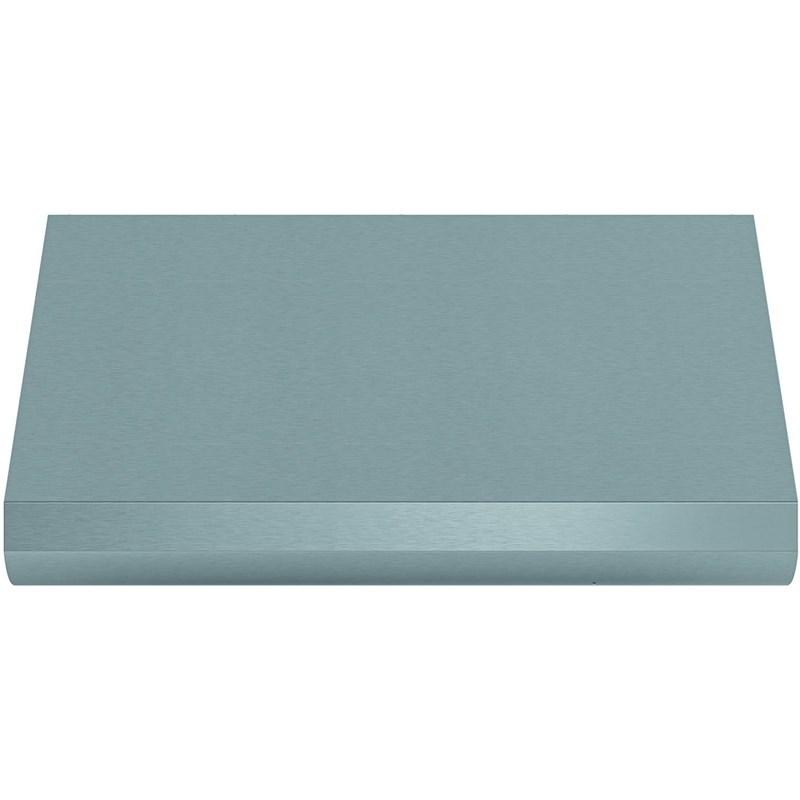

Broan's Pro-Style range hood series provides a sophisticated design without sacrifice. Built to withstand commercial style ranges and cooking habits, the stainless steel wall mount hood is a seamless fit for both your space and the way you cook. These models come equipped with powerful, integrated internal blowers and embody professional features such as baffle filters, brilliant LED lighting, and 4-speed controls.
Features
- HEAT SENTRY™ — Exclusive, Heat Sentry™ turns blower ON to HIGH speed when excess heat is detected.

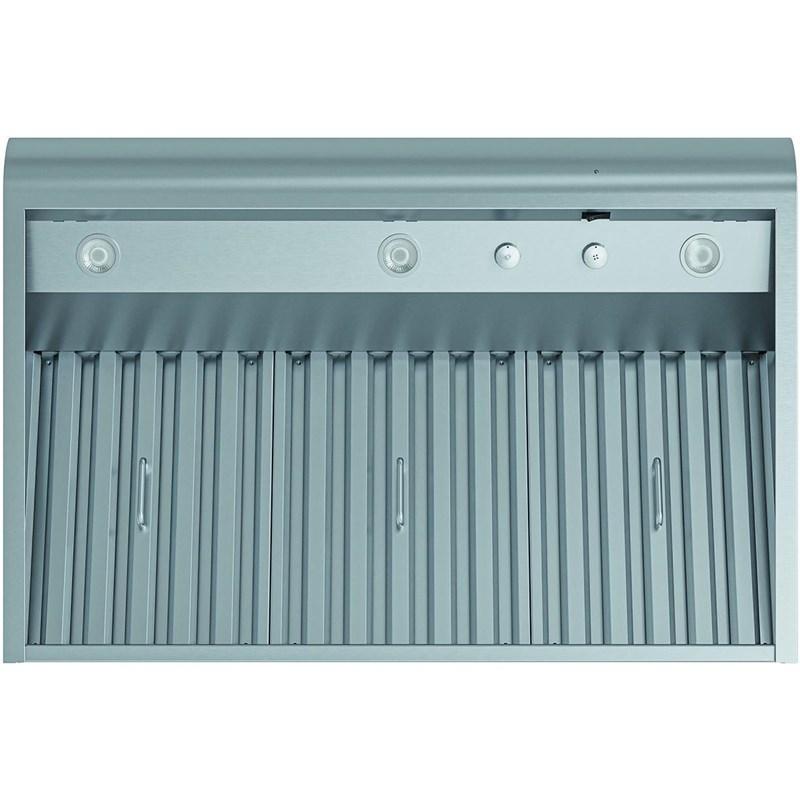

- PRO-STYLE — Pro-style, dishwasher-safe baffle filters with removable grease drip rail.
Documents
Product Sheet (en)
Dimensions Guide (en)
Installation guide (en)
Highlights
Lighting Type: LED | Sound Level (Sones): <0.3 | Sound Level (Sones): 0.3 | Bulb (Recommended Type): MR16 / GU10
Specifications
| Style | Chimney | Airflow | 650 CFM | Series Name | ELITE E60000 |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Wall Mount |
| Blower Included | Y | Speeds | 4 | Dishwasher-Proof Filters | Y |
| Width | 75.88 cm | Height | 45.72 cm | Depth | 60.96 cm |
| Class Width | 30" | Energy Star Certified | Y | Hvi Certified | Y |
| Warranty | 1-year | ||||
| Ducting Information Duct Direction: Horizontal/Vertical | Duct Size: (Single Blower) Damper 3-1/4" x 10" (included) and Damper 8" - round (included) | |||||
| Technologies Heat Sentry™ | |||||
| Information 120 V, 60 Hz - 3.3 AMPS (Single Blower) | |||||
| Optional Power Cord Kit: HCK44 | Transition (4-1/2" x 18-1/2" to 10" round, 6" high - lateral): Model 427 | Transition (4-1/2" x 18-1/2" to 10" round - vertical): Model 423 | Make-up Air: Dampers MD6TU, MD8TU and MD10TU | |||||
Accessories
• Power Cord Kit: HCK44
• Transition (4-1/2" x 18-1/2" to 10" round, 6" high - lateral): Model 427
• Transition (4-1/2" x 18-1/2" to 10" round - vertical): Model 423
• Make-up Air: Dampers MD6TU, MD8TU and MD10TU
• Transition (4-1/2" x 18-1/2" to 10" round, 6" high - lateral): Model 427
• Transition (4-1/2" x 18-1/2" to 10" round - vertical): Model 423
• Make-up Air: Dampers MD6TU, MD8TU and MD10TU
