Description
About this Product

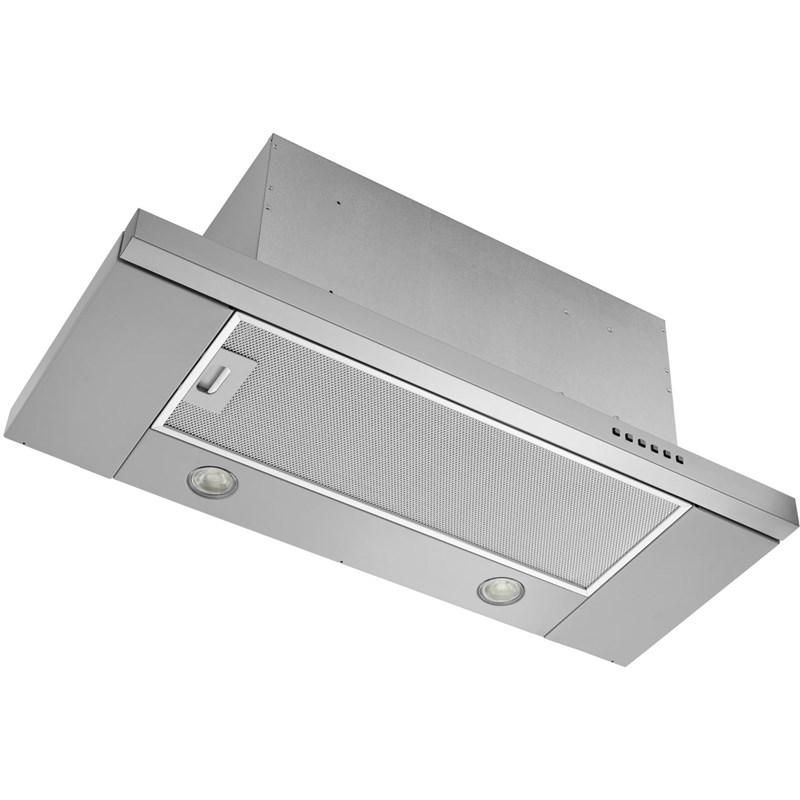

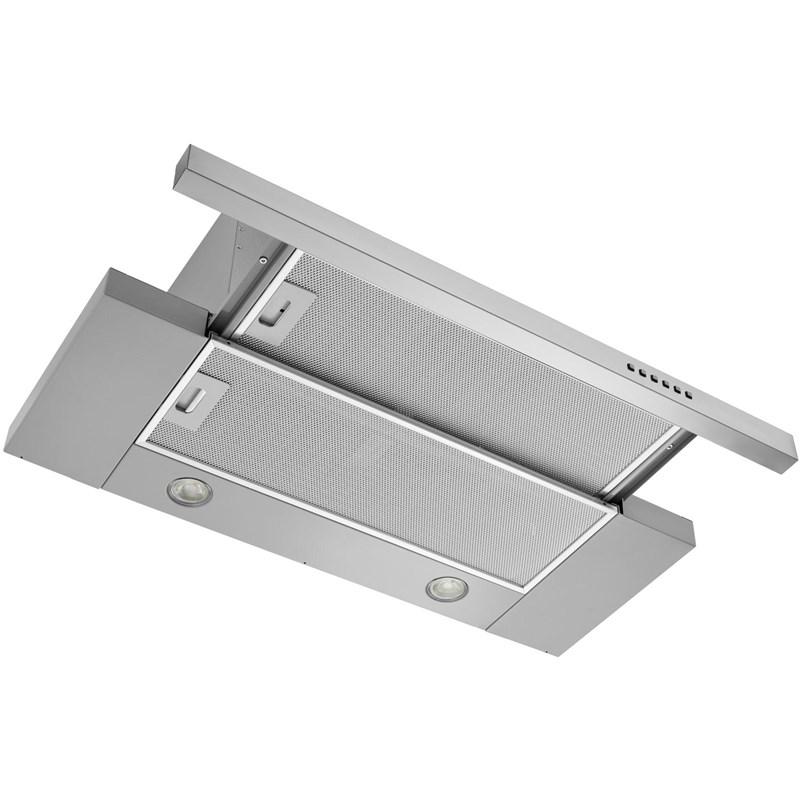

The Broan® Elite EBS1 Series of Slide-out Range Hood is a European design that mounts into a cabinet above the cooktop with only a slim sliding drawer visible, fitting seamlessly into today’s modern kitchen. The easy to clean design features bright LED lighting, powerful 400 CFM Max blower speed, while remaining quiet at 1.2 sones at normal speed.
Features
- BRIGHT 1-LEVEL LED — Bright 1-level LED modules (included) enhance your cooking experience.
- DISHWASHER-SAFE ALUMINUM MESH FILTER — Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (not included).
Documents
Product Sheet (en)
Dimensions Guide (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Videos
EBS1 Slide-out Range Hood Series - Features and Benefits
Highlights
Quiet operation at 1.2 sone at normal speed, comparable to a whisper | Bright 1-level LED modules (2) | Dishwasher-safe micro mesh filters featuring a quick-release latch for an easy removal | Filter Clean Reminder | 10 minute delay off setting | Intended for installation into frameless cabinets only
Specifications
| Style | Slide-Out | Airflow | 400 CFM | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Slide-Out | Blower Included | Y |

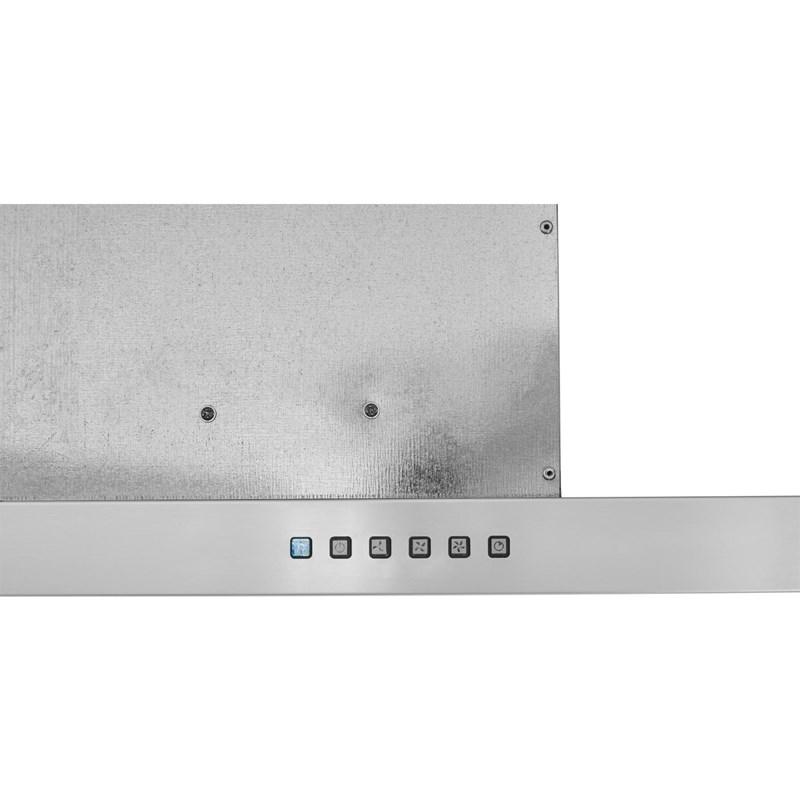

| Speeds | 3-speed Mechanical push-button | Dishwasher-Proof Filters | Y | Ducting Information | 6" Round - Vertical |
| Width | 76.04 cm | Height | 26.83 cm | Depth | 48.2 cm |
| Class Width | 30" | Hvi Certified | Y | Warranty | 1-Year parts and labor |
| Series Name Broan® Elite | EBS1 | |||||
| Information 120 V, 60 Hz - 3.6 AMPS | |||||
| Information UL listed | |||||
| Optional Optional non-duct kit available, sold separately (S1104971) | |||||
