Description
About this Product

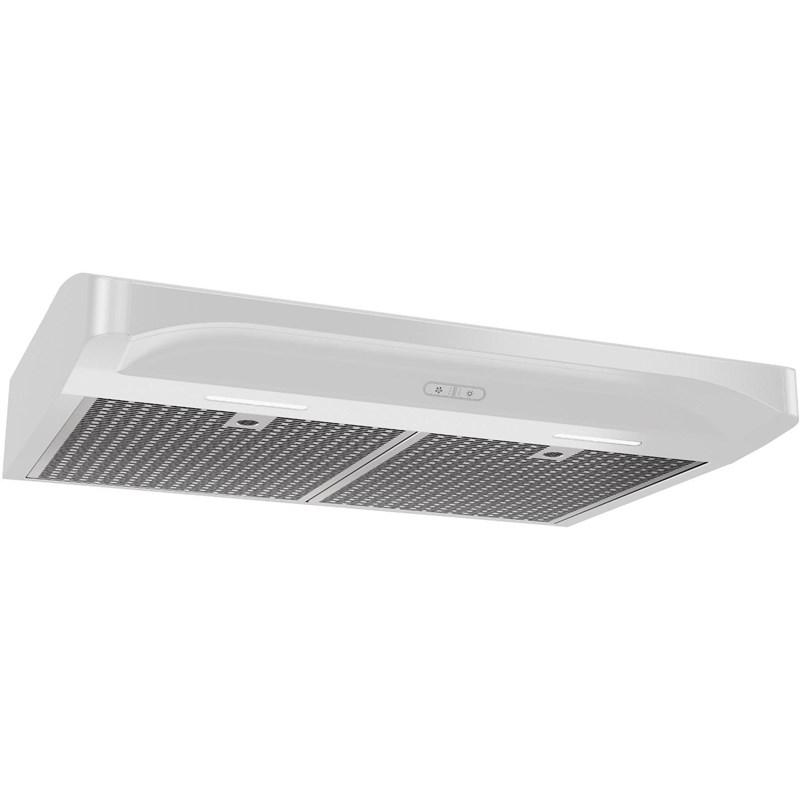

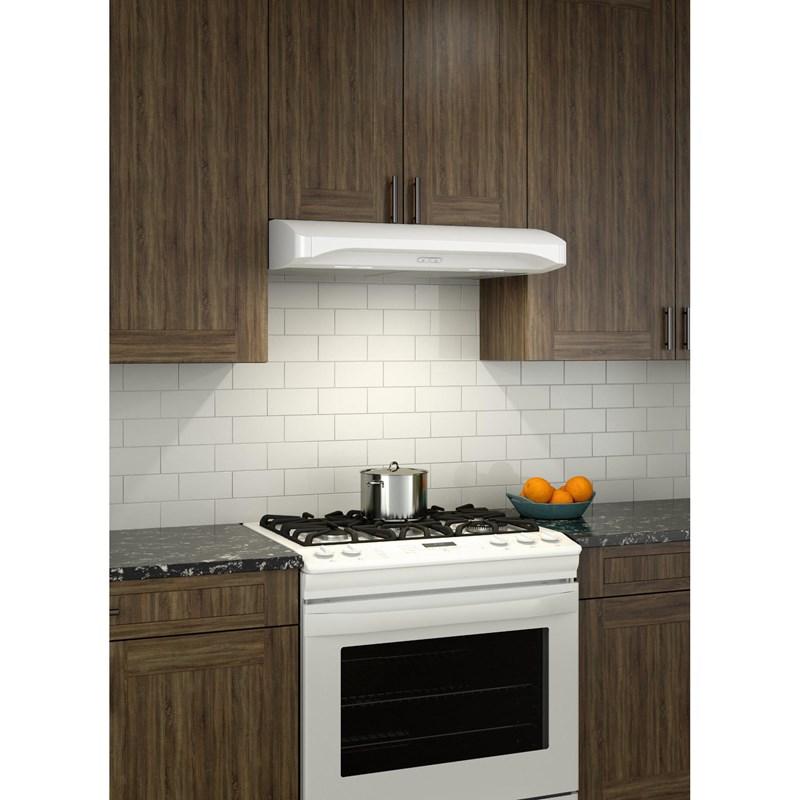

Broan® Elite Atla 2 Series 30" convertible under-cabinet range hood with a 300 CFM three-speed blower. The Captur™ system's advanced blower design features a forward-positioned centric inlet to remove smoke and odor faster. The sculpted lines of Alta™ bring an exciting choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design.
Features
- BRIGHT 2-LEVEL LED MODULES — Supported by a 3-year warranty — illuminate evenly and are tested in cooking environments to ensure long life without dimming.
- CAPTUR™ SYSTEM — The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.

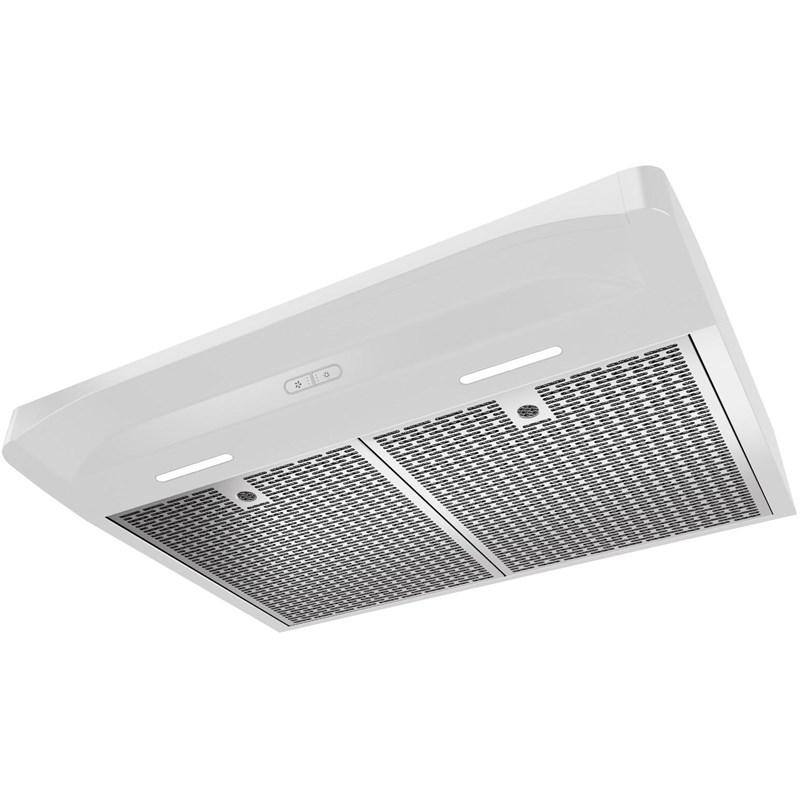

- DISHWASHER-SAFE DELUXE MICRO-MESH FILTERS — Provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
- EZ1 INSTALLATION SYSTEM — Two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- TAP TOUCH 3-SPEED CAPACITIVE CONTROL — Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
Capacitive touch control type | Smooth, easy-to-clean surface | Non-ducted recirculation capable | Capture efficiency: 98.1 | Integrated LED Module lighting | Light levels: 2 | Smooth-flow blower wheel design | High flow deluxe micro-mesh filters | Filter clean reminder | Sones: 1.2 | UL Listed | ADA Capable
Specifications
| Style | Standard | Airflow | 300 CFM | Manufacturer Color | White |
| Color | White | Installation | Under-Cabinet | Blower Included | Y |
| Speeds | 3 | Dishwasher-Proof Filters | Y | Wi-Fi | N |
| Width | 76.2 cm | Height | 12.7 cm | Depth | 55.88 cm |
| Additional Dimensions | Mounting height: 18" to 24" from cooktop to bottom of hood | Class Width | 30" | Energy Star Certified | N |
| Hvi Certified | Y | Included | Light bulbs | ||
| Series Name Broan® Elite | Atla 2 | |||||
| Ducting Information 7" Round - Vertical | 3 1/4" x 10" - Horizontal/Vertical | |||||
| Technologies Captur™ system | EZ1 brackets | |||||
| Information 120V | 60Hz | Rated amps: 0.65 | Wattage: 78 | |||||
| Warranty 1-Year on parts and labor | 3-Year limited for LED modules | |||||
| Optional | |||||
Accessories
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• ADA wiring kit: HAWRK3
• Make-up air dampers: MD6TU, MD8TU and MD10TU
