Description
About this Product

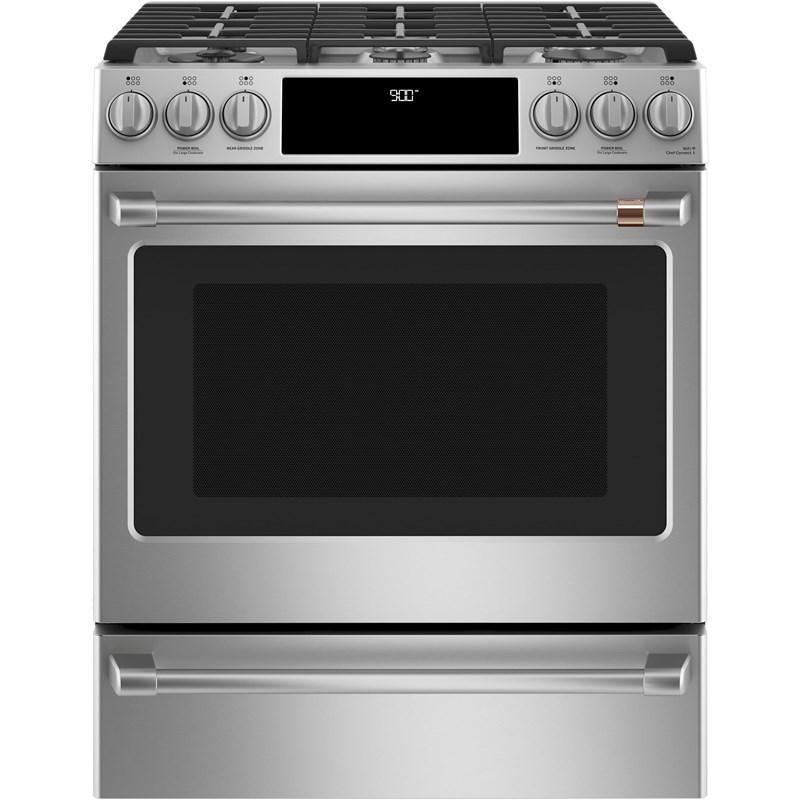

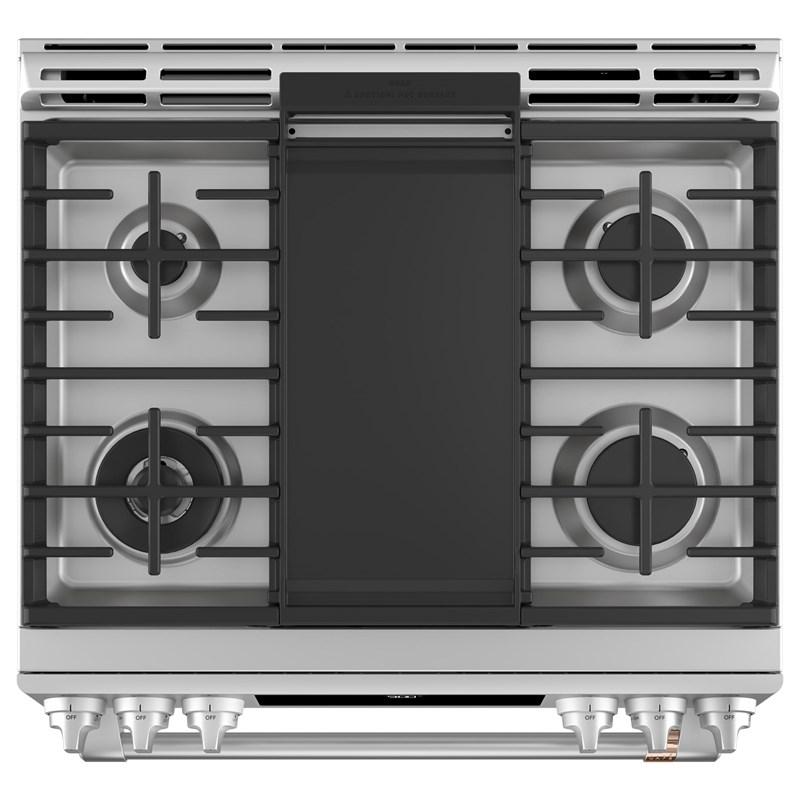

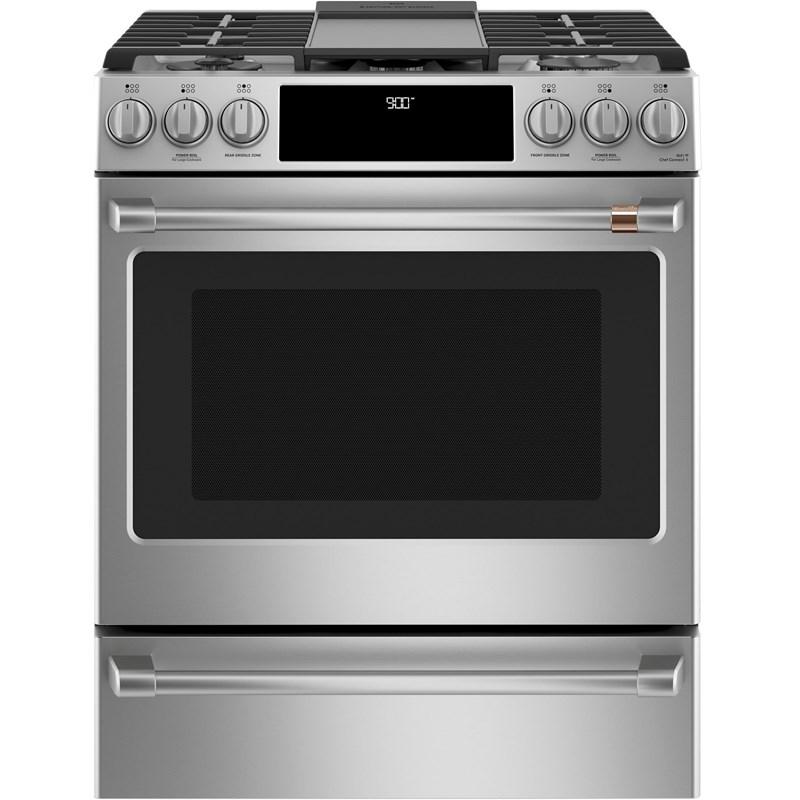

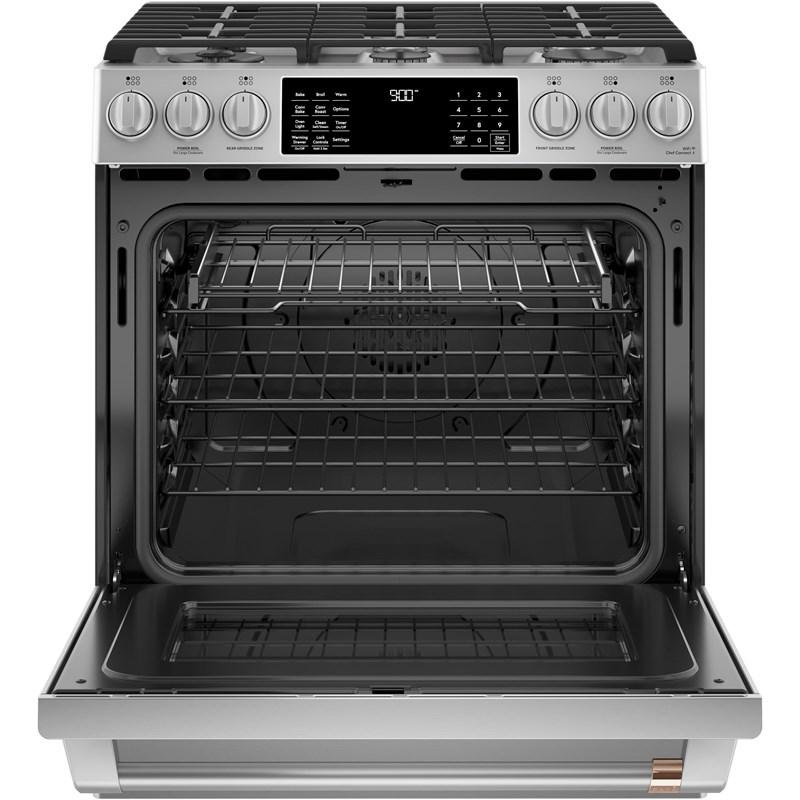

This 30-inch Café™ dual fuel slide-in range unites the power of a gas cooktop with the precision of an electric oven. The edge-to-edge cooktop with six versatile burners also includes an integrated griddle to easily handle large meals and family favorites. And true European convection creates even baking and roasting results every time.
Features

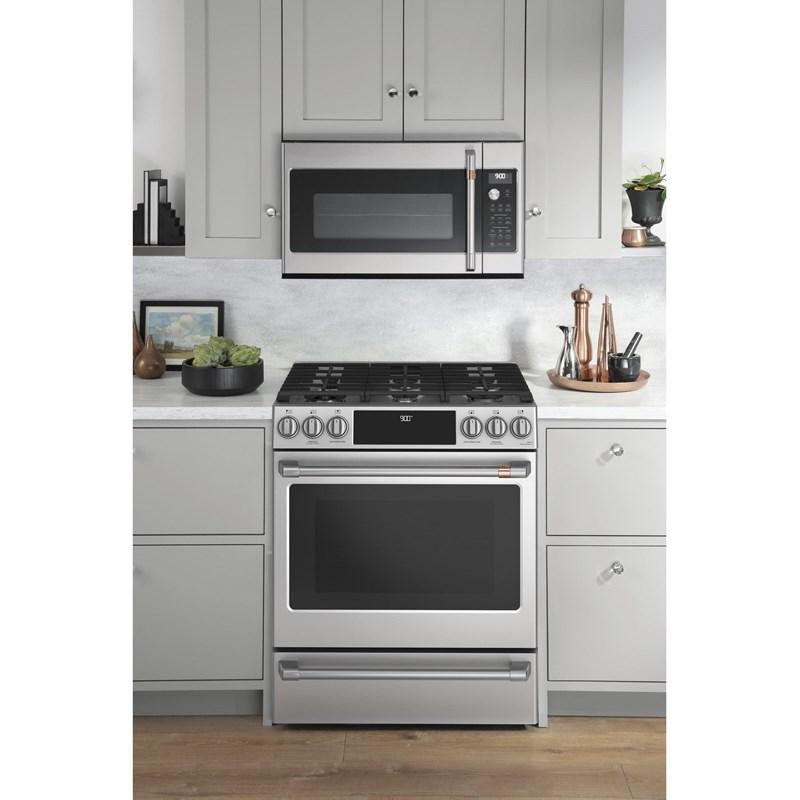

- CHEF CONNECT — Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

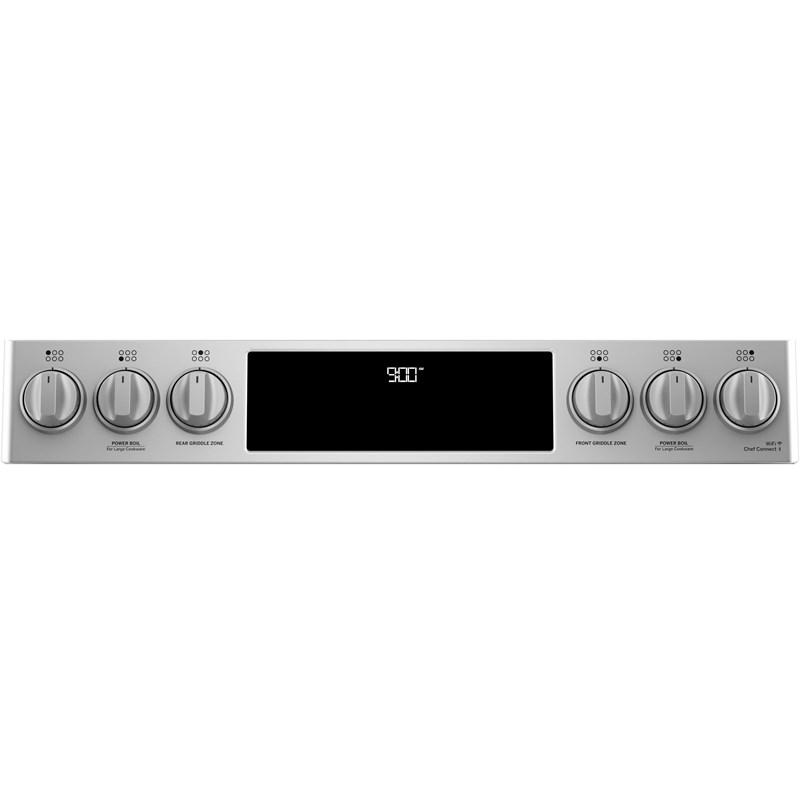

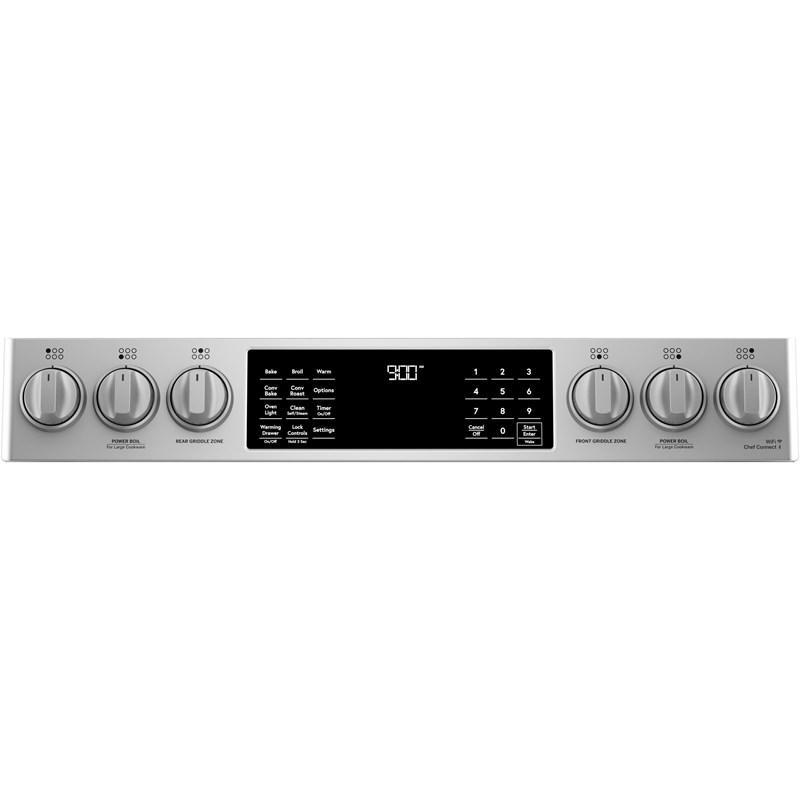

- LED CONTROL PANEL — Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted.
- SELF-CLEAN WITH STEAM CLEAN — Keep your oven looking spotless with a high heat steam clean option for small spills and a self-clean cycle for larger messes.

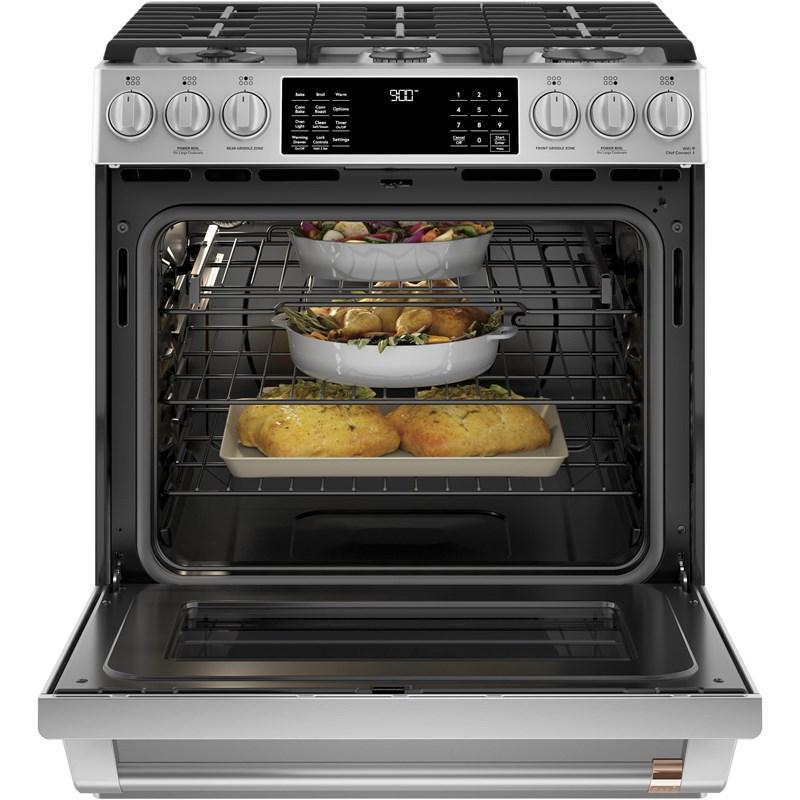

- TRUE EUROPEAN CONVECTION — The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
- WIFI CONNECT — Control your oven with your smart device or simply your voice using WiFi Connect.
Documents
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Cooktop Surface: Deep Recessed; Porcelain-Enamel; Gray | Dishwasher Safe Knobs | Audible Preheat Signal | Automatic Oven Timer (Time Bake) | Auto Oven Shut-Off | Delay Bake Option (Time Bake) | Delay Clean Option | Digipad Numeric Entry | Electronic Clock and Timer | Front Controls | In-Oven Broiling | Temperature Probe | Self-Clean Cool Down Time Display | Heavy-Cast Edge-to-Edge Grates | Variable with Delay Clean Option | 2 Self-Clean Oven Racks | 1 Roller Rack | 6 Rack Positions
Specifications
| Class Width | 30" | Depth (Including Handles) | 74.61 cm | Weight | 101.6 kg |
| Width | 75.88 cm | Depth (Without Handles) | 68.26 cm | Height | 92.08 cm |
| Downdraft Ventilation | N | Oven Light | Y | Control Lock | Y |
| Self-Cleaning | Y | Digital Temperature Display | Y | Wi-Fi | Y |
| Convection | Y | Delay Bake/Start | Y | Burners | Sealed |
| Other | Griddle | Burners/Elements | 5 | Warming | Y |
| Included | LP Conversion Kit | Warranty | Limited 1 Year Parts and Labor | Appliance Care | Self-Clean with Steam Clean Option |
| Fuel Type | Dual Fuel - Natural Gas | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation Type | Slide-in | Number of Ovens | Single | Capacity (cu. ft.) | 5.7 cu.ft. |
| Sabbath/Star-K | Y | ADA Compliant | Y | ||
| Additional Dimensions Cabinet Opening: 30" | Height to Top of Rear Vent Trim: 37-3/8" | Height to Cooking Surface: 36-1/4" +/- 1/4" | Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8" | |||||
| Technologies True European Convection with Precise Air | Chef Connect | Amazon Alexa | The Google Assistant | Hestan Cue | IFTTT | Nest | Drop | Innit | DiGiorno | WiFi Connect | |||||

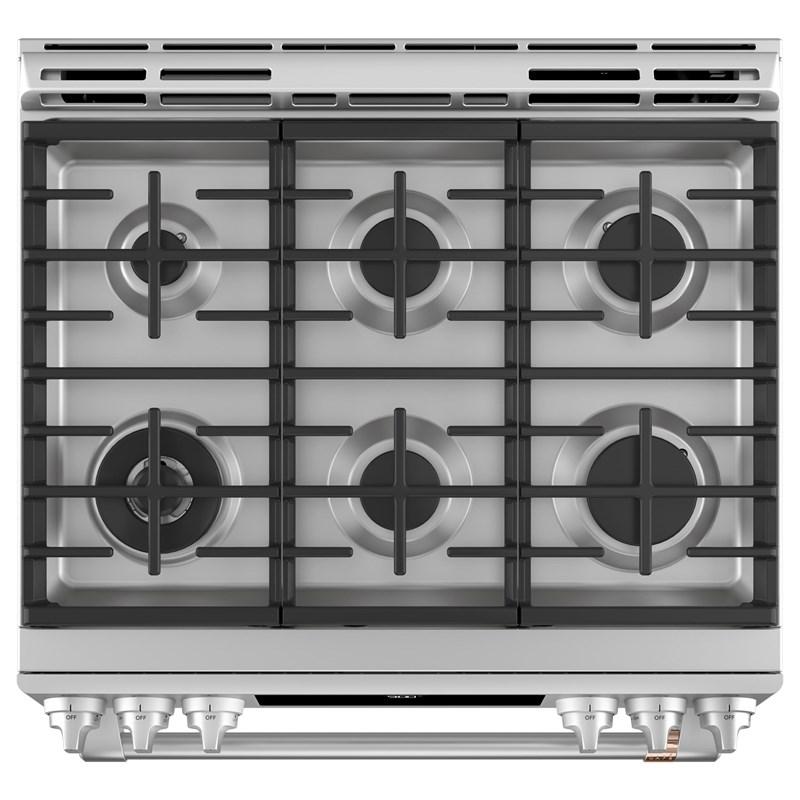

| Burners/Elements Output Left Front Burner: 21,000 BTU Tri-ring | Left Rear Burner: 5,000 BTU Precise Simmer | Right FrontBurner: 15,000 BTU | Right Rear Burner: 12,000 BTU | Center Burner: 9,500 BTU Front / 9,500 BTU Rear | |||||
| Optional Trim Kit JXFILLR1DD | Kit 2 handles; 6 knobs: | CXFCGHKPMBT Brushed Black | CXFCGHKPMBZ Brushed Bronze | CXFCGHKPMCU Brushed Copper | CXFCGHKPMCG Brushed Brass | CXFCGHKPMFB Flat Black | |||||
| Information 208 V /240 V | 30 A | |||||
| Programs Convection Bake | Convection Roast | Bake/Broil: 2850/4000W | Convection: 2500W | |||||
Accessories
• Kit 2 handles; 6 knobs:
• CXFCGHKPMBT Brushed Black
• CXFCGHKPMBZ Brushed Bronze
• CXFCGHKPMCU Brushed Copper
• CXFCGHKPMCG Brushed Brass
• CXFCGHKPMFB Flat Black
