Description
About this Product

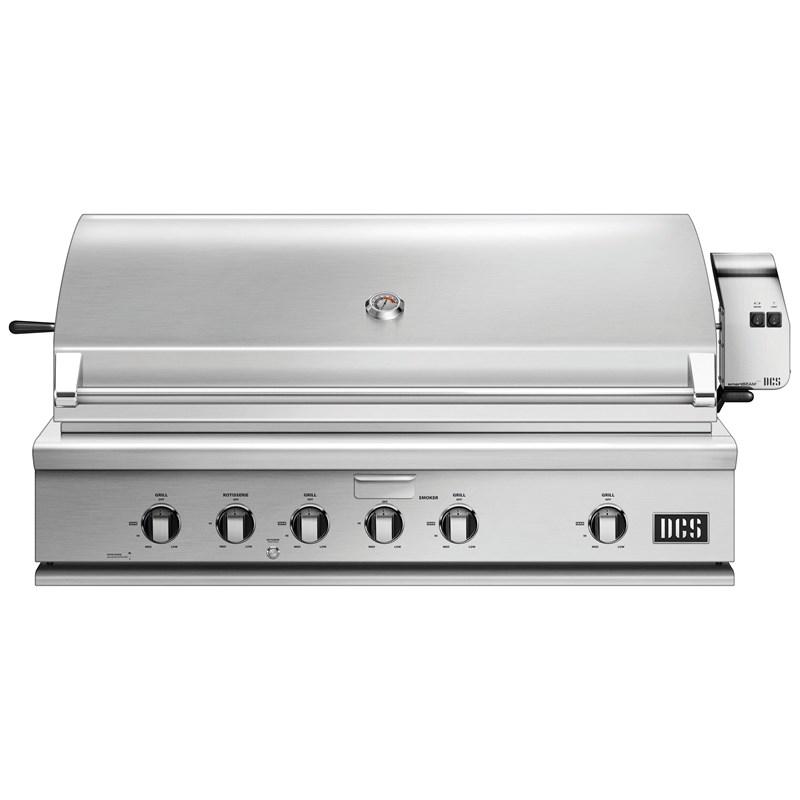

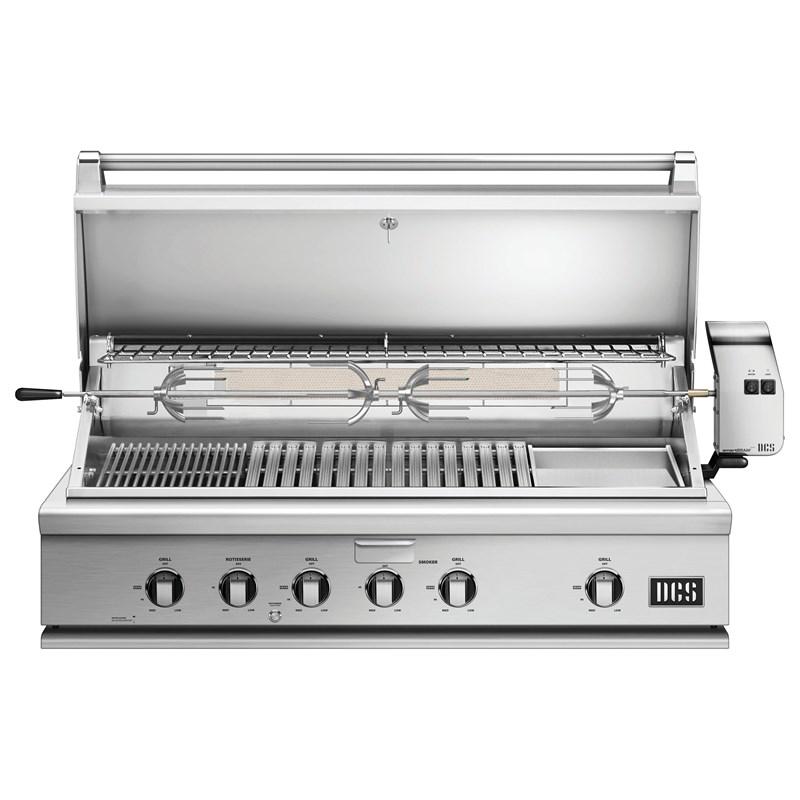

DCS 48" traditional liquid propane grill with rotisserie. Designed with flexibility in mind, DCS Grills allow you to cook a wide variety of meals and are engineered to deliver the functionality and power demanded by a professional chef. DCS Grills are hand-finished to perfection to complement the quality of the DCS premium outdoor kitchen and built to withstand the demands of the serious cook and the extremes of mother nature.
Features
- DEDICATED SEALED SMOKER — A dedicated smoker tray with a direct 3,500BTU burner offering a clean, convenient option for specialized smoking recipes.

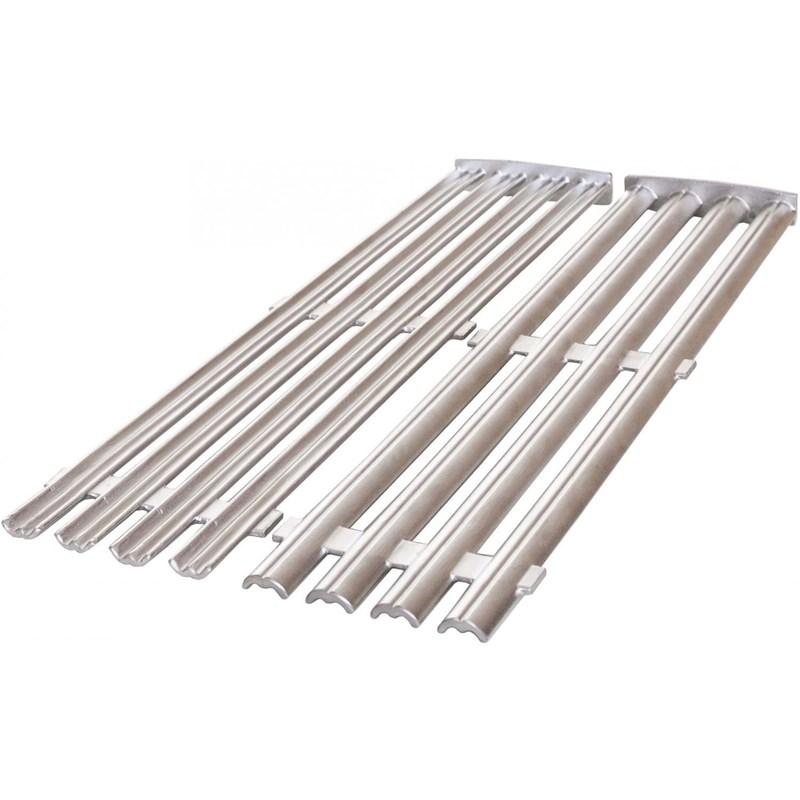

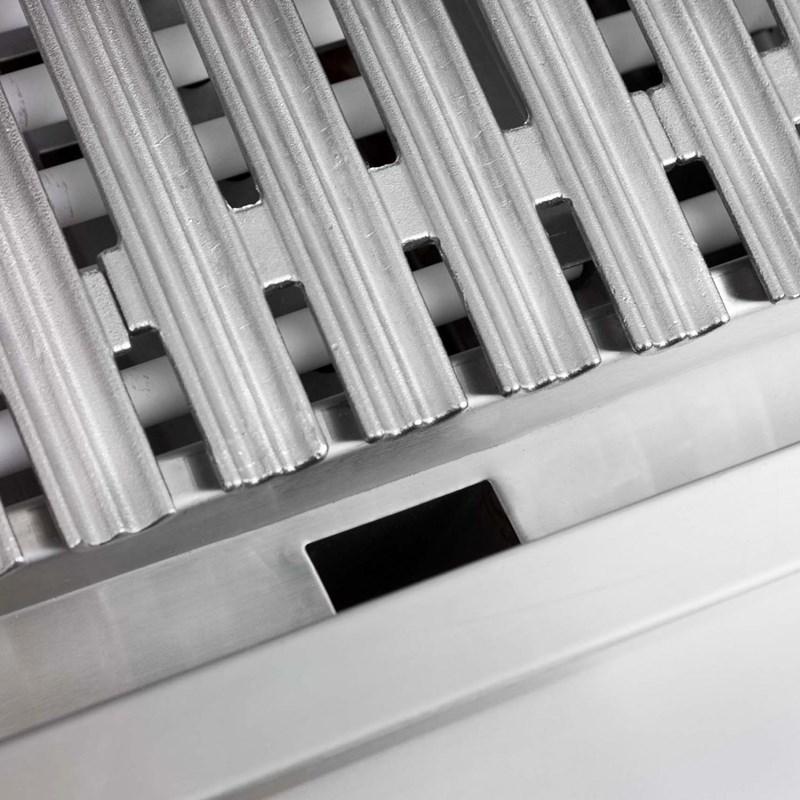

- DOUBLE-SIDED CAST STAINLESS STEEL GRILLING GRATES — Double Sided Cast Stainless Steel Grilling Grates - deliver perfect sear lines at the same time as channeling away oil to an easily removable capture tray. Grates feature one side with a gentle radius for support and handling, while the other side is W shaped for maximum grease capture, while leaving perfect sear lines.

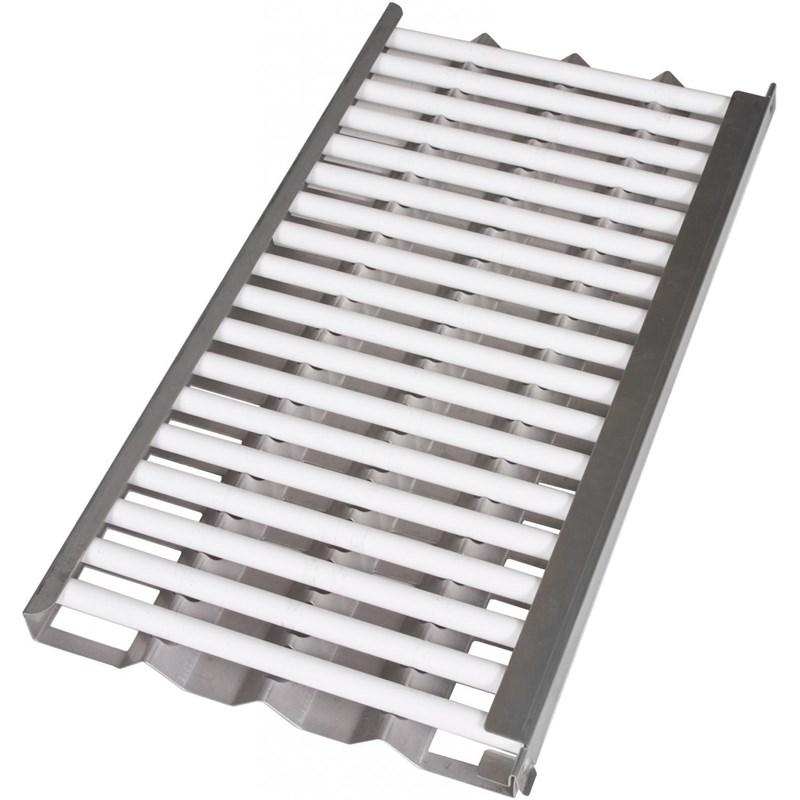

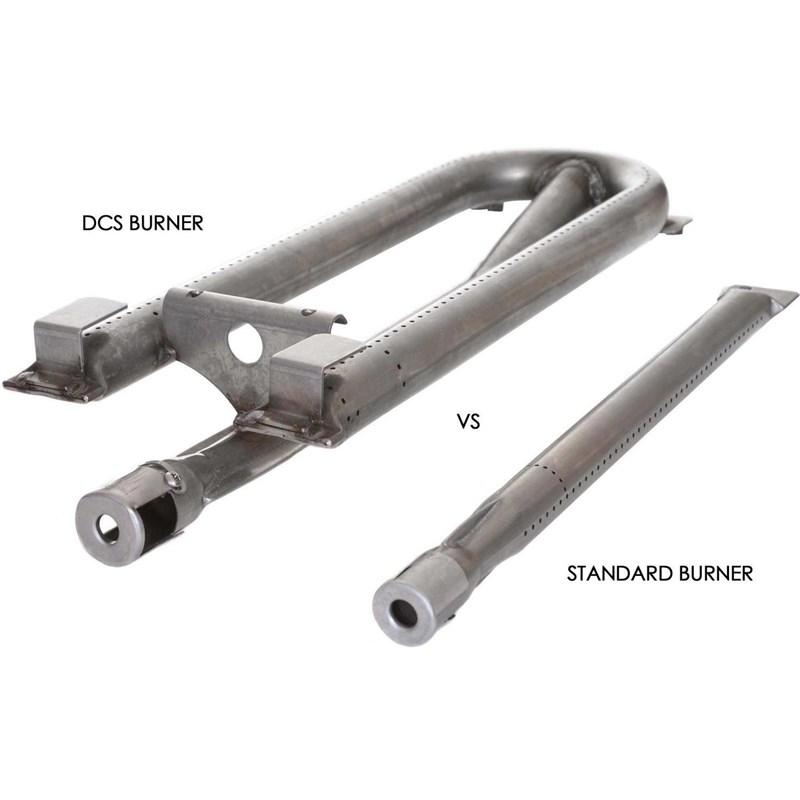

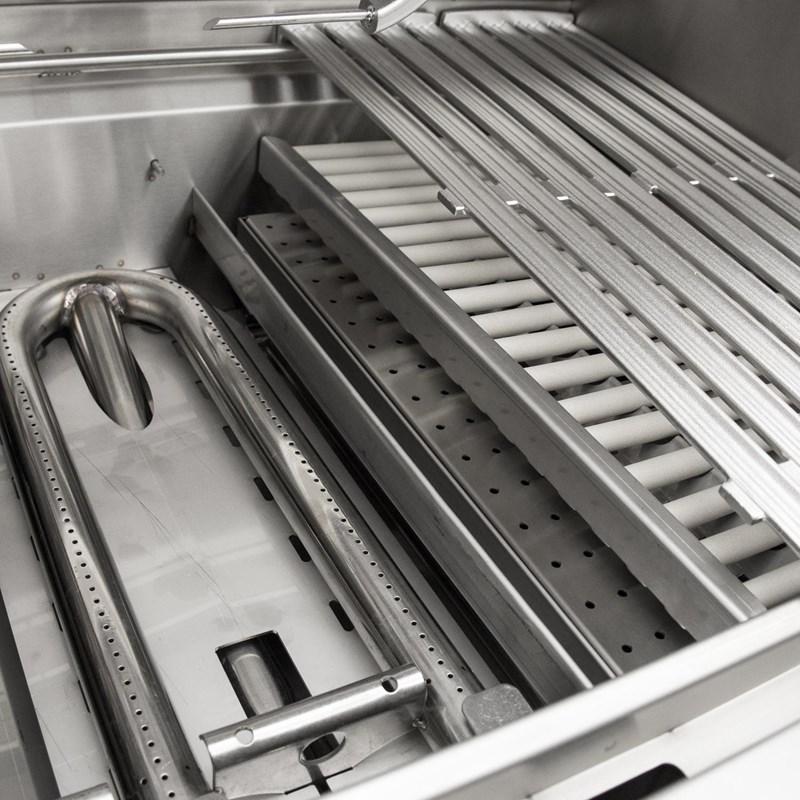

- FULL SURFACE SEARING — All DCS Grills feature full surface searing rather than uneven hotspots. A combination of precision ported stainless steel burners, ceramic radiant rods and heavy gauge stainless steel burner box construction ensure precise, even searing temperatures across the entire grilling surface.
- GREASE MANAGEMENT SYSTEM GREASE CHANNELING TECHNOLOGY — This patented Grease Management system grease channeling thecnology reduces flare-ups by directing grease and oils away from the burner flames during grilling.

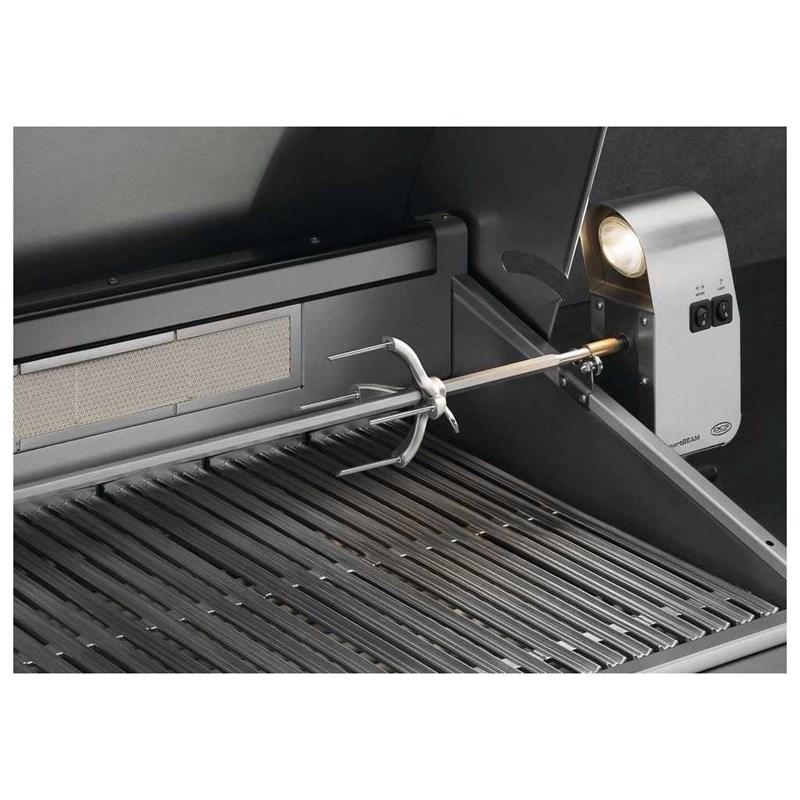

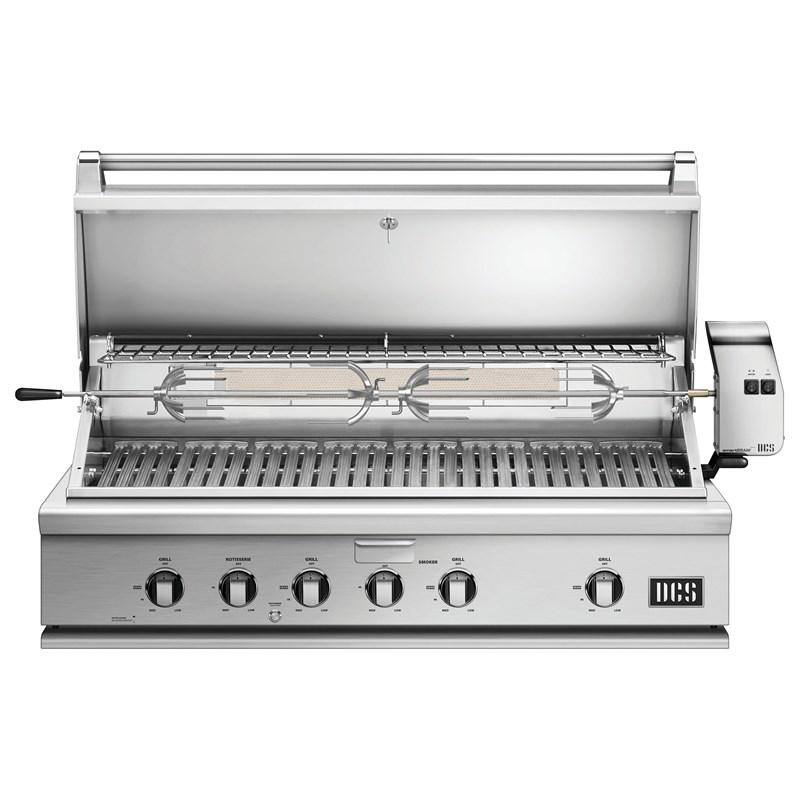

- ROTISSERIE — DCS Rotisserie Grill models include a dedicated infrared rotisserie burner, providing controlled searing heat up to 18,000BTU. The heavy-duty rotisserie motor powers a stainless steel hexagonal rod and adjustable forks, which can securely accommodate a 50lbs load.

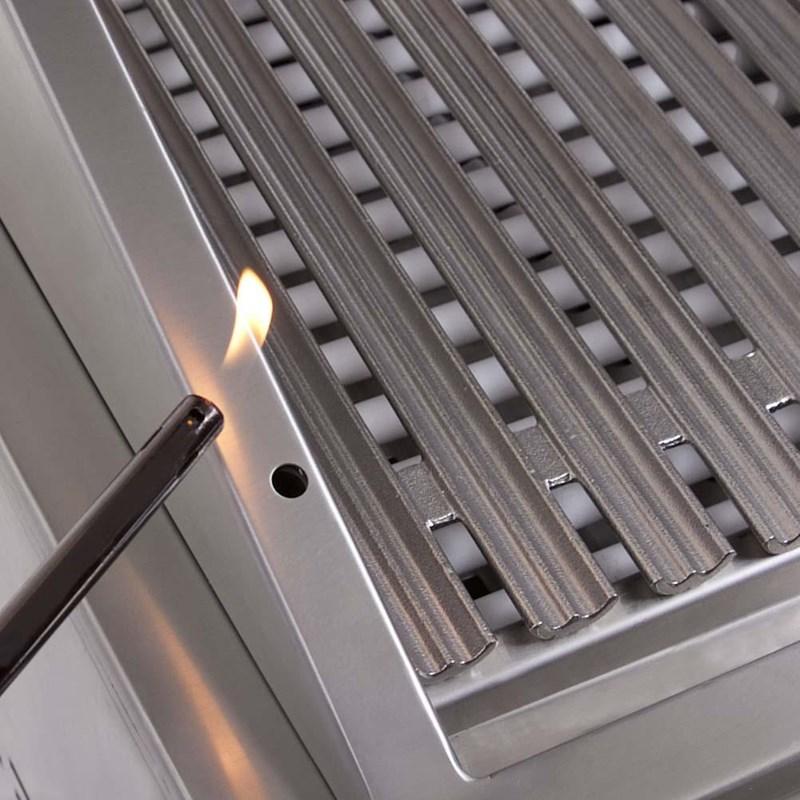

- DIRECT BURNER IGNITION — DCS Grills include an ergonomic ignition solution, where burners are lit directly from the corresponding knobs eliminating the need for a surface ignition button.
- TEMPERATURE GAUGE — Designed for monitoring temperatures when cooking pizzas or when using indirect heat from adjacent burners, for preparing roast meals.
- SMART BEAM GRILL LIGHT — A 40W halogen light is integrated into the patented weather-proof rotisserie motor of DCS Rottisserie Grill models. The Smart Beam Grill Light is designed to illuminate the entire cooking surface for perfect night grilling.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Double sided stainless steel grilling grates | Full surface searing | Hood temperature gauge | One-step direct burner ignition | Metal dials | Rotisserie power supply : 120v 60 Hz | 9V battery for ignition required
Specifications
| Type | Built-In | Fuel Type | Propane | Color | Stainless Steel |
| Manufacturer Color | Brushed Stainless Steel | Total Cooking Area | 1182 in² | Primary Area | 855 in² |
| Secondary Area | 327 in² | Maximum Power | 121,500 BTU | Burners | 4 |
| Rotisserie Output | 18000 BTU | Main Burner Output | 100000 BTU | Smoker Burner Output | 3500 BTU |
| Included Rotisserie | Y | Side Burner | N | Infrared Burner | N |
| Warming Rack | Y | Electronic Ignition | Y | Smoking Box | Y |
| Convection | N | Overall Width | 143.19 cm | Height (Lid Closed) | 61.6 cm |
| Overall Depth | 69.37 cm | Grill Size | 48" | Height (Lid Open) | 89.22 cm |
| UPC# | 780405714459 | Weight | 161.93 kg | Warranty | Limited 2 Years Parts & Labor Warrant |
| Technologies Grease Management System™ | Smart Beam™ Grill Light | |||||
| Additional Dimensions Overall width of cavity: 45 3/4" | Overall depth of cavity: 22 3/4" | Overall height of cavity: 10 1/8" | Clearance from grill chassis to combustible construction: 18" | Clearance below countertop to combustible construction: 18" | Clearance for hood at rear / non-combustible construction: 3" | *Refer to dimension guide for all dimension specifics | |||||
| Optional Optional cart-mount- CAD1-48 | Optional griddle plate- BGC-GP | Optional hybrid IR burner- BGC-IR | |||||
Accessories
• Optional griddle plate- BGC-GP
• Optional hybrid IR burner- BGC-IR
