DCS-Stainless Steel-Range Hoods VS-1236

Sku: 85F54126
$2,629.00 Builder Price






Maximum quantity available reached.

Description

About this Product

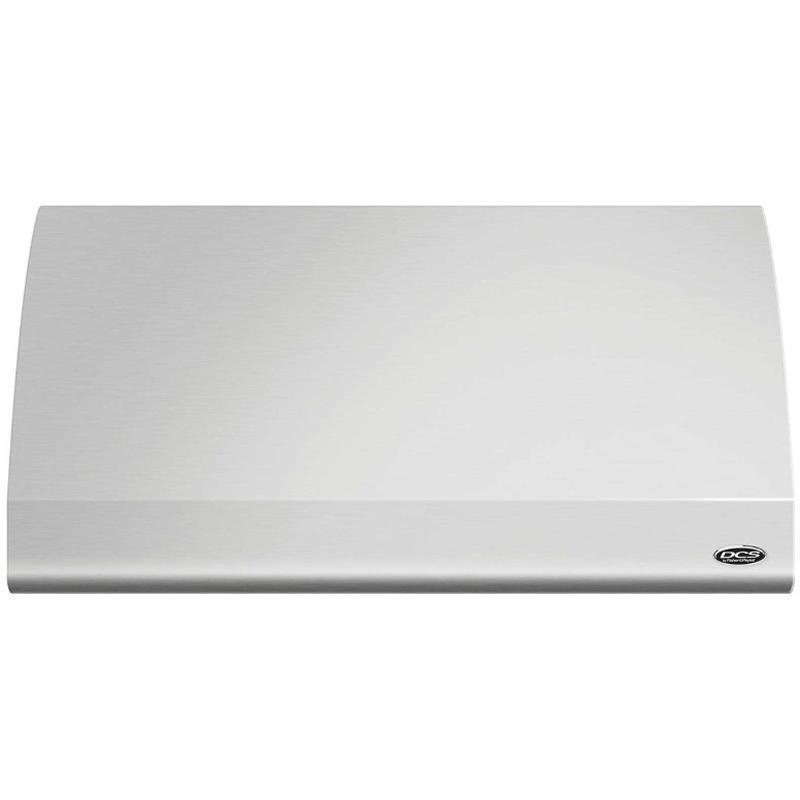

All professional chefs know where there is smoke there is flavor. But there is also grease, steam and odors you do not want your guest to smell, or to become part of your drapes. The DCS range hoods and downdraft guarantee a much more enjoyable cooking experience.

Features

  • PERFORMANCE. — For a more enjoyable cooking experience, this DCS vent hood successfully eliminates unwanted grease, smoke and odors instantly with four fan speeds up to a powerful 1200 CFM.
  • QUALITY — The high quality finish, premium grade stainless steel and robust product design combine to deliver a well built and effective wall hood, to match your pro-style kitchen.

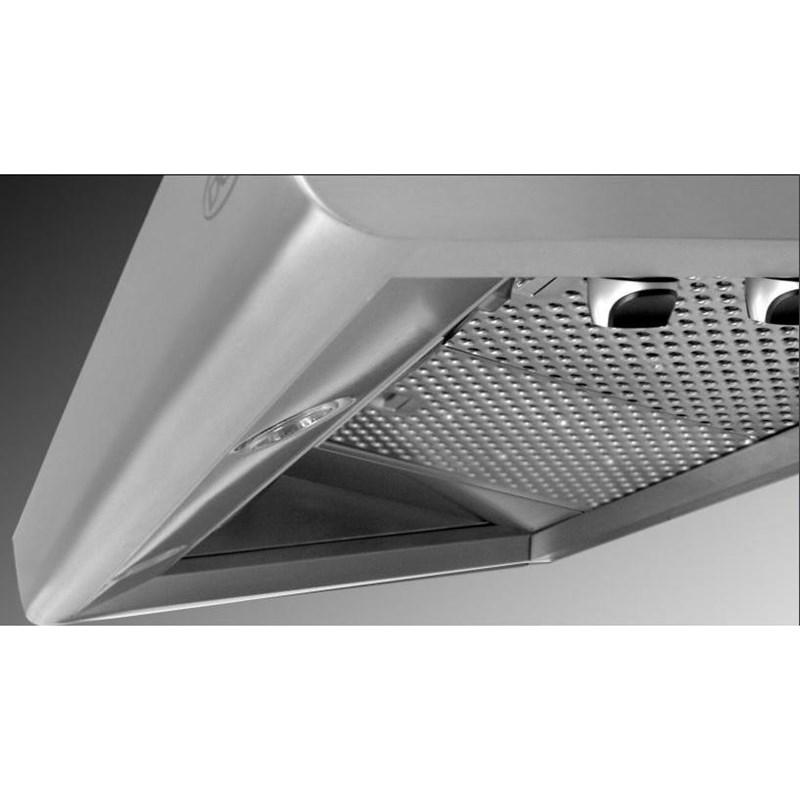

  • EFFICIENT FILTER SYSTEM — Wall mount hoods use stainless steel baffle filters to efficiently capture grease.
  • EASY TO CLEAN — The high quality stainless steel baffle filters are easy to remove and dishwasher safe.
  • EFFECTIVE LIGHTING — Two-level halogen lighting effectively illuminates the cooking surface. Wall mount hoods are designed for easy installation of the optional infrared warming light accessory.

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Warranty Details (en)

Warranty Details (en)

Additional documents(en)

Additional documents(en)

Highlights

SS Baffle Filters and Grease Trays | 2 Level Halogen Lighting (50 Watts) | 4 Level Exhaust Control

Specifications

Style Standard Airflow 1200 CFM Manufacturer Color Stainless Steel
Color Stainless Steel Installation Wall Mount Blower Included Y
Speeds 4 Dishwasher-Proof Filters Y Energy Star Certified N
Hvi Certified N Width 91.12 cm Height 45.72 cm
Depth 63.5 cm Class Width 36" UPC# 780405002457
Warranty One year Limited Warranty covering parts and labor
Ducting Information
10" Round | Maximum duct length: 40 ft
Information
120 V | 60 Hz | 15 A
Optional
VDC1236 – 12" Duct cover kit | VDC636 – 6" Duct cover kit | IR36 – Kit with two 175 W heat lamp

Accessories

• VDC1236 – 12" Duct cover kit
• VDC636 – 6" Duct cover kit
• IR36 – Kit with two 175 W heat lamp
