Description
About this Product

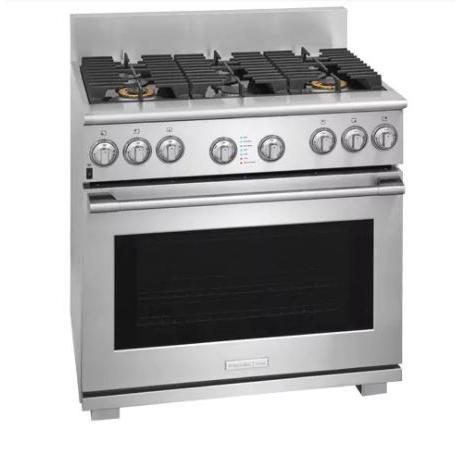

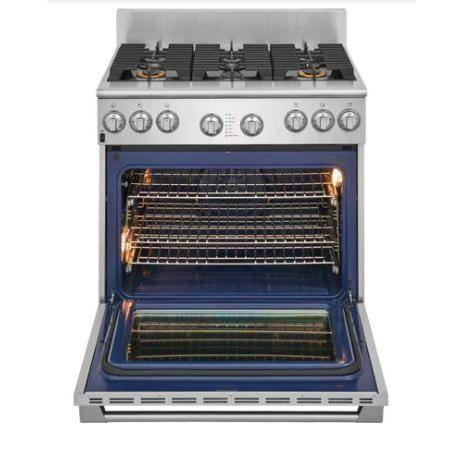

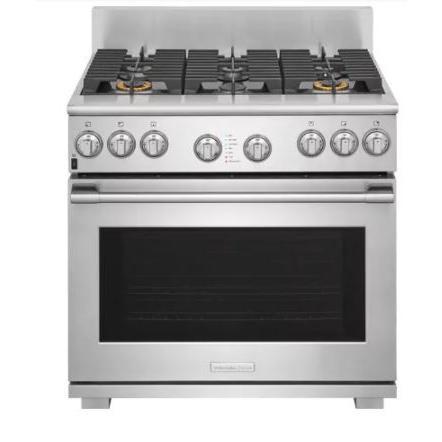

This Electrolux Icon 36" dual-fuel range features a 6.4 cu.ft. oven capacity, convection bake, a self-clean oven and 6 gas burners.
Features

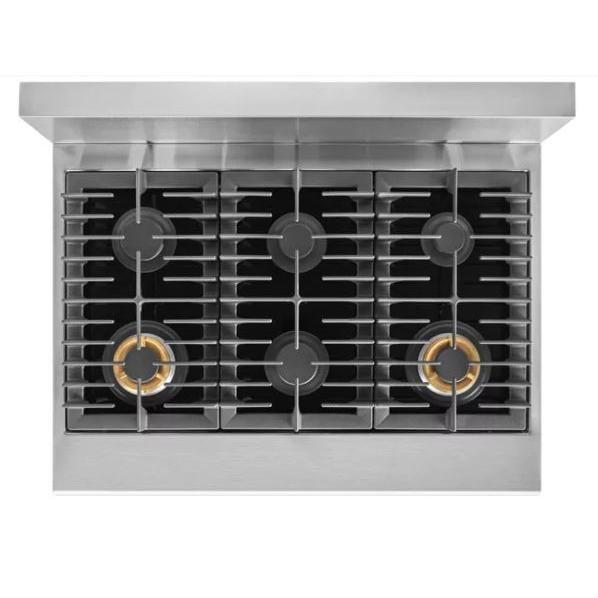

- MIN-2-MAX BURNERS® — With the widest range of BTU performance in the industry, these best-in-class dual-flame sealed burners offer unrivaled versatility — from a roaring 18,000-BTU boil to a gentle 450-BTU simmer.
- SMOOTH-GLIDE® OVEN RACKS — Ball bearing oven racks glide with unparalled ease and extend fully for effortless access.
- CUSTOMCONVECT3™ CONVECTION TECHNOLOGY — Distributes heat evenly throughout the oven by adding a third cooking element plus a variable speed fan.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Bake Element (Watts): 3,000 | Broil Element (Watts): 4,000 | Convection Element (Watts): 2,500 | Signature Cobalt Blue Oven Interior | Self-Clean with Door Lock | Extra-Large Oven Window | Halogen Oven Light | Eight-Pass Bake & Broil Elements | 2 Smooth-Glide® Oven Racks | 1 Conventional Rack | Hidden Bake Element
Specifications
| Class Width | 36" | Depth (Including Handles) | 73.03 cm | Weight | 163.29 kg |
| Width | 91.1 cm | Depth (Without Handles) | 69.85 cm | Height | 105.7 cm |
| Downdraft Ventilation | N | Oven Light | Y | Self-Cleaning | Y |
| Wi-Fi | N | Convection | Y | Burners | Sealed |
| Other | Wok | Burners/Elements | 6 | Warranty | 1 Year |
| Fuel Type | Dual Fuel - Natural Gas | Series Name | Professional | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation Type | Freestanding | Number of Ovens | Single |
| Capacity (cu. ft.) | 6.4 cu. ft. | Sabbath/Star-K | N | ||
| Technologies Smooth-Glide | CustomConvect³™ | |||||
| Burners/Elements Output Center Front: 14000 BTU | Center Rear: 9500 BTU | Left Front: 1100 - 18000 BTU (Dual Flame) | Left Rear: 14000 BTU | Right Front: 750 - 18000 BTU (Dual Flame) | Right Rear: 850 - 5000 BTU | |||||
| Included Broiler Pan and Insert | Stainless Steel Cleaner | Wok Ring | LP Gas Conversion Kit | |||||
| Information 240 Volts | 60 Hertz | 17 Amps | |||||
Accessories
• Broiler Pan and Insert
• Stainless Steel Cleaner
• Wok Ring
• LP Gas Conversion Kit
• Stainless Steel Cleaner
• Wok Ring
• LP Gas Conversion Kit
