Description
About this Product

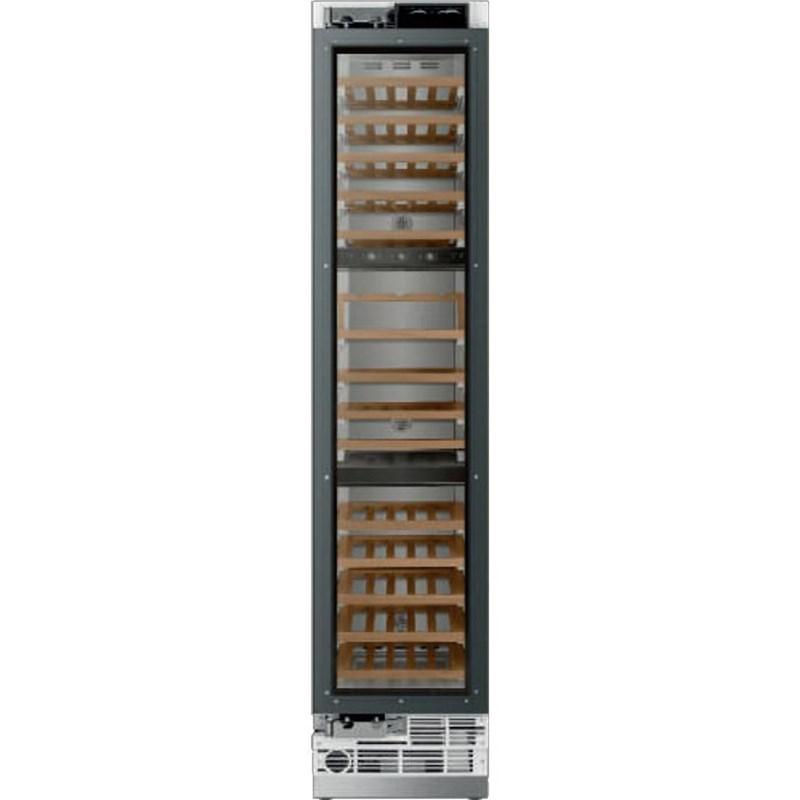

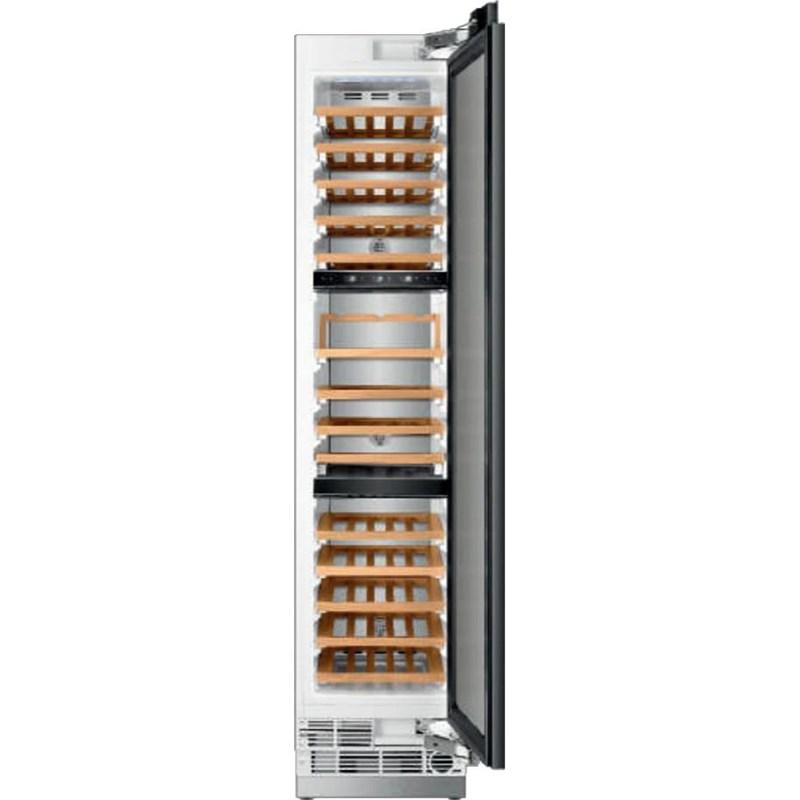

Elica 18"W / 84"H Tri-Zone Built-In Wine Cooler with a generous 255L capacity and space for up to 68 bottles is crafted for true connoisseurs. Featuring fully integrated panel-ready installation, it blends seamlessly into your kitchen or bar with timeless elegance. Experience the precision of three independently controlled temperature zones—each ranging from 41°F (5°C) to 68°F (20°C)—powered by individual evaporators for optimal preservation. Interior air circulation, a charcoal filter, and Low-E, double-layer UV-resistant glass ensure your collection is safeguarded against external elements while maintaining perfect humidity and temperature balance.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Warranty Details (en)
Highlights
Seamless 3004 Stainless Steel with white plastic interior | Single Panel Ready Door | Zero Clearance Articulating | Hettich Hinges | Tempered Transparent Gray Argon Filled Dual Pane Glass | Electronic Touch Control with white LED Readout | 3 Independent Evaporators | 14 Full-Extension Beechwood Shelves | Strip LED with color options (White, Blue, Amber) | 68 750ml Bottles Capacity | R600a Refrigerant | 43 dBA | Demo Mode | Open Door Alarm | ECO Mode | Air Fan Circulating
Specifications
| Installation | Built-In | Size | Full Size | Bottles | 68 |
| Hinge | Right | Temperature Zones | 3 | Number of Racks | 14 |
| Temperature Settings | 3 Zones (each 41°F (5°C) - 68°F (20°C) | Series Name | Dolomite | Manufacturer Color | Panel Ready |
| Color | Panel Ready | Type | Cellar | Reversible Door | Y |
| Glass Door | Y | Digital Temperature Display | Y | Interior Light | Y |
| Included | ECJKCXX Column Joining Kit | Width | 45.09 cm | Height | 212.25 cm |
| Depth (Without Handle) | 59.21 cm | Weight | 125 kg | Sabbath/Star-K | Y |
| Technologies Elica Perfect Climate (EPC) | Vibration Dampening System (VDS) | |||||
| Optional 18" Stainless Steel Panel Kit: EPNKC18SS (3/4" deep) | Pro Handle Stainless Steel Kit: EPHKCSS | Tubular Handle Stainless Steel Kit: ETHKCSS | Column Joining Kit: ECJKCXX | Water Filter: ERWFX | Water Filter Cover: ERWFC | |||||
| Information 120V, 60Hz @ max 1.4 Amp | Plug Type: NEMA 5-15 P plug | |||||
| Additional Dimensions Power Cord Length: 91" (2.3 mts.) | Cut Out Dimensions: 18" W x 25" D x 84" H | |||||
| Warranty Two (2) Years Parts & In-Home Labor | Earn an additional One (1) Year of Parts & In-Home Labor by registering | |||||
Accessories
• Pro Handle Stainless Steel Kit: EPHKCSS
• Tubular Handle Stainless Steel Kit: ETHKCSS
• Column Joining Kit: ECJKCXX
• Water Filter: ERWFX
• Water Filter Cover: ERWFC
