Description
About this Product

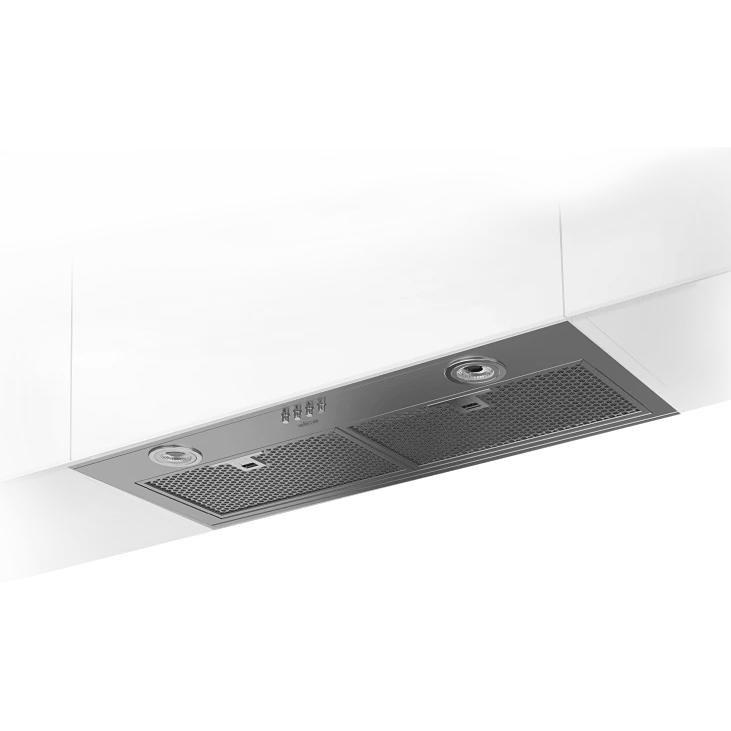

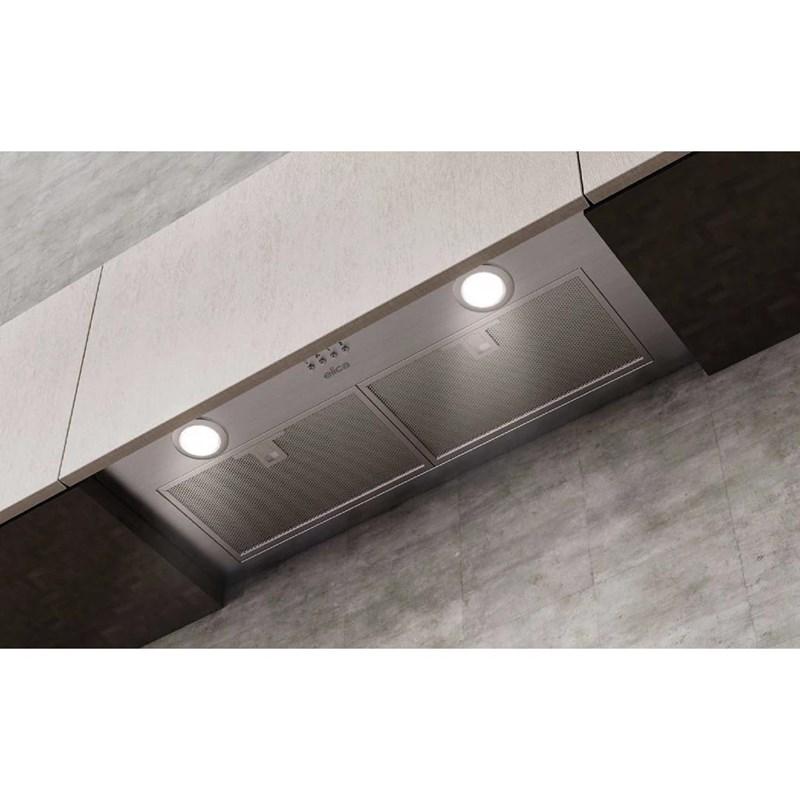

Asti 30 is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry, and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti 30 comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient mechanical push button controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters covered by a stainless steel protective layer, offer easy maintenance. Asti 30 is designed for standard ducted or recirculating installation, now with a snap system that make it safer and easier to install.
Documents
Product Sheet (en)
Dimensions Guide (en)
Highlights
Noise (Min-max sones): 0.3-5.0 Sones | Illumination: 2 LED, 6.5W, 3000K 235 Lumen | Controls: Mechanical push buttons | Dishwasher-Safe, Anodized Stainless Steel mesh
Specifications
| Warranty | 2 Years Parts and Labor | Depth | 30.48 cm | Height | 24.13 cm |
| Width | 76.2 cm | Class Width | 30" | Series Name | Asti 30 |
| Style | Custom Insert | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Installation | Built-In | Blower Included | Y | Airflow | 400 CFM |
| Ducting Information | 6" Round | Speeds | 3 Speeds | ||
| Optional Recirculating kit KIT02770 (contains 2 carbon filters) | Electronic CFM Reduction Bypass KIT0175561 (achieves <300 CFM) | |||||
| Information 120 V | 60 Hz | 260 W | |||||
Accessories
• Electronic CFM Reduction Bypass KIT0175561 (achieves <300 CFM)
