Description
About this Product

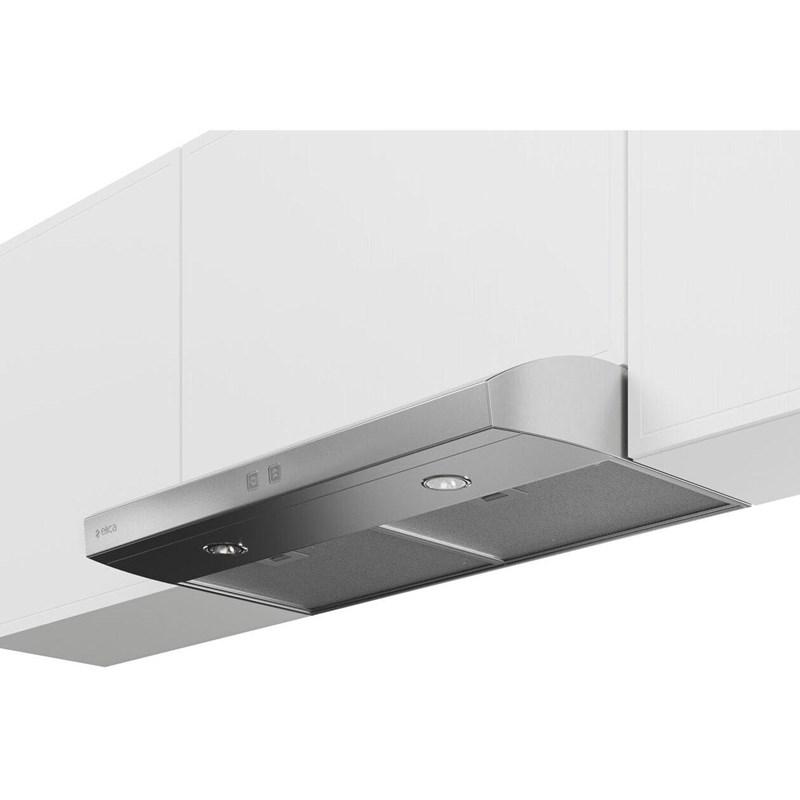

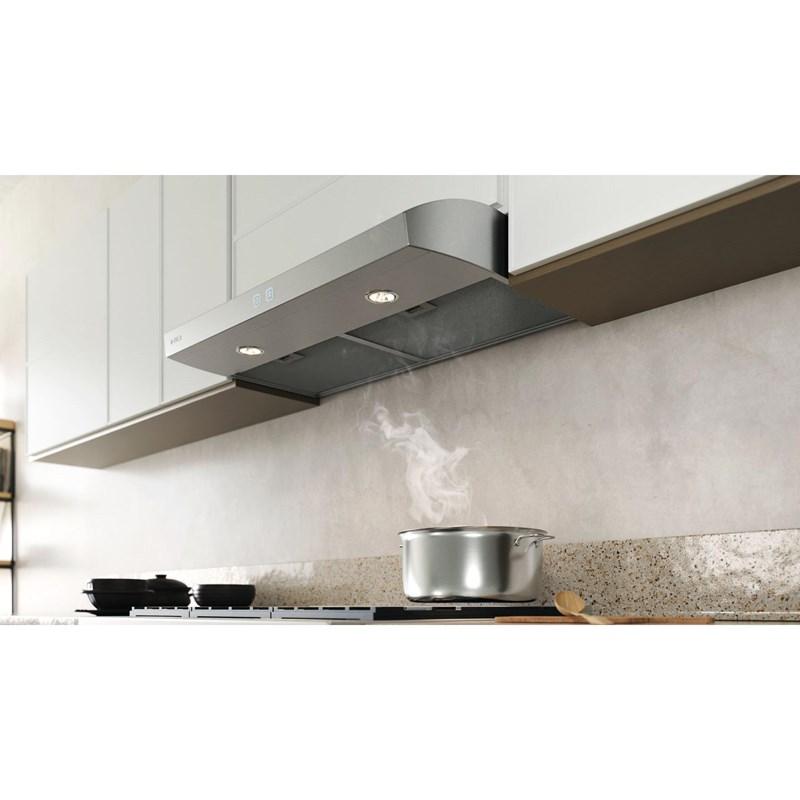

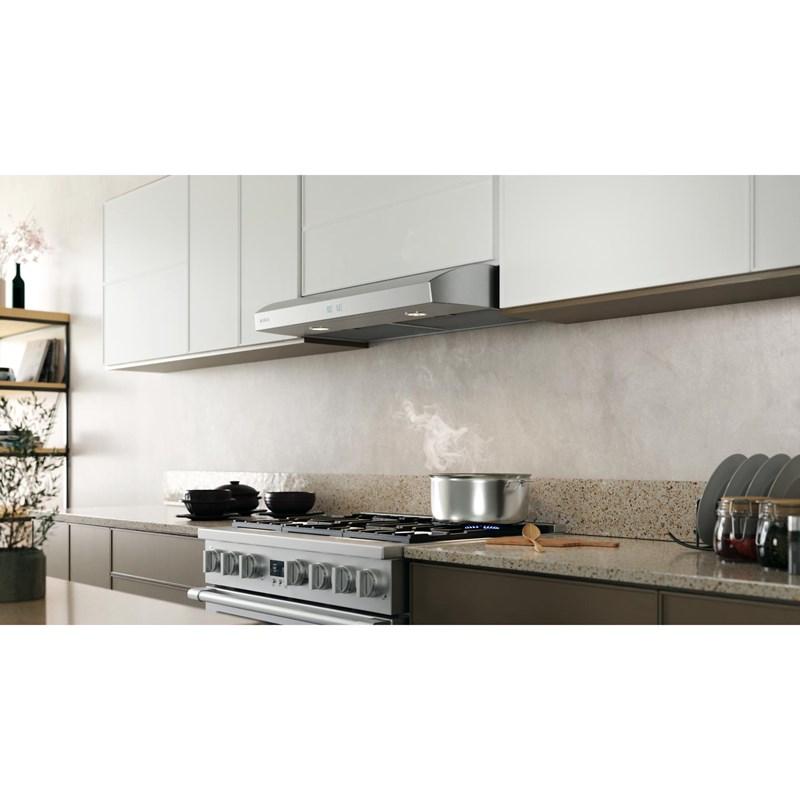

With a compact 4 3/4” height, Bellagio is an ideal choice where under-cabinet space is limited. An upgraded 4-speed, 400 CFM internal blower provides sufficient ventilation power for dishwasher-safe, anodized aluminum mesh filters and multiple backlight color touch controls illuminate in elegant white, green, blue or red.
Features
- 3X LAYER GREASE FILTER — Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
- CFM REDUCTION — CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the installer to reduce the maximum blower CFM, to meet local code requirements.
- LED LIGHT — LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
Documents
Product Sheet (en)
Dimensions Guide (en)
Highlights
Electronic Touch Controls with Adjustable Color Backlight | 6.1 Sones | 2 LED Lights, 6.5 W, 3000 K | (2) Dishwasher-safe, Anodized Aluminum Mesh Filter
Specifications
| Warranty | Two (2) Years Parts & In-Home Labor | Depth | 50.8 cm | Height | 12 cm |
| Width | 76.2 cm | Class Width | 30" | Series Name | Bellagio Comfort |
| Style | Standard | Color | Stainless Steel | Installation | Under-Cabinet |
| Blower Included | Y | Airflow | 400 CFM | Ducting Information | 3 ¼ x 10" (Top or Rear), or 7" round (sold separatley) |
| Speeds | 4 Speeds | ||||
| Optional Recirculating Kit: KIT02178 (Contains 2 flat carbon filters & clips) | Backdraft Damper Kit: KIT02723 (7" Round) | |||||
| Information 120V – 60 Hz, 445 W | |||||
Accessories
• Recirculating Kit: KIT02178 (Contains 2 flat carbon filters & clips)
• Backdraft Damper Kit: KIT02723 (7" Round)
• Backdraft Damper Kit: KIT02723 (7" Round)
