Description
About this Product

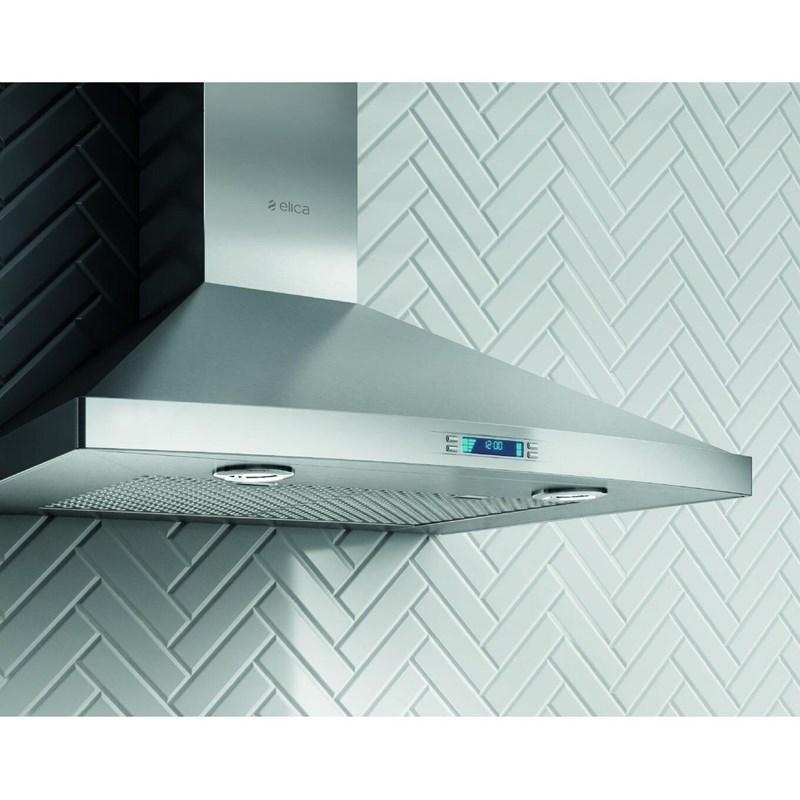

Elica 30-inch range hood. Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety. Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
Features
- LED LIGHT — LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Speed 1: 160 CFM | Speed 2: 280 CFM | Speed 3: 470 CFM | Speed 4: 600 CFM | Sones: Min: 2.03, Max: 8 | 2 LED Lights, 2.5 w
Specifications
| Hvi Certified | Y | Warranty | Limited 2 Years | Depth | 54.61 cm |
| Height | 61.27 cm | Width | 76.2 cm | Class Width | 30" |
| Series Name | Pilato Techne | Style | Chimney | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Airflow | 600 CFM | Speeds | Touch Control 3 Speeds + Booster | ||
| Information CUL | UL | |||||
| Optional Recirculating Kit (Contains 6" Deflector & 2 Round Carbon Filters) KIT02766 | Chimney Extension Kit KIT02762 | |||||
| Ducting Information Ducted or Recirculating with Recirculating Kit (Sold Separately) | Top Round 6" | |||||
| Information 120 V | 60 Hz | 450 Watts at 3.7 A | |||||
Accessories
• Recirculating Kit (Contains 6" Deflector & 2 Round Carbon Filters) KIT02766
• Chimney Extension Kit KIT02762
• Chimney Extension Kit KIT02762
