Description
About this Product

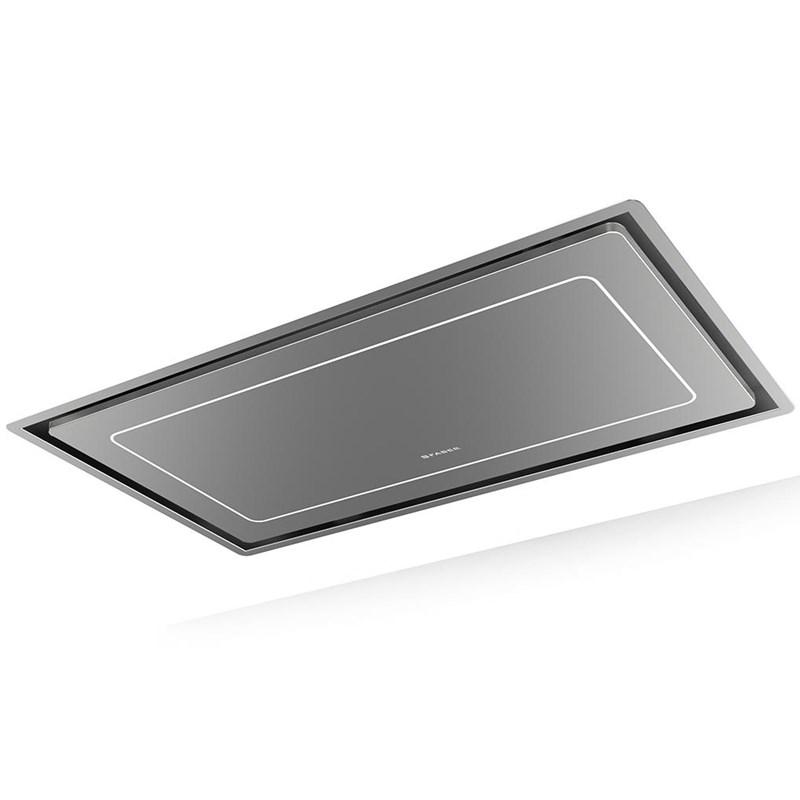

The Faber High-Light ceiling hood features a stainless steel panel that fits into the ceiling and a perimeter aspiration that extracts any impurities.
Features
- PERIMETER ASPIRATION — Air is forced through narrow slots around the perimeter of the center panel greatly improving contaminant extraction.
- DELAYED AUTO-OFF — Automatically turns the fan off after a set time (varies by the hood).
- FILTER SATURATION ALARM — An indicator on the hood signals when to wash filters.
- 24 HOUR ANTI-POLLUTION MODE — This mode runs the hood for 10 minutes once an hour at a low CFM to refresh the air in your home.
- REMOTE CONTROL (INCLUDED) — Control all features of the hood from the convenience of a wireless remote control.
- INTENSIVE SPEED — Turns on at the highest speed for 10 minutes.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Highlights
300, 400, 600 CFM or remote blower and in-line blowers sold separately | LED digital touch control | LED light bar | Perimetric filter system/ Silent kit | 24-Hour anti-pollution mode | 10-Minute intensive speed | 30-Minute delay auto shut off | Dishwasher safe mesh grease filter | Filter wash alarm | ADA compliant
Specifications
| Style | Custom Insert | Series Name | High-Light | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Built-In | Blower Included | N |
| Speeds | 4 Speeds (3+ BOOST) | Dishwasher-Proof Filters | Y | Width | 90.01 cm |
| Depth | 46.99 cm | Additional Dimensions | Min / max ceiling height: 5' 11" - 9' (up to 72" above the stove) | Class Width | 36" |
| UPC# | 7612985730006 | Warranty | Limited 2 Years | Included | ADA compliant remote control |
| Ducting Information 6" round | 10" top only | 4-Way side vent | |||||
| Information AC power: 400 watts / 3.2 amps | |||||
| Optional Blowers: | IB300 (Internal) | IB400 (Internal) | IB600 (Internal) | RB900 (Remote) | RB1200 (Remote) | AXP250 (In-Line) | FILTER1 – Charcoal Filter Kit • FILTER1LL – Long Lasting Charcoal Filter Kit • FLANGE10 – 10" Plate for External Blower (For use with all remote blowers) • MUDAMPER6 / MUDAMPER8 / MUDAMPER10 – Universal Make-Up Air Damper | |||||
Accessories
Blowers:
• IB300 (Internal)
• IB400 (Internal)
• IB600 (Internal)
• RB900 (Remote)
• RB1200 (Remote)
• AXP250 (In-Line)
• FILTER1 – Charcoal Filter Kit • FILTER1LL – Long Lasting Charcoal Filter Kit • FLANGE10 – 10" Plate for External Blower (For use with all remote blowers) • MUDAMPER6 / MUDAMPER8 / MUDAMPER10 – Universal Make-Up Air Damper
• IB300 (Internal)
• IB400 (Internal)
• IB600 (Internal)
• RB900 (Remote)
• RB1200 (Remote)
• AXP250 (In-Line)
• FILTER1 – Charcoal Filter Kit • FILTER1LL – Long Lasting Charcoal Filter Kit • FLANGE10 – 10" Plate for External Blower (For use with all remote blowers) • MUDAMPER6 / MUDAMPER8 / MUDAMPER10 – Universal Make-Up Air Damper
ADA compliant remote control
