Description
About this Product

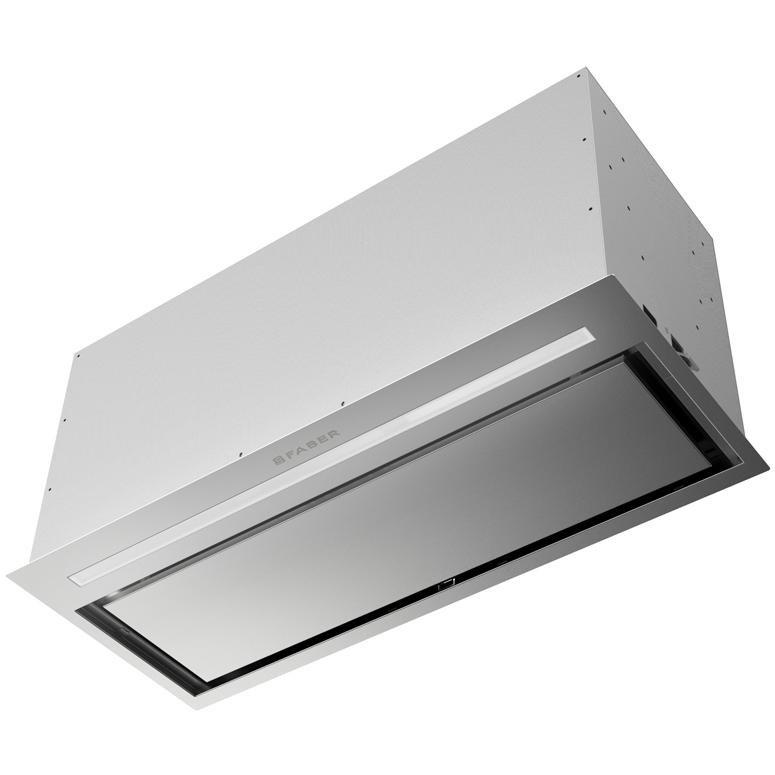

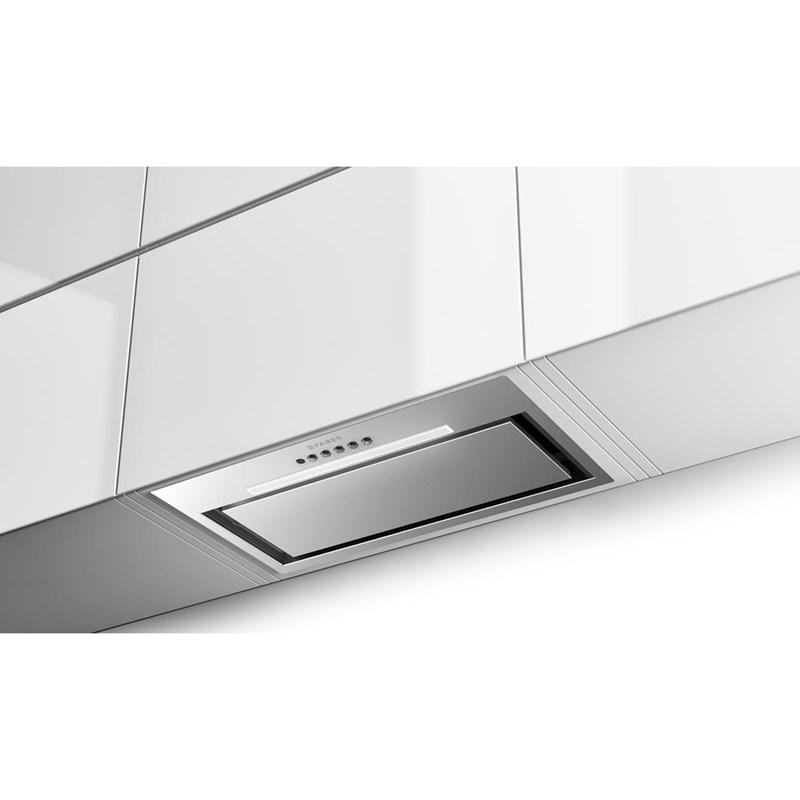

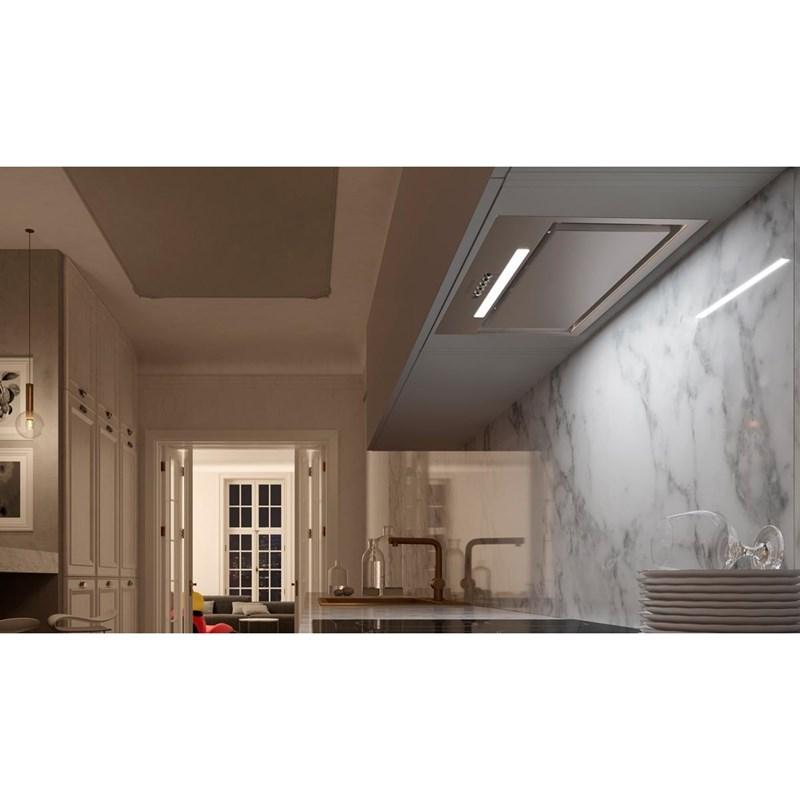

The Inca Lux nestles into any kitchen design with timeless good looks and a stainless steel finish. The Inca Lux is easy to integrate into kitchen cabinets due to its slim depth, and the Perimeter Aspiration increases the extraction of cooking odors.
Features
- PERIMETER ASPIRATION — Air is forced through narrow slots around the perimeter of the center panel greatly improving contaminant extraction.
- EASY SNAP MOUNTING CLIPS — Installation with easy with built-in adjustable clips that tighten onto the sides of the cabinet floor.
- LED LIGHT — Energy efficient and cool to the touch LED lighting.
- REMOTE CONTROL (OPTIONAL) — Control all features of the hood from the convenience of a wireless remote control. (sold separately)
- SOUND PRO — Reducing turbulence and swirls in the internal airflow, the new blowers technology succeeds in both limiting noise and improving the sound quality of the hood.
- INTENSIVE SPEED — Turns on at the highest speed for 10 minutes.
Documents
Product Sheet (en)
Highlights
Controls: Electronic with white LED | Lighting: LED Bar | Bulbs: One - 4 Watt - 1 Level | Grease Filter: Dishwasher-safe mesh with perimeter aspiration | Easy Snap Clip Installation | Controls: Electronic With White LED | Intensive Speed: 10 Minutes | Delay Shut-off: 15 Minutes
Specifications
| Style | Custom Insert | Airflow | 600 CFM | Series Name | Inca Lux |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | Installation | Built-In |
| Blower Included | Y | Dishwasher-Proof Filters | Y | Ducting Information | Top 6" Round |
| Width | 86.04 cm | Height | 32.39 cm | Depth | 29.05 cm |
| Class Width | 35" | UPC# | 7612986221077 | Warranty | 1-Year parts and labor |
| Included | Power Cord Included | ||||
| Speeds 4-SPEED: 1 / 2 / 3 / BOOST | CFM: 150 / 295 / 395 / 560 | Noise (Sones): 2.8 / 4.3 / 6.0 / 7.5 | Power Watts: 250 / 290 / 350 / 400 | |||||
| Technologies Variable Air Management Technology | Perimeter Aspiration | Sound PRO Motor | |||||
| Additional Dimensions Cabinet Cut Out: 32 7/8" W x 10 7/16" D | Height Inside Cabinet: 12 3/4" | |||||
| Optional LINE36PT: 36" SS Liner (16 - 17 7/8" D) - Use with INLX35 | FILTER1: Charcoal Filter Kit | FILTER1LL2: Long Lasting Charcoal Filter | REMORIG: Wireless Remote Control | WIREBOX3: Fixed Wiring Box | MUDAMPER6: 6" Make-up Air Kit | MUDAMPER8: 8" Make-up Air Kit | LINSPT361228: 36" Self Supporting Liner (17 ½" - 20 ½" D) | |||||
Accessories
• LINE36PT: 36" SS Liner (16 - 17 7/8" D) - Use with INLX35
• FILTER1: Charcoal Filter Kit
• FILTER1LL2: Long Lasting Charcoal Filter
• REMORIG: Wireless Remote Control
• WIREBOX3: Fixed Wiring Box
• MUDAMPER6: 6" Make-up Air Kit
• MUDAMPER8: 8" Make-up Air Kit
• LINSPT361228: 36" Self Supporting Liner (17 ½" - 20 ½" D)
• FILTER1: Charcoal Filter Kit
• FILTER1LL2: Long Lasting Charcoal Filter
• REMORIG: Wireless Remote Control
• WIREBOX3: Fixed Wiring Box
• MUDAMPER6: 6" Make-up Air Kit
• MUDAMPER8: 8" Make-up Air Kit
• LINSPT361228: 36" Self Supporting Liner (17 ½" - 20 ½" D)
Power Cord Included
