Description
About this Product

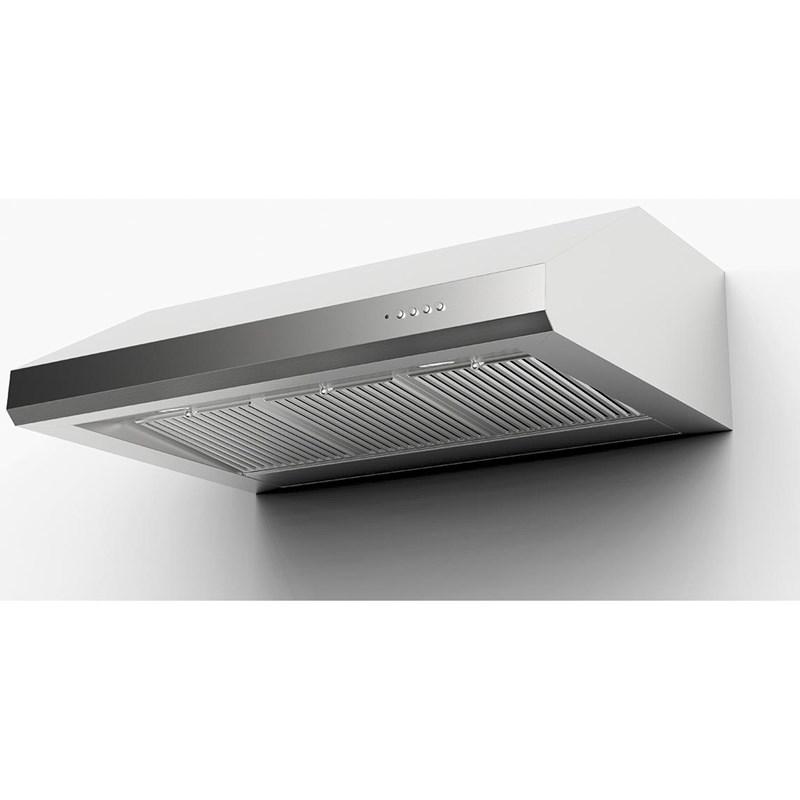

This Ostro 10" range hood is an affordable professional hood with a sense of style. With baffle filters, halogen lights, top or rear venting and multiple chimney options, the Ostro is versatile and easy to install.
Features
- DELAYED AUTO-OFF — Automatically turns the fan off after a set time (varies by the hood).
- DIRECT VENT — Top or direct rear venting (horizontal) to eliminate the need for extra ducting.
- BAFFLE GREASE FILTERS — Dishwasher safe SS metal filters capture grease and allow for easy clean up in the dishwasher.
- VARIDUCT SYSTEM TOP AND REAR DIRECT VENTING — Easy kitchen integration with top and direct rear venting and recirculation options.
- UPGRADABLE TO LED — Halogen lamp may be upgraded to the compatible LED GU10 self-ballasted lamp. (Spare part available)
- ENERGY DIFFUSER — A motor that improves efficiency and allows for longer duct runs.
- INTENSIVE SPEED — Turns on at the highest speed for 10 minutes.
Documents
Product Sheet (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Additional documents(en)
Videos
Highlights
Electronic push button controls | Stainless steel baffle grease filter | CFM: 150, 250, 350, 390 (Boost) | Noise (Sones): 1.0, 3.0, 5.1, 6.6 (Boost) | 2 halogen lights (convertible to LED) | Convertible to ductless
Specifications
| UPC# | 7612985459143 | Warranty | Limited 2 Years | Depth | 58.42 cm |
| Height | 25.4 cm | Width | 76.04 cm | Class Width | 30" |
| Series Name | Ostro | Style | Standard | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation | Under-Cabinet | Blower Included | Y |
| Airflow | 400 CFM | Dishwasher-Proof Filters | Y | Speeds | 4 |
| Optional CFM reducer kit: CFMRED2 | Ductless vent grate kit: DUCTGRT30 | Replacement charcoal filter kit: FILTER1 | Long lasting charcoal filter kit: FILTER1LL | Full width duct cover: FULL30 | Universal make-up air damper: MUDAMPER6 / MUDAMPER8 | Telescopic chimney cover: TELEMAES | Fixed wiring box: WIREBOX | |||||
| Ducting Information Vari-duct top or direct rear venting | 6" Round | |||||
| Information AC input / AC Power: 350 watts / 2.9 amps | |||||
Accessories
• CFM reducer kit: CFMRED2
• Ductless vent grate kit: DUCTGRT30
• Replacement charcoal filter kit: FILTER1
• Long lasting charcoal filter kit: FILTER1LL
• Full width duct cover: FULL30
• Universal make-up air damper: MUDAMPER6 / MUDAMPER8
• Telescopic chimney cover: TELEMAES
• Fixed wiring box: WIREBOX
