Description
About this Product

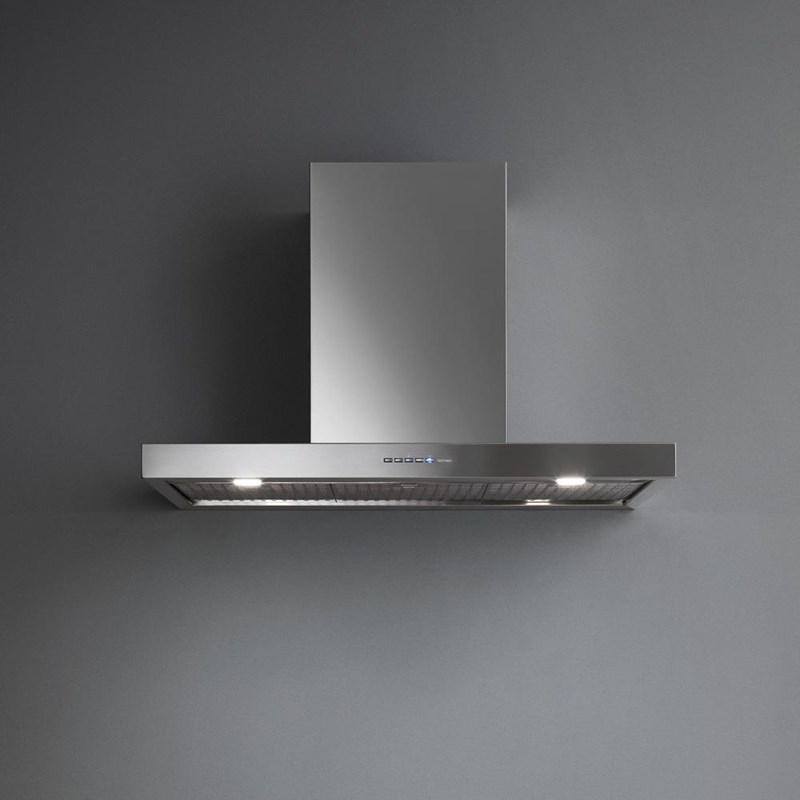

Falmec Plane NRS 36" (90 cm) Wall Range Hood with a 500 CFM motor. It features a Scotch brite stainless steel finish, electronic control, LED lighting and the Air Falmec filter for balanced suction.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Videos
Highlights
Electronic control | Lighting: LED 2 x 1,2 W - 3200 K | Air Falmec filter for balanced suction | Maximum capacity: 610 m³ /h, I.E.C. 61591 | Maximum noise level: 54,5 dB(A)re1pW, I.E.C.60704-2-13 | Maximum pressure: 582 Pa
Specifications
| Style | Chimney | Airflow | 500 CFM | Manufacturer Color | Scotch brite stainless steel (AISI 304) |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Speeds | 4 | Width | 91.44 cm | Height | 59 cm |
| Depth | 49 cm | Weight | 34.02 kg | Class Width | 36" |
| UPC# | 8034122345901 | Volume | 19 cu. ft. | Warranty | 1-Year parts and labor |
| Included | Standard with Nema 5-15P power cord | ||||
| Series Name Plane NRS | Collection: Silence NRS Series | |||||
| Technologies NRS technology for a quieter kitchen | |||||
| Information 120V, 60Hz | Maximum consumption: 280 W | |||||
| Additional Dimensions Max Height: 43" | Minimum distance - Gas hob: 25" | Minimum distance - Electric hob: 21" | 2 x Metallic filter "Air Falmec" - Wall 278 x 301 mm | |||||
| Optional KACL.570#I: Extension H700 - Wall | KACL.571#I: Extension H960 - Wall | KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs) | KACL.921: High Performance Filter | |||||
Accessories
• KACL.570#I: Extension H700 - Wall
• KACL.571#I: Extension H960 - Wall
• KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs)
• KACL.921: High Performance Filter
• KACL.571#I: Extension H960 - Wall
• KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs)
• KACL.921: High Performance Filter
Standard with Nema 5-15P power cord
