Description
About this Product
A slim profile, perfect for compact kitchens, or pair with other Integrated models for generous chilled and frozen storage. Flush fit design with 3/16" gaps and custom height installation. Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker. Easy-to-use touch-control panel and Wi-Fi capability. Customize with your own kitchen cabinetry or purchase the stainless steel door panel accessory (panel sold separately).
Features

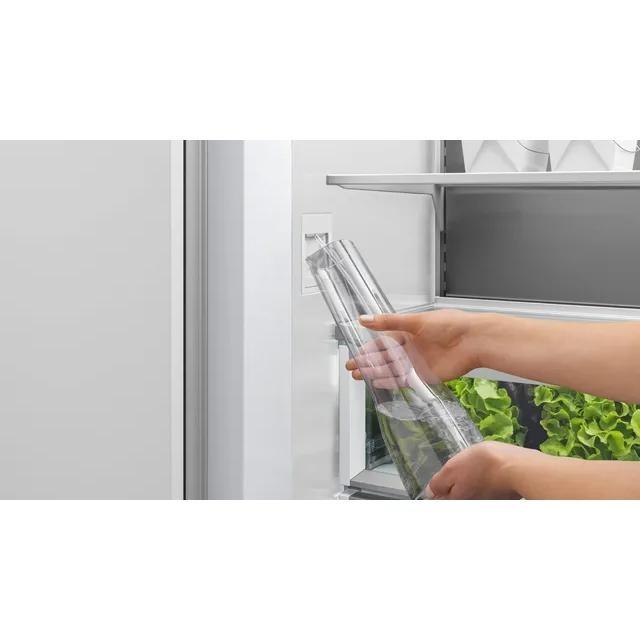

- INTERNAL WATER DISPENSER AND ICE MAKER — Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. Internal storage space is maximized thanks to a flush-fit slimline water dispenser that gives a continuous flow of temperature-controlled chilled water to fill almost any size or shape of vessel. The dual valve system instantly stops water flow to prevent drips and spills.
- MIX AND MATCH — Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customise to match your own kitchen cabinetry.
- CLEVER ENERGY — With an Energy Star Most Efficient rating, your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.

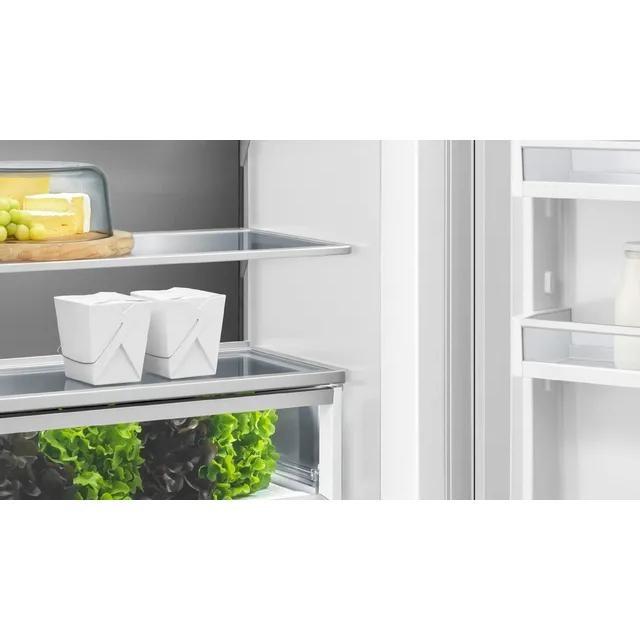

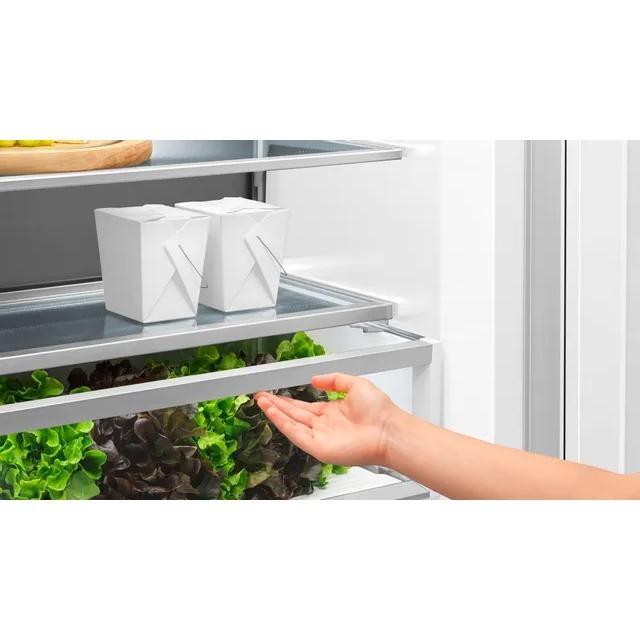

- FLEXIBLE STORAGE — Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer. The door and veggie bins are family safe, allowing for hands-free operation thanks to its soft-close mechanism.
- EASE OF USE — Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the door is family safe with a soft-close mechanism.
Documents
Specifications
| Total | 10.7 cu. ft. | Refrigerator | 6.4 cu. ft. | Freezer | 4.3 cu. ft. |
| Installation Type | Built-In | Door Hinge | Right | Color | Panel Ready |
| Refrigerator Type | Bottom Freezer | Counter-Depth | N | Energy Star Certified | Y |
| Sabbath Mode | Y | Frost Free | Y | Door Alarm | Y |
| Interior Light | Y | Crisper Drawers | Y | Wi-Fi | Y |
| Height (With Hinge) | 187.01 cm | Width | 59.21 cm | Depth (Without Handles) | 57.63 cm |
| Class Width | 23" to 28.9" | Class Height | 70" and More | Warranty | 2-Year Warranty on Parts and labor5-Year Limited Warranty on Sealed system (parts only) |
| UPC# | 822843262052 | Ice System | Interior | Water System | Interior |
| Technologies ActiveSmart™ Foodcare | |||||
| Additional Freezer Information Automatic ice maker | Bottle chill | Door alarm | Fast freeze | Freezer bins: 3 | Ice Boost | Ice making rate per day: 2.2lbs | LED bin lighting | LED ceiling lighting | LED side lighting | |||||
| Information Rated current: 10A | Supply frequency: 60Hz | Supply voltage: 115V | Energy usage: 382kWh/year | |||||
| Optional 23" Stainless steel toe kick: AKRS2304 | 47" Stainless steel toe kick: AKRS4704 | 71" Stainless steel toe kick: AKRS7104 | Joiner kit: AJRS74LR | Professional round flush handle: AHP3RDB74 | Replacement water filter: 847200 | Square fine aluminium handle: AHD5RDB74 | Square fine black handle kit: AHD5RDB74B | Stainless Steel Door Panel Set: RD2474BR (right hinge) | |||||
Accessories
• 23" Stainless steel toe kick: AKRS2304
• 47" Stainless steel toe kick: AKRS4704
• 71" Stainless steel toe kick: AKRS7104
• Joiner kit: AJRS74LR
• Professional round flush handle: AHP3RDB74
• Replacement water filter: 847200
• Square fine aluminium handle: AHD5RDB74
• Square fine black handle kit: AHD5RDB74B
• Stainless Steel Door Panel Set: RD2474BR (right hinge)
• 47" Stainless steel toe kick: AKRS4704
• 71" Stainless steel toe kick: AKRS7104
• Joiner kit: AJRS74LR
• Professional round flush handle: AHP3RDB74
• Replacement water filter: 847200
• Square fine aluminium handle: AHD5RDB74
• Square fine black handle kit: AHD5RDB74B
• Stainless Steel Door Panel Set: RD2474BR (right hinge)
Door Hinge: Right
