Description
About this Product

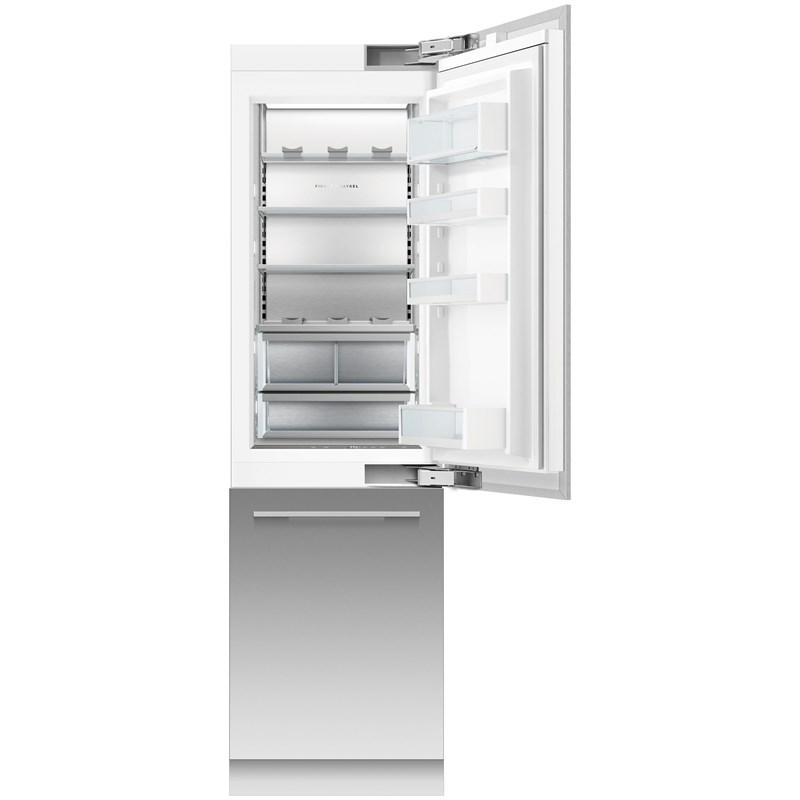

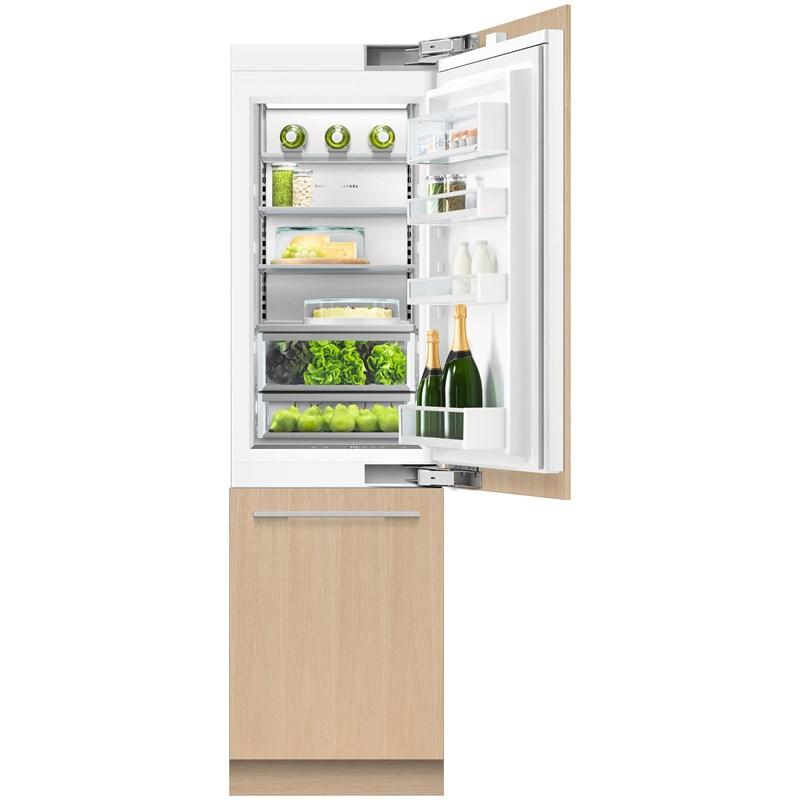

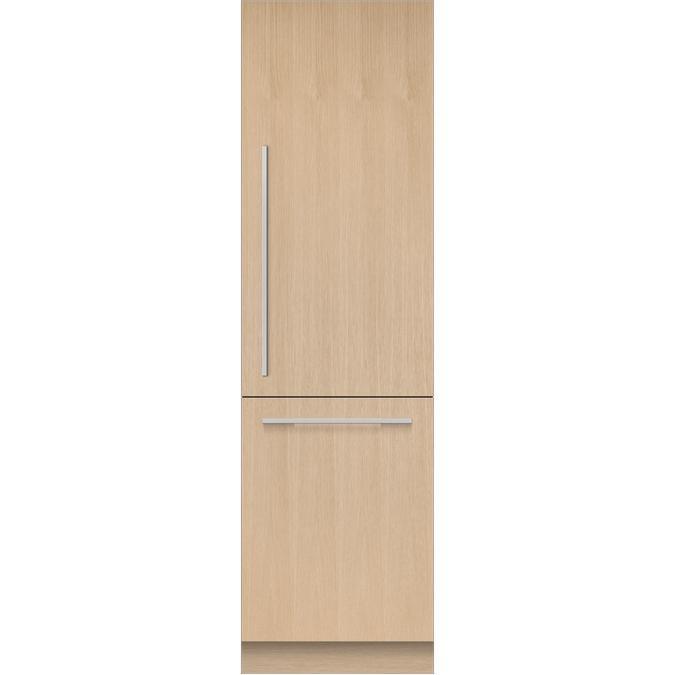

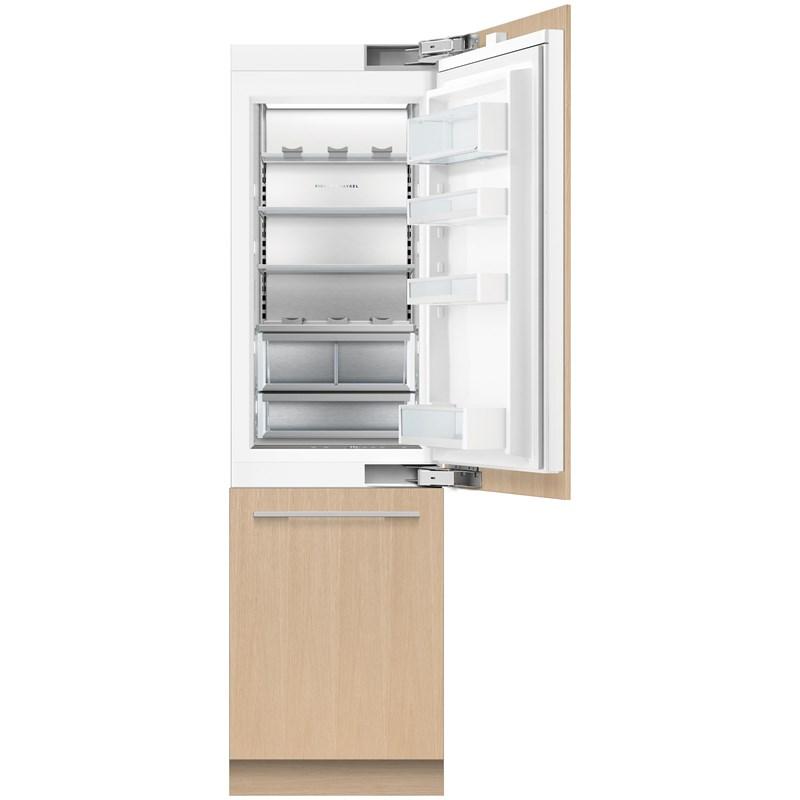

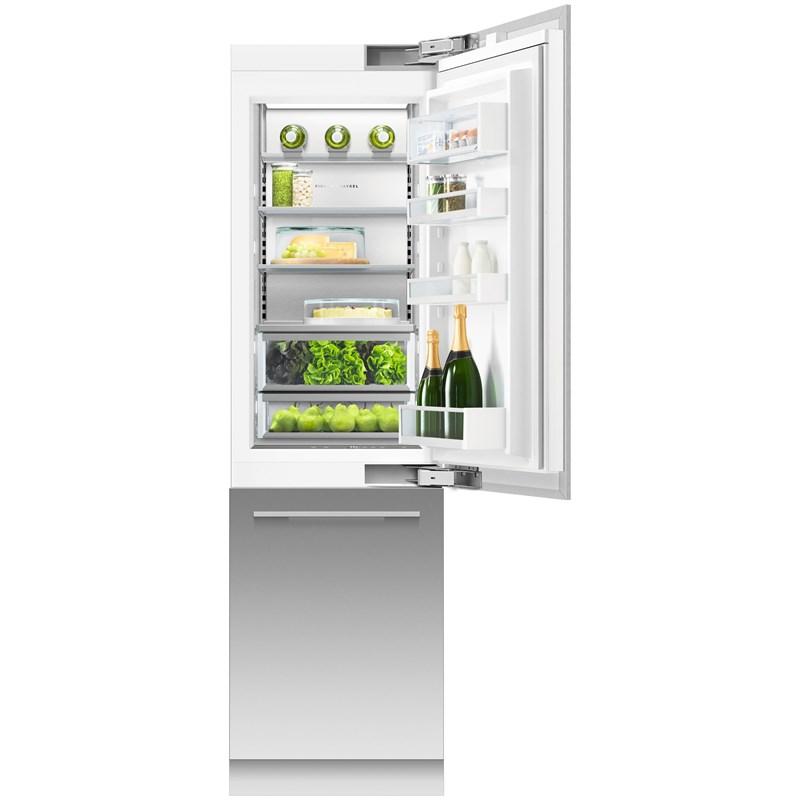

This 24-inch wide Fisher & Paykel panel ready, bottom freezer refrigerator features ActiveSmart™ Foodcare, internal water dispenser and ice maker, and frost-free freezer. Image is shown with panel kit (Sold separately).
Features
- ACTIVESMART™ — ActiveSmart™ consists of a microprocessor, interior temperature sensors, independently controlled variable speed fans and multiple air ducts. The microprocessor controls how the refrigerator operates based on changing patterns of use. The sensors continuously send information to the microprocessor, which analyses and adjusts the fan speed and compressor operations accordingly to deliver a consistent and stable temperature. Continuous feedback means that ActiveSmart™ adjusts to the way you live. Its ability to respond to daily use means that it only uses the energy needed to keep your food fresher for longer.
- VARIABLE TEMPERATURE ZONES — Food is stored in two separate zones. You have the choice of three food modes: Fridge 32°F to 44°F, Pantry 52°F to 56°F and Chill 29°F to 32°F.
- PERFECT FIT — This model fits flush and has only 1/8” / 3mm gaps around them with no visible hinges or grilles. Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase Fisher & Paykel's stainless steel door panel.
- DESIGN QUALITY — The premium design and quality finish includes a steel interior lining as well as soft-close, full extension metal shelf runners for easy access and robust glass shelving.
- CLEVER ENERGY — With an Energy Star Most Efficient rating, your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
- FLEXIBLE STORAGE — Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer. The door and veggie bins are family safe, allowing for hands-free operation thanks to its soft-close mechanism.
- INTERNAL WATER DISPENSER AND ICE MAKER — Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. Internal storage space is maximized thanks to a flush-fit slimline water dispenser that gives a continuous flow of temperature-controlled chilled water to fill almost any size or shape of vessel. The dual valve system instantly stops water flow to prevent drips and spills.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | Series 9 | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | Bottom Freezer | Interior Light | Y | Door Alarm | Y |
| Wine Storage | Y | Frost Free | Y | Digital Display | Y |
| Gallon Door | Y | Crisper Drawers | Y | Sabbath Mode | Y |
| Energy Star Certified | Y | Water System | Interior | Ice System | Interior |
| UPC# | 822843256891 | Freezer | 4.1 cu. ft. | Refrigerator | 8.0 cu. ft. |
| Total | 12.1 cu. ft. | Depth (Without Handles) | 60.96 cm | Class Width | 23" to 28.9" |
| Width | 60.33 cm | Height (With Hinge) | 213.36 cm | Class Height | 70" and More |
| Technologies ActiveSmart™ Foodcare | Adaptive Defrost | Dual Evaporator | Humidity Control System | Inverter Controlled Compressor | |||||
| Additional Freezer Information Door Alarm | 2 Freezer Bins | Ice Boost | LED Bin Lighting | LED Ceiling Lighting | LED Side Lighting | SmartTouch Interface at Counter Height | |||||
| Dispenser Features Ultra Slim Water Dispenser | In Freezer Ice Maker | |||||
| Warranty Limited 1 Year (Parts and Labor) | 5 Years Sealed System (Parts Only) | |||||
| Optional Joiner kit 24985 | Matching Replacement Water Filter Model 847200 | Professional Round Handle Kit 25730 | Professional Square Handle Kit 25732 | |||||
| Information 110 V | 60 Hz | 10 A | |||||
Accessories
• Joiner kit 24985
• Matching Replacement Water Filter Model 847200
• Professional Round Handle Kit 25730
• Professional Square Handle Kit 25732
• Matching Replacement Water Filter Model 847200
• Professional Round Handle Kit 25730
• Professional Square Handle Kit 25732
Door Hinge: Right
