Description
About this Product

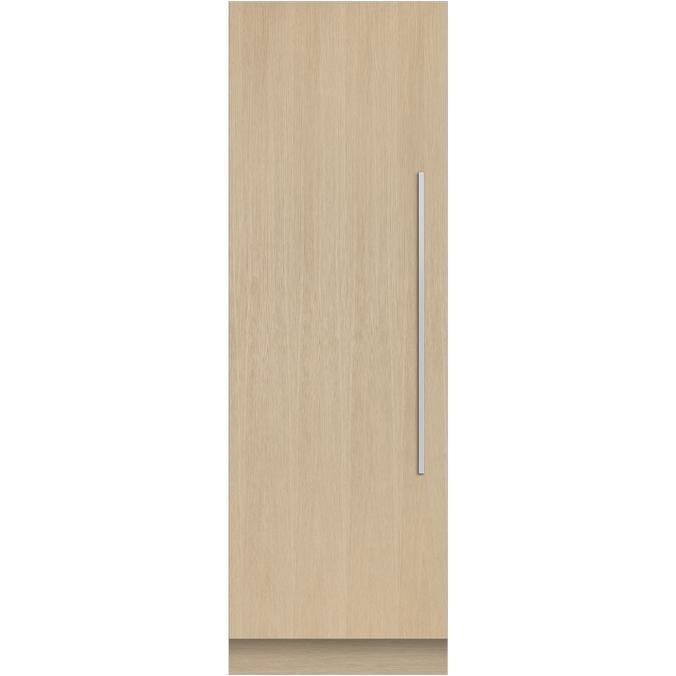

Fisher & Paykel 24-inch panel-ready integrated triple zone freezer. Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution – this model features three independent food zones taking cooling flexibility to a new level. Panel kit sold separately.
Features
- THREE LEVELS OF FRESHNESS — When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7°F, while the top two compartments can be converted into a Chill (29 to 32°F), Soft-Freeze (14 to 18°F) or Freezer zone (-6 to 7°F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
- PERFECT FIT. — These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- MIX & MATCH — These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
- PERFECT RESULTS - CHILL MODE — Keep ready-to-eat food fresher for longer with Chill mode (29 to 32°F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It’s also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.
- RESPECT FOR THE PLANET - CLEVER ENERGY — ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- DESIGNED TO FIT - SIMPLE INSTALLATION — Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
- BEAUTIFUL TO USE - EASE OF USE — Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.
Documents
Highlights
Adjustable door shelves: 2 | Adjustable glass cantilevered shelves | Bottle chill | Fast freeze | Freezer bins: 4 | LED bin lighting | LED ceiling lighting | LED side lighting | Adaptive defrost | Triple evaporator | Variable food modes: Chill, soft freeze, freezer | Variable temperature zones: 3
Specifications
| Lighting | Y | Wi-Fi | Y | Defrost System / Frost Free | Y |
| Alarm | Y | Series Name | Series 9 | Color | Panel Ready |
| Door Hinge | Left | Style | Built-In | Total Capacity | 10.7 cu. ft. |
| Counter-Depth | N | Size Range | 16 Cu.Ft. and Below | Type | Upright |
| Ice Machine | Y | Additional Ice and Water Information | Ice making rate per day: 2.2lbs | UPC# | 822843262045 |
| Width | 59.21 cm | Height (With Hinge) | 187.0 cm | Depth (Without Handles) | 57.62 cm |
| Technologies SmartTouch control panel | Wi-Fi connectivity | ActiveSmart™ Foodcare | Inverter controlled compressor | |||||
| Optional 23" Stainless steel toe kick AKRS2304 | 47" Stainless steel toe kick AKRS4704 | 71" Stainless steel toe kick AKRS7104 | Hinge change (from left hinge Included | Joiner kit AJRS74LR | Professional round flush handle 25921 | Replacement water filter 847200 | Square fine aluminium handle AHD5RDSF | Square fine black handle kit AHD5RDSFB | Stainless steel door panel RD2474 (right & left hinge) | |||||
| Information 120 V | 60 Hz | 115 V V | |||||
Accessories
• 47" Stainless steel toe kick AKRS4704
• 71" Stainless steel toe kick AKRS7104
• Hinge change (from left hinge Included
• Joiner kit AJRS74LR
• Professional round flush handle 25921
• Replacement water filter 847200
• Square fine aluminium handle AHD5RDSF
• Square fine black handle kit AHD5RDSFB
• Stainless steel door panel RD2474 (right & left hinge)
Door Hinge: Left
