Description
About this Product

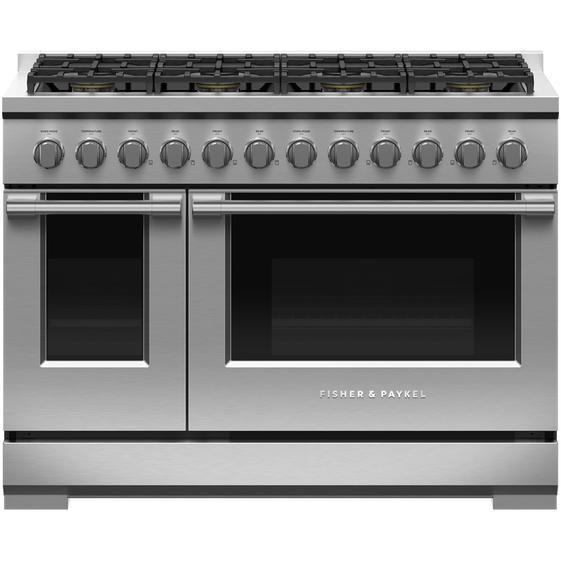

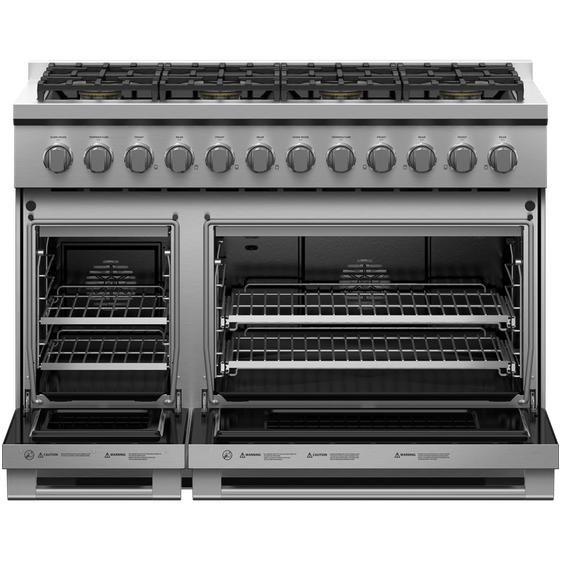

This 48-wide Fisher & Paykel gas range features Sealed Dual Flow Burners™, Convection Technology, full-extension telescopic sliding shelves and a total oven capacity of 5.6 cu.ft.
Features

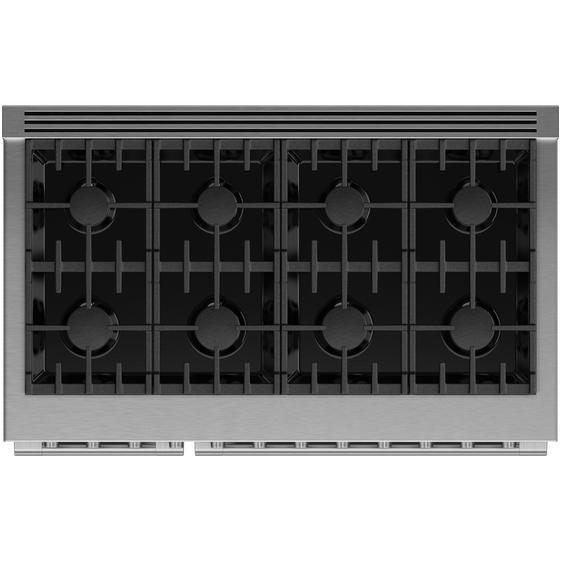

- SEALED DUAL FLOW BURNERS™ — Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- COOKING FLEXIBILITY - DUAL FUEL/GAS RANGES — The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- DESIGN QUALITY — This range has craftsmanship in every detail, with real stainless steel, high-quality glass, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
- TOTAL CONTROL — Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
Documents
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Bake Power: 28,000 BTU | Broil Power: 18,500 BTU | Broil Pan | Concealed Element | Electronic Oven Control | Full-Extension Telescopic Sliding Shelves | Simmer on All Burners: 140°F | Infrared Broiler | 5 Shelf Positions
Specifications
| Class Width | 48" | Weight | 273.97 kg | Width | 121.6 cm |
| Depth (Without Handles) | 70.32 cm | Height | 90.81 cm | Oven Light | Y |
| Convection | Y | Burners | Sealed | Burners/Elements | 8 |
| Warranty | Limited 2 Years Parts and Labor | UPC# | 822843819959 | Number of Ovens | Double |
| Fuel Type | Liquid Propane | Series Name | Professional Series 7 | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | Installation Type | Freestanding | Sabbath/Star-K | Y |
| ADA Compliant | Y | ||||
| Technologies Sealed Dual Flow Burners™ | Convection Technology | |||||
| Burners/Elements Output Max Burner Power: 23,500 BTU | Back Centre Burner: 18,500 BTU | Front Centre Burner: 18,500 BTU | Left Front Burner: 23,500 BTU | Left Rear Burner: 18,500 BTU | Right Front Burner: 23,500 BTU | Right Rear Burner: 18,500 BTU | Total Cooktop Power: 158,000 BTU | |||||
| Information 120 V | 60 Hz | 15 A | |||||
| Programs Bake | Broil | Convection Bake | Slow Cook | |||||
| Capacity (cu. ft.) Total Capacity: 5.6 cu.ft. | Large Oven: 3.9 cu.ft. | Small Oven: 1.7 cu.ft. | |||||
| Optional Combustible Situation BGRV3-3048H | Non-Combustible Situation BGRV2-3048 / BGRV2-1248 | Recommended Hood HCB48-12 N (48" Professional Range Hood, Dual Blower) | |||||
Accessories
• Combustible Situation BGRV3-3048H
• Non-Combustible Situation BGRV2-3048 / BGRV2-1248
• Recommended Hood HCB48-12 N (48" Professional Range Hood, Dual Blower)
• Non-Combustible Situation BGRV2-3048 / BGRV2-1248
• Recommended Hood HCB48-12 N (48" Professional Range Hood, Dual Blower)
