Description
About this Product

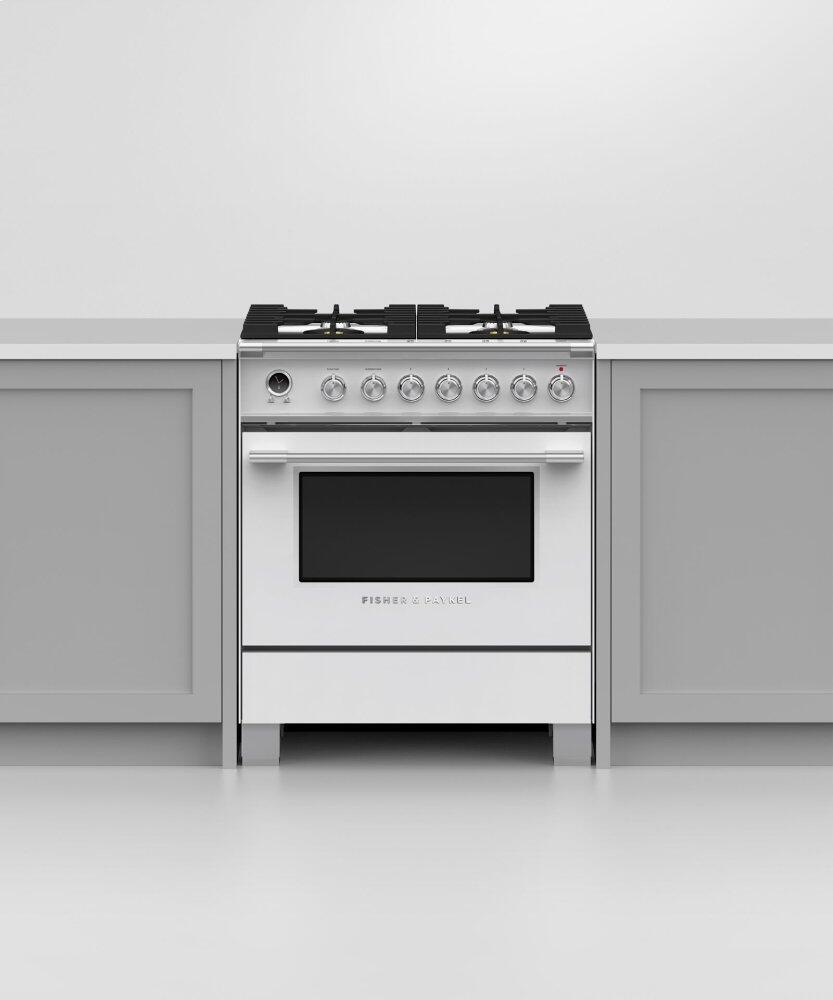

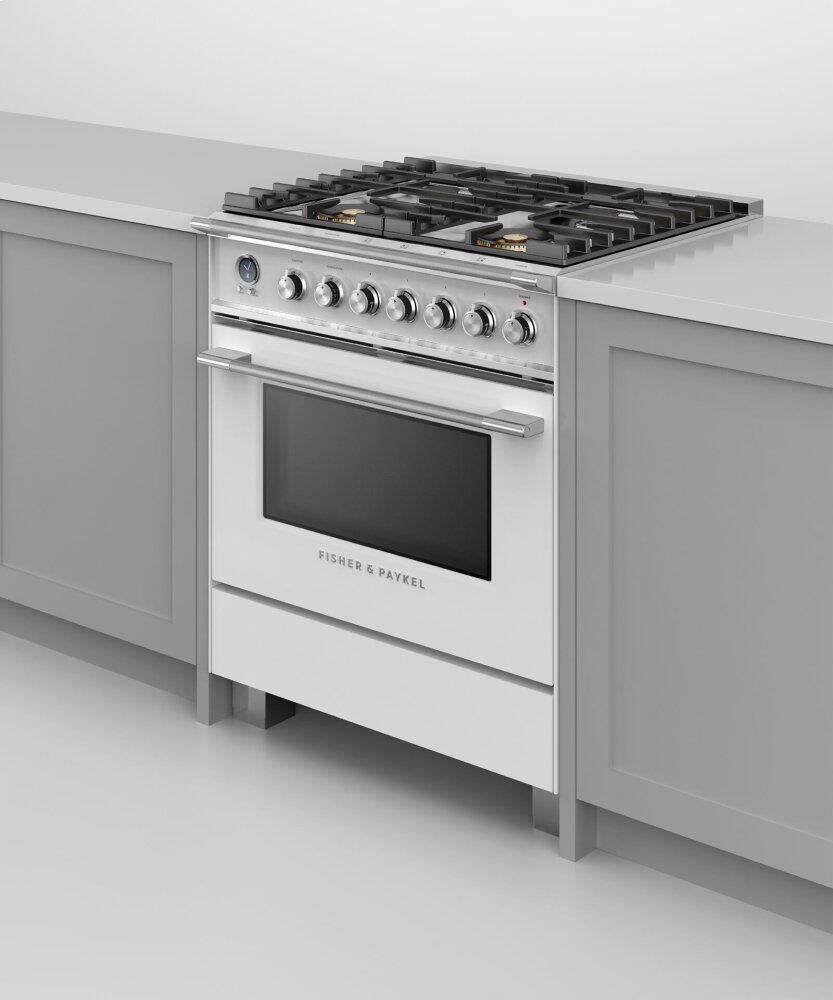

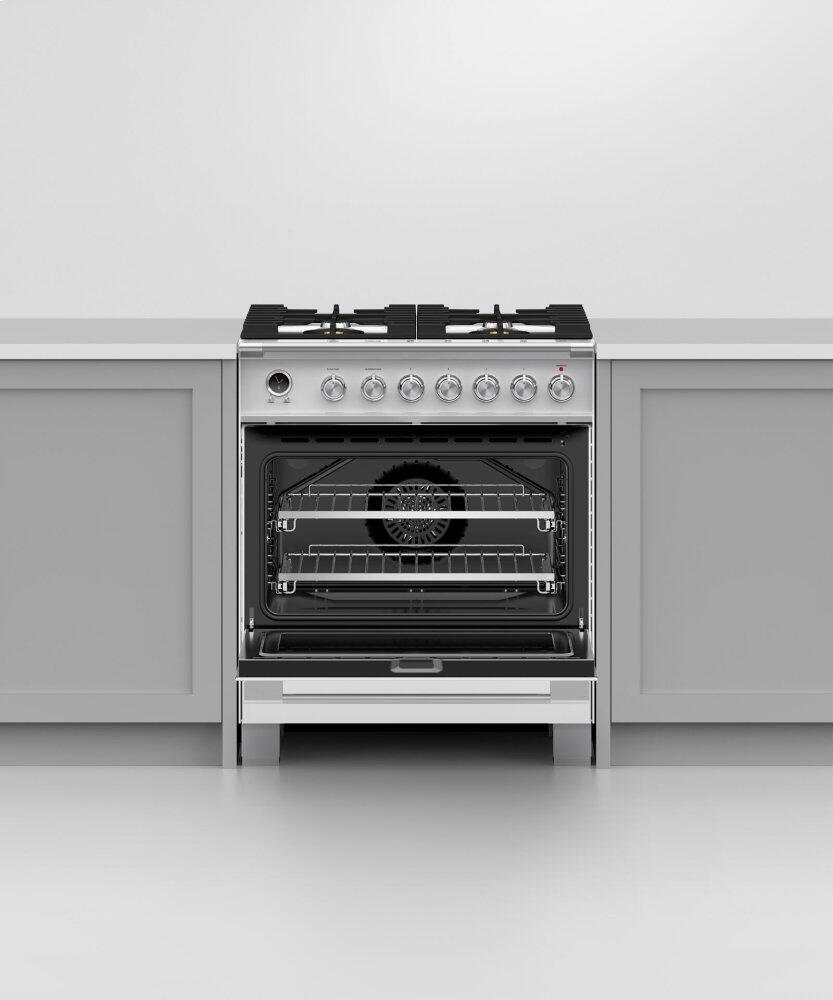

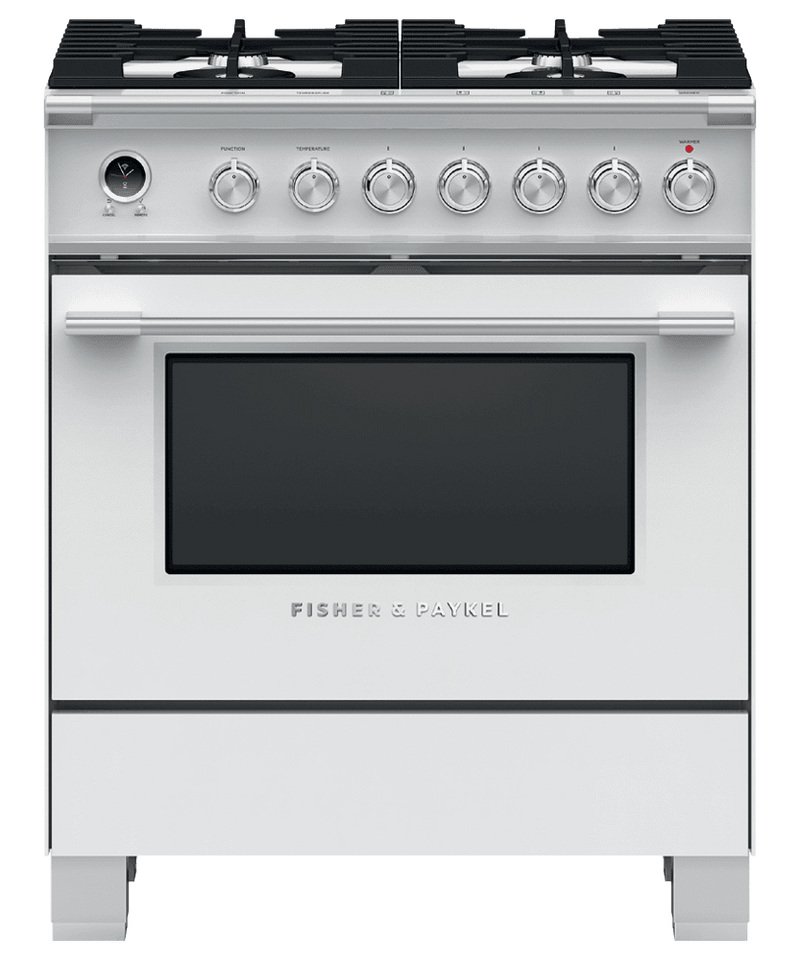

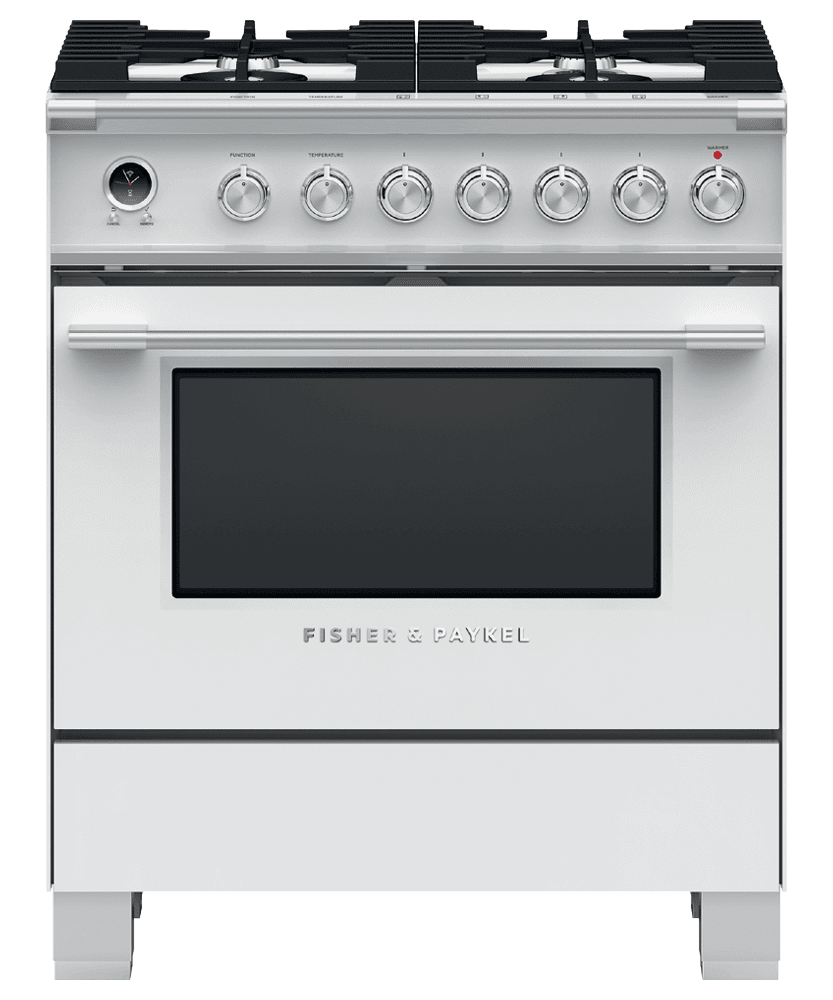

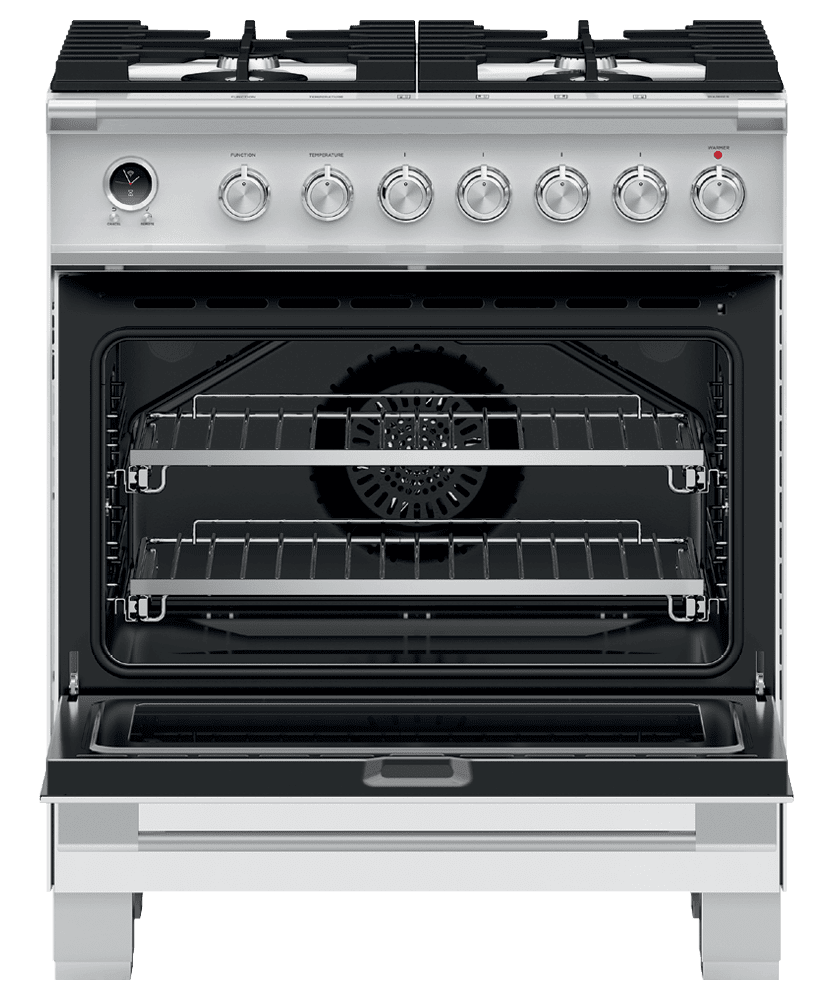

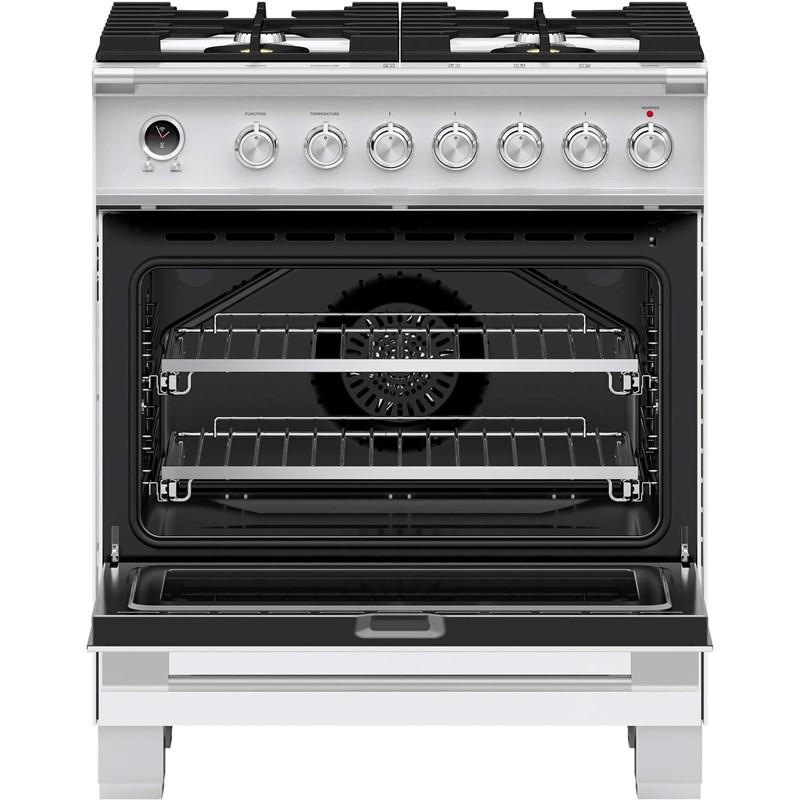

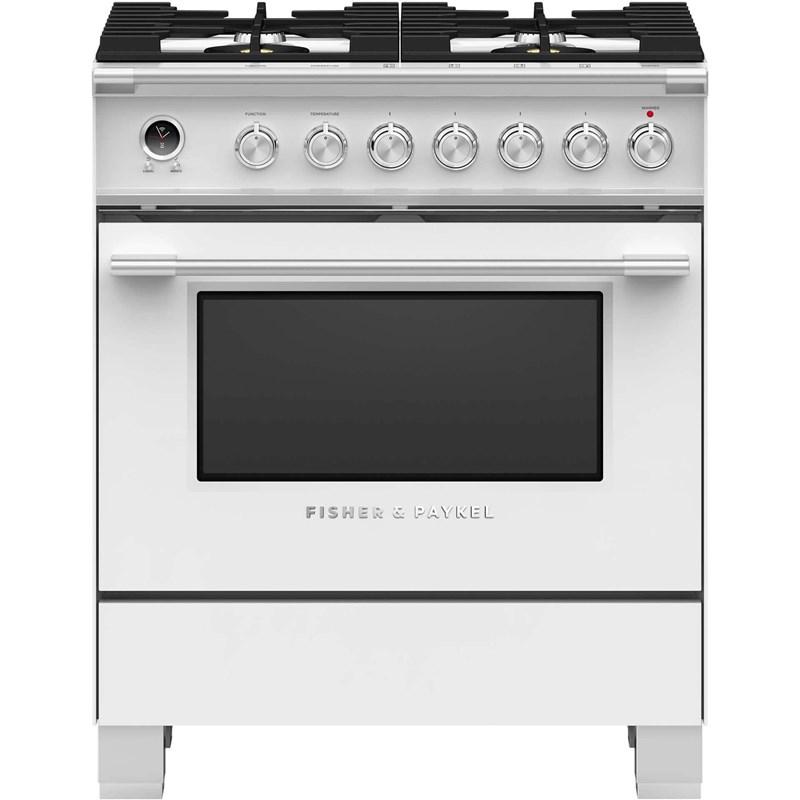

This Fisher & Paykel Classic style 30-inch dual-fuel range features 4 burners, convection oven, 9 oven functions and a 3.5 total capacity.
Features
- AEROTECH™ TECHNOLOGY — AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.

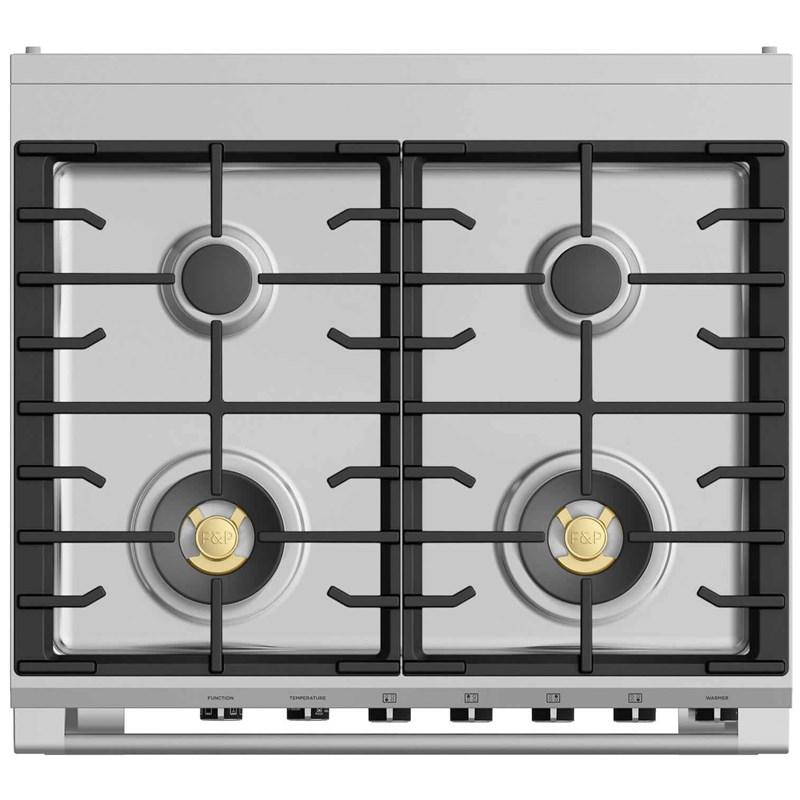

- EASY TO CLEAN - DUAL FUEL / GAS RANGES — The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- EVEN HEAT — Accurate, electronically-controlled oven heat ensures a great result every time. Dishes on the top shelf turn out as perfectly as the ones on the bottom due to Fisher & Paykel' AeroTech™ convection system that circulates air evenly throughout the entire oven.

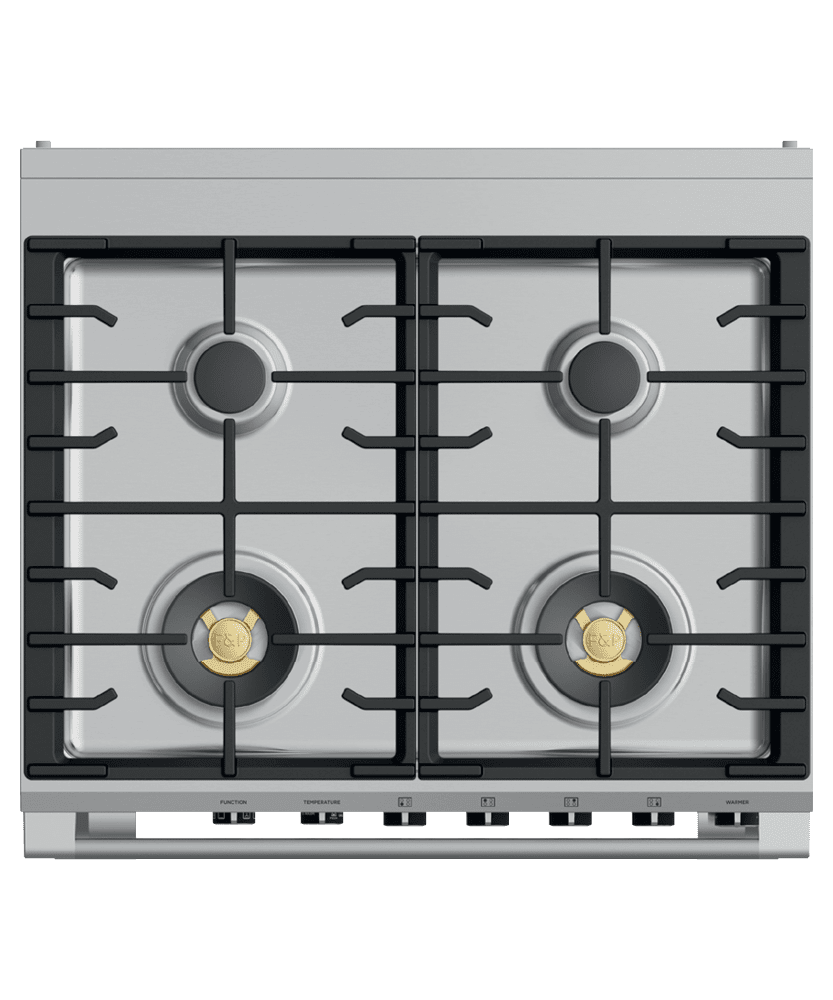

- BURNER POWER & CONTROL — Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Advanced Cooling System | Broil: 4050 W | 7 Rack Positions | Anti-Tilt Bracket | Auto Re-Ignition System | Balanced Oven Door | Catalytic Venting System | CoolTouch Door | Full Extension Telescopic Sliding Shelves | Non-Tip Shelves | Automatic Cooking/Minute Timer | Automatic Pre-Set Temperatures | Bright Chromed, Cast Zinc Dials with Illuminated Halos | Celsius/Fahrenheit Temperature | Electronic Clock | High Resolution Display | Laser Etched Graphics | Precise Electronic Temperature Control | Turned Stainless Steel Clock Buttons | Turned Stainless Steel Clock Crown (Dial)
Specifications
| Class Width | 30" | Additional Dimensions | Cutout: Depth 25 1/4", Width 30" | Width | 75.88 cm |
| Depth (Without Handles) | 64.14 cm | Height | 90.81 cm | Downdraft Ventilation | N |
| Oven Light | Y | Self-Cleaning | Y | Wi-Fi | N |
| Convection | Y | Burners | Sealed | Burners/Elements | 4 |
| Warming | Y | Power | 220 W | Warranty | Limited 2 Years Parts and Labor |
| UPC# | 822843813193 | Appliance Care | Pyrolytic Self-Clean | Fuel Type | Dual Fuel - Natural Gas |
| Series Name | Classic | Manufacturer Color | White | Color | White |
| Installation Type | Freestanding | Number of Ovens | Single | Capacity (cu. ft.) | 3.5 cu.ft. |
| Sabbath/Star-K | Y | ||||
| Technologies AeroTech™ Technology | Aero™ Bake | Aero™ Broil | Aero™ Pastry with Pizza Mode | True Aero™ | True Convection | |||||
| Burners/Elements Output Dual Wok Burner Inner / Outer (Natural Gas) X2: 1000 - 18000 BTU | Max Burner Power: 18000 BTU | Semi-rapid Burner (LPG) X2: 1500 - 8000 BTU | Semi-rapid Burner (Natural Gas) X2: 1500 - 8000 BTU | Total Cooktop Power: 52000 BTU | |||||
| Included 2-pc Grill System (Broil Pan and Grill Rack) | Broil Pan | Full Extension Telescopic Shelves: 2 Sets (Part 578776) | Grill Rack | Pyrolytic-Proof Shelf RunnersL 1 Set | Small Pot Support: 1 (Part 533981 Cast) | Wok Stand: 1 (Part 534678) | |||||
| Optional Hob Rear Trim 3 1/8" (Part 81656) | Kick Strip, Stainless Steel (Part 81660) | |||||
| Information 208 V / 240 V | 60 Hz | 30 A | |||||
| Programs Aero™ Bake | Aero™ Broil | Aero™ Pastry with Pizza Mode | Bake | Maxi Broil | Rapid Proof | Roast | Self-Clean Function | True Aero™ | |||||
Accessories
• Broil Pan
• Full Extension Telescopic Shelves: 2 Sets (Part 578776)
• Grill Rack
• Pyrolytic-Proof Shelf RunnersL 1 Set
• Small Pot Support: 1 (Part 533981 Cast)
• Wok Stand: 1 (Part 534678)
• Kick Strip, Stainless Steel (Part 81660)
