Description

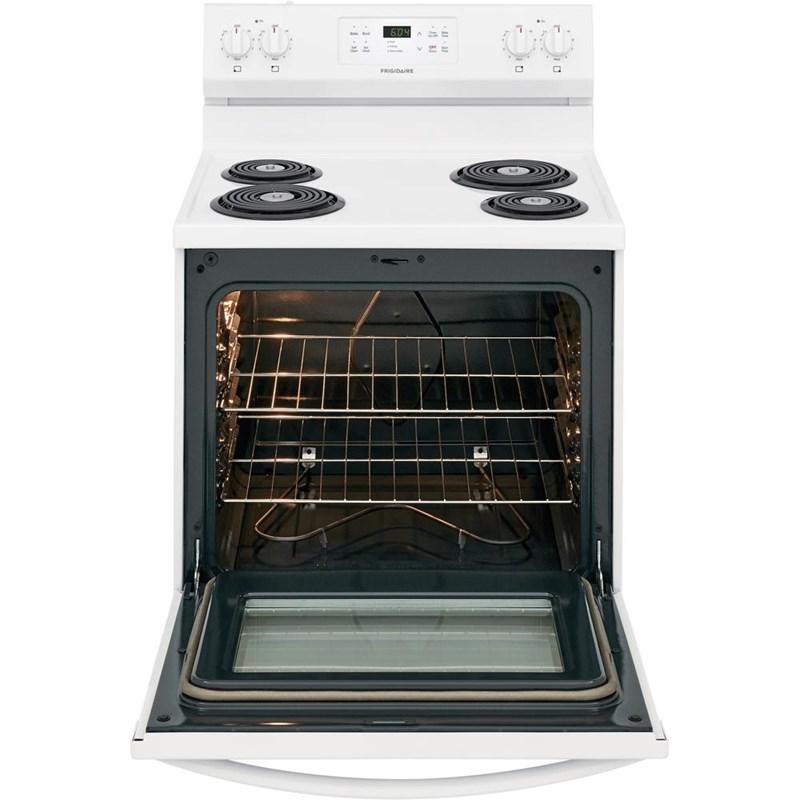

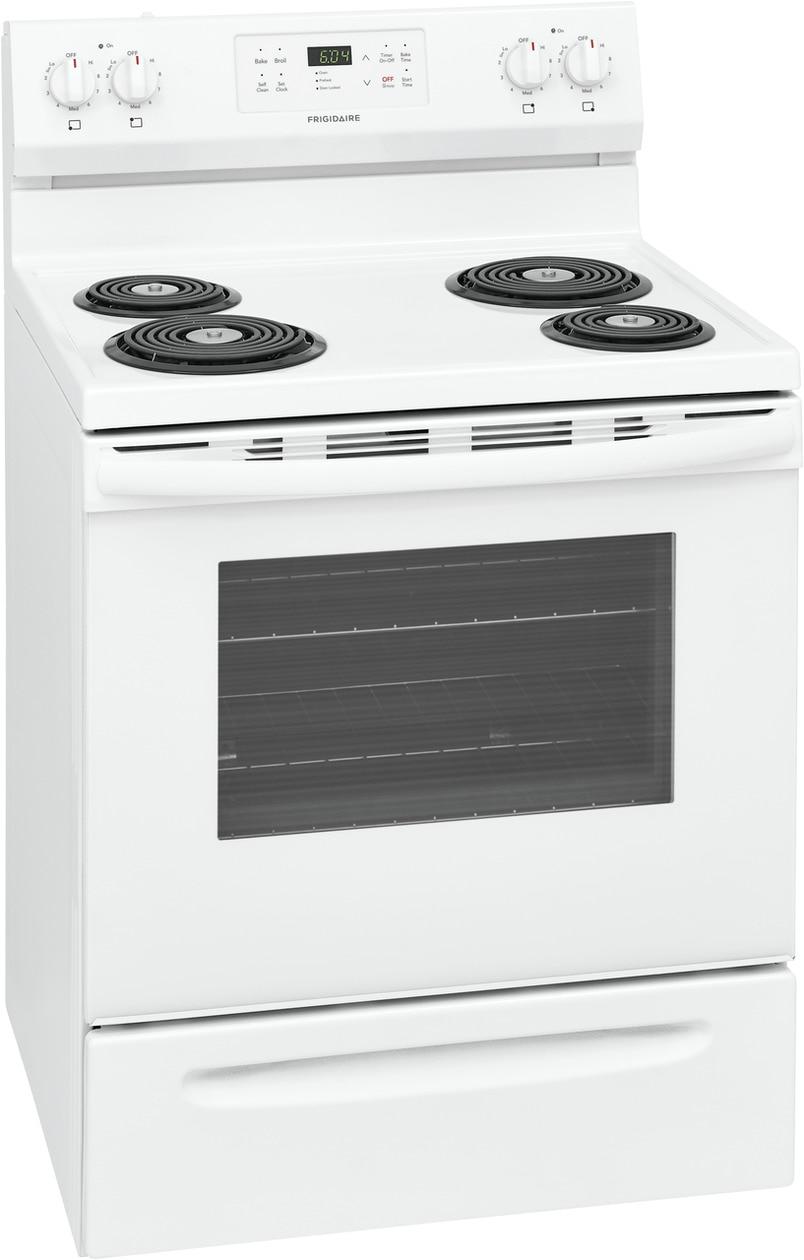

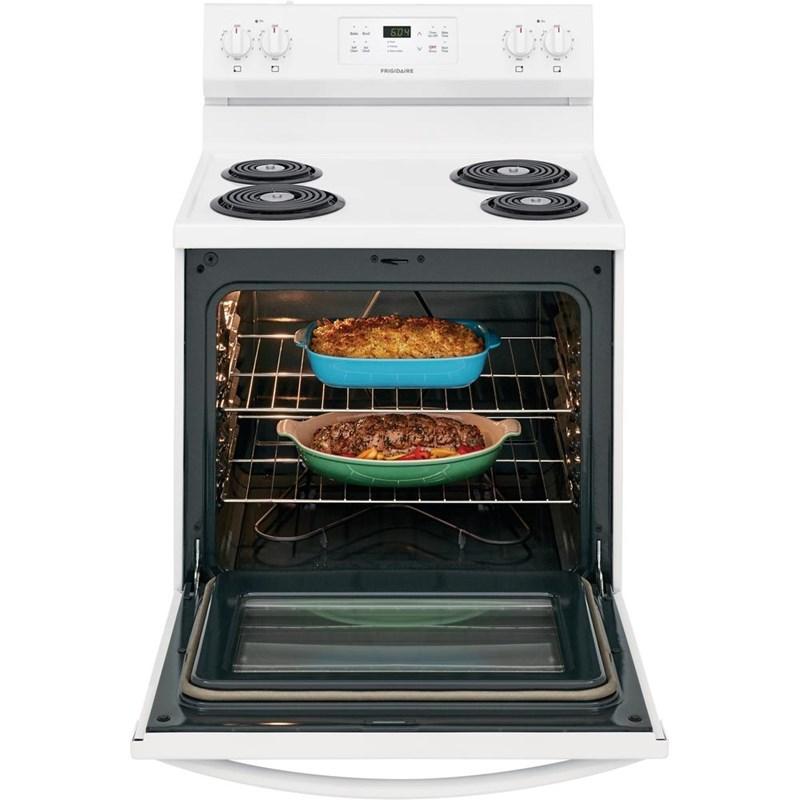

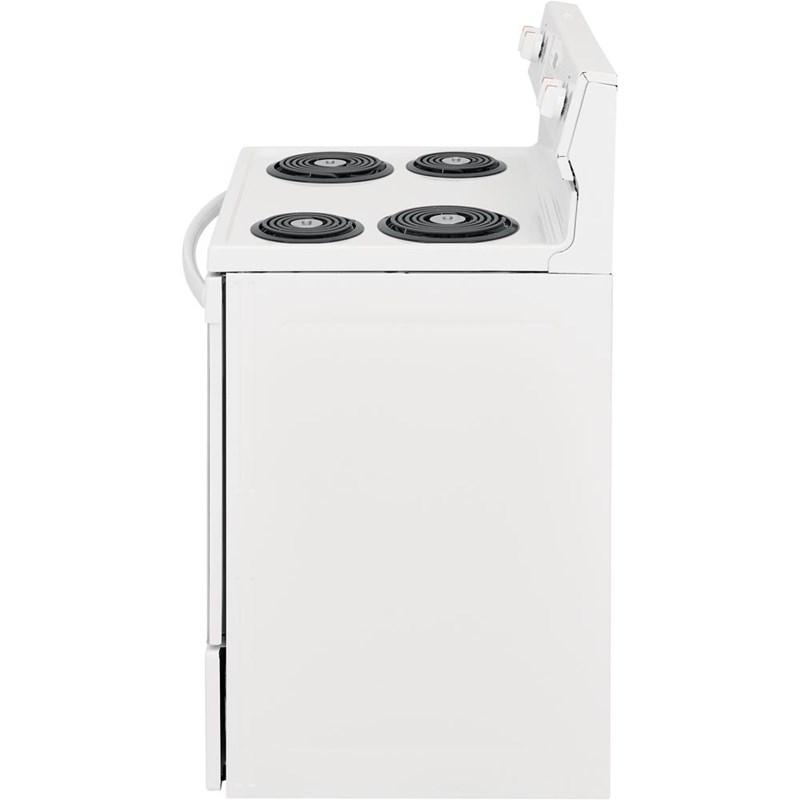

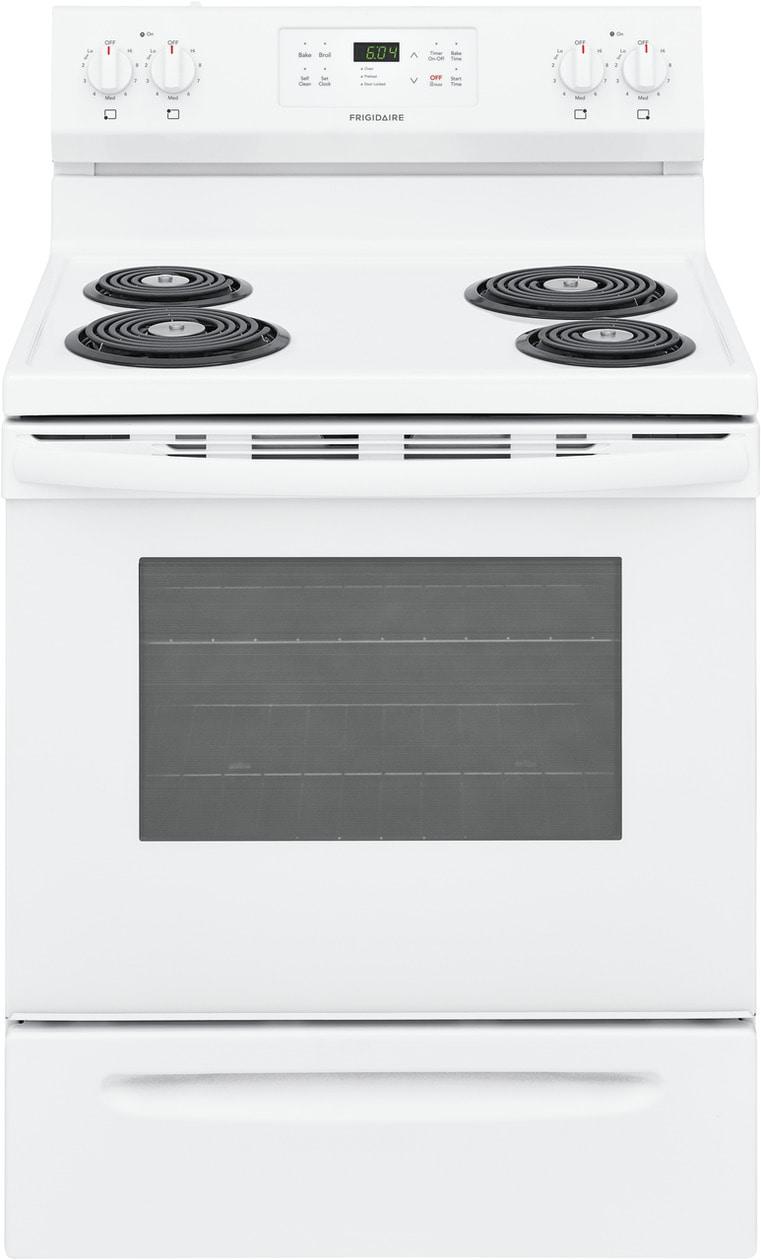

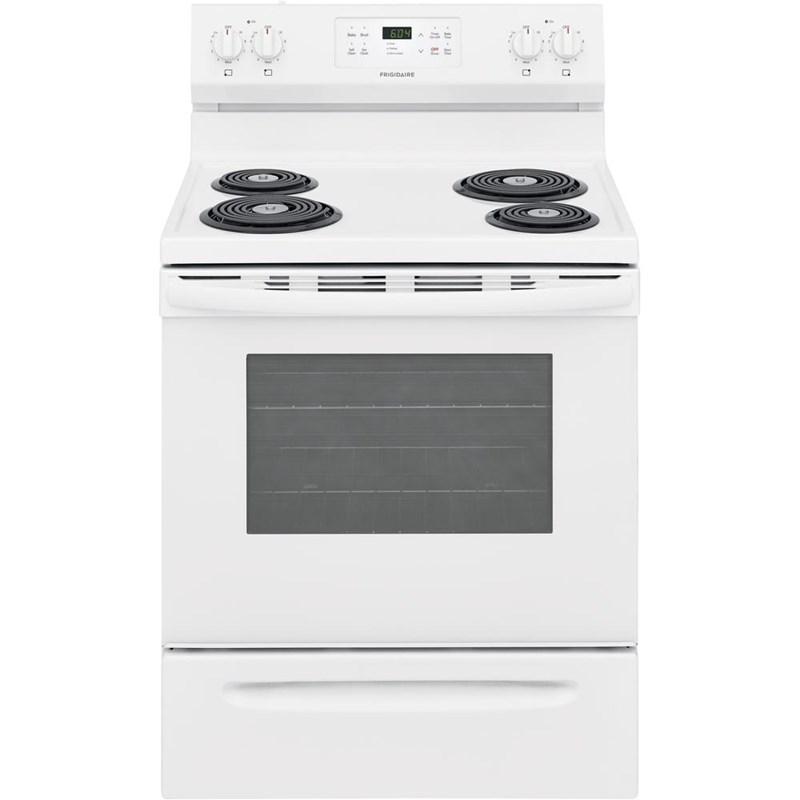

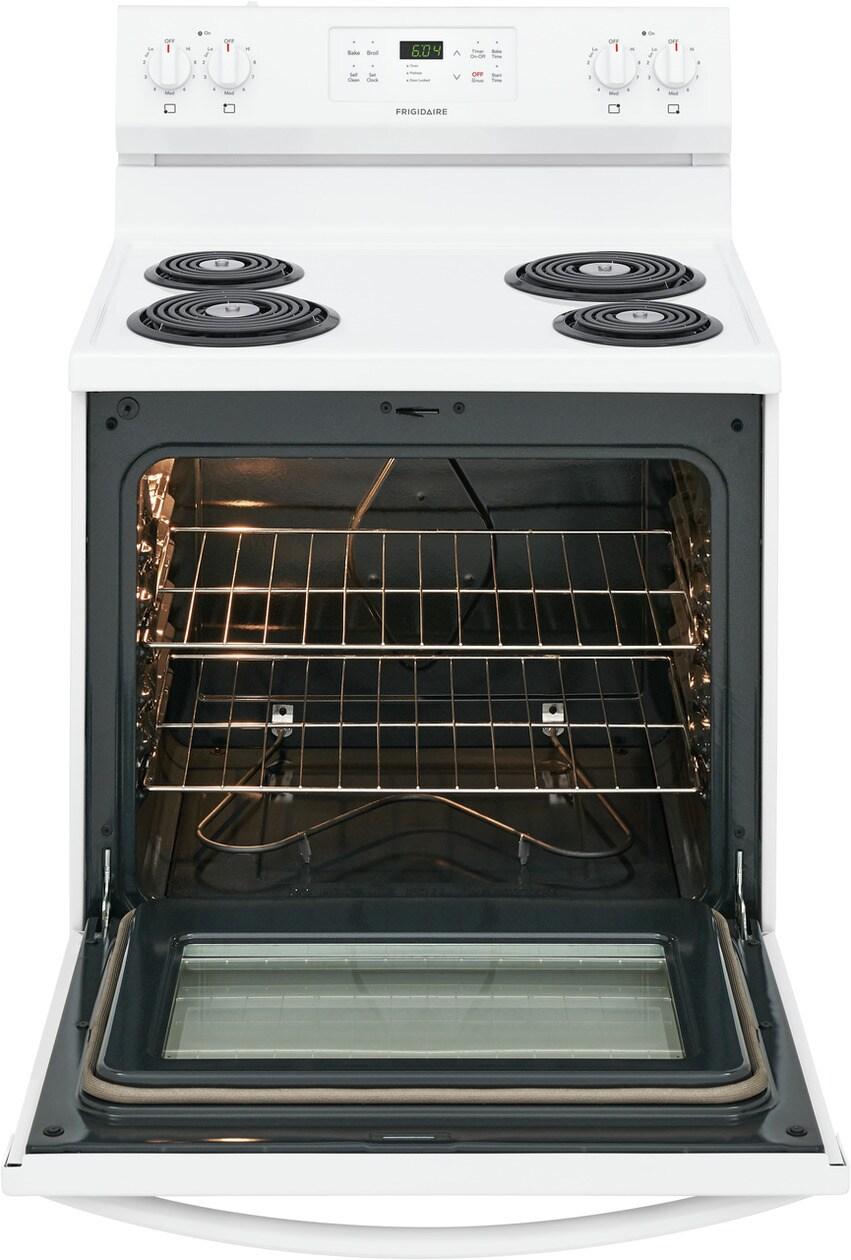

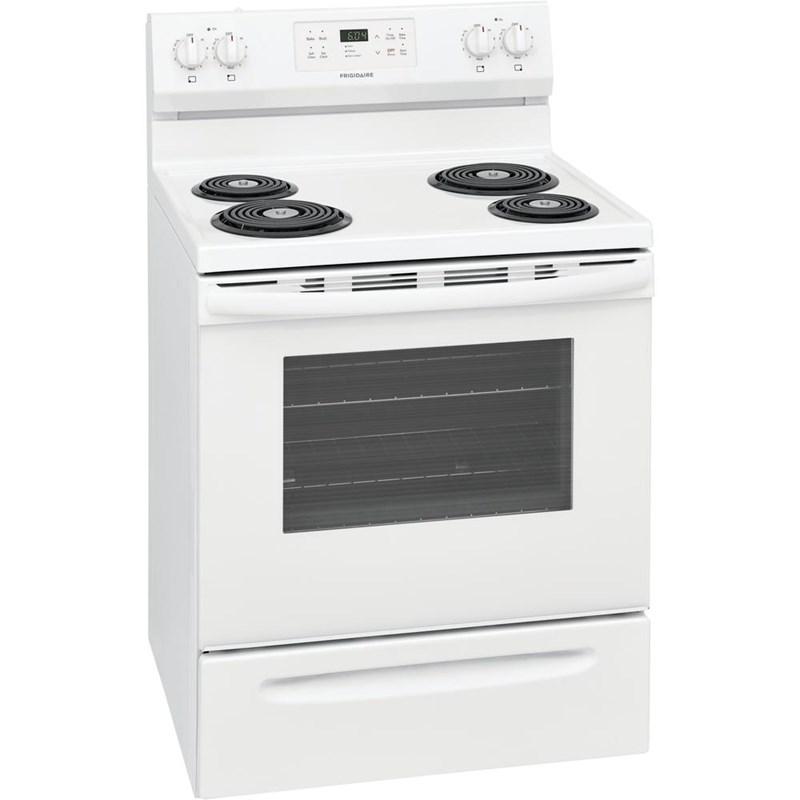

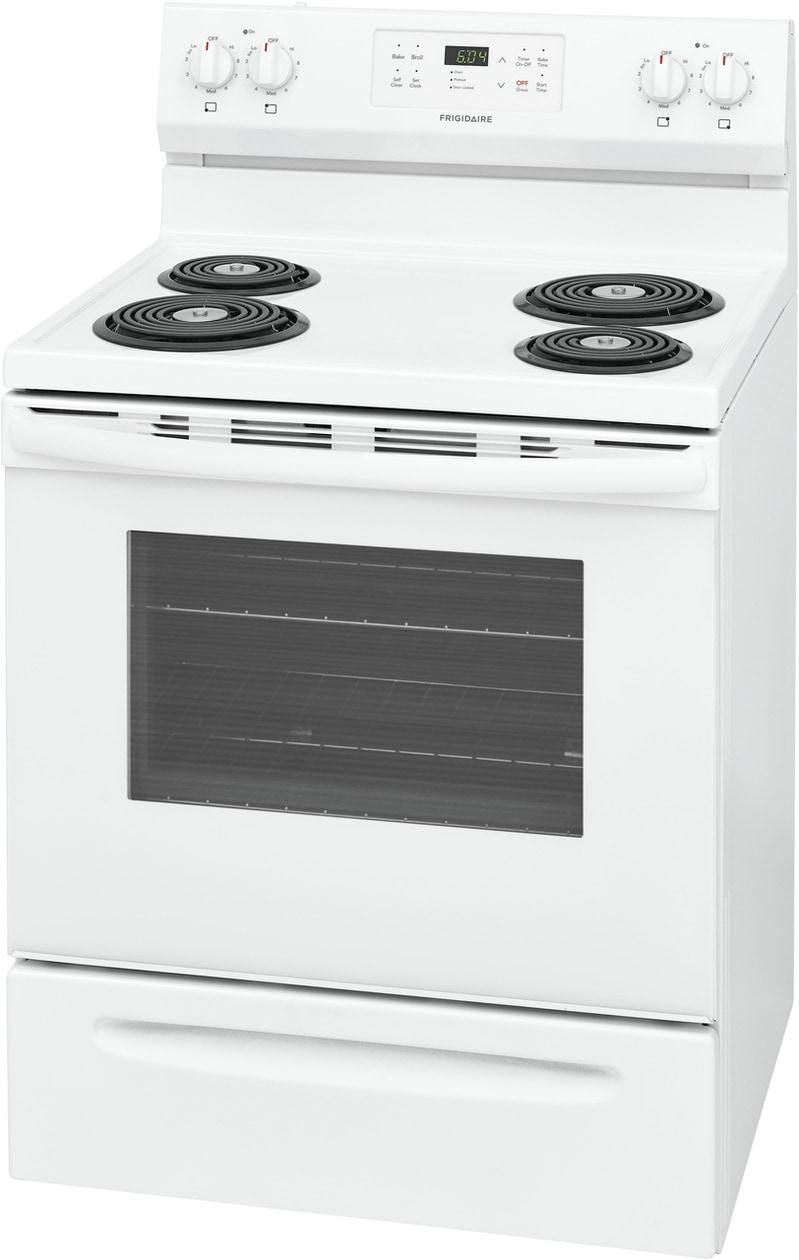

This 30-inch wide Frigidaire electric range features 4 coil elements, self-cleaning oven, Ready-Select® controls and a 5.3 cu.ft. oven capacity.
Features
- Oven Light:
- Self-Cleaning:
- Digital Temperature Display:
- Technologies:
- Additional Information:
Specifications
Dimensions
Width29 7/8"Height47 3/4"Depth25 3/4"
Product Details:
Product Line Coil Range
Power Type Electric 240v
Size 30"
Installation Type Free-Standing
Factory Springfield
Color White
Installation
Adjustable Leveling Legs Yes
Power Supply Connection Location Bottom Center
General Specifications
Product Weight 152 lbs
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Drawer
Drawer Handle Style Integrated
Drawer Type Storage
Exterior
Knob Material Plastic
Electrical Specifications
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
Certifications and Approvals
ADA Compliant No

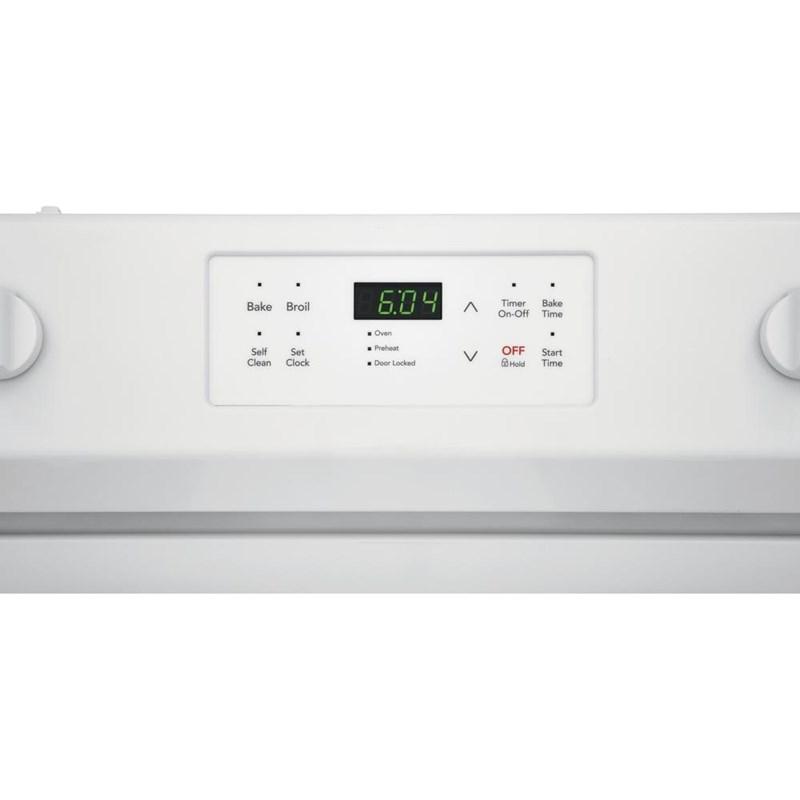

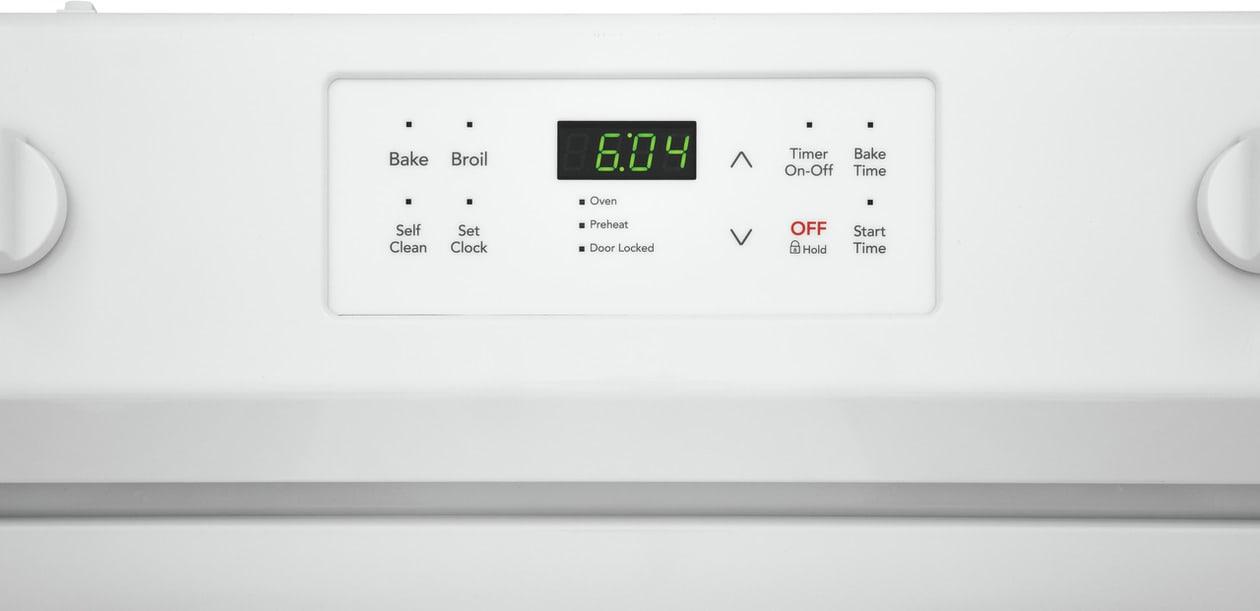

Cooking Controls
Bake Yes
Broil Yes
Cancel Yes
Kitchen Timer Yes
Lockout Yes
Off No
Oven Light Yes
Preheat Yes
Probe No
Self Clean Yes
Temperature Display Yes
Timed Bake Yes
Oven
Bake Element 2,600 Watts
Bake System Yes
Broil Element 3,000 Watts
Broil System Yes
Number of Rack Positions 6
Rack Position Type Nickel Ladder
Rack Type 1 Flat
Rack Type 1 Quantity 2
Window Type Extra Large Visual
Cooktop
Drip Bowl Type Porcelain
Dimensions and Volume
Height 47 3/4"
Width 29 7/8"
Depth 25 3/4"
Depth With Door 90° Open 48 5/8"
Oven Interior Height 19 3/4"
Oven Interior Width 24 3/8"
Oven Interior Depth 19 1/8"
Oven Capacity 5.3 Cu. Ft.
Safety Certifications and Approvals
CSA Listed Yes
Controls
Control Lock Yes
Sabbath Mode No

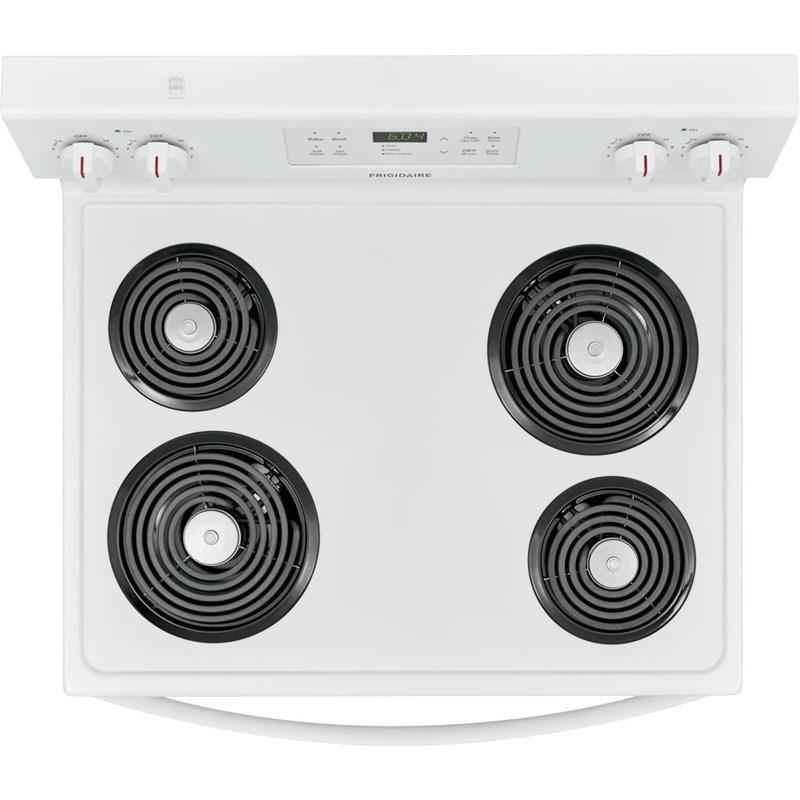

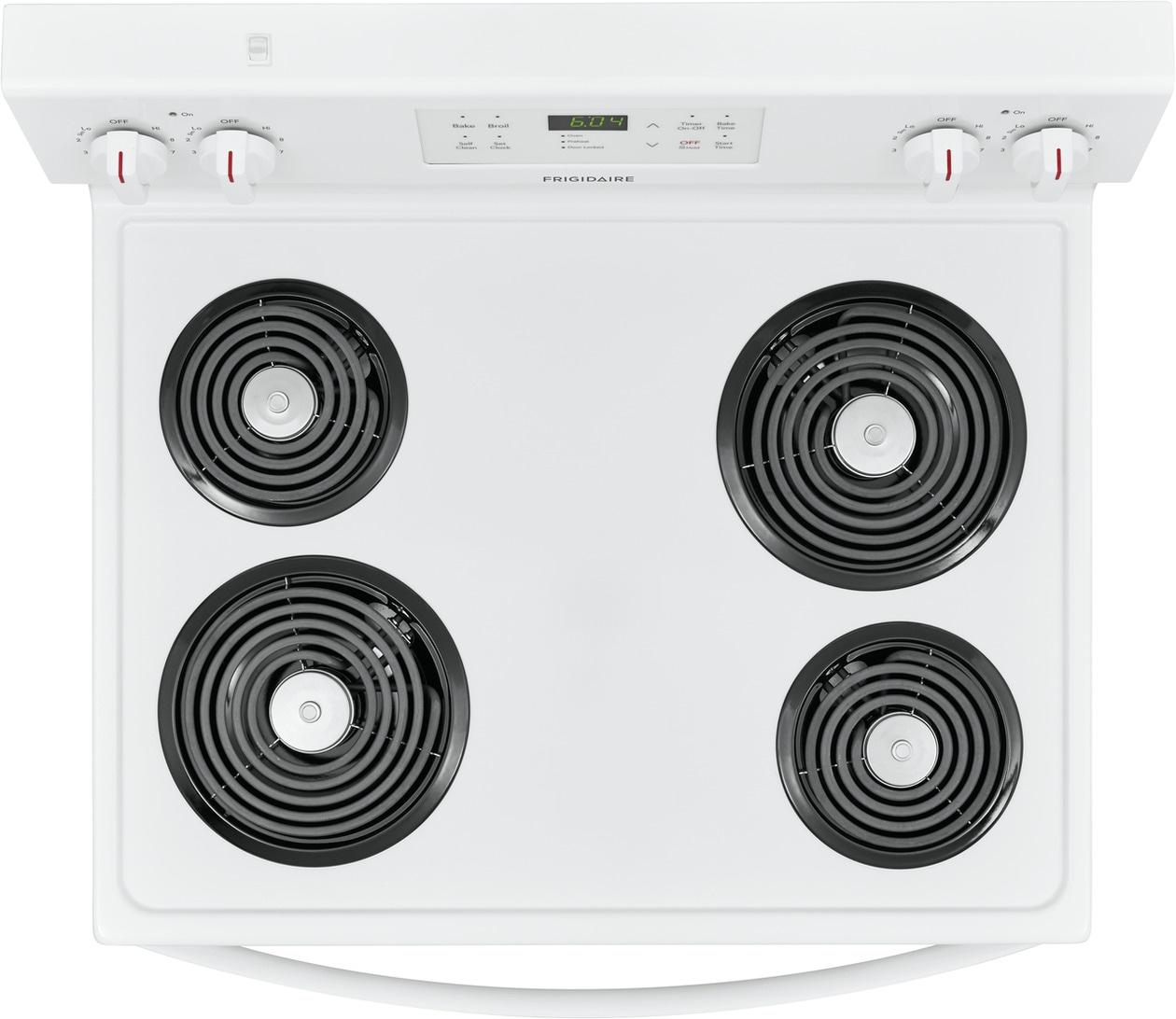

Cooktop Performance
Right Front Element Burner Size 6"
Right Rear Element Burner Size 8"
Left Front Element Burner Size 8"
Left Rear Element Burner Size 6"
Right Front Element Burner 1,500 Watts
Right Rear Element Burner 2,400 Watts
Left Front Element Burner 2,400 Watts
Left Rear Element Burner 1,500 Watts
Display
Display Type Membrane
While we do our best to make sure our dimension data is accurate, errors sometimes do occur in all cases, dimensions should be confirmed by reviewing the manufacturer supplied dimension drawing and/or cut sheet.
Product Line Coil Range
Power Type Electric 240v
Size 30"
Installation Type Free-Standing
Factory Springfield
Color White
Installation
Adjustable Leveling Legs Yes
Power Supply Connection Location Bottom Center
General Specifications
Product Weight 152 lbs
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Drawer
Drawer Handle Style Integrated
Drawer Type Storage
Exterior
Knob Material Plastic
Electrical Specifications
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
Certifications and Approvals
ADA Compliant No
Cooking Controls
Bake Yes
Broil Yes
Cancel Yes
Kitchen Timer Yes
Lockout Yes
Off No
Oven Light Yes
Preheat Yes
Probe No
Self Clean Yes
Temperature Display Yes
Timed Bake Yes
Oven
Bake Element 2,600 Watts
Bake System Yes
Broil Element 3,000 Watts
Broil System Yes
Number of Rack Positions 6
Rack Position Type Nickel Ladder
Rack Type 1 Flat
Rack Type 1 Quantity 2
Window Type Extra Large Visual
Cooktop
Drip Bowl Type Porcelain
Dimensions and Volume
Height 47 3/4"
Width 29 7/8"
Depth 25 3/4"
Depth With Door 90° Open 48 5/8"
Oven Interior Height 19 3/4"
Oven Interior Width 24 3/8"
Oven Interior Depth 19 1/8"
Oven Capacity 5.3 Cu. Ft.
Safety Certifications and Approvals
CSA Listed Yes
Controls
Control Lock Yes
Sabbath Mode No
Cooktop Performance
Right Front Element Burner Size 6"
Right Rear Element Burner Size 8"
Left Front Element Burner Size 8"
Left Rear Element Burner Size 6"
Right Front Element Burner 1,500 Watts
Right Rear Element Burner 2,400 Watts
Left Front Element Burner 2,400 Watts
Left Rear Element Burner 1,500 Watts
Display
Display Type Membrane
While we do our best to make sure our dimension data is accurate, errors sometimes do occur in all cases, dimensions should be confirmed by reviewing the manufacturer supplied dimension drawing and/or cut sheet.
Dimensions
Width29"Height48"
Finish: White
MPN: CFEF3016VW
UPC: 0 12505 51359 6
