Description
About this Product

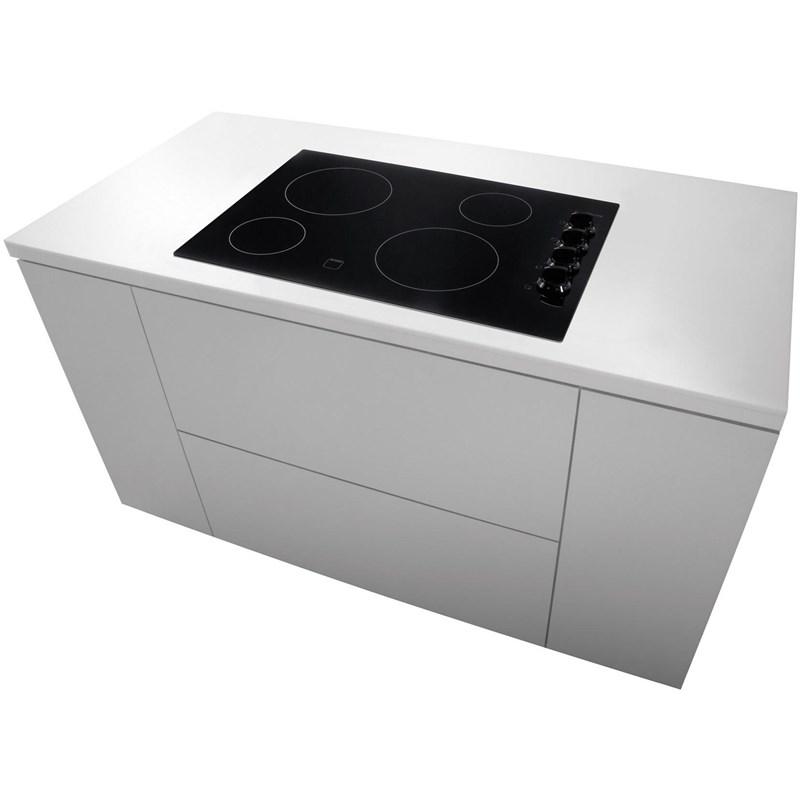

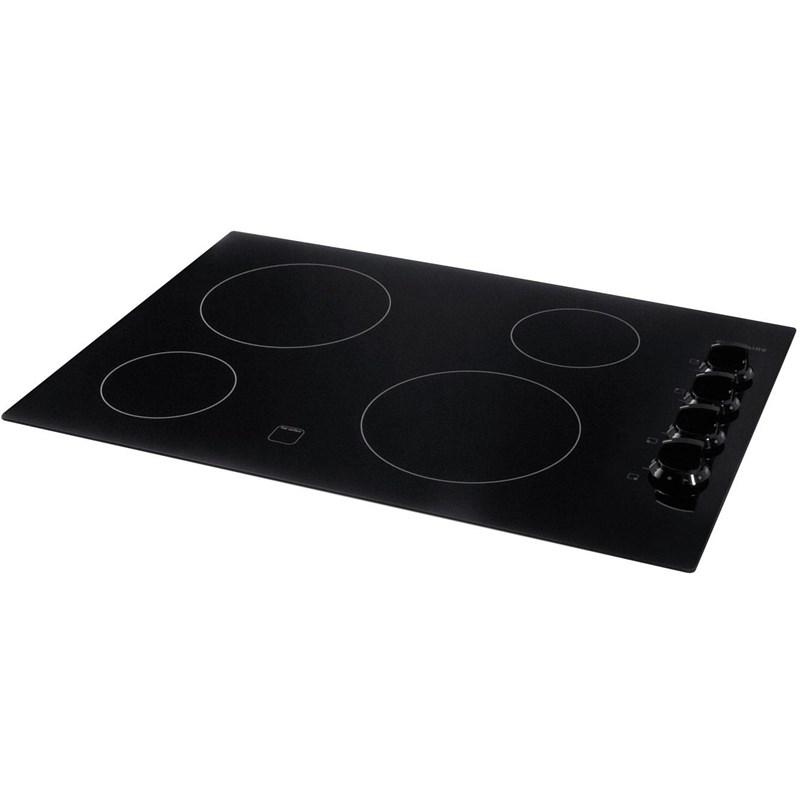

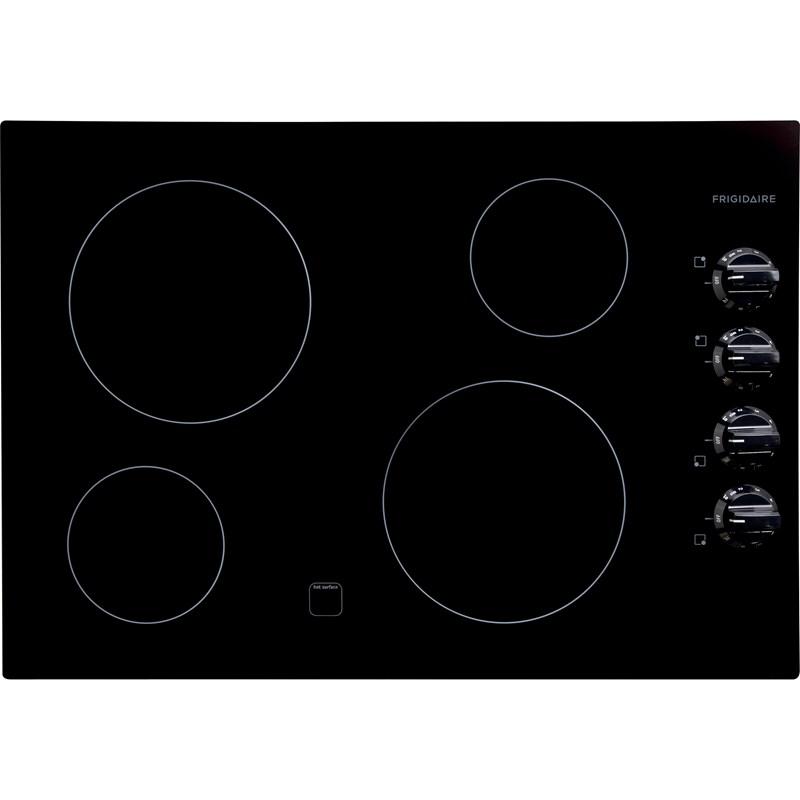

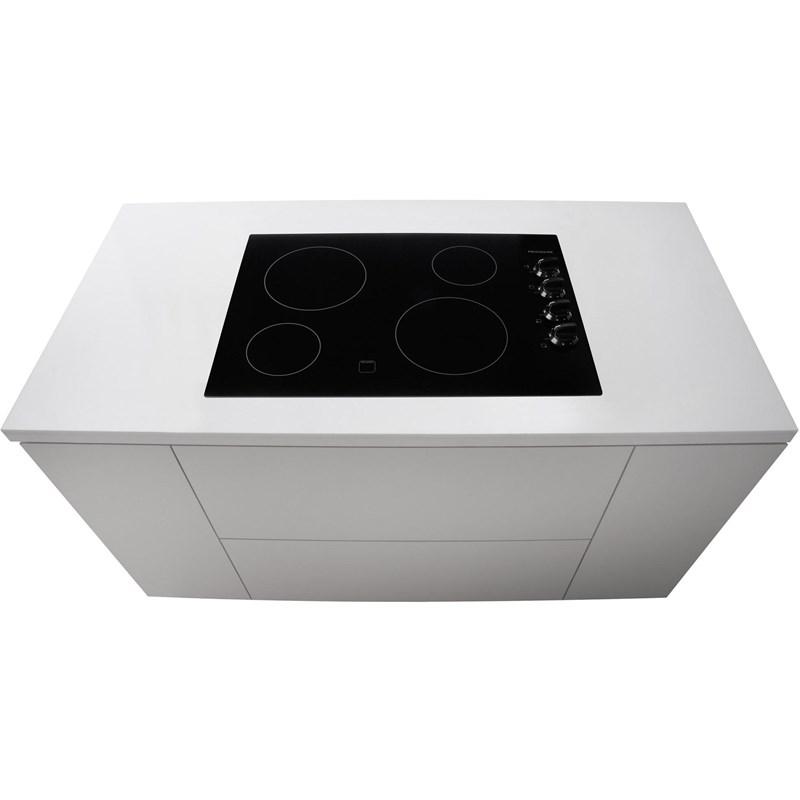

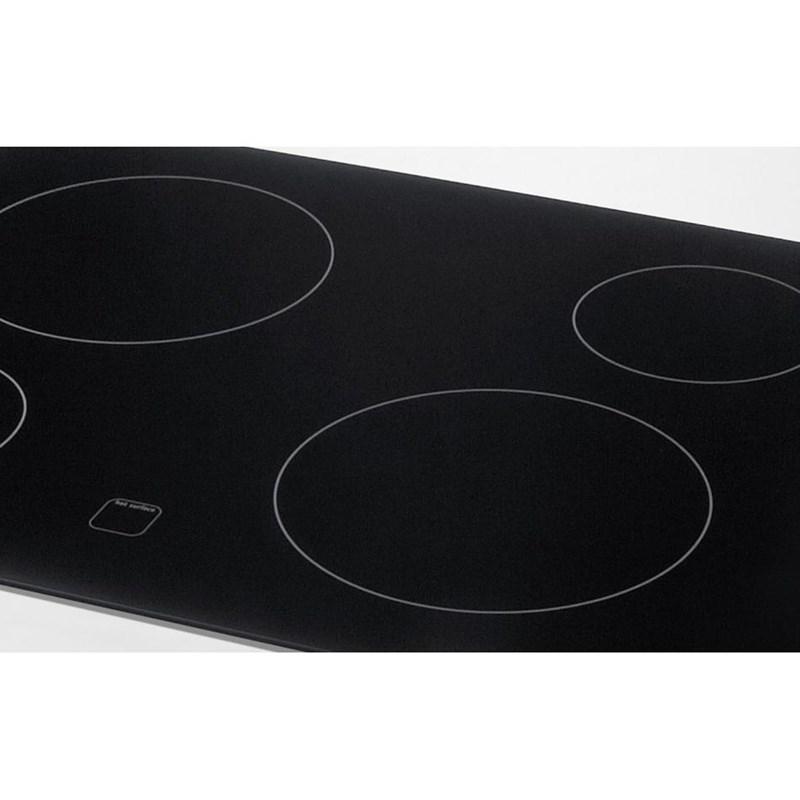

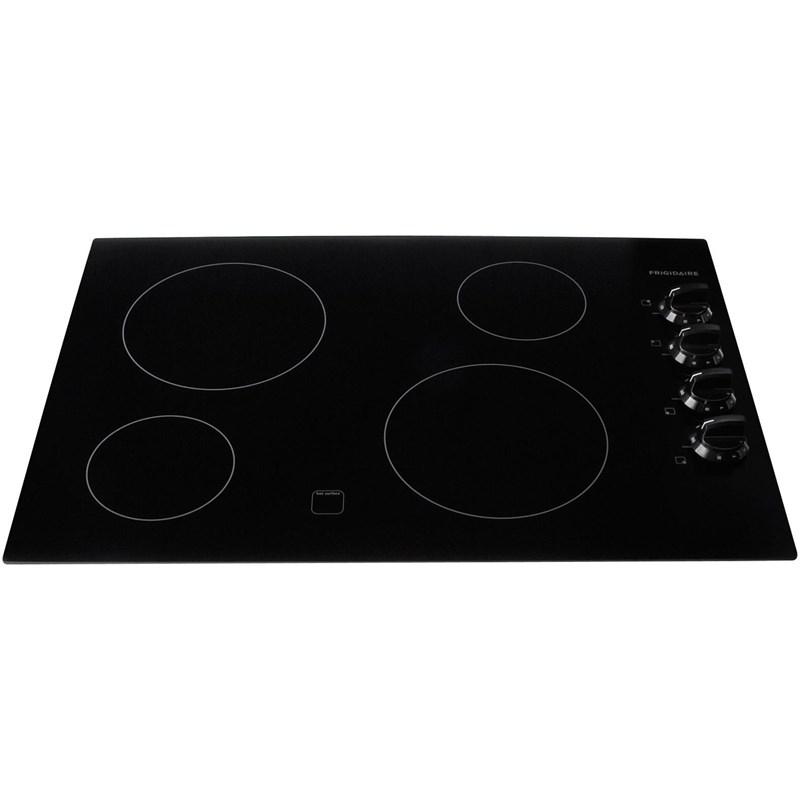

Frigidaire 30-inch electric cooktop with 4 cooking zones, Ready-Select™ controls, a ceramic glass cooktop and SpillSaver design.
Features

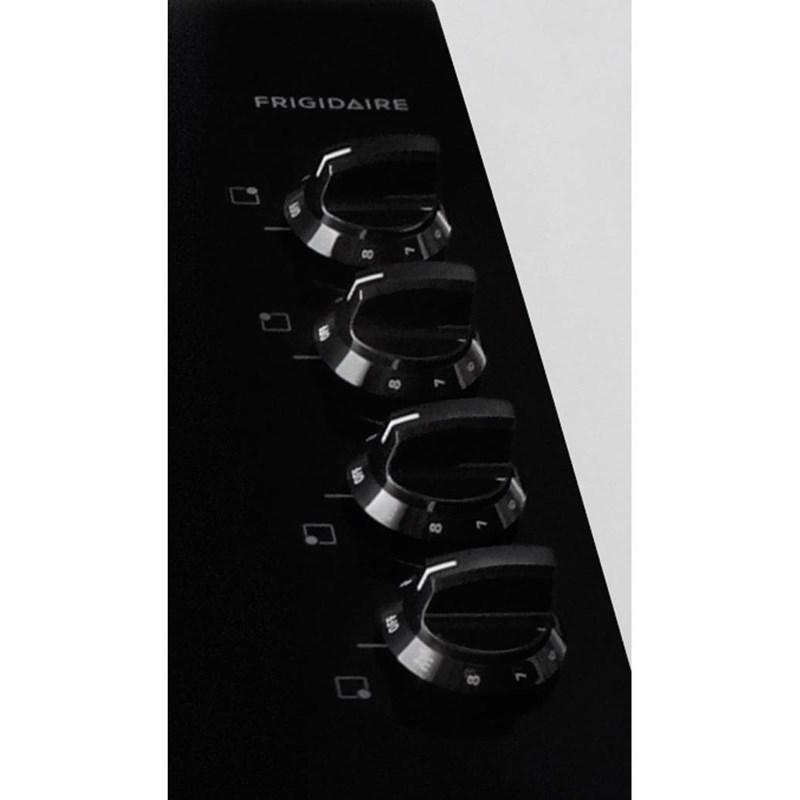

- READY-SELECT CONTROLS — Select options or control cooking temperature with their easy-to-use controls.
- APPROVED OVER FRIGIDAIRE® ELECTRIC WALL OVENS — Cooktops are approved for installation above any of the Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Documents
Product Sheet (en)
Owner's manual (en)
Installation guide (en)
Highlights

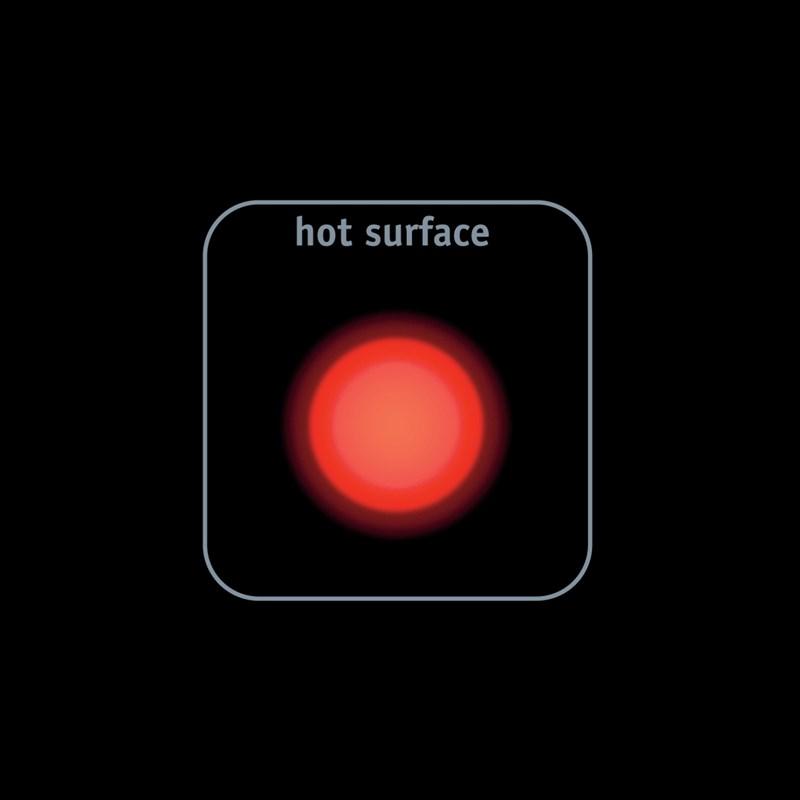

Hot surface indicator | Plastic knob | Approved over Frigidaire® electric wall ovens
Specifications
| Fuel Type | Electric | Type | Built-In | Color | Black |
| Manufacturer Color | Black on Black | Elements | Smoothtop | Burners/Elements | 4 |
| Surface Features | Color-coordinated ceramic glass | Clock | N | Digital Display | N |
| Downdraft Ventilation | N | Control Lock | N | Wi-Fi | N |
| Sabbath Mode | N | Height | 7.62 cm | Width | 78.11 cm |
| Depth | 54.61 cm | Weight | 18 kg | Class Width | 30" |
| Warranty | 1 year parts and labor. | UPC# | 057112990217 | ||
|
Power Output Left front: 1,200 Watts | Left rear: 2,500 Watts | Right front: 2,500 Watts | Right rear: 1,200 Watts
| |||||
|
Burner/Element Size Left front: 6" | Left rear: 9" | Right front: 9" | Right rear: 6"
| |||||
|
Information 240V/208V | 60Hz | 30A
| |||||
|
Technologies Ready-Select® controls
| |||||
|
Additional Dimensions Cutout width: (Min.)29-5/8", (Max.) 29-3/4" | Cutout depth: (Min.)20-1/4", (Max.)20-1/2" | Cutout height: 5"
| |||||
|
Optional Granite countertop installation kit: 903061-9010
| |||||
Accessories
Fuel Type
Electric
Type
Built-In
Color
Black
Manufacturer Color
Black on Black
Elements
Smoothtop
Burners/Elements
4
Surface Features
Color-coordinated ceramic glass
Clock
N
Digital Display
N
Downdraft Ventilation
N
Control Lock
N
Wi-Fi
N
Sabbath Mode
N
Height
7.62 cm
Width
78.11 cm
Depth
54.61 cm
Weight
18 kg
Class Width
30"
Warranty
1 year parts and labor.
Weight
20.41 kg
Power Output
Left front: 1,200 Watts | Left rear: 2,500 Watts | Right front: 2,500 Watts | Right rear: 1,200 Watts
Burner/Element Size
Left front: 6" | Left rear: 9" | Right front: 9" | Right rear: 6"
Information
240V/208V | 60Hz | 30A
Additional Information
Hot surface indicator | Plastic knob | Approved over Frigidaire® electric wall ovens
Technologies
Ready-Select® controls
Additional Dimensions
Cutout width: (Min.)29-5/8", (Max.) 29-3/4" | Cutout depth: (Min.)20-1/4", (Max.)20-1/2" | Cutout height: 5"
Optional
Granite countertop installation kit: 903061-9010
