Description
About this Product

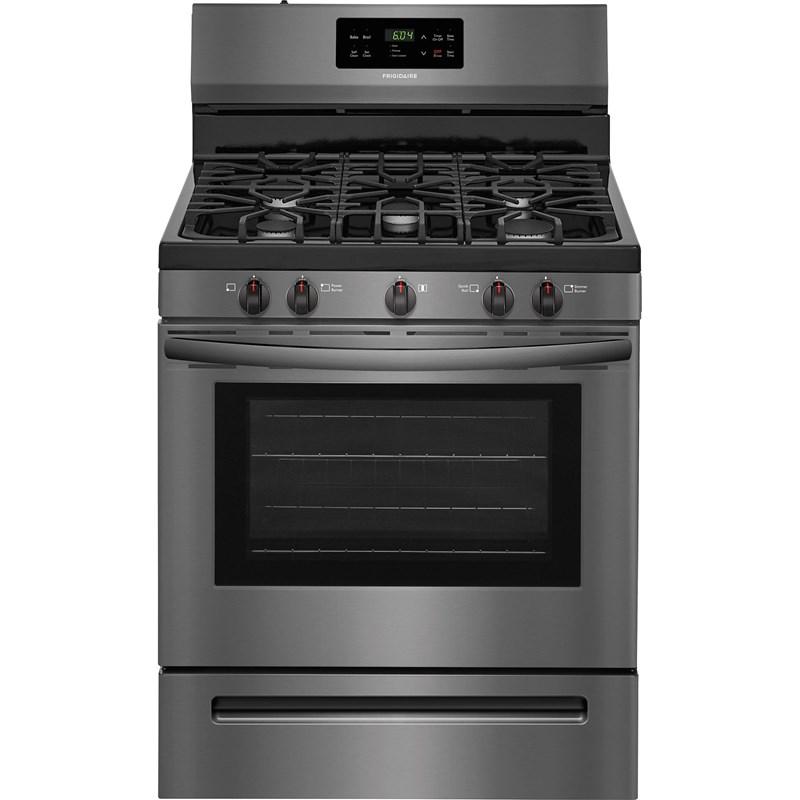

Frigidaire 30" freestanding natural gas range featuring continuous corner-to-corner grates, a Store-More™ storage drawer and an electronic kitchen timer.
Features
- STORE-MORE™ STORAGE DRAWER — The convenient drawer gives you extra storage space in your kitchen.
- DELAY CLEAN — Set the oven to begin cleaning on your schedule.
- AUTO SHUT-OFF — As an extra safety measure, the oven will automatically shut off after 12 hours.
- ELECTRONIC KITCHEN TIMER — Times up to 12 hours (control panel colors vary by model)
- VARI-BROIL™ — Vari-Broil™ temperature control allows you to choose between two heat levels(400F- 550F Degrees).
- TIMED COOK OPTION — Lets you set the oven to begin cooking at a predetermined time.
- LOW SIMMER BURNER — Perfect for delicate foods and sauces.
- READY-SELECT CONTROLS — Easily select options with the touch of a button.
- EVEN BAKING TECHNOLOGY — Designed to deliver even baking results, every time.
- SEALED GAS BURNERS — Enjoy easier cleanup and a burner that stays looking great.

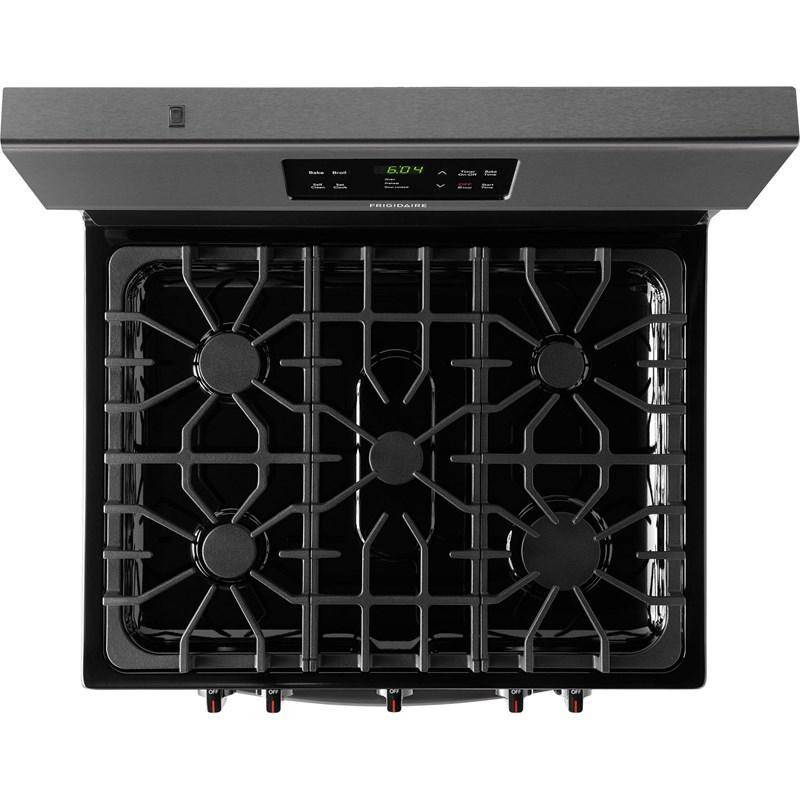

- CONTINUOUS GRATES — Continuous Grates make it easy to move heavy pots and pans across burners without lifting.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Continuous Cast Iron Grates with Black Matte Finish | Quick boil | Delay clean | Auto Shut-Off | Color-Coordinated Oven Door with Extra-Large Window | Timed Cook Option | Low Simmer Burner | Electronic Kitchen Timer | 2 Standard oven racks | Oven Bake: 18,000 BTU | Oven Broil: 13,500 BTU | CSA Certified
Specifications
| Class Width | 30" | Depth (Including Handles) | 74.3 cm | Weight | 88.45 kg |
| Width | 75.88 cm | Depth (Without Handles) | 65.41 cm | Height | 123.19 cm |
| Burners | Sealed | Burners/Elements | 5 | Oven Light | Y |
| Self-Cleaning | Y | Digital Temperature Display | Y | Warranty | Limited 1 year parts and labor |
| UPC# | 012505511516 | Fuel Type | Natural Gas | Manufacturer Color | Black Stainless |
| Color | Black Stainless | Installation Type | Freestanding | Number of Ovens | Single |
| Capacity (cu. ft.) | 5.0 cu. ft | Storage | Y | ||
|
Additional Dimensions Oven Interior (H x W x D): 18 5/8" x 24 3/8" x 19 1/8" | Depth with Door Open 90 degrees: 46 5/8" | Cutout Height (Standard): 36" | Cutout Width (Min.): 30" | Cutout Depth (Min.): 24"
| |||||
|
Burners/Elements Output Left Front: 9500 BTU | Left Rear: 12000 BTU | Right Front: 17000 BTU | Right Rear: 5000 BTU | Center Extra Zone: 9500 BTU
| |||||
|
Technologies Even Baking Technology | Store-More™ Storage Drawer | Extra-Large Visualite® window | Vari-Broil™ | Ready-Select® Controls
| |||||
|
Information 120 Volts | 60 Hertz | 5 Amps
| |||||
|
Optional LP Gas Conversion PN GRLP4
| |||||
Accessories
Class Width
30"
Depth (Including Handles)
74.3 cm
Weight
88.45 kg
Width
75.88 cm
Depth (Without Handles)
65.41 cm
Height
123.19 cm
Burners
Sealed
Burners/Elements
5
Oven Light
Y
Self-Cleaning
Y
Digital Temperature Display
Y
Warranty
Limited 1 year parts and labor
Weight
83.91 kg
Fuel Type
Natural Gas
Manufacturer Color
Black Stainless
Color
Black Stainless
Installation Type
Freestanding
Number of Ovens
Single
Capacity (cu. ft.)
5.0 cu. ft
Storage
Y
Additional Dimensions
Oven Interior (H x W x D): 18 5/8" x 24 3/8" x 19 1/8" | Depth with Door Open 90 degrees: 46 5/8" | Cutout Height (Standard): 36" | Cutout Width (Min.): 30" | Cutout Depth (Min.): 24"
Burners/Elements Output
Left Front: 9500 BTU | Left Rear: 12000 BTU | Right Front: 17000 BTU | Right Rear: 5000 BTU | Center Extra Zone: 9500 BTU
Technologies
Even Baking Technology | Store-More™ Storage Drawer | Extra-Large Visualite® window | Vari-Broil™ | Ready-Select® Controls
Additional Information
Continuous Cast Iron Grates with Black Matte Finish | Quick boil | Delay clean | Auto Shut-Off | Color-Coordinated Oven Door with Extra-Large Window | Timed Cook Option | Low Simmer Burner | Electronic Kitchen Timer | 2 Standard oven racks | Oven Bake: 18,000 BTU | Oven Broil: 13,500 BTU | CSA Certified
Information
120 Volts | 60 Hertz | 5 Amps
Optional
LP Gas Conversion PN GRLP4
