Description
About this Product

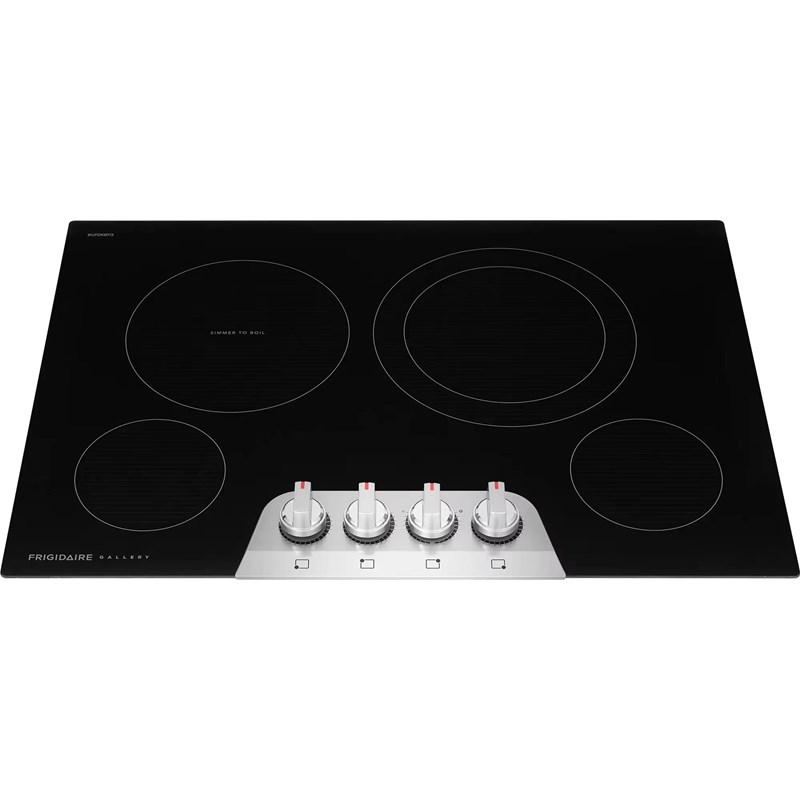

The Frigidaire Gallery 30" Electric Cooktop delivers powerful, flexible cooking performance in a sleek smooth-top design. Featuring expandable elements, including a dual 9"/12" element and a powerful 3,200-watt burner, it easily accommodates cookware of various sizes while providing precise heat control. Front-mounted controls offer convenient access, and the streamlined profile integrates seamlessly into modern kitchens.
Documents
Product Sheet (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
Power Supply Connection Location: Right Center
Specifications
| Height | 6.67 cm | Width | 77.79 cm | Class Width | 30" |
| Weight | 14.06 kg | Depth | 54.29 cm | Type | Built-In |
| Fuel Type | Electric | Color | Stainless Steel | Manufacturer Color | Stainless Steel |
| ADA Compliant | Y | Warranty | Warranty - Labor: 1 Year | Elements | Smoothtop |
| Burners/Elements | 4 | ||||
| Information Amps @ 240 Volts: 35.8 Amps | Connected Load @ 240V: 8.6 kW | Minimum Circuit Required: 40 Amps | Voltage Rating: 240 V | |||||
| Additional Dimensions Cutout Height: 5" | Minimum Cutout Width: 28 1/2" | Minimum Cutout Depth: 19 5/8" | Maximum Cutout Width: 29 7/8" | Maximum Cutout Depth: 20 1/2" | |||||
| Information CSA, UL | |||||
| Burner/Element Size Right Front Element Burner Size: 6" | Right Rear Element Burner Size (Small): 9" | Right Rear Element Burner Size (Large): 12" | Left Front Element Burner Size: 6" | Left Rear Element Burner Size: 9" | |||||
| Power Output Right Front Element Burner: 1200 Watts | Right Rear Element Burner (Small): 1800 Watts | Right Rear Element Burner (Large): 3000 Watts | Left Front Element Burner: 1200 Watts | Left Rear Element Burner: 3200 Watts | |||||
