Description
About this Product

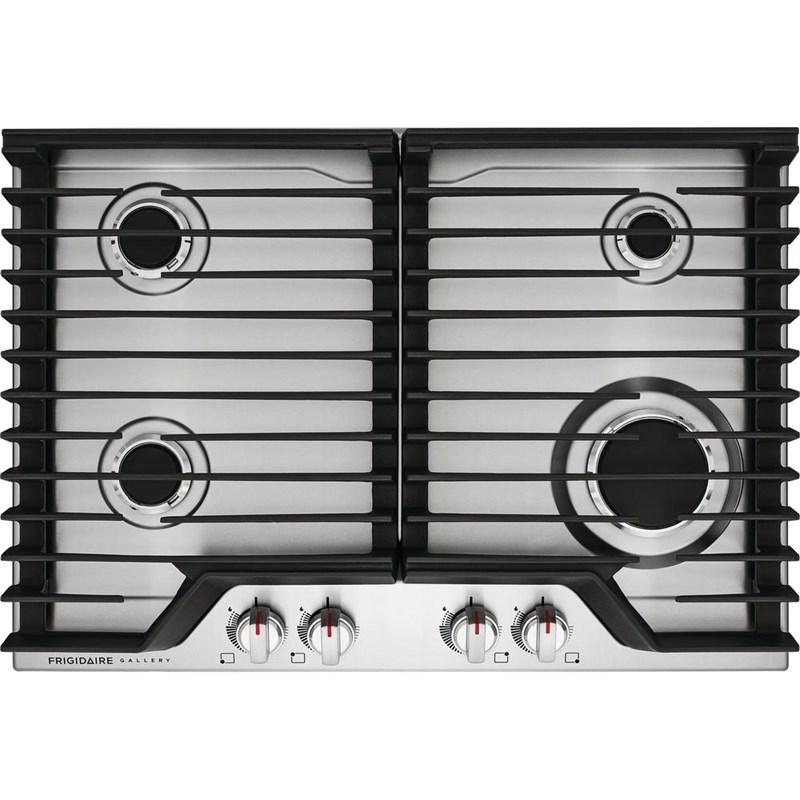

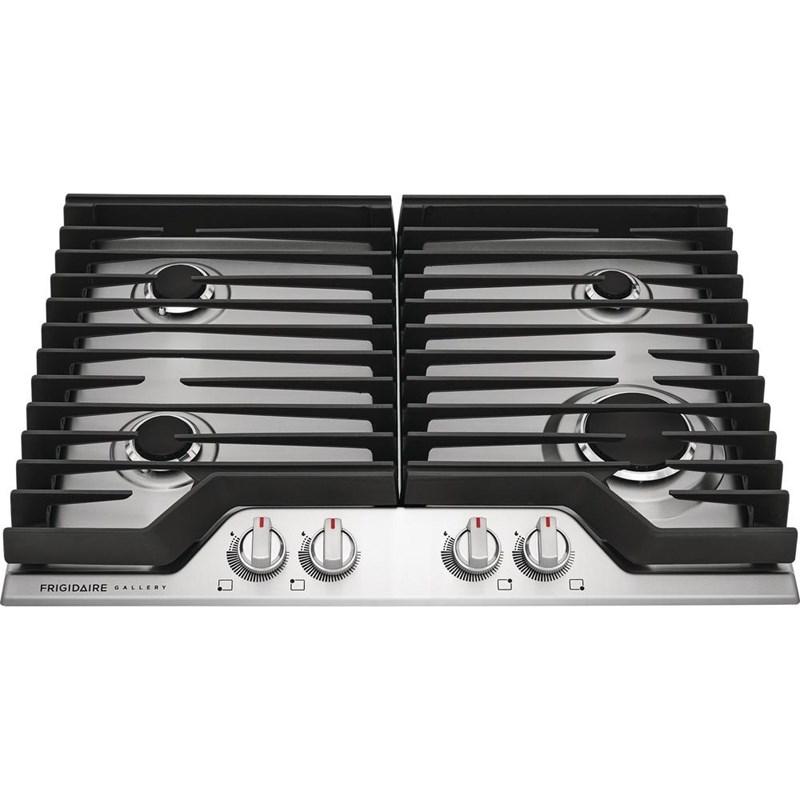

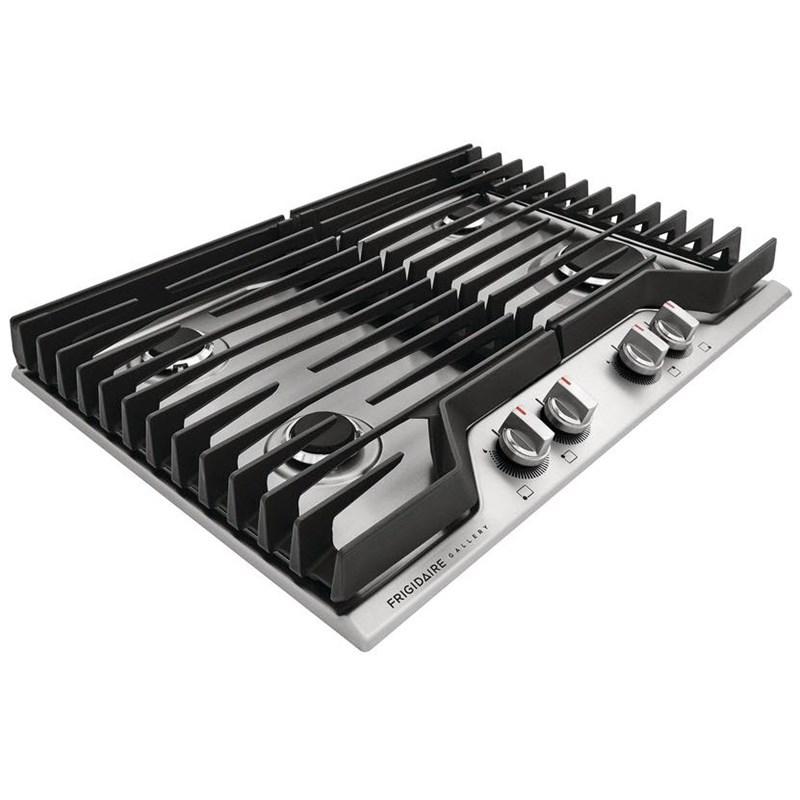

Frigidaire Gallery 30-inch gas cooktop with 4 burners. Experience faster boil times and more powerful cooking with the 18,000 BTU burner. Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom. Backlit LED knobs light up when the cooktop is in use.
Features

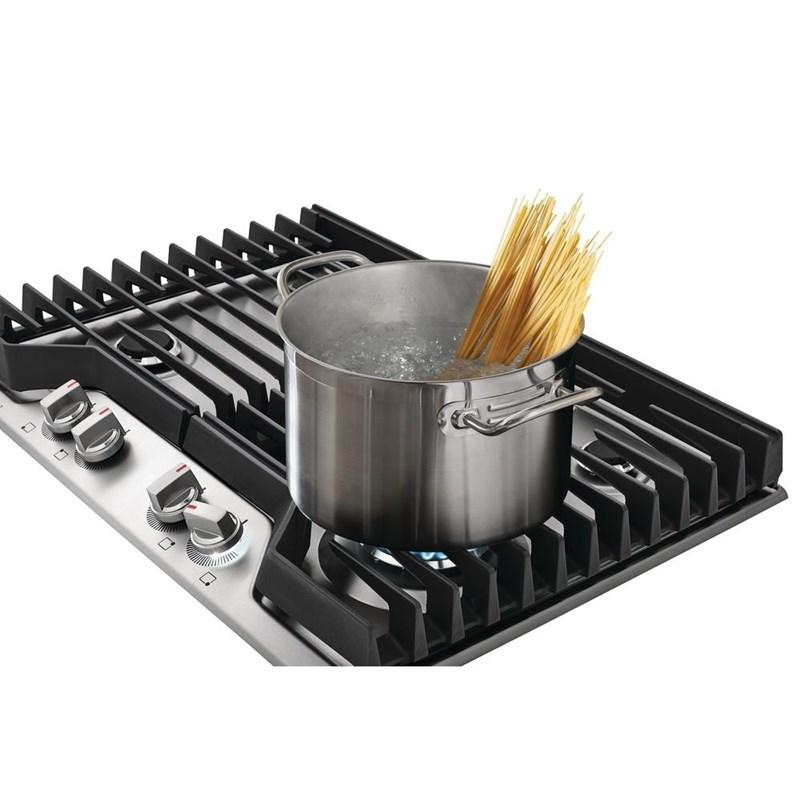

- QUICK BOIL BURNER — Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

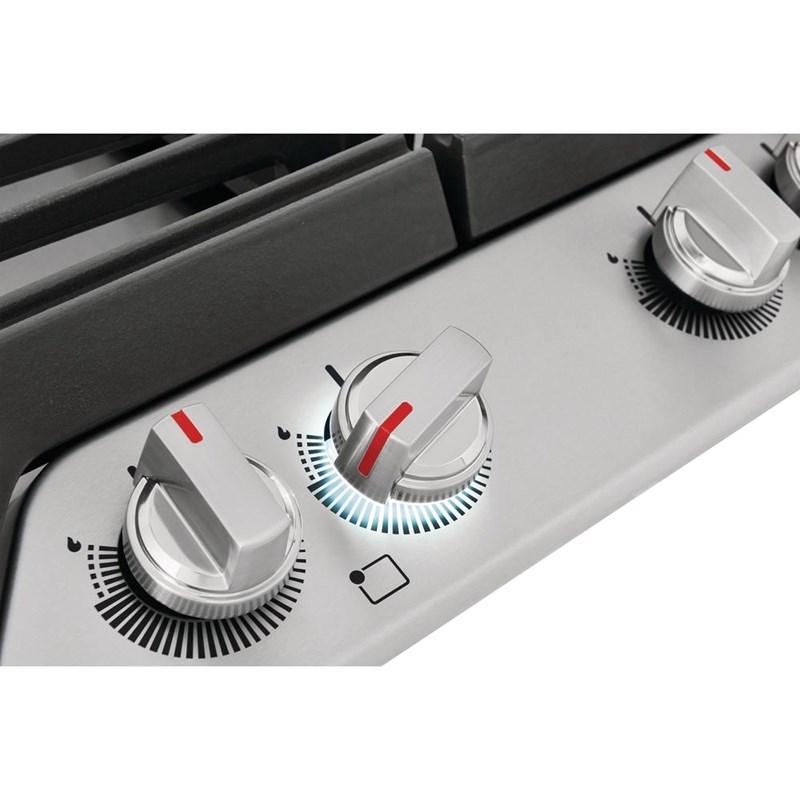

- BRIGHT, BACKLIT LED KNOBS — Backlit LED knobs light up when the cooktop is in use.

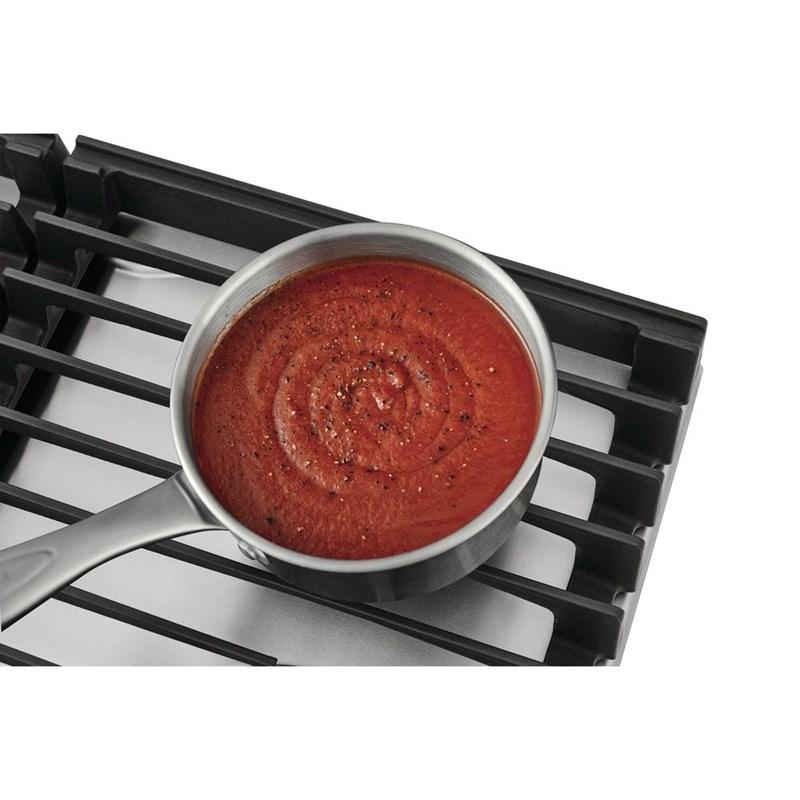

- LOW SIMMER BURNER — Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
- SPILLSAFE® COOKTOP — Cooktop contains your spillovers for easier clean up.

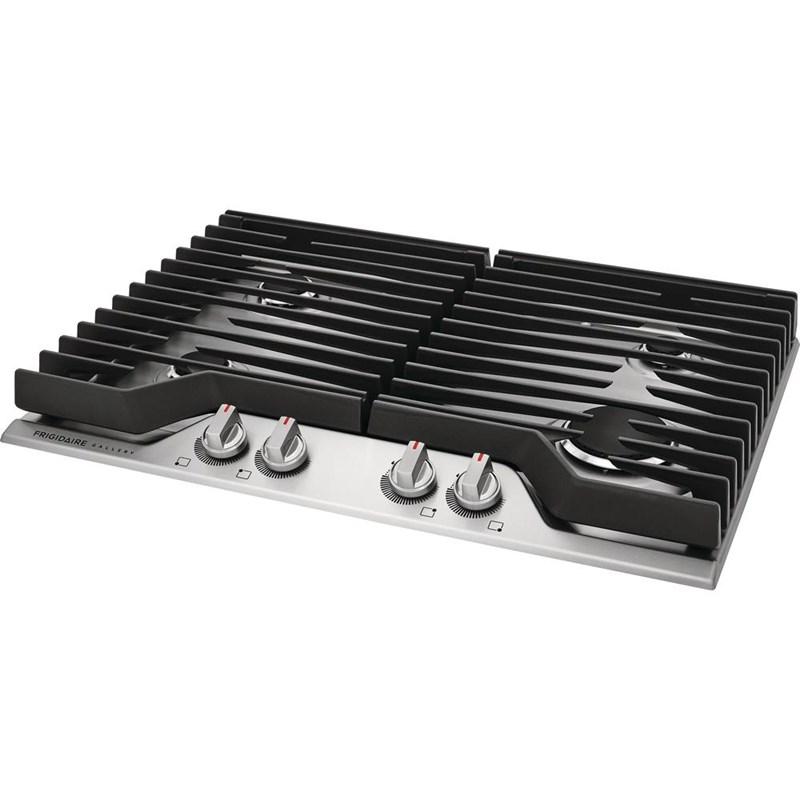

- CONTINUOUS GRATES — Continuous Grates make it easy to move heavy pots and pans between burners without lifting.
- APPROVED OVER FRIGIDAIRE® ELECTRIC WALL OVENS — Cooktops are approved for installation above any of the Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.

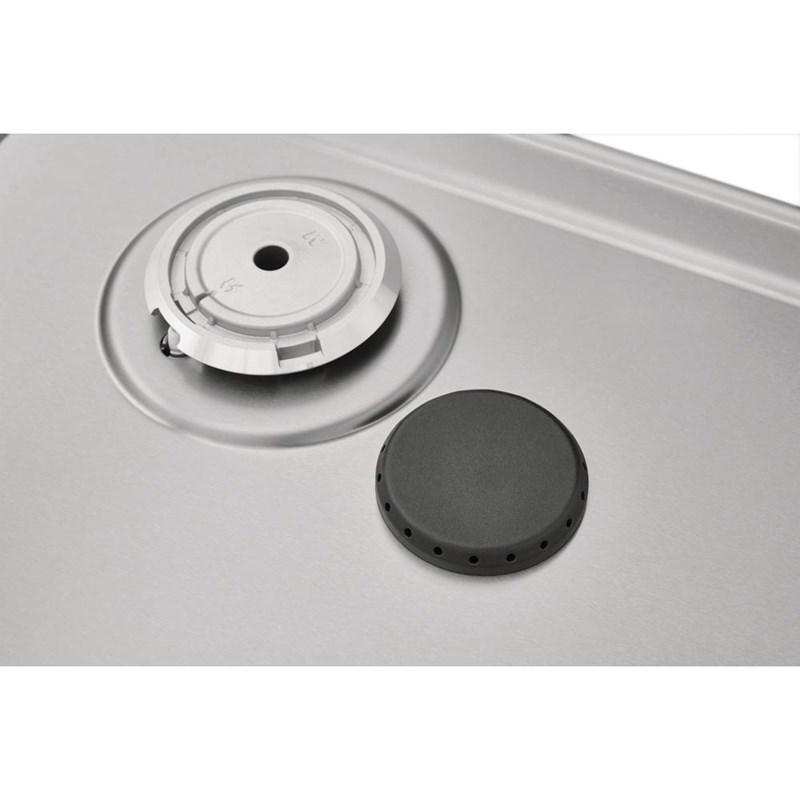

- DISHWASHER-SAFE BURNER CAPS — Cleaning your cooktop is easier with removable, dishwasher-safe burner caps.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Gas supply connection location: Top right | Power supply connection location: Top right | Backlit knobs | Control location: Front
Specifications
| Burners/Elements | 4 | Burners | Sealed | Height | 6.2 cm |
| Width | 76.2 cm | Depth | 53.34 cm | Class Width | 30" |
| Fuel Type | Natural Gas | Type | Built-In | Manufacturer Color | Stainless Steel |
| Color | Stainless Steel | UPC# | 12505565779 | Warranty | Limited warranty for parts and labor: 1 year |
| ADA Compliant | Y | ||||
| Power Output Right Front Element Burner: 18,000 BTU | Right Rear Element Burner: 5,000 BTU | Left Front Element Burner: 9,500 BTU | Left Rear Element Burner: 9,500 BTU | |||||
| Surface Features Grate Material: Cast Iron | Grate Quantity: 2 | Grate Style: Continuous | |||||
| Information Minimum Circuit Required: 5 Amps | Voltage Rating 120 V | |||||
| Additional Dimensions Cutout Height: 7 1/2" | Maximum Cutout Width: 29 5/16" | Minimum Cutout Width: 27 1/4" | Maximum Cutout Depth: 20" | Minimum Cutout Depth: 19" | |||||
| Information CSA Listed | UL Listed | |||||
| Included Power cord included | LP conversion kit included | |||||
Accessories
• Power cord included
• LP conversion kit included
• LP conversion kit included
