About this Product

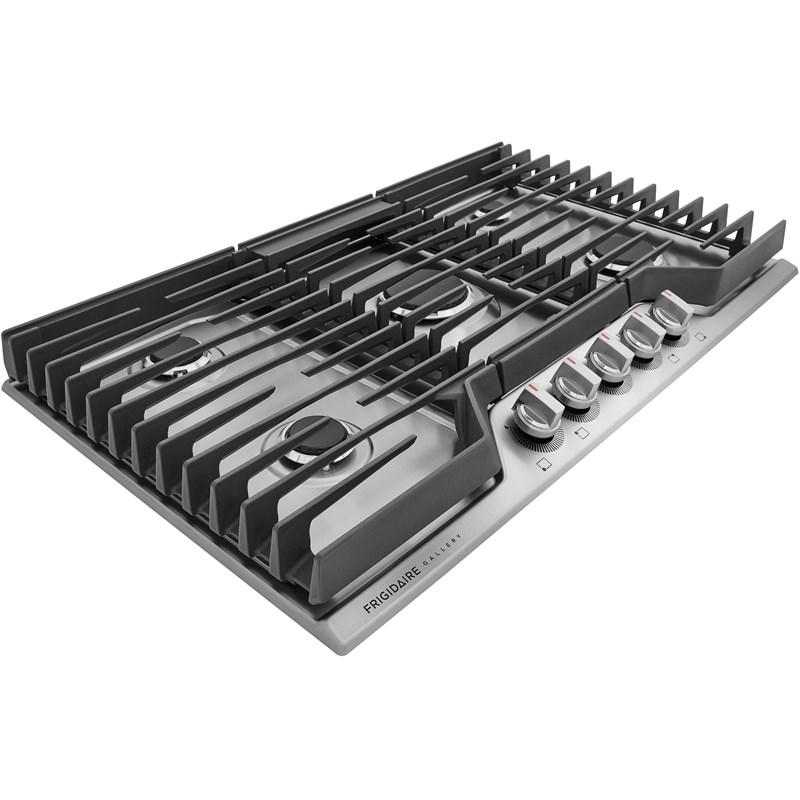

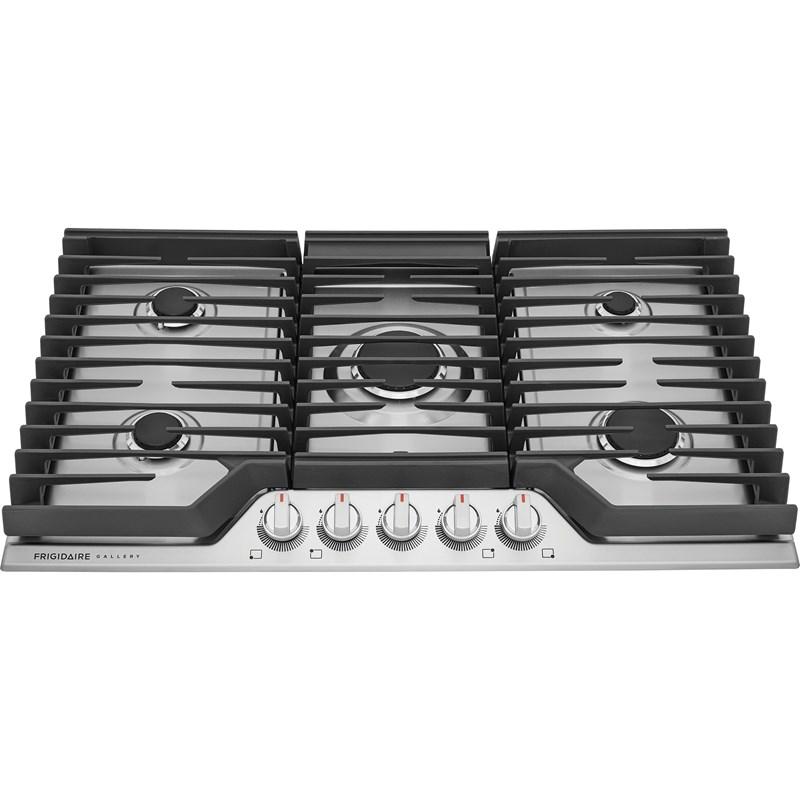

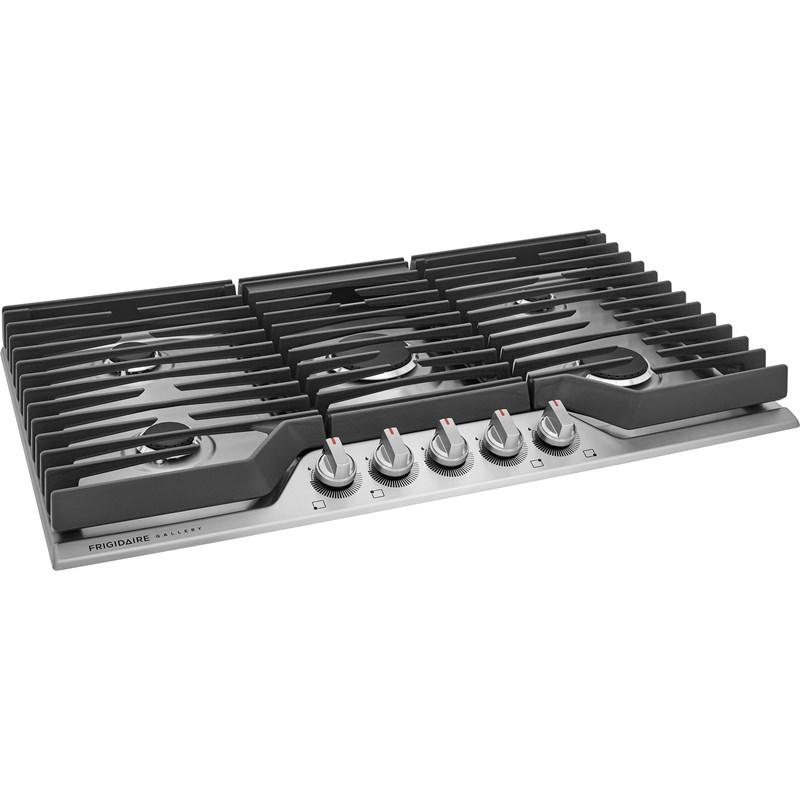

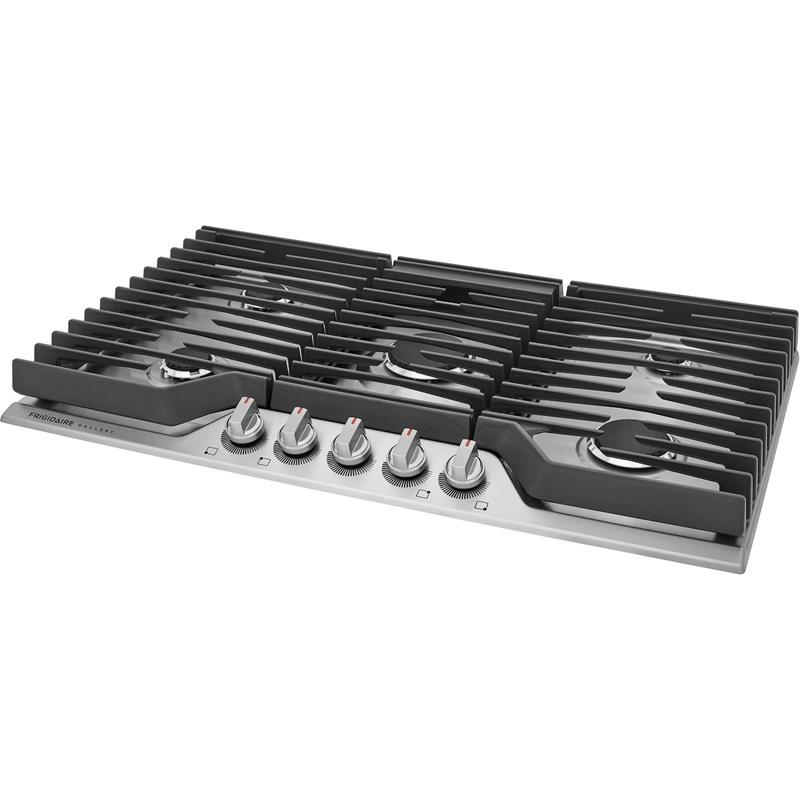

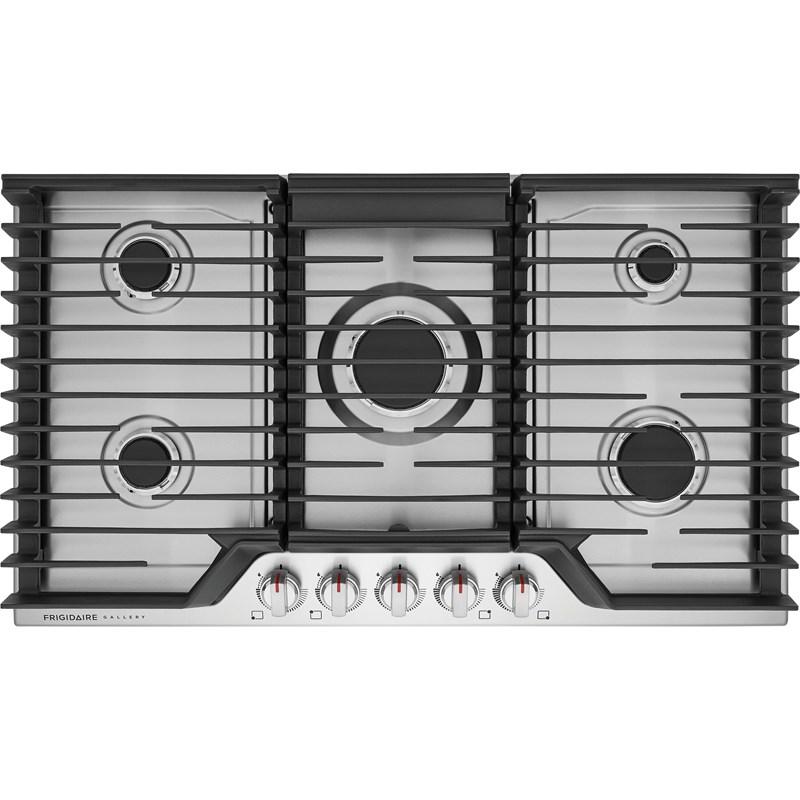

Frigidaire Gallery 36'' Gas Cooktop with 5 Burners. This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and the powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.
Features

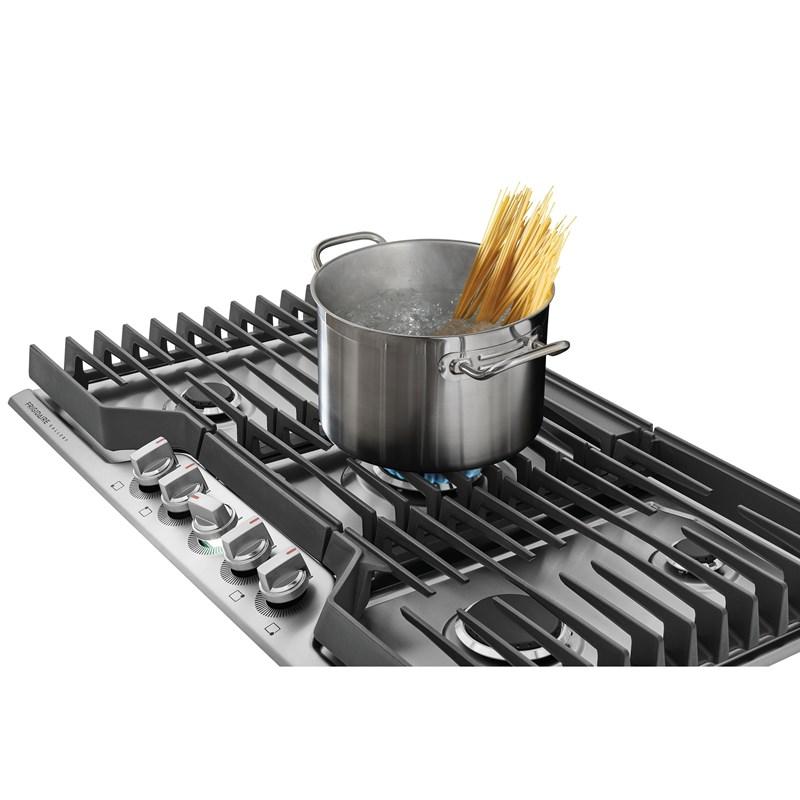

- QUICK BOIL BURNER — Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

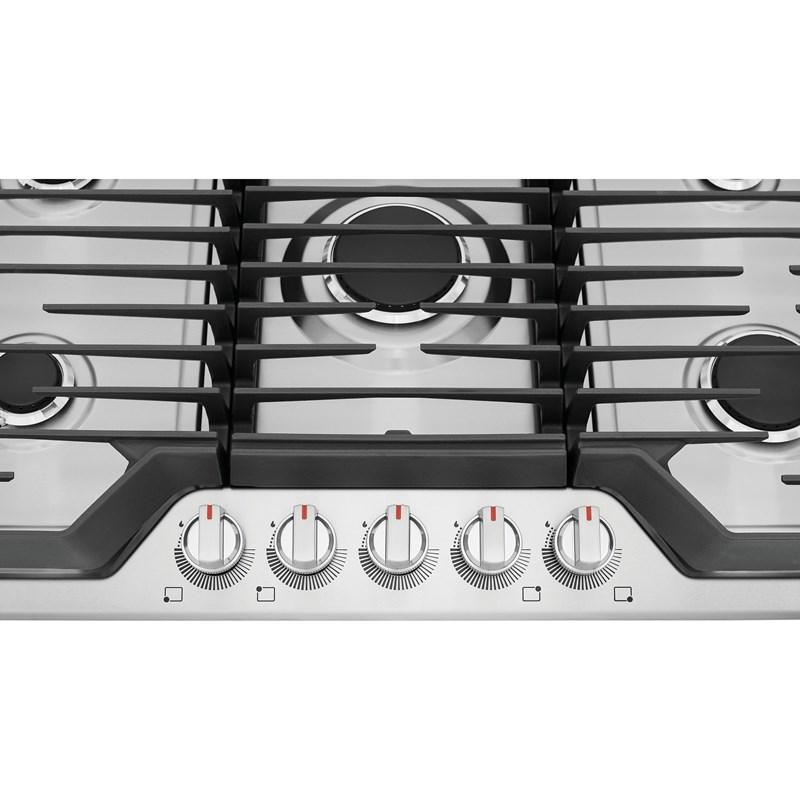

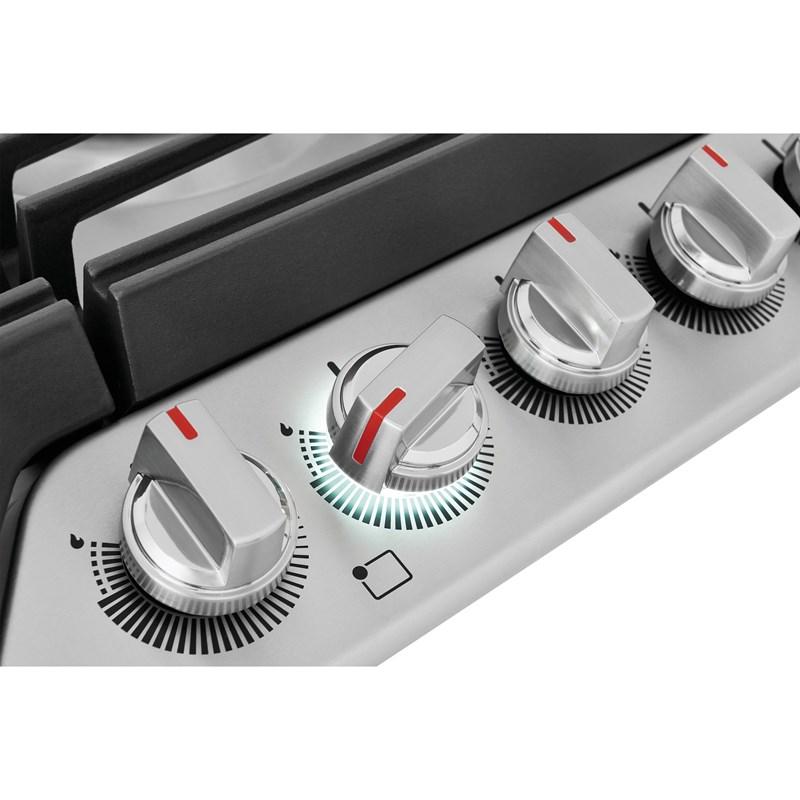

- BRIGHT, BACKLIT LED KNOBS — Backlit LED knobs light up when the cooktop is in use.

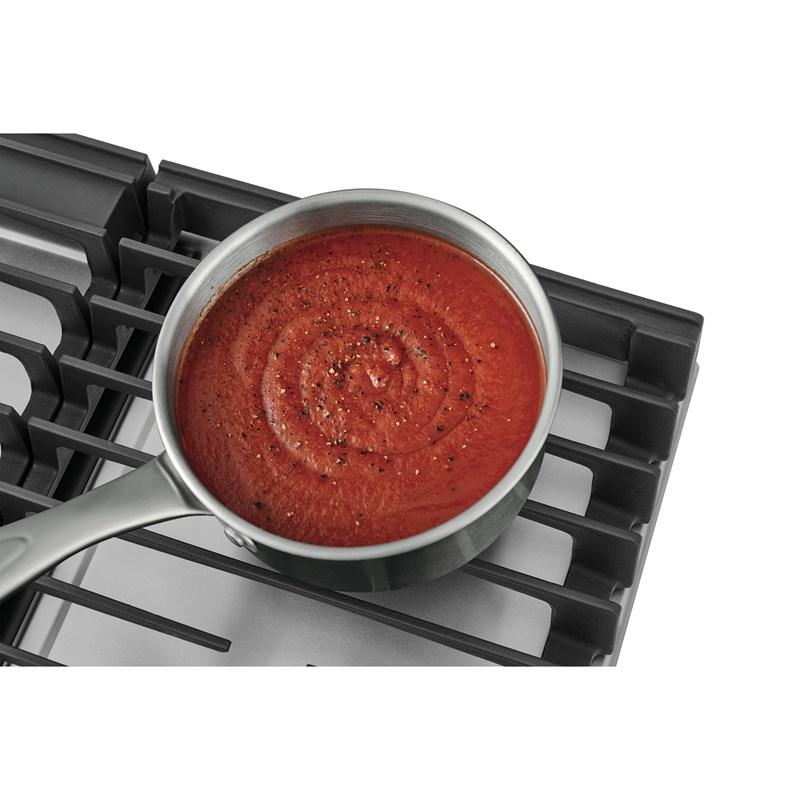

- LOW SIMMER BURNER — Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.

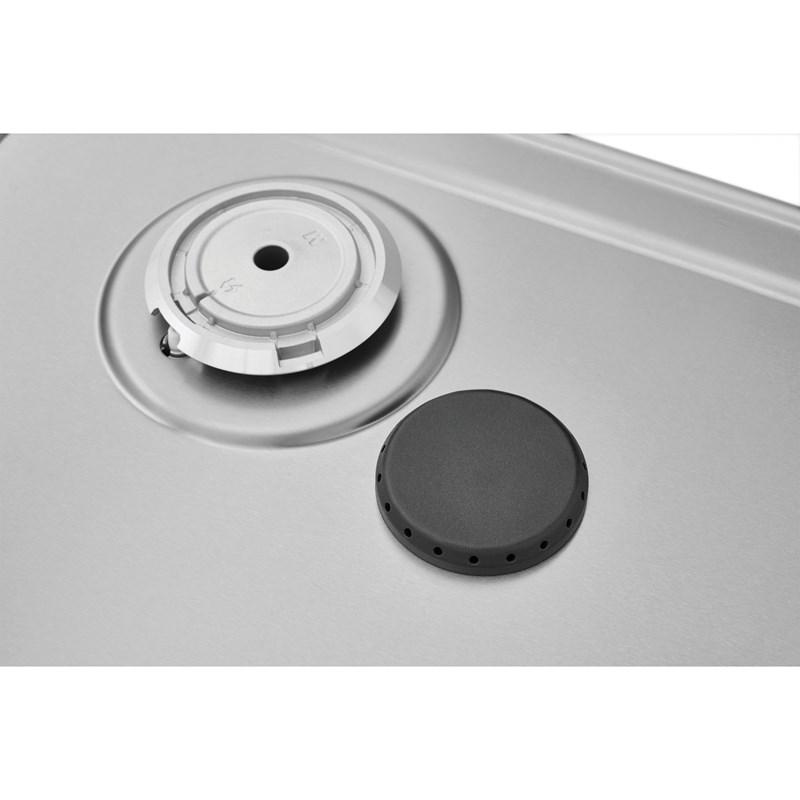

- DISHWASHER-SAFE BURNER CAPS — Cleaning your cooktop is easier with removable, dishwasher-safe burner caps.
- CONTINUOUS GRATES — Continuous Grates make it easy to move heavy pots and pans between burners without lifting.
- SPILLSAFE® COOKTOP — Cooktop contains your spillovers for easier clean up.
- APPROVED OVER FRIGIDAIRE® ELECTRIC WALL OVENS — Cooktops are approved for installation above any of the Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Power supply connection location: Right center | Gas supply connection location: Top right | Control location: Front | Backlit knobs
Specifications
| Burners/Elements | 5 | Height | 6.2 cm | Width | 91.44 cm |
| Depth | 53.34 cm | Class Width | 36" | Fuel Type | Natural Gas |
| Type | Built-In | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| UPC# | 12505565793 | Warranty | Limited 1-year warranty for labor and parts | ADA Compliant | Y |
| Power Output Right Front Element Burner: 12,000 BTU | Right Rear Element Burner: 5,000 BTU | Left Front Element Burner: 9,500 BTU | Left Rear Element Burner: 9,500 BTU | Center Front Element Burner: 18,000 BTU | |||||
| Surface Features Grate material: Cast iron | Grate quantity: 3 | Grate style: Continuous | |||||
| Information Minimum circuit required: 5 Amps | Voltage rating: 120 V | |||||
| Additional Dimensions Cutout Height: 7 1/2" | Minimum Cutout Width: 33 7/8" | Minimum Cutout Depth: 19" | Maximum Cutout Width: 35 5/8" | Maximum Cutout Depth: 20" | |||||
| Information CSA listed | UL listed | |||||
| Included Cooktop LP conversion kit included | Power cord included | |||||
Accessories
• Cooktop LP conversion kit included
• Power cord included
• Power cord included
