Description
About this Product

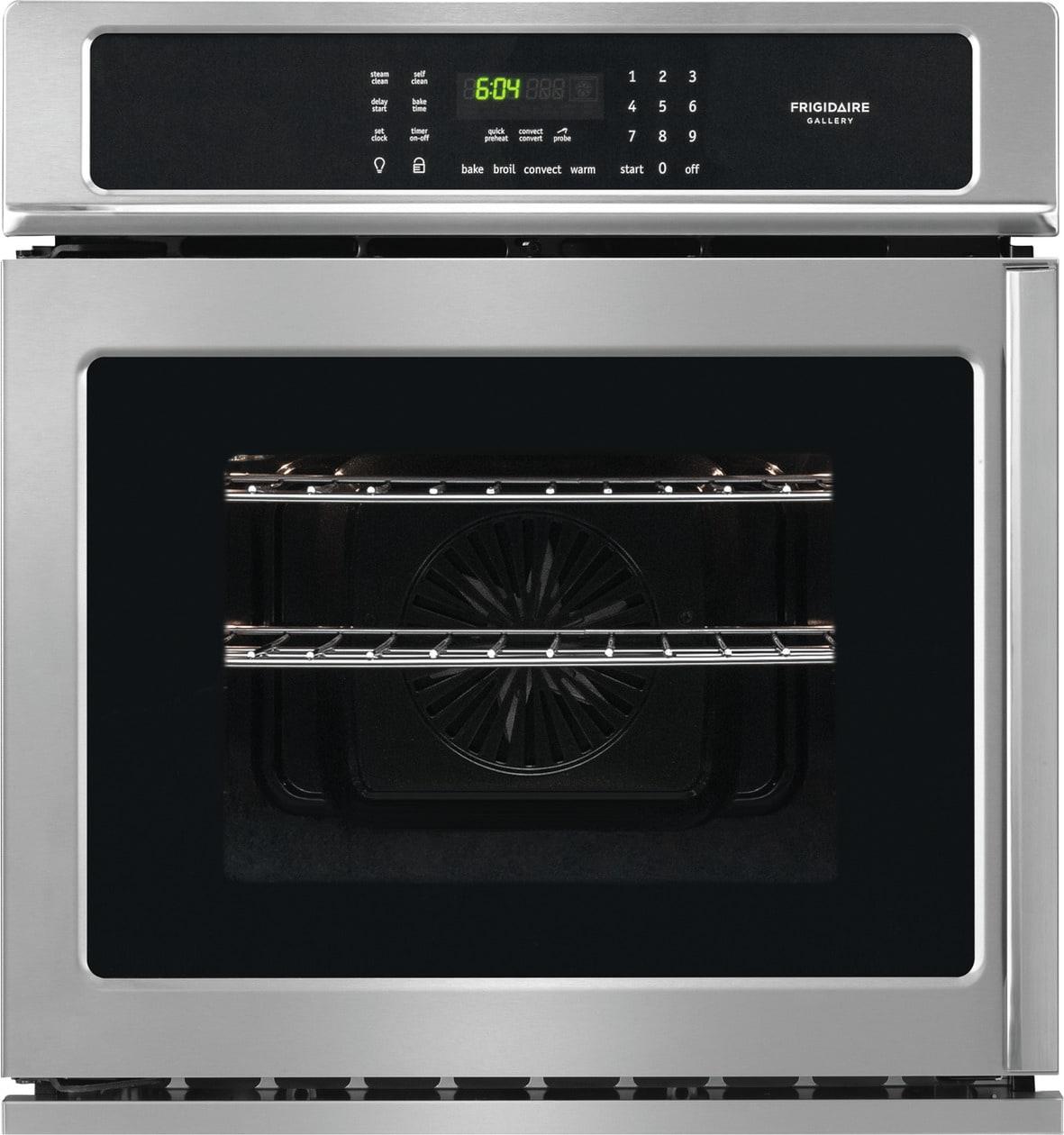

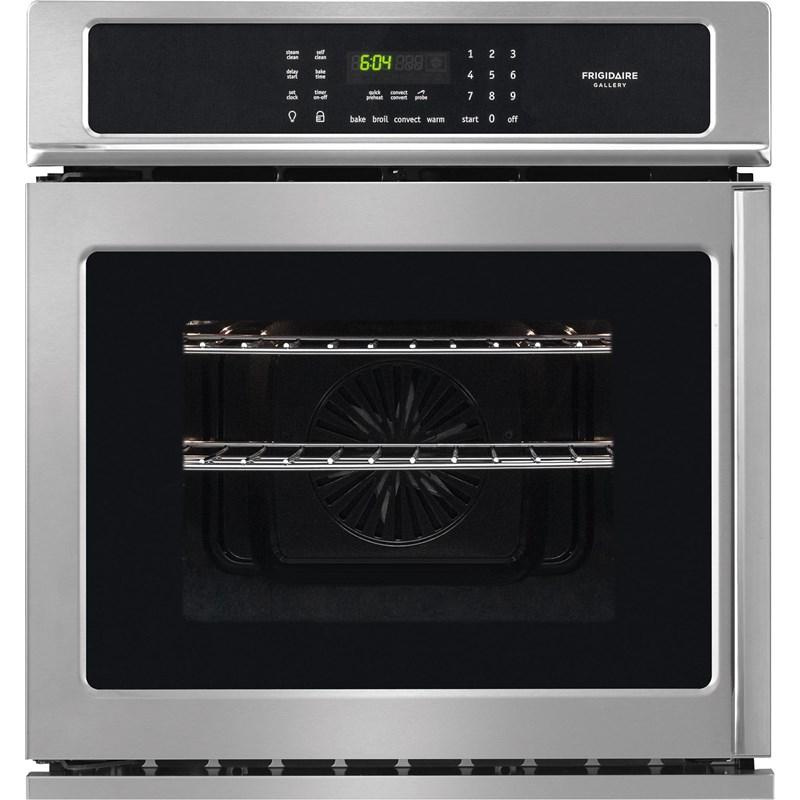

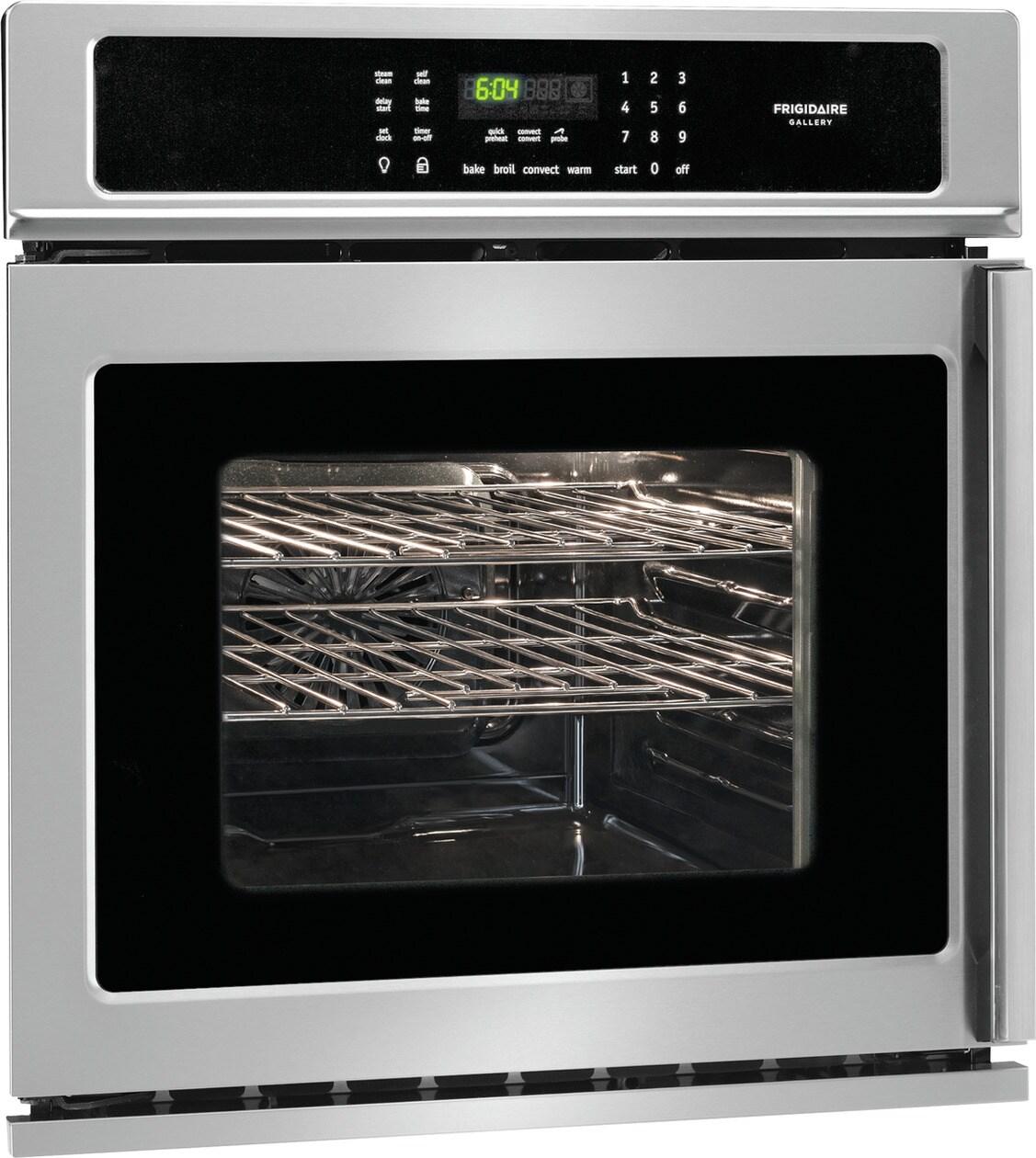

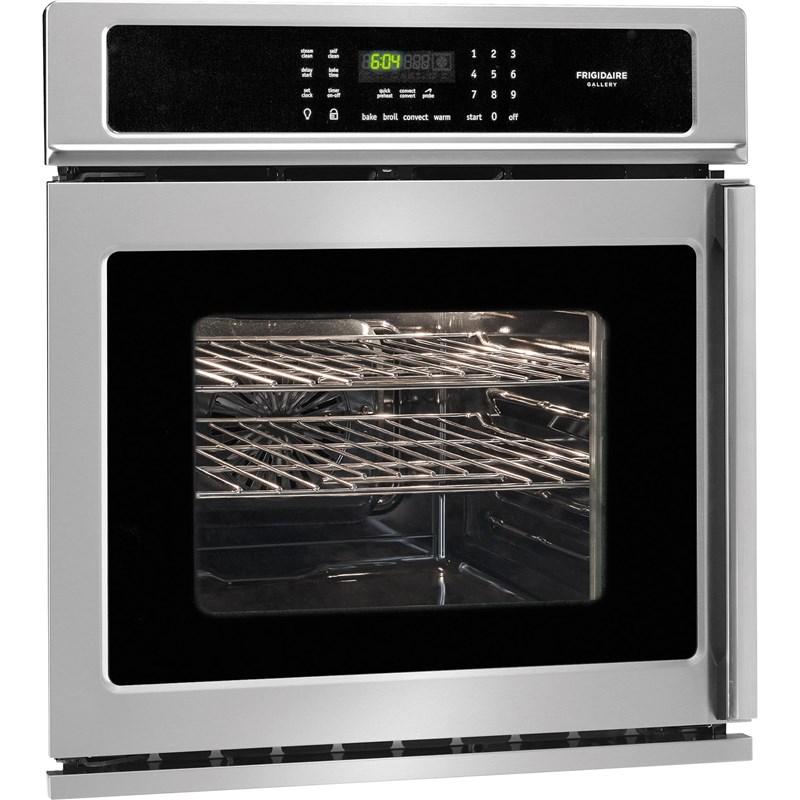

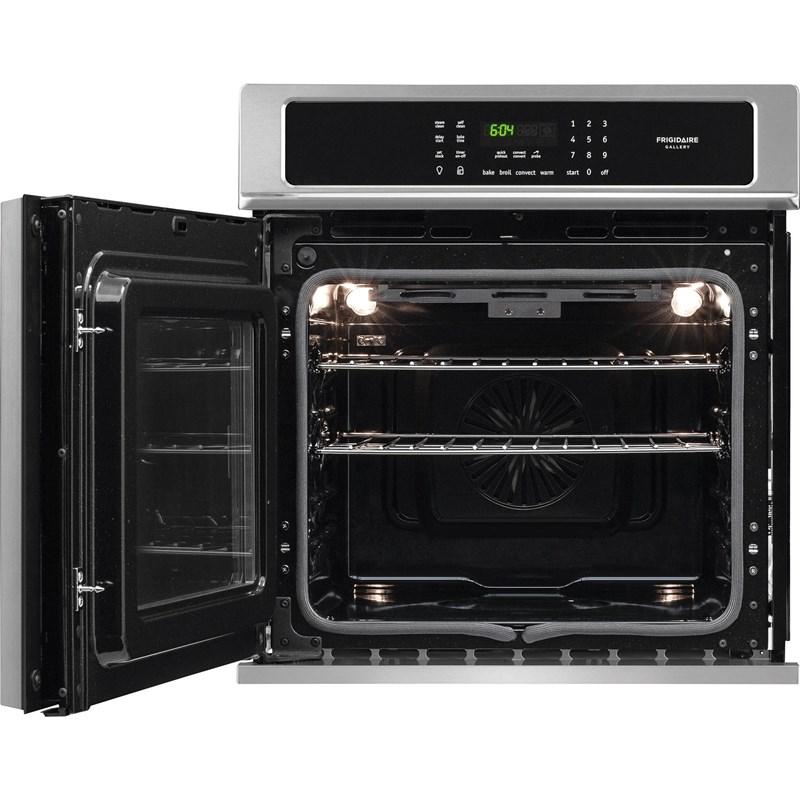

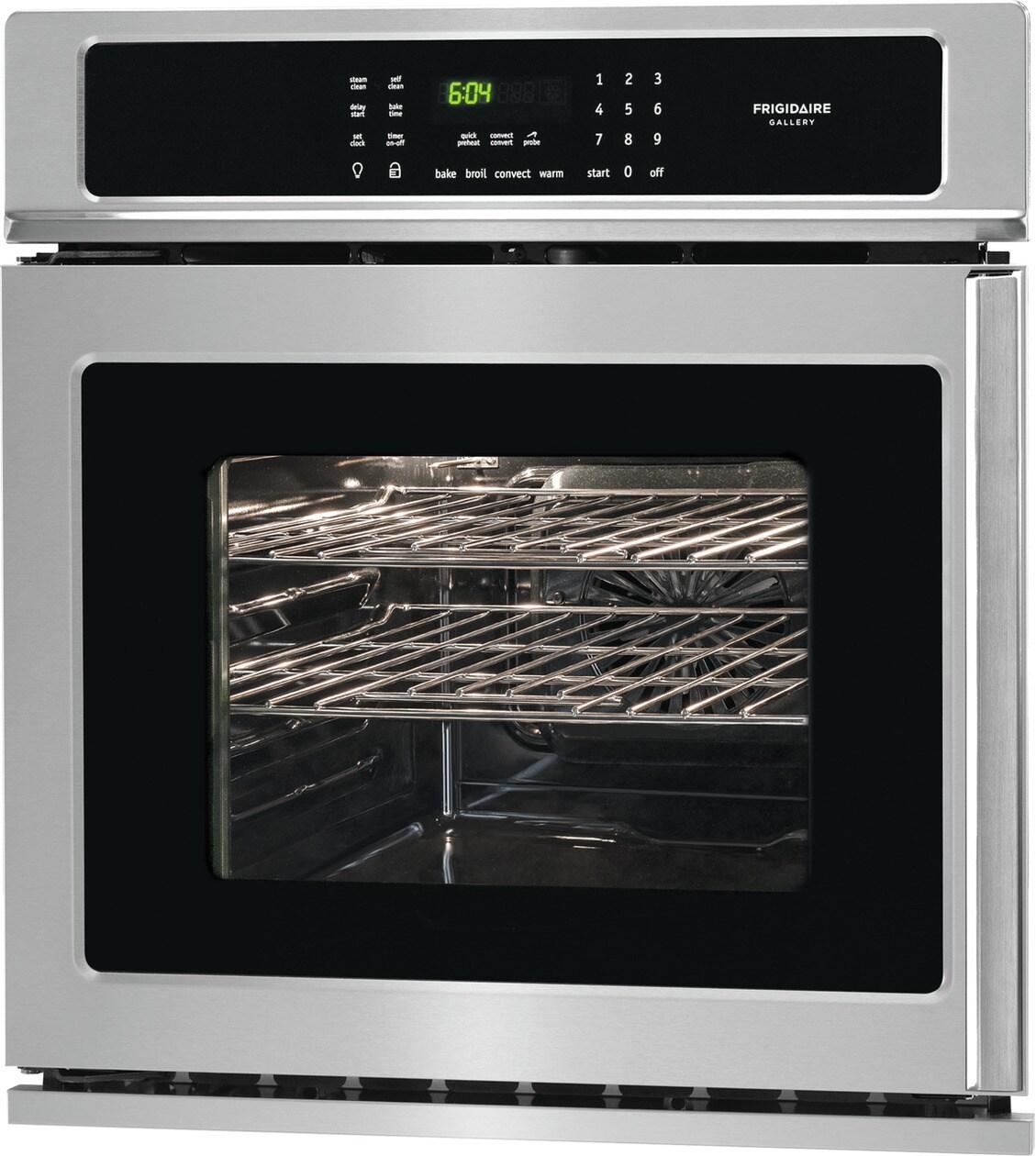

Frigidaire Gallery 27" single electric wall oven. This oven features Vari-Broil™ temperature control, true convection, power broil and Express-Select® controls.
Features
- STEAM CLEANING — A light oven cleaning that's chemical-free, odor-free, and fast.
- VARI-BROIL™ TEMPERATURE CONTROL — Allows you to choose heat levels.
- ONE-TOUCH KEEP WARM SETTING — Just one touch of a button keeps food warm until everything — and everyone — is ready
- DELAY START — Set your oven to begin cooking on your schedule. It can be programmed from one to 24 hours.
- POWER BROIL — Added power means you can broil food faster.
- TRUE CONVECTION — Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking.
- EXPRESS-SELECT® CONTROLS — Easily set cooking temperature or choose one-touch cooking options.
- SMUDGE-PROOF™ STAINLESS STEEL — Resists fingerprints and cleans easily.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Specifications
| Fuel Type | Electric | Color | Stainless Steel | Total Capacity | 3.8 cu. ft. |
| Clock | Y | Control Lock | Y | Convection | Y |
| Steam Oven | Y | Delay Bake/Start | Y | Digital Temperature Display | Y |
| Oven Light | Y | Self-Cleaning | Y | Height | 73.66 cm |
| Depth | 63.18 cm | Width | 68.58 cm | Class Width | 27" |
| Weight | 58.97 kg | Warranty | Limited 1 year parts and labor | UPC# | 12505802904 |
|
Technologies Express-Select® controls | Smudge-Proof™ stainless steel | Effortless™ convection conversion | Effortless™ temperature probe | Radiant Baking technology | True convection | Vari-Broil™
| |||||
|
Certifications Sabbath Mode (Star-K® Certified) | ADA Compliant | Agency Approval: UL/CSA
| |||||
|
Information 240 V/208 V | 60Hz | 20 A
| |||||
|
Additional Dimensions Oven interior (H x W x D): 17" x 20-1/2" x 18-3/4" | Height (wrapper): 27-1/4" | Width (wrapper): 24-5/8" | Depth with door open 90 degrees: 50-3/4" | Cutout dimensions: Height (min.)/(max.) 27-1/4"/ 28-1/4", width (min.)/(max.) 24-7/8"/ 25-1/4", depth (min.) 23-1/2"
| |||||
|
Optional 3"-high bottom trim: 318903509 | 10'-long armoured power cable: 903056-9010
| |||||
Accessories
• 10'-long armoured power cable: 903056-9010
Fuel Type
Electric
Color
Stainless Steel
Total Capacity
3.8 cu. ft.
Clock
Y
Control Lock
Y
Convection
Y
Steam Oven
Y
Delay Bake/Start
Y
Digital Temperature Display
Y
Oven Light
Y
Self-Cleaning
Y
Height
73.66 cm
Depth
63.18 cm
Width
68.58 cm
Class Width
27"
Weight
58.97 kg
Warranty
Limited 1 year parts and labor
Additional Information

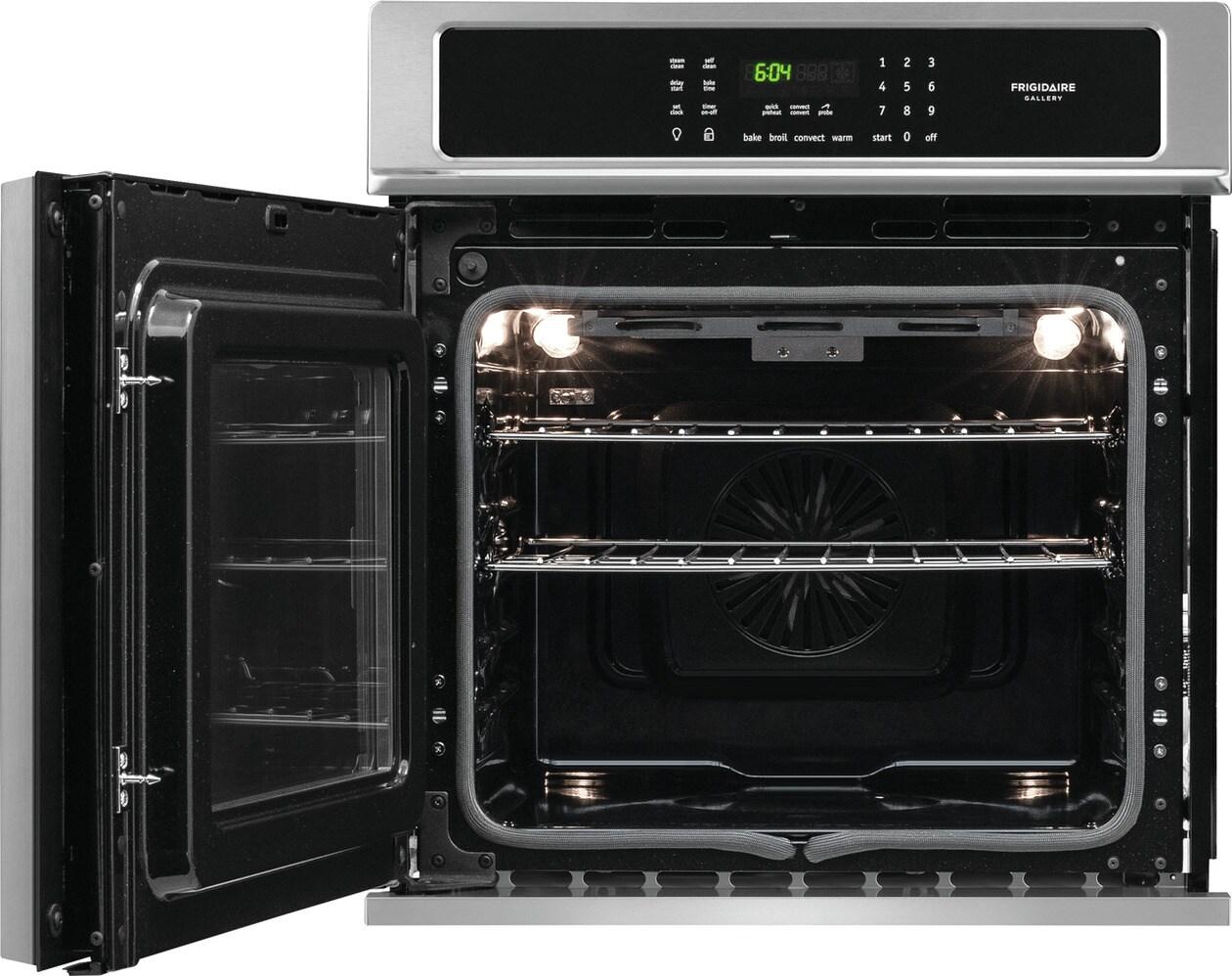

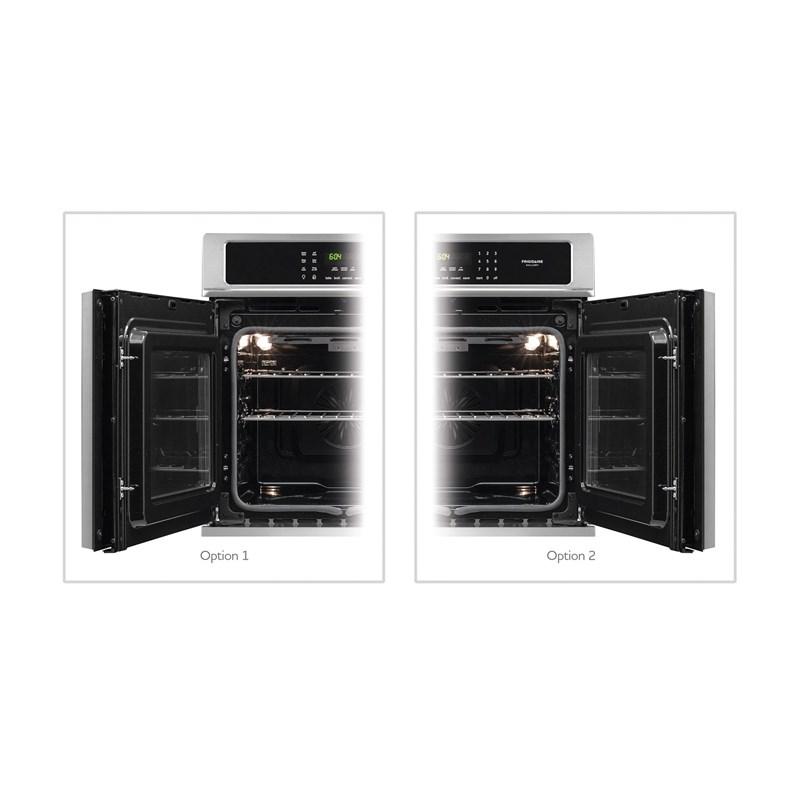

Reversible door | Self-clean with steam clean option | Convection bake/broil | Quick preheat | Keep warm | Self-clean/Clean options: 2, 3, 4 hours | Timed cook option | Auto oven shut-off | Approved for under-counter installation
Technologies
Express-Select® controls | Smudge-Proof™ stainless steel | Effortless™ convection conversion | Effortless™ temperature probe | Radiant Baking technology | True convection | Vari-Broil™
Certifications
Sabbath Mode (Star-K® Certified) | ADA Compliant | Agency Approval: UL/CSA
Information
240 V/208 V | 60Hz | 20 A
Additional Dimensions
Oven interior (H x W x D): 17" x 20-1/2" x 18-3/4" | Height (wrapper): 27-1/4" | Width (wrapper): 24-5/8" | Depth with door open 90 degrees: 50-3/4" | Cutout dimensions: Height (min.)/(max.) 27-1/4"/ 28-1/4", width (min.)/(max.) 24-7/8"/ 25-1/4", depth (min.) 23-1/2"
Optional
3"-high bottom trim: 318903509 | 10'-long armoured power cable: 903056-9010
Specifications
Product Line Single Wall Oven
Power Type Electric 240v
Size 27"
Installation Type Built-In
Factory Memphis
Color Stainless Steel
Installation
Power Supply Connection Location Bottom Center
Electrical Specifications
Amps @ 240 Volts 15.4 Amps
Minimum Circuit Required 20 Amps
Voltage Rating 240 V
Certifications and Approvals
ADA Compliant Yes
Cooking Controls
Add A Min No
Bake Yes
Broil Yes
Cancel Yes
Convection Convert Yes
Cook Time Yes
Delay Clean Yes
Delay Start Yes
Keep Warm Yes
Kitchen Timer Yes
Lockout Yes
Numerical Keypad Yes
Off Yes
Oven Light Yes
Pizza No
Preheat Yes
Probe Yes
Quick Bake Yes
Quick Preheat Yes
Self Clean Yes
Set Clock Yes
Start Yes
Start Time Yes
Steam Clean Yes
Temperature Display Yes
Oven
Bake Element 1,450 Watts
Bake System Yes
Broil Element 3,400 Watts
Broil Element Pass 6
Broil System Yes
Convection Element 2,500 Watts
Convection Type Fan

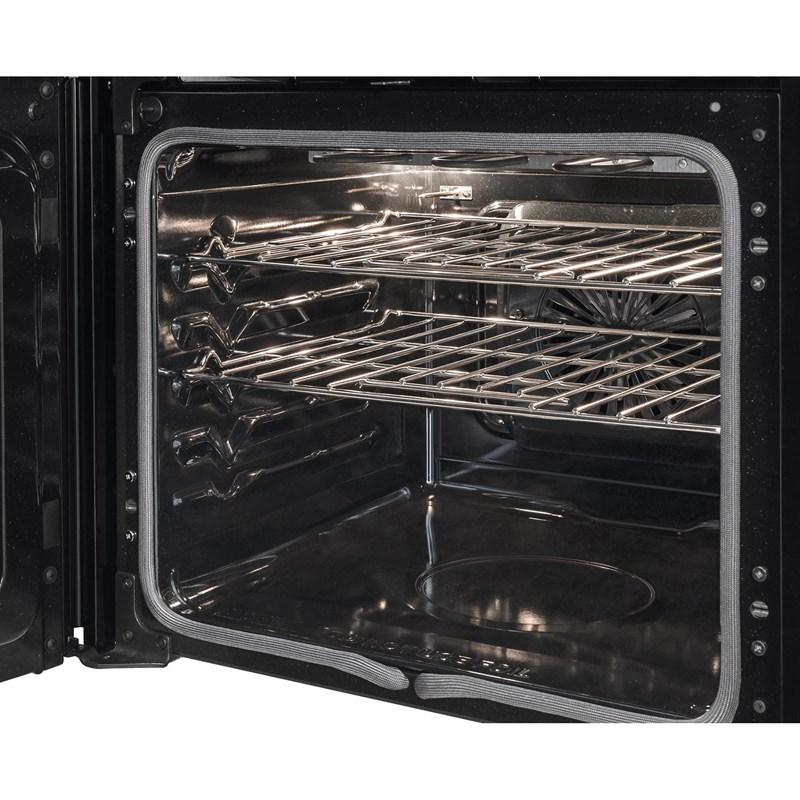

Number of Rack Positions 5
Oven Interior Color Midnight Black
Rack Position Type Nickel Ladder
Rack Type 1 Handle
Rack Type 1 Quantity 2
Window Type Large
Dimensions and Volume
Height 29"
Width 27"
Depth 24"
Depth With Door 90° Open 50 3/4"
Oven Interior Height 17"
Oven Interior Width 20 1/2"
Oven Interior Depth 18 3/4"
Oven Capacity 3.8 Cu. Ft.
Safety Certifications and Approvals
CSA Listed Yes
UL Listed Yes
Controls
Sabbath Mode Yes
General Specifications
Product Weight 119.23 lbs
Prop 65 Label No
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Exterior
Exterior Finish Smudge-Proof® Stainless Steel
Handle Color Stainless Steel
Display
Display Type Membrane
While we do our best to make sure our dimension data is accurate, errors sometimes do occur in all cases, dimensions should be confirmed by reviewing the manufacturer supplied dimension drawing and/or cut sheet.
